Hobbywing XRotor 2207 D28x19 D5 1980kV 6s Lipo
- Part No: HW30418010
- Retail: €16.90
- EAN: 6938994417457
- Notice: 30418010
XRotor 2207.5 motor rated 1980kV for 6S LiPo The XRotor 2207.5 is a 1980kV motor designed... more
Product information "Hobbywing XRotor 2207 D28x19 D5 1980kV 6s Lipo"

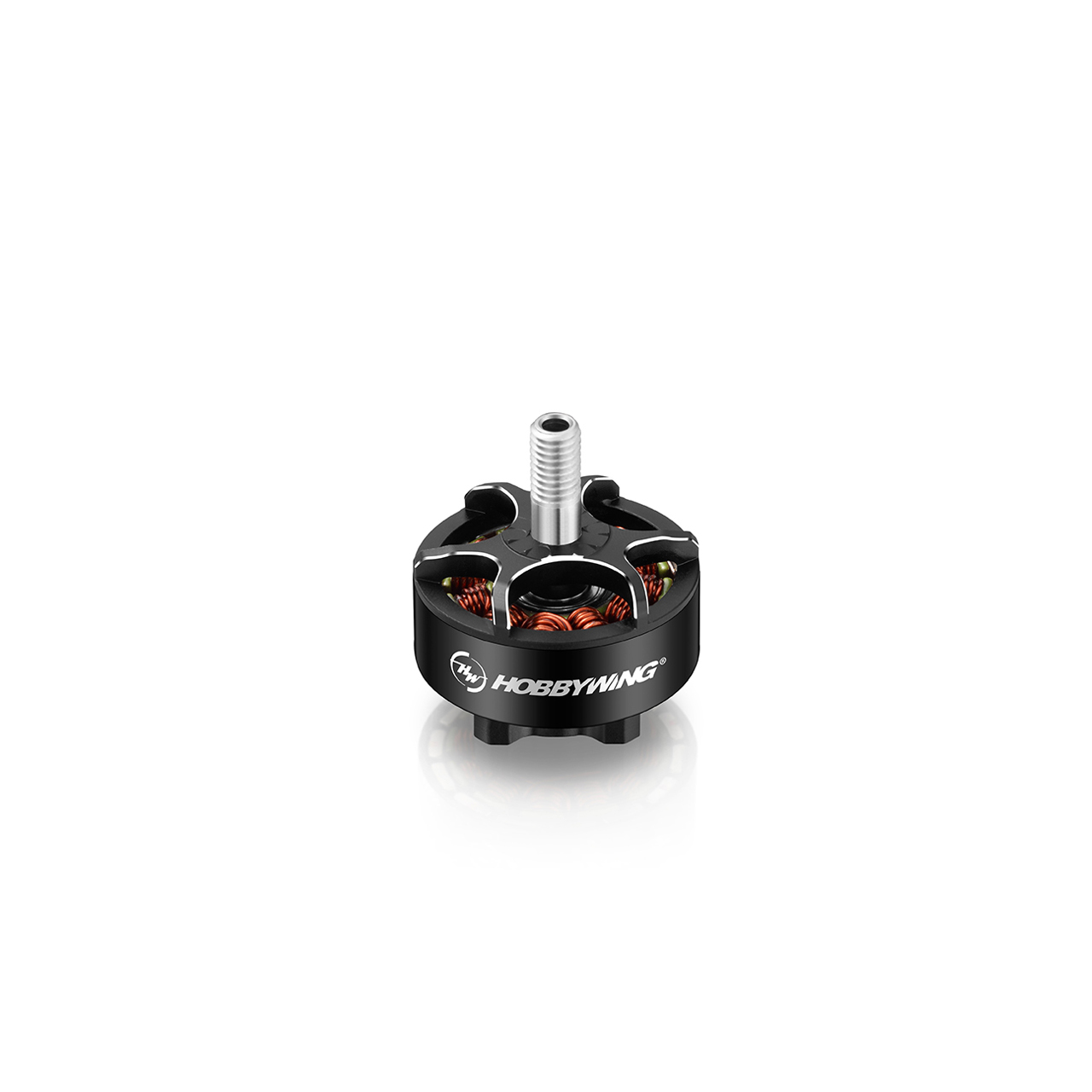

XRotor 2207.5 motor rated 1980kV for 6S LiPo
The XRotor 2207.5 is a 1980kV motor designed for smooth handling, power and efficiency.
Highlights
- 1980kV, optimised for higher RPM and response in freestyle and racing setups
- Electromagnetic design provides more torque at low RPM for precise control
- Self-cooling propeller mount design improves coil heat dissipation and efficiency and extends lifespan
- Anti-slip tooth design on the prop mount prevents propeller slippage
- 0.2 mm stator laminations, arc-shaped high-temperature magnets and 220 °C R-class winding wire for thermal stability
Specifications
| Model | XRotor 2207.5 (1980kV) |
| kV Rating | 1980kV |
| LiPo Cells | 6S |
| No-Load Current (at 24 V) | 3.2 A |
| Max. Continuous Current (3 s) | 49 A |
| Max. Continuous Power (3 s) | 1166 W |
| Max. Thrust (HQ-5037) | 1868 g |
| Weight (with cable) | 38 g |
| Dimensions | Ø 28 × 19.9 mm |
| Stator (Slot/Pole) | 12N14P |
| Internal Resistance | 65 mΩ |
| Shaft Ø | 5 mm + M5 |
Notes
- Recommended in combination with XRotor FPV G2 65 A ESC and HQ-5037 or HQ J37 props on 6S LiPo.
