Xerun XR10 Pro G3X Brushless ESC 160A, 2s LiPo
Sensored 160 A Brushless ESC for 2S LiPo with integrated data logging
- Item number
- HW30112620
- EAN
- 6938994408738
RRP €210.90
Description

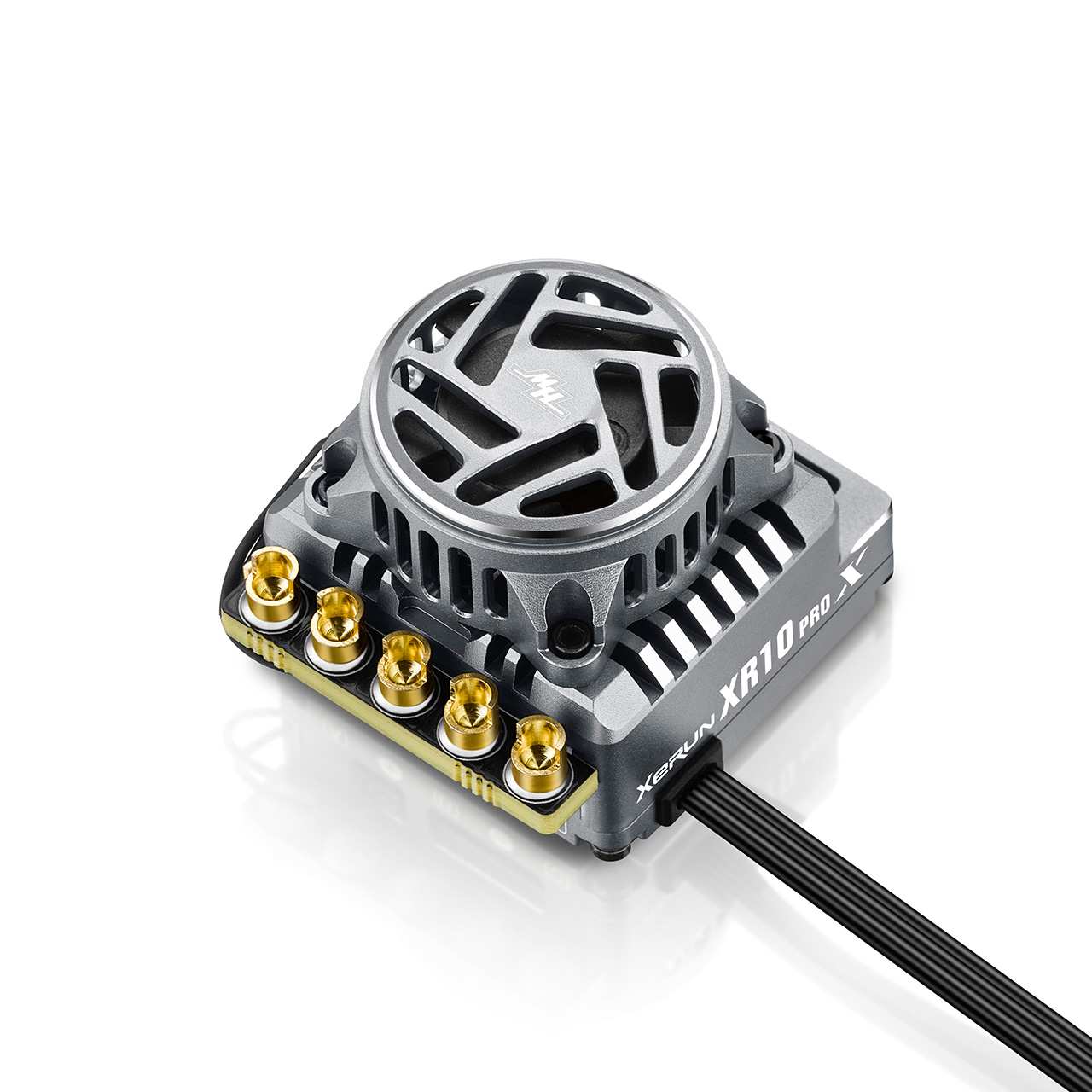

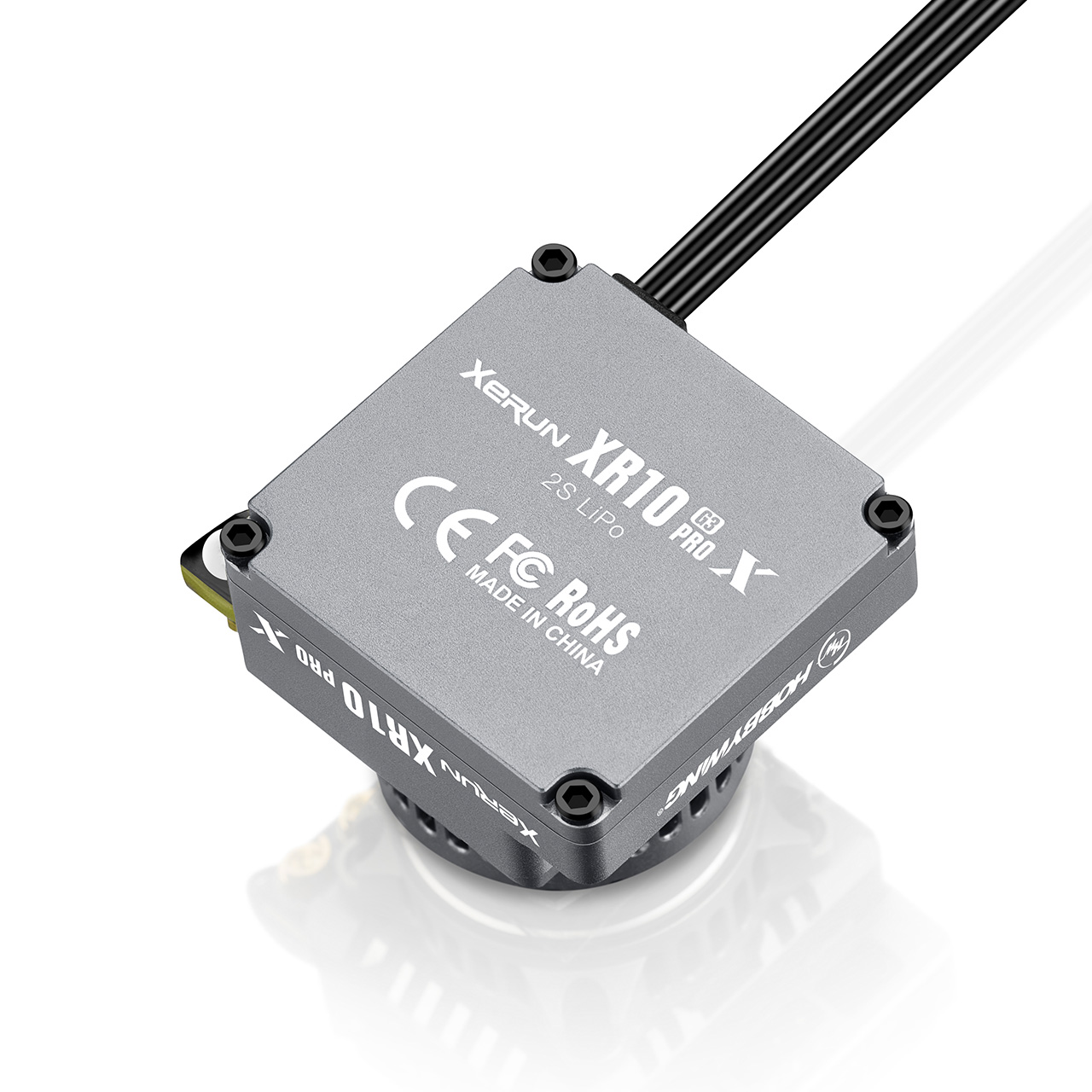

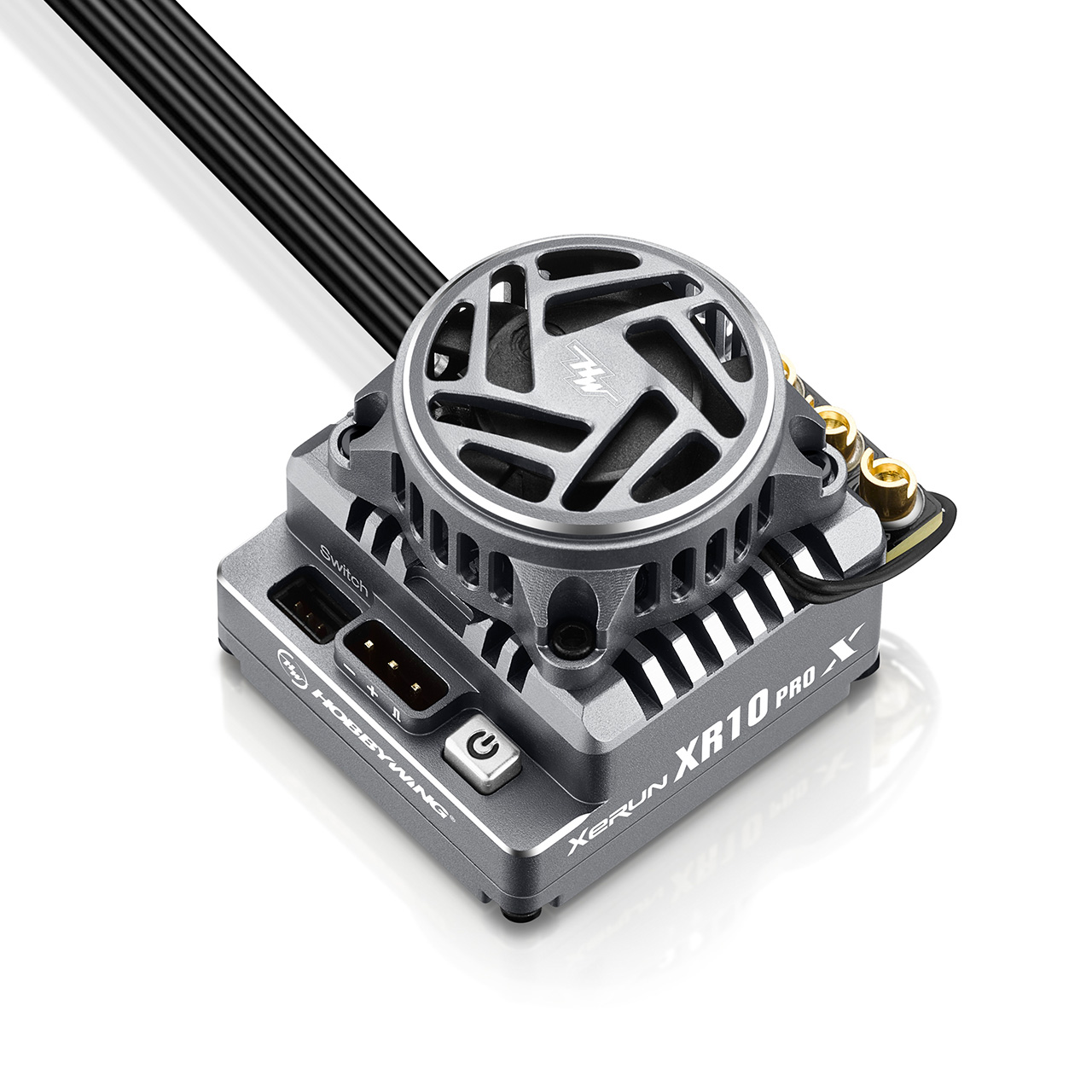

The Hobbywing XeRun XR10 Pro G3X is a competition ESC with a frameless fan. Compared with the XR10 Pro G2S, its LCG design reduces the height by 2 mm for a lower centre of gravity and improved vehicle balance. Its integrated data logger stores up to 19 data sets of 20 minutes each without a constant connection to the OTA Bluetooth module.
The freewheeling function lowers the operating temperature compared with its predecessor. Disc Brake Mode provides linear brake force control across all speeds. The ESC offers two adjustment levels for its programmable parameters.
Compared with the black G3 standard version, the G3X has a more aggressive power output, comes with 12AWG wires and has no reverse polarity protection.
Notes
- Optional accessories: LCD programming box (HW30502001), OTA programming module (HW30850400).
Highlights
- Integrated data logging; OTA or LCD required for analysis
- Optimised temperature control
- Disc Brake Mode for precise brake control
- 44+ parameters
- Softening 2.0
- LCG design and optimised wiring
- Optimised for stock competitions
Specifications
| Type | Brushless, Sensored |
|---|---|
| Current (Cont./Peak) | 160 A / 1200 A |
| Input Voltage | 2S LiPo |
| BEC | Switch Mode 5–7.4 V @ 5 A |
| Motor Types | Touring Car: 4.5T+, Buggy: 5.5T+, 3650 (540) Size 2-Pole Motor |
| Fan | Yes, powered by the BEC |
|---|---|
| Programming | LCD programming box, OTA programming module |
| Dimensions | 35 × 33.6 × 30.3 mm |
| Weight | 93 g (without cables) |
| Application | 1/10 |
