- Part No: HW30112609
- Retail: €194.00
- EAN: 6938994408486
- Notice: Brushless, Speedo, ESC,30112609
Specially designed for 1/12 Racing. Reliable hardware in combination with great software is an... more

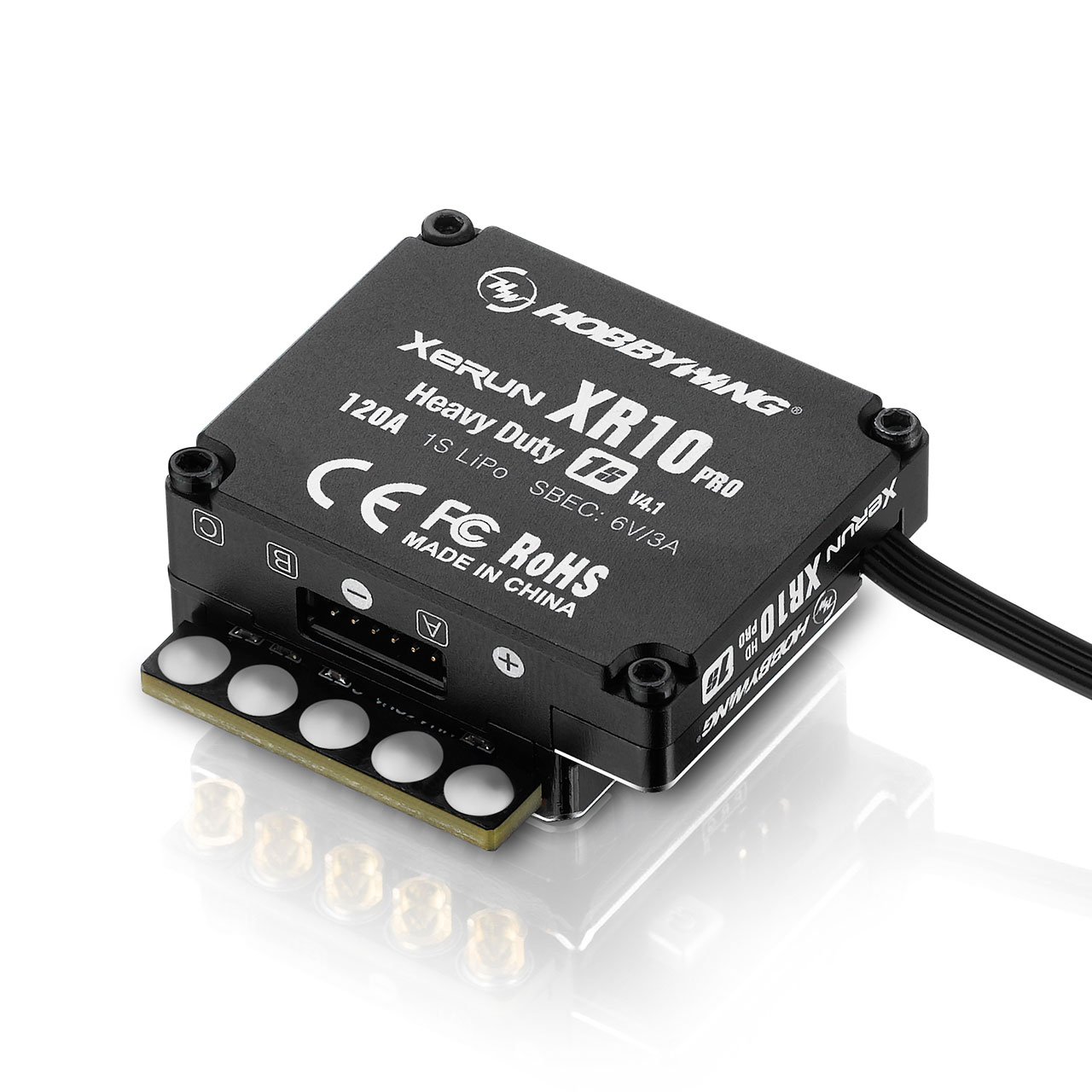

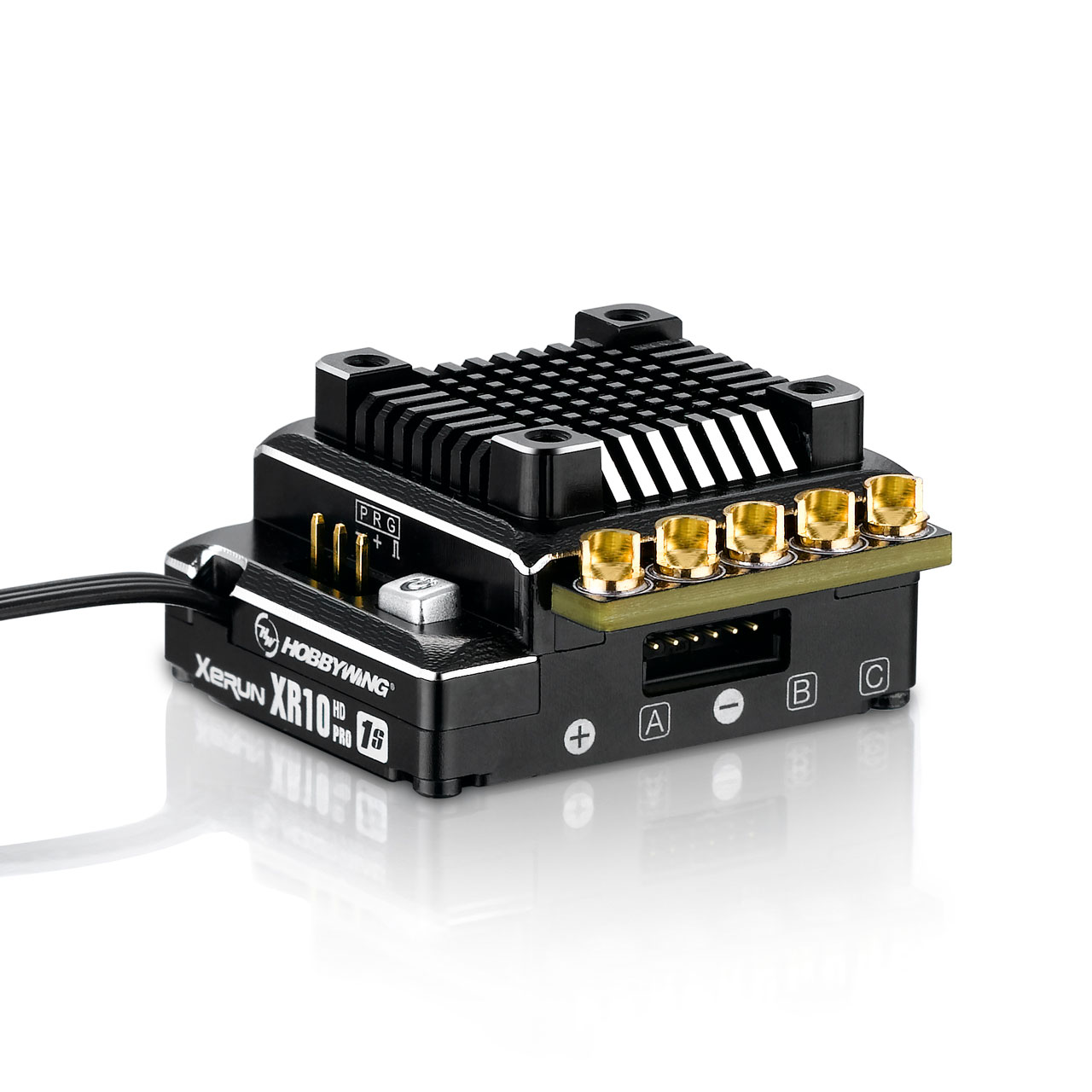

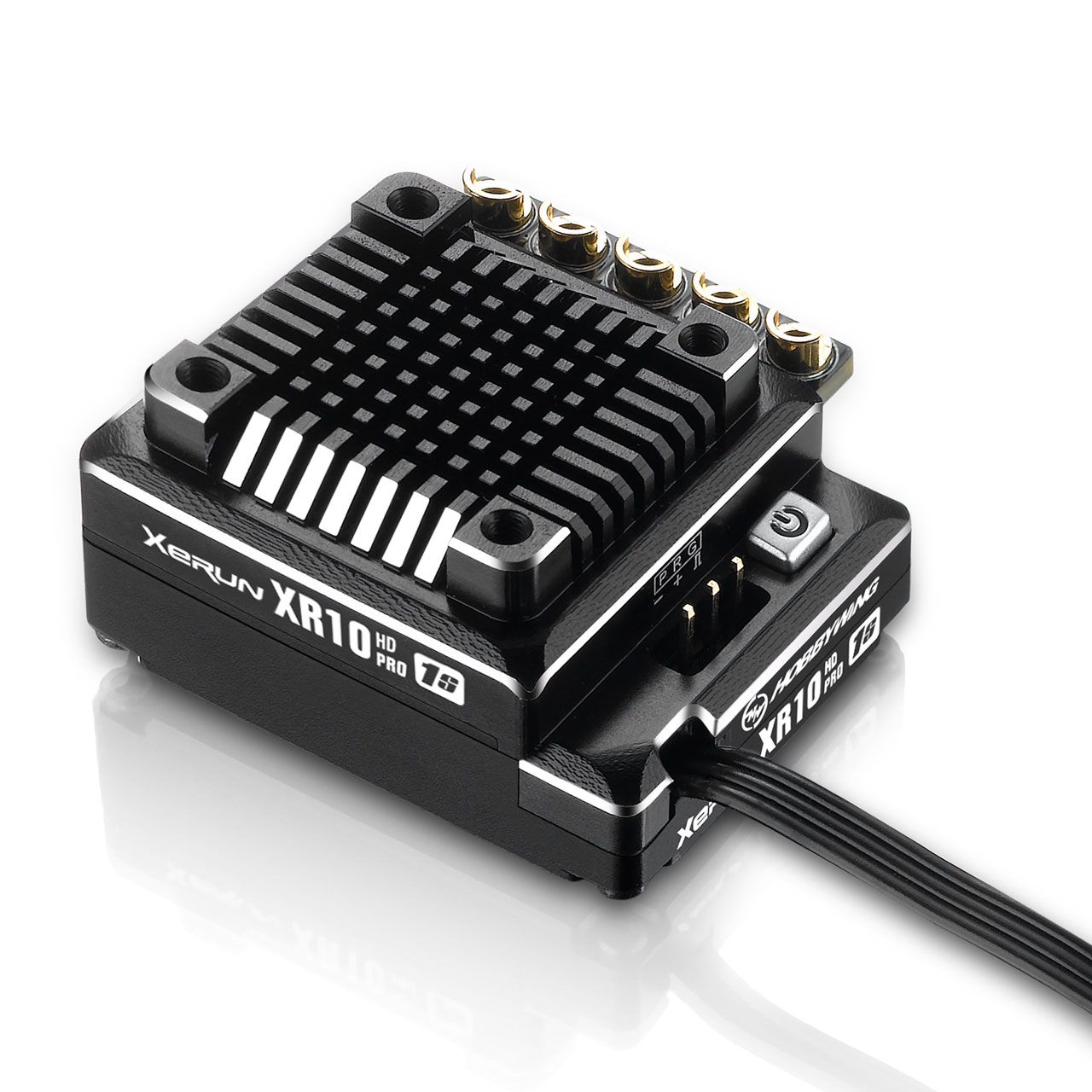

Product information "Hobbywing Xerun XR10 Pro 1S Brushless ESC 120A for 1/12"
Specially designed for 1/12 Racing. Reliable hardware in combination with great software is an ideal prerequisite for hard race use.
Powerful BEC with 6V and 3A, electronic on/off switch as well as small and light are other advantages for the XR10Pro V4 1s controller.
All parameters are easily and quickly adjustable via the separately available WiFi module or LCD programming box.
Powerful BEC with 6V and 3A, electronic on/off switch as well as small and light are other advantages for the XR10Pro V4 1s controller.
All parameters are easily and quickly adjustable via the separately available WiFi module or LCD programming box.
Features:

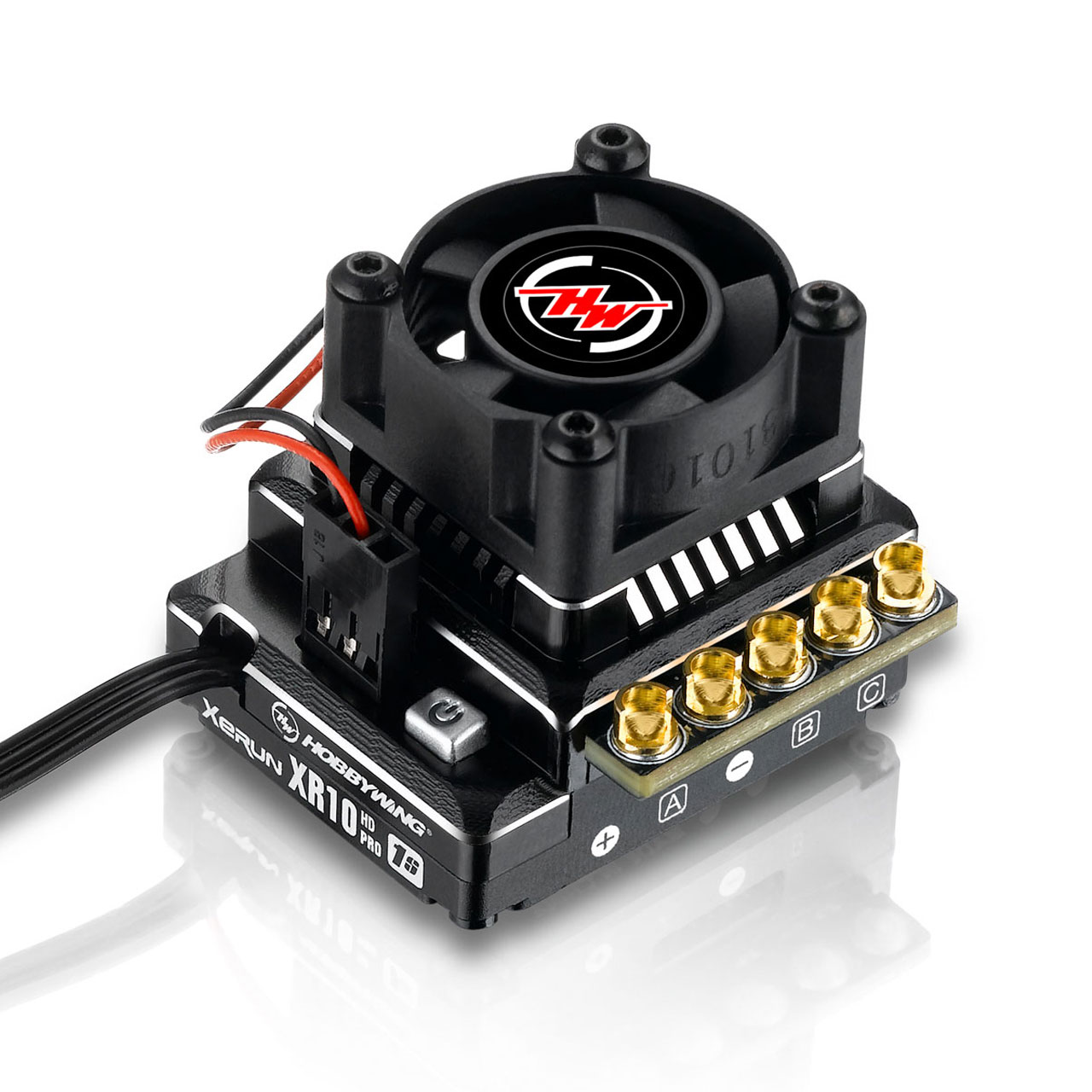

- With removable heat sink for a fan
- 5 pre-programmed profiles including Blinky Mode
- Super BEC with 6V/3A
- External programming connection for programming box or WiFi module
- Adjustable turbo timing and boost timing
- Extremely wide range of brake settings
- Monitoring and protection for undervoltage, controller and motor temperature, fail safe
- Data logging of the max. controller and motor temperature, speed etc.
Specifications:
Type | Brushless / Sensor / Sensorless |
Current cont / peak | 120A/830A |
Cell number | 1s LiPo, 3-4s NiMH |
Motor Limits | 1s: > 3.0T if ESC in Zero Timing / Blinky Mode |
BEC | Switch Mode 6V/3A |
Dimensions | 37.5x31x15.9mm |
Weight | 35.6g |
Waterproof | No |
Vehicles | 1/12 Touring Car |
Set contains:
1x ESC
1x Programming cable
1x Sticker sheet
Connection cable for motor and battery
Cable ties, heat shrink tubing, adhesive pads
1x Manual (English)
Optional accessories:
HW30502000 LCD programming box
HW30503000 WiFi module
