The XR10 JUSTOCK G3 ESC in its Handout version was specially developed for races and training rides and differs from the regular G3 ESC by the differently set RPM limits, with which the limit can be set according to the racing requirements - gradually adjustable from 18,000 - 33,500RPM or completely unregulated. In addition, there is the fixed "0" timing, which is often required for races. So get ready for a fair and successful race.
Lots of new Features
Another new feature is that the motor can now turn clockwise or counterclockwise thanks to the Justock G3 ESC. This makes it possible to use it in far more cars than its predecessor. And just like the direction of rotation of the motor, the BEC voltage can also also be programmed. You can freely choose between 6 and 7.4V via the smartphone with the OTA programming module or the LCD programming card. In addition to the countless safety functions, the G3 version comes with reverse polarity protection, which ideally prevents damage caused by incorrectly plugging in the battery.
The Xerun series by Hobbywing exclusively comprises sensor-based brushless systems for professional racing use. The product range extends from 1/12 to 1/8 as well as from "Modified" to "Stock". The excellent performance, the high reliability and some other features meet the high demands of top-level drivers in all respects.
Features
RPM limit set higher than the normal Justock G3 ESC
Perfectly suited for competition thanks to the RPM-Limit and 0-Timing options
Motor direction of rotation free choosable (CW or CCW)
Adjustable BEC Voltage (6V or 7,4V)
Robust aluminum housing for ideal heat dissipation

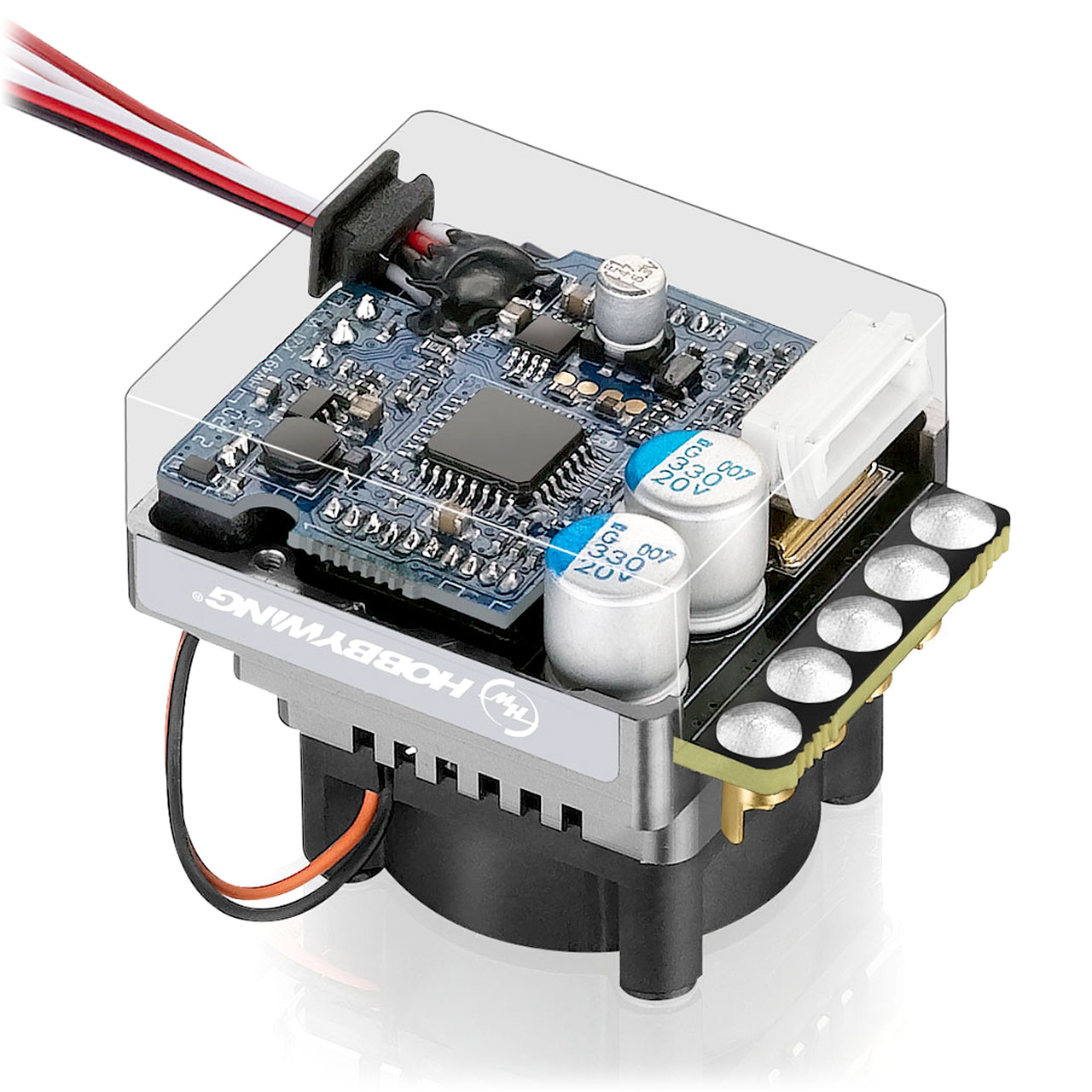

Built-in capacitors as a space-saving solution compared to external capacitors
Various protective functions against
Polarity reversal
Overheating
Undervoltage shutdown
Fail-safe
Motor lock-up
Numerous possibilities for programming (LED / LCD programming, WiFi / OTA module, ...)
Firmware upgrades possible to always be up to date
Technical Specifications
Type:
Brushless, Sensored
Power cont./peak
60A / 380A
Input Voltage:
2S Lipo
BEC:
6V / 7.4V @ 4A
Motor Types:
Brushless Motors (sensored and sensorless)
Motor Limit:
>=10.5T 3650 Motor
Fan:
Yes, Input via BEC
Programming:
SET-Button, LED Programming Box, LCD Programming Box, Wifi Module, OTA Module, separate Programming Port
Dimensions:
40.9x33.9x32.1mm
Weight:
75.4g
Application:
1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy)
Optional Accessories:
HW30501003 LED Programming Box HW30502001 LCD Programming Box HW30850400 OTA Programmer
