Xerun Justock Combo G3S with 21 Turn 2050kV for 1:10 Crawler
1:10 combo with XR10 Justock G3S ESC and 21.5T 2050kV motor
- Item number
- HW38020373
- EAN
- 6938994416832
€122.90incl. VAT, plus shipping
RRP €122.90
Description

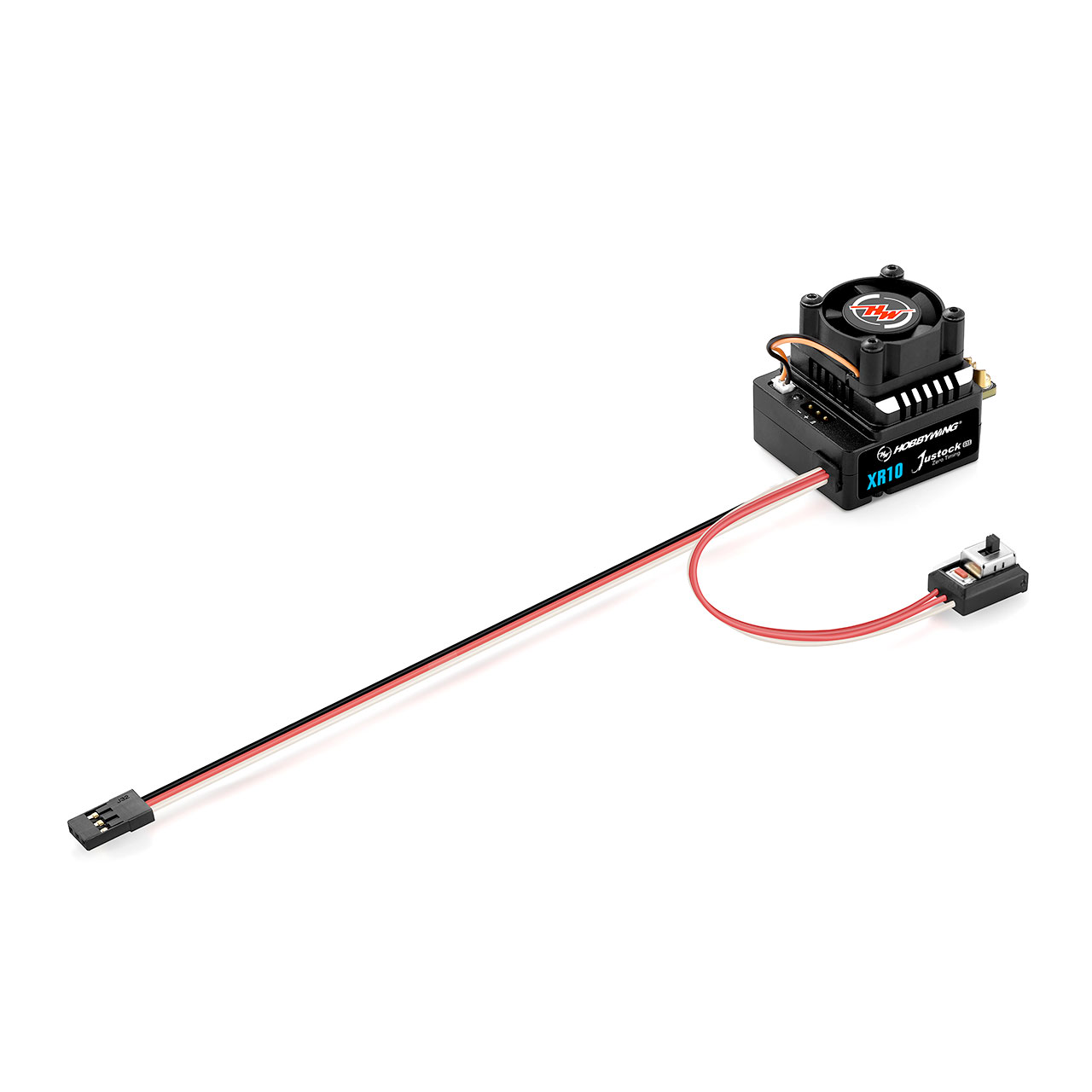

The combo pairs the XR10 JUSTOCK G3S ESC with the JUSTOCK 3650SD G2.1 motor for stock racing and training. The ESC offers an adjustable RPM limit up to 88000 RPM or unlimited operation, plus fixed 0-Timing. Its programming options also allow the motor rotation direction and BEC voltage to be set.
Highlights
- ESC parameters include smart fan, freewheeling and initial throttle force; refined parameter options
- RPM limit from 10000 RPM to 88000 RPM in 1000 steps (instead of only 25000 or 33500); fixed 0-Timing
- Selectable motor rotation direction (CW or CCW) and BEC voltage (6 V or 7.4 V)
- Aluminium housing for heat dissipation and built-in capacitors instead of external capacitors
- Protection against polarity reversal, overheating and Fail-safe; firmware upgrades possible

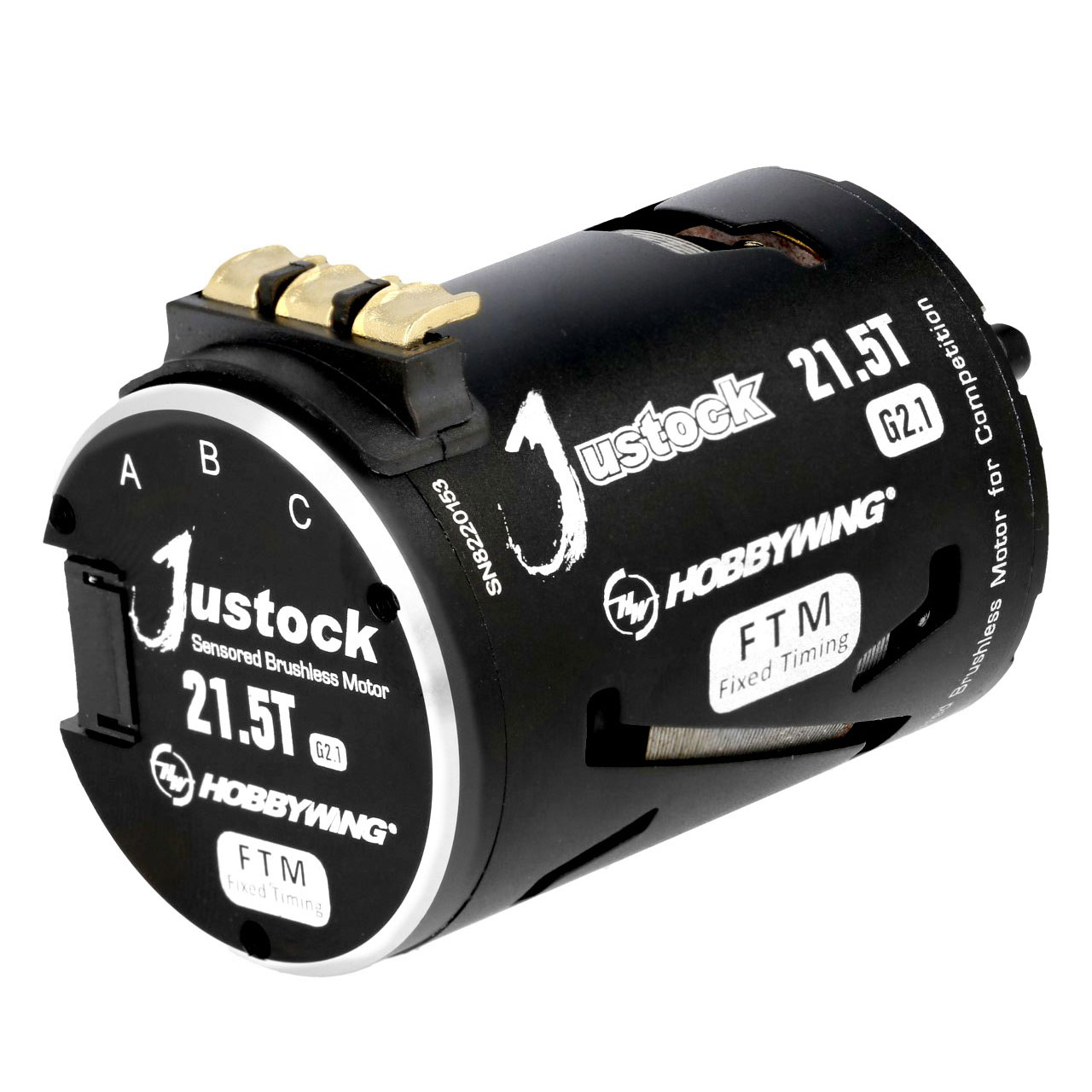

- Motor with heat-resistant magnet, double-insulated windings and precision bearings
- Motor with heat dissipation, linear and smooth control, and rebuildable design
Specifications
| Type | Brushless, Sensored |
|---|---|
| Power (cont./peak) | 60 A / 380 A |
| Input Voltage | 2S LiPo |
| BEC | 6 V / 7.4 V at 4 A |
| Motor Types | Brushless Motors (sensored / sensorless) |
| Motor Limit | ≥10.5T 3650 Motor |
| Fan | Yes, Input via BEC |
| Programming | LCD Programming Box G2, LCD Programming Box Pro, / OTA Module, separate Programming Port |
| Dimensions | 40.9 × 33.9 × 32.1 mm |
| Weight | 75.4 g |
| Application | 1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy) |
| Type | Brushless / Sensored |
|---|---|
| Poles | 2 |
| kV Rating | 2050kV |
| Turns | 21.5T |
| LiPo Cells | 2–3S |
| No-Load Current | 3.0 A |
| Outer Diameter | 35.9 mm |
| Length | 52.5 mm |
| Shaft Diameter | 3.17 mm |
| Weight | 175 g |
| Timing | Fixed |
| Application | 1/10, 1/12 Crawler and F1 (Stock Class) |
In the box

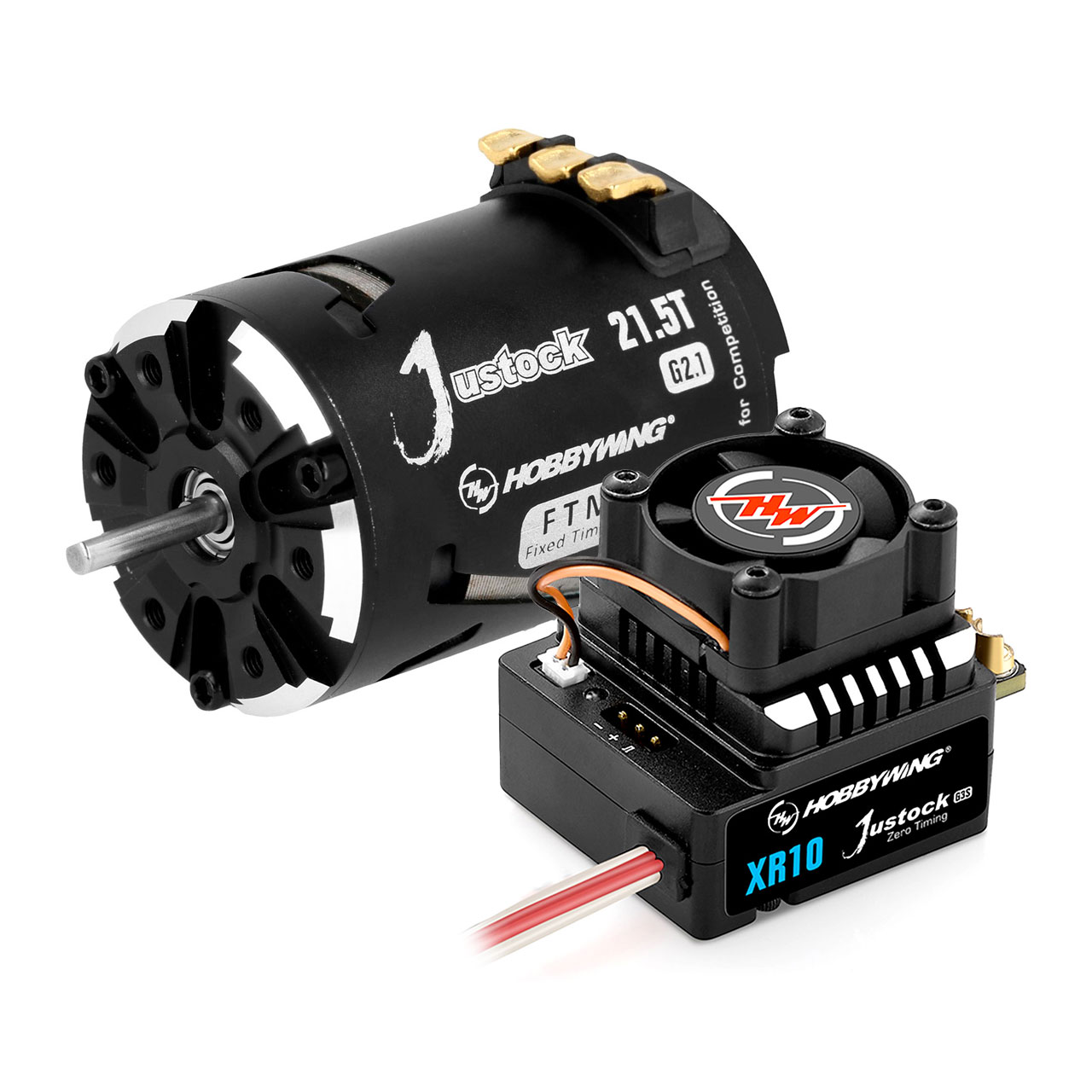

- 1 × XR10 Justock G3S ESC
- 1 × Justock 3650SD G2.1 Motor with 2050kV
