Hobbywing Skywalker D35.1x40mm D5mm 550kV 6s Lipo
Please inform me as soon as the product is available again.
- Part No: HW30415200
- Retail: €42.90
- EAN: 6938994423090
- Notice: 30415200
Skywalker 2820 SL 550kV Brushless motor for fixed-wing models The 28-series Skywalker motor... more
Product information "Hobbywing Skywalker D35.1x40mm D5mm 550kV 6s Lipo"

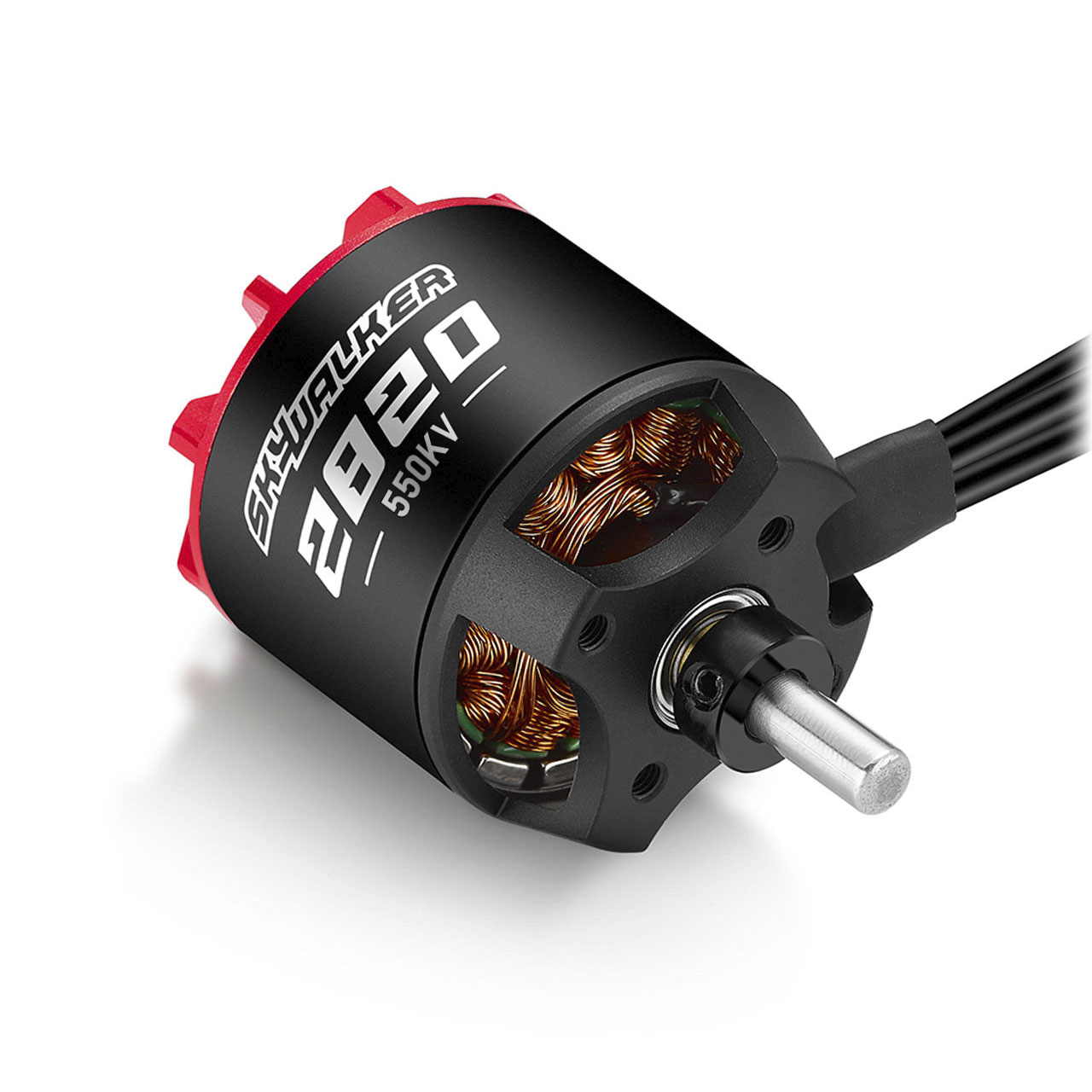

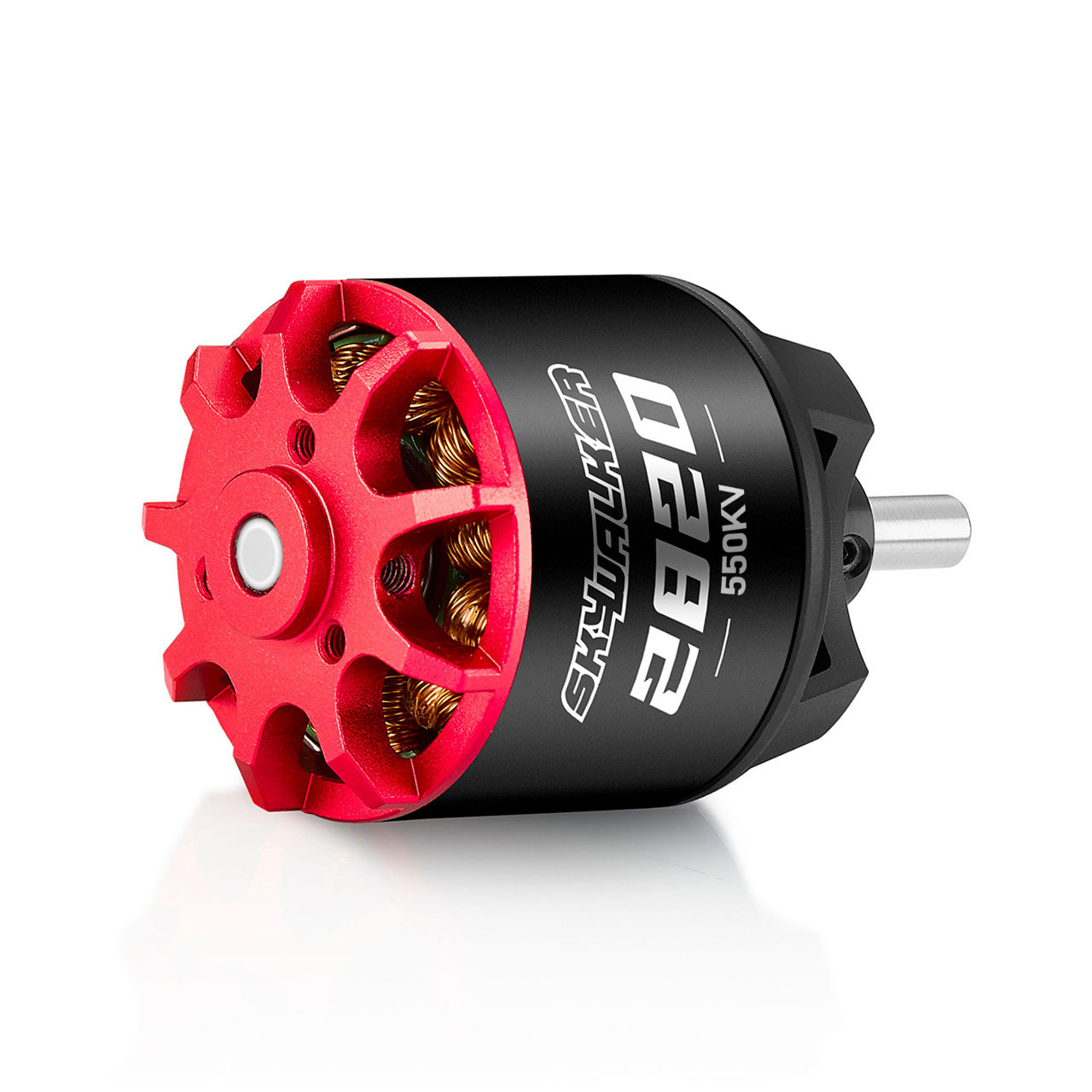

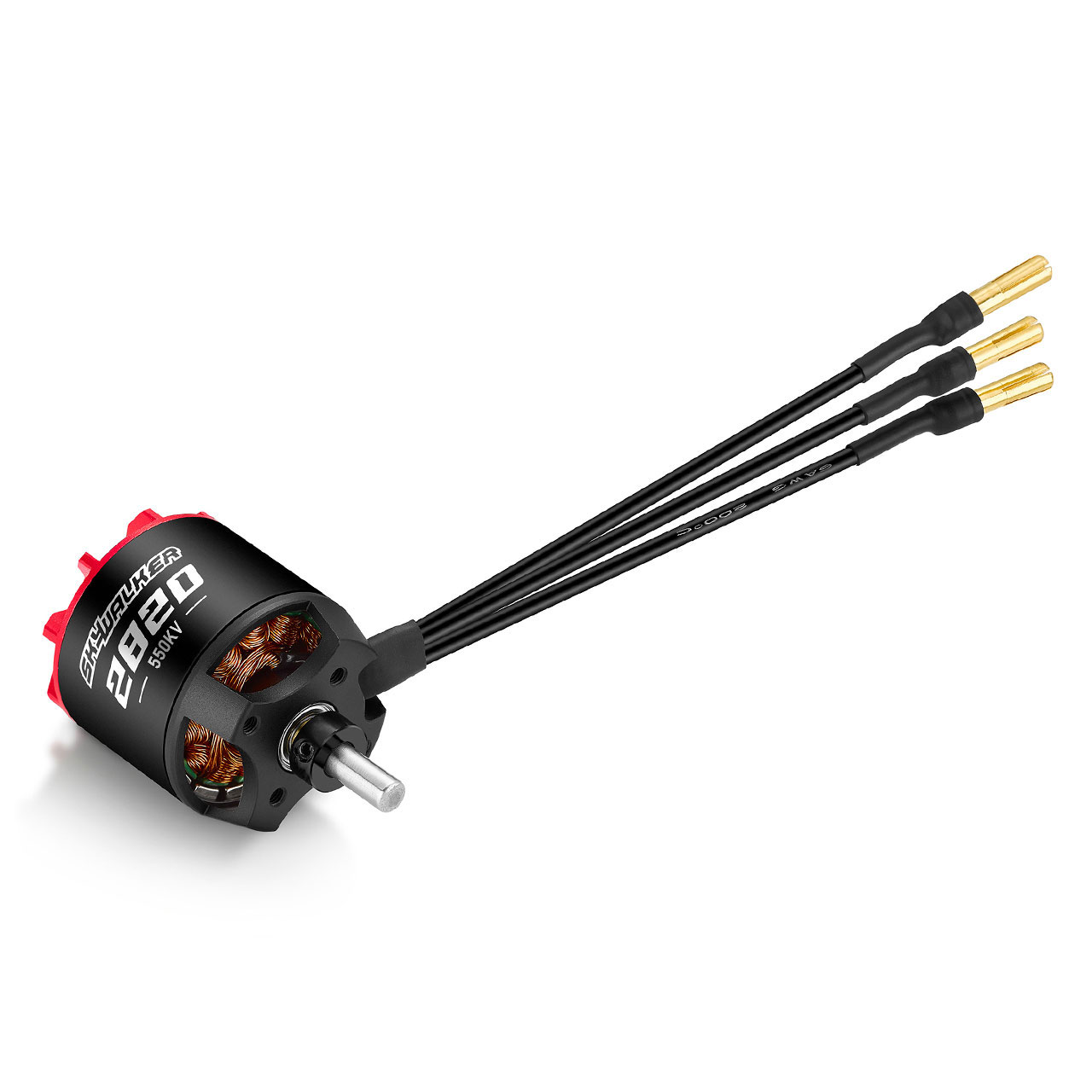

Skywalker 2820 SL 550kV Brushless motor for fixed-wing models
The 28-series Skywalker motor is a Brushless motor for fixed-wing models. It complements Skywalker ESCs.
A special propeller attachment increases torque. The motor uses N48 magnets, a 0.2 mm JNEH1200 silicon steel sheet and high-temperature-resistant enamelled wire. A generous cavity in the motor and the self-draining structure of the top cover increase cooling performance. The rotor is designed to reduce vibrations for smoother operation and is secured through the interaction of the motor components.
Highlights
- Powerful motor
- Suitable as a complement to Skywalker ESCs
- Optimised rotor running
- Designed for cooling and heat dissipation
- 16AWG silicone cable
Specifications
| Type | Brushless |
| kV Rating | 550kV |
| No-Load Current | 1.38 A/22.2 V |
| Resistance | 60.8 m Ohm |
| LiPo Cells | 6S LiPo |
| Slots & Poles | 12N14P |
| Max. Continuous Current | 40.9 A/46 s |
| Max. Continuous Power | 910.2 W/46 s |
| Phase Wires | 16AWG, 110 mm |
| Bearings | 685ZZ (D11 × d5 × 5) |
| Diameter | 35.1 mm |
| Length | 60 mm |
| Shaft Diameter | 5 mm |
| Weight | 144.5 g |
| Recommended ESC | Skywalker V2 80 A |
| Propeller | 6S: 10x5E, 12x6E, 13x6.5E |
| Mounting Thread | D:15 mm-3 × M2.5 |
| Base Thread | D:19 mm-2 × M3 / D:25 mm-2 × M3 |
In the box
- 1× Skywalker motor 2820 SL 550kV
- 1× Manual
