Hobbywing Skywalker D35.1x34mm D5mm 1400kV 3-4s Lipo
- Part No: HW30415152
- Retail: €37.90
- EAN: 6938994423083
- Notice: 30415152
Skywalker 2814 SL 1400kV Brushless motor for fixed-wing models The 28-series Skywalker motor... more
Product information "Hobbywing Skywalker D35.1x34mm D5mm 1400kV 3-4s Lipo"

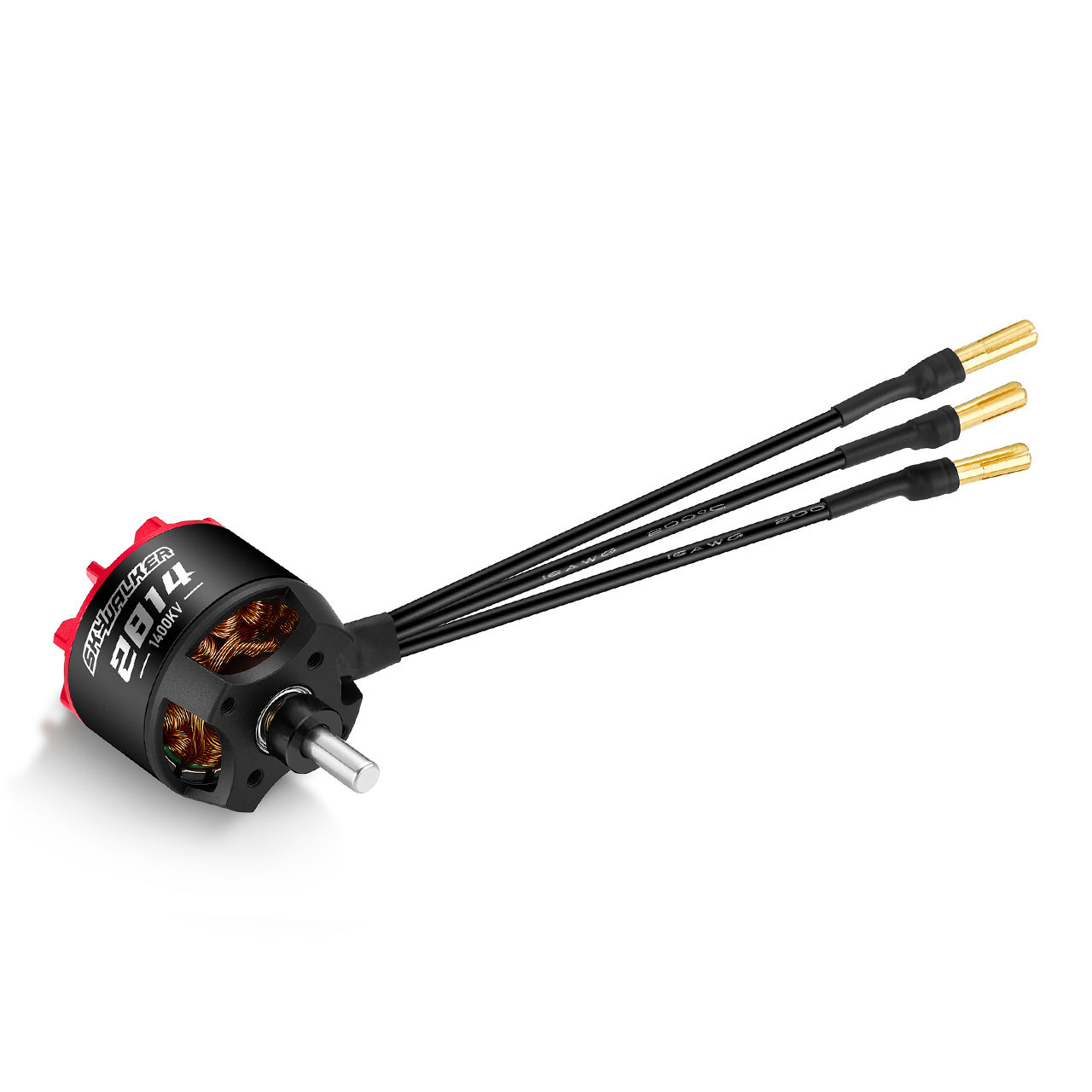

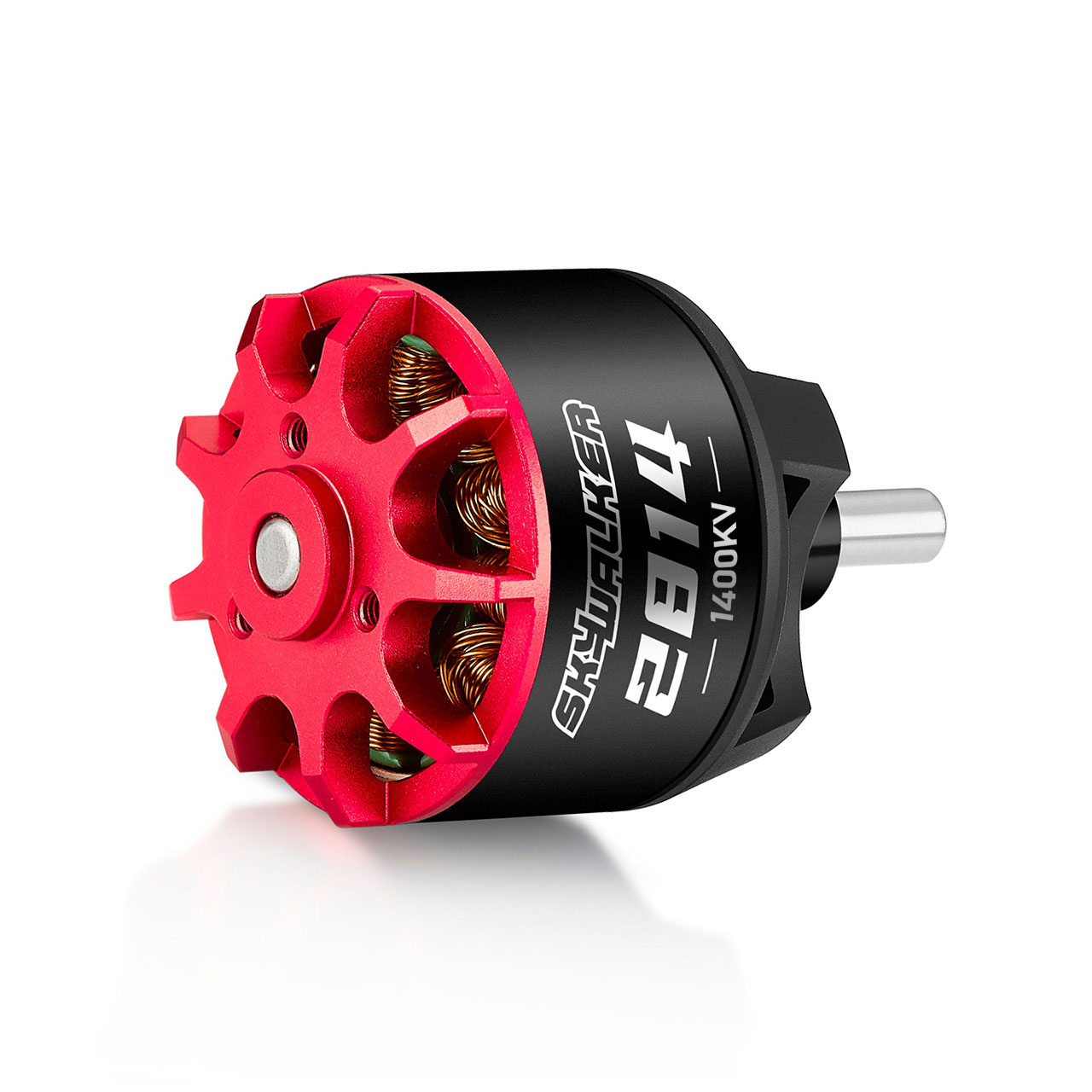

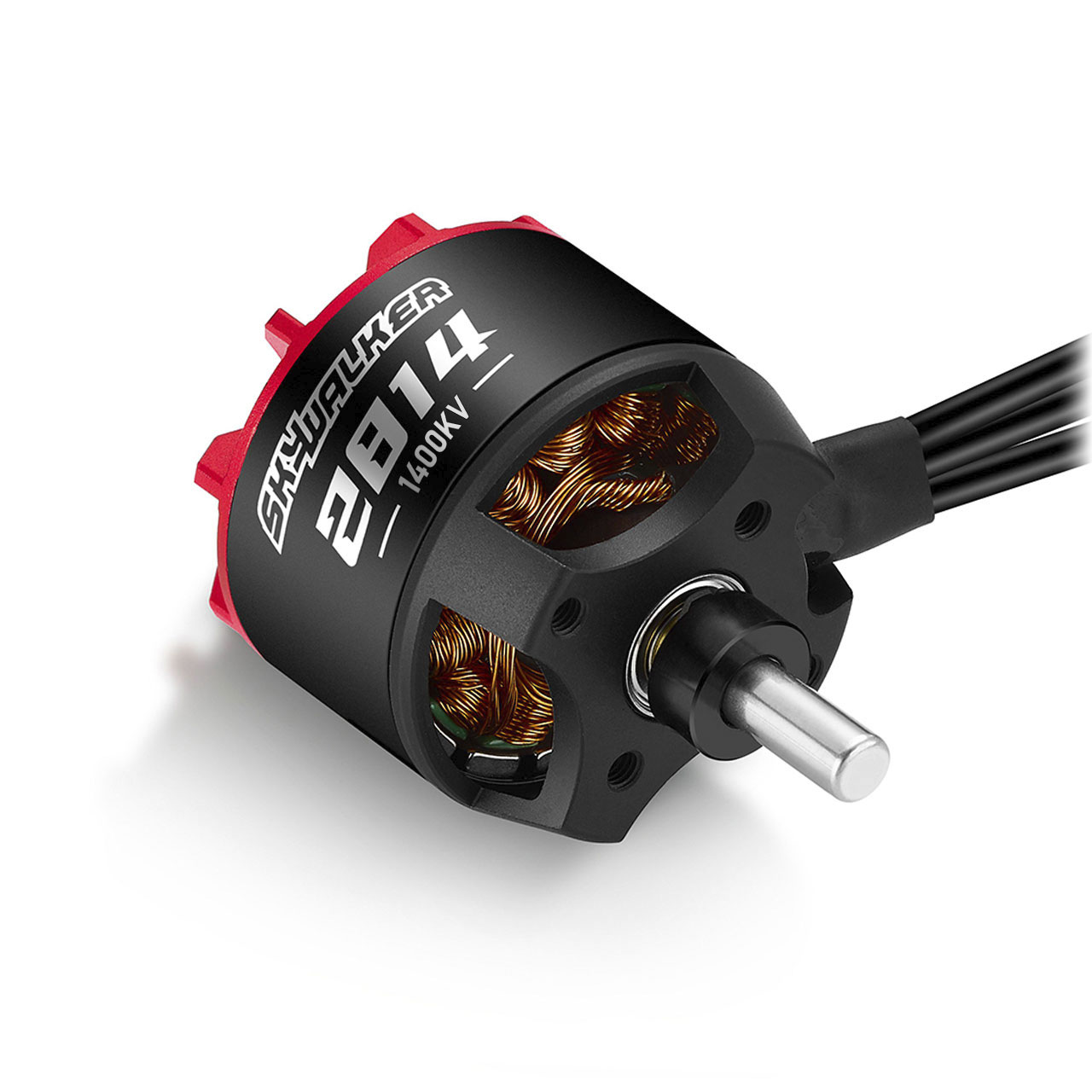

Skywalker 2814 SL 1400kV Brushless motor for fixed-wing models
The 28-series Skywalker motor is a Brushless motor for fixed-wing models with pulling power. It complements Skywalker ESCs.
A special propeller attachment increases torque. The motor uses N48 magnets, a 0.2 mm JNEH1200 silicon steel sheet and high-temperature-resistant enamelled wire. A generous cavity in the motor, together with the self-draining structure of the top cover, increases cooling performance. No problems due to excessive heating are to be expected.
The rotor is designed to reduce vibrations for smoother running. It is also secured through the interaction of the motor components.
Highlights
- Powerful motor
- Suitable as a complement to Skywalker ESCs
- Rotor designed to reduce vibrations for smoother running
- Designed for cooling and heat dissipation
- 16AWG silicone cable
Specifications
| Type | Brushless |
| kV Rating | 1400kV |
| No-Load Current | 3.3 A/14.8 V |
| Resistance | 16.8 m Ohm |
| LiPo Cells | 3–4S LiPo |
| Slots & Poles | 12N14P |
| Max. Continuous Current | 77.5 A/44 s |
| Max. Continuous Power | 1148.6 W/44 s |
| Phase Wires | 16AWG, 110 mm |
| Bearings | 685ZZ (D11 × d5 × 5) |
| Diameter | 35.1 mm |
| Length | 54 mm |
| Shaft Diameter | 5 mm |
| Weight | 115 g |
| Recommended ESC | Skywalker V2 80 A |
| Propeller | 4S: 8x4E, 8x6E, 9X4.5E / 3S: 10x5E, 10x6E, 11X5.5E |
| Clip Mounting Hole Thread | D:15 mm-3 × M2.5 |
| Base Thread | D:19 mm-2 × M3 / D:25 mm-2 × M3 |
In the box
- 1× Skywalker motor 2814 SL 1400kV
- 1× Manual
