Hobbywing Skywalker D35.1x34mm D5mm 1000kV 3-4s Lipo
- Part No: HW30415150
- Retail: €37.90
- EAN: 6938994423069
- Notice: 30415150
Skywalker 2814 SL 1000kV Brushless motor for fixed-wing models The 28-series Skywalker motor... more
Product information "Hobbywing Skywalker D35.1x34mm D5mm 1000kV 3-4s Lipo"

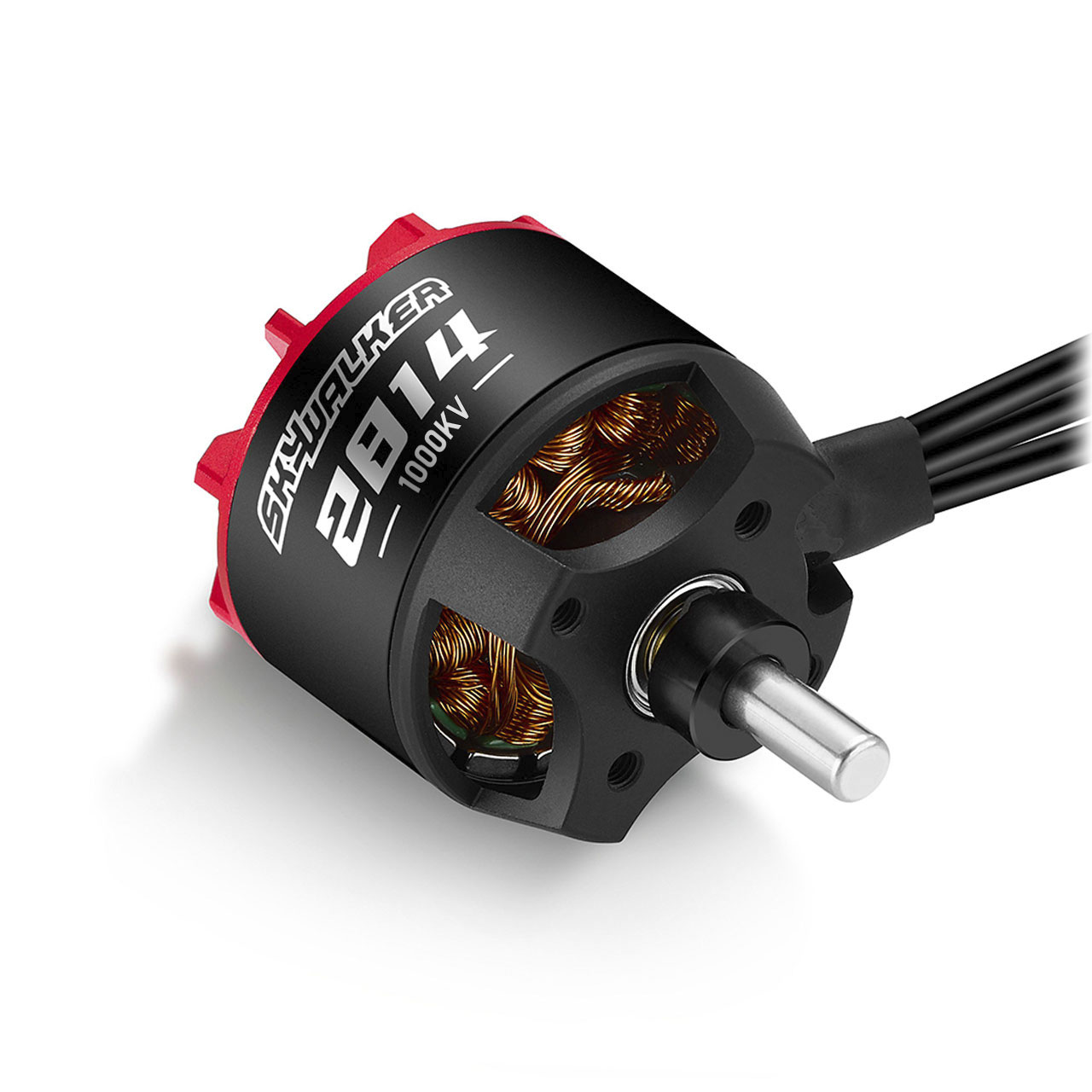

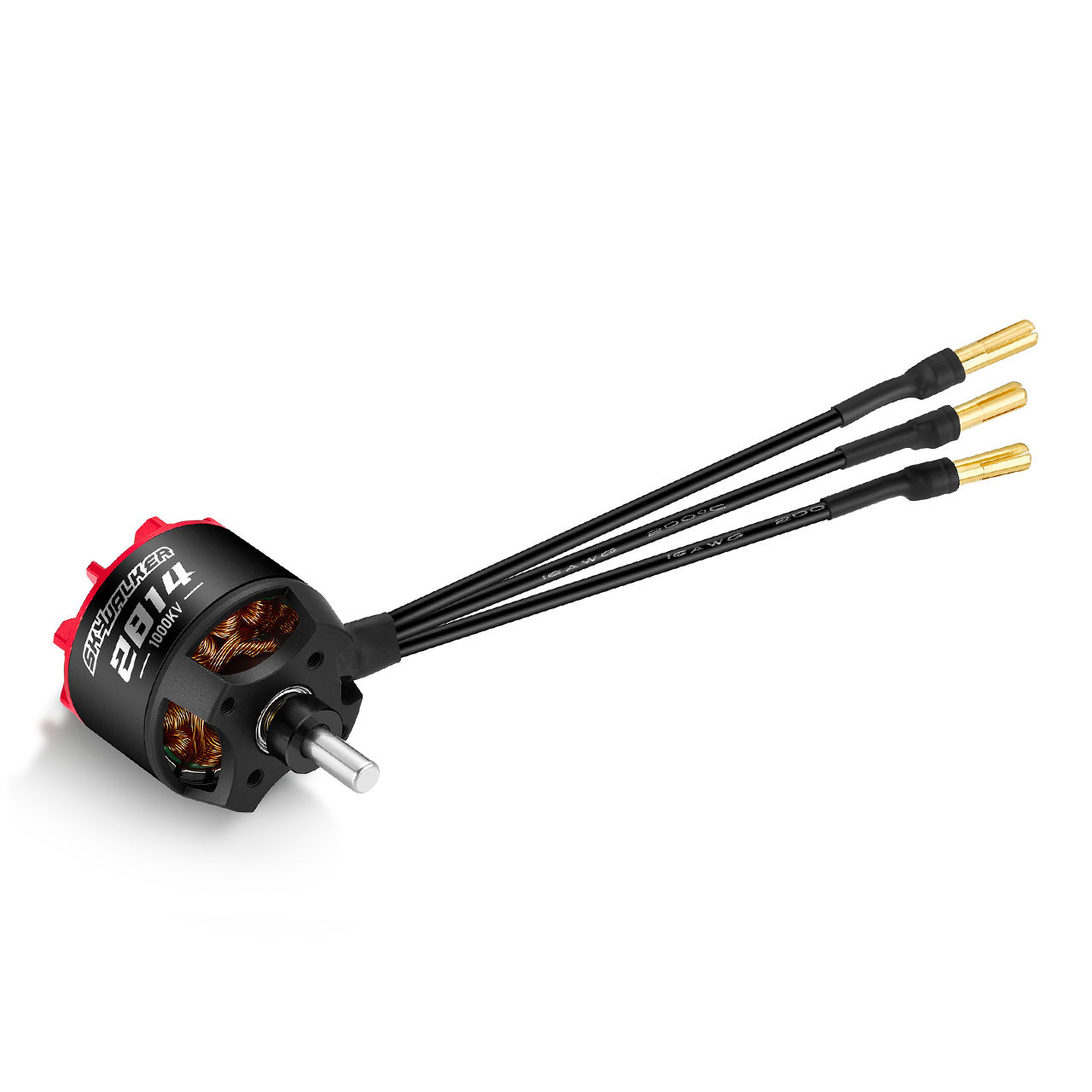

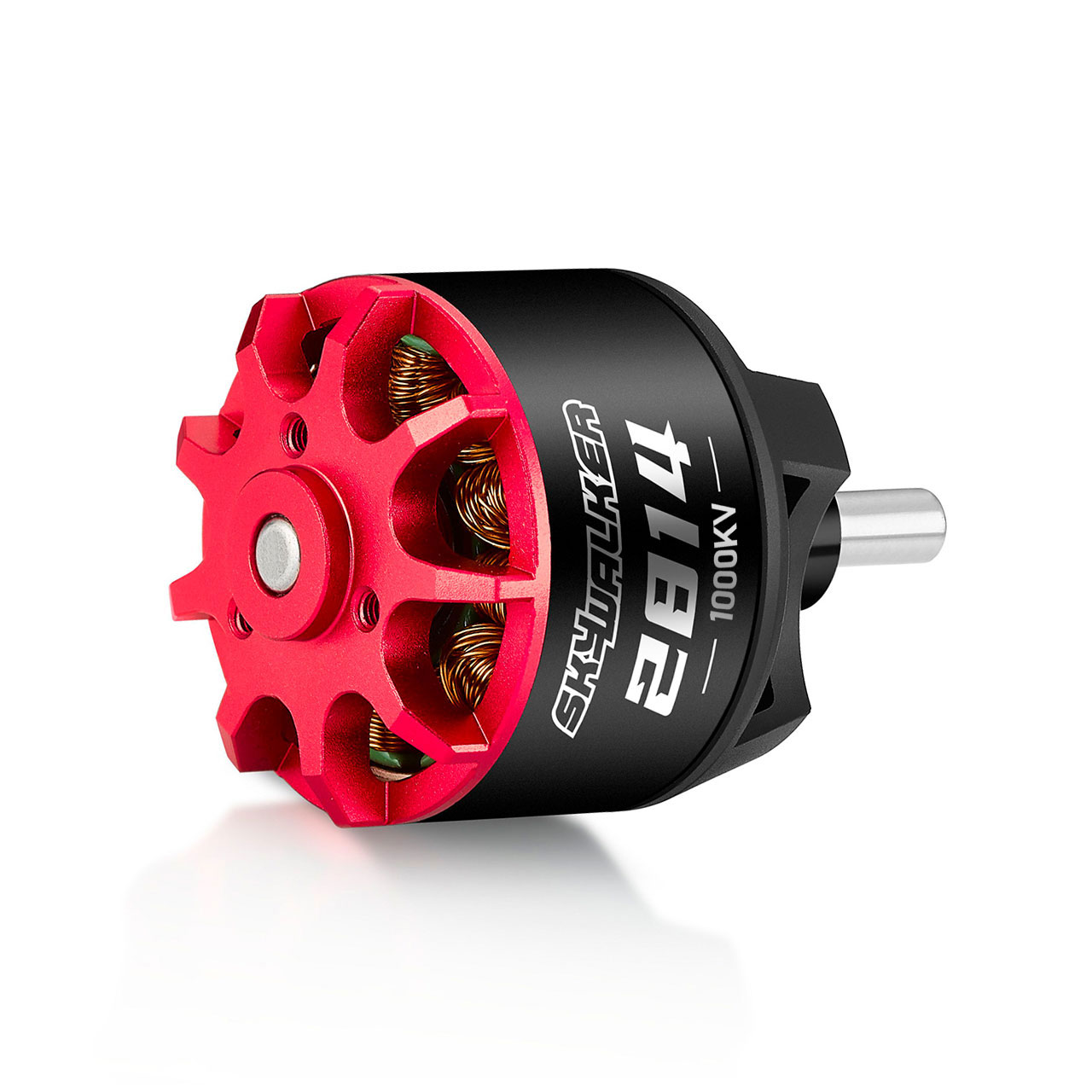

Skywalker 2814 SL 1000kV Brushless motor for fixed-wing models
The 28-series Skywalker motor is a Brushless motor for fixed-wing models and complements Skywalker ESCs.
A special propeller attachment increases torque. The motor uses N48 magnets, a 0.2 mm JNEH1200 silicon steel sheet and high-temperature-resistant enamelled wire. A cavity in the motor and the self-draining structure of the top cover increase cooling performance. No problems due to excessive heating are to be expected. The rotor is secured through the interaction of the motor components to further increase the reliability of the Skywalker motors.
Highlights
- Powerful motor
- Suitable as a complement to Skywalker ESCs
- Rotor designed to noticeably reduce potential vibrations for smoother running
- Designed for cooling and heat dissipation
- 16AWG silicone cable
Specifications
| Type | Brushless |
| kV Rating | 1000kV |
| No-Load Current | 2 A/14.8 V |
| Resistance | 29 m Ohm |
| LiPo Cells | 3–4S LiPo |
| Slots & Poles | 12N14P |
| Max. Continuous Current | 55.2 A/43 s |
| Max. Continuous Power | 815.8 W/43 s |
| Phase Wires | 16AWG, 110 mm |
| Bearings | 685ZZ (D11 × d5 × 5) |
| Diameter | 35.1 mm |
| Length | 54 mm |
| Shaft Diameter | 5 mm |
| Weight | 115 g |
| Recommended ESC | Skywalker V2 80 A |
| Propeller | 4S: 10X5E, 10X6E, 11X5.5E / 3S: 12X6E, 13X6.5E |
| Clip Mounting Hole Thread | D:15 mm-3 × M2.5 |
| Base Thread | D:19 mm-2 × M3 / D:25 mm-2 × M3 |
In the box
- 1× Skywalker motor 2814 SL 1000kV
- 1× Manual
