Hobbywing Skywalker D28.8x36mm D4mm 860kV 3-4s Lipo
- Part No: HW30415100
- Retail: €38.90
- EAN: 6938994423007
- Notice: 30415100
Skywalker 2320 SL 860kV Brushless motor for fixed-wing models The first-generation 23-series... more
Product information "Hobbywing Skywalker D28.8x36mm D4mm 860kV 3-4s Lipo"

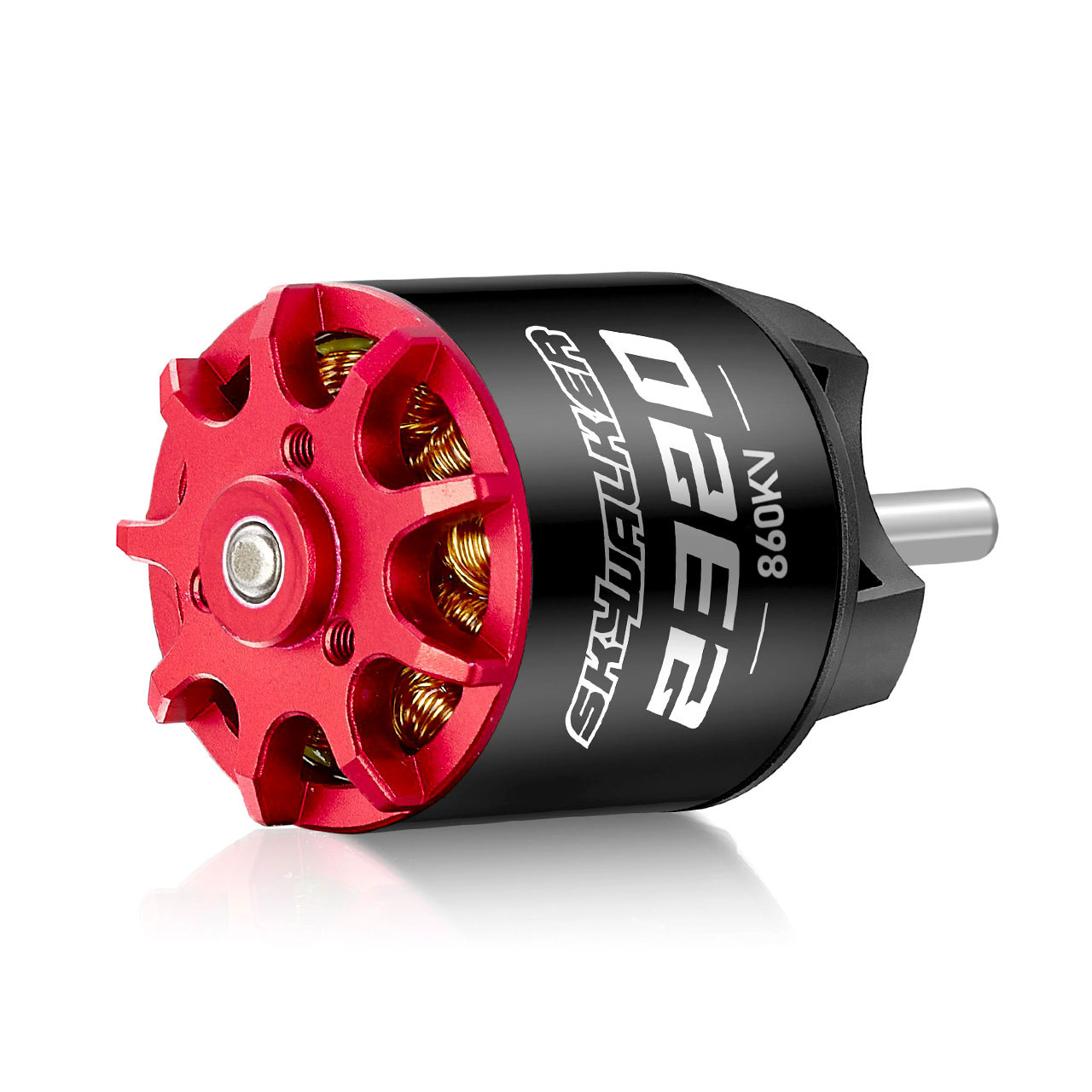

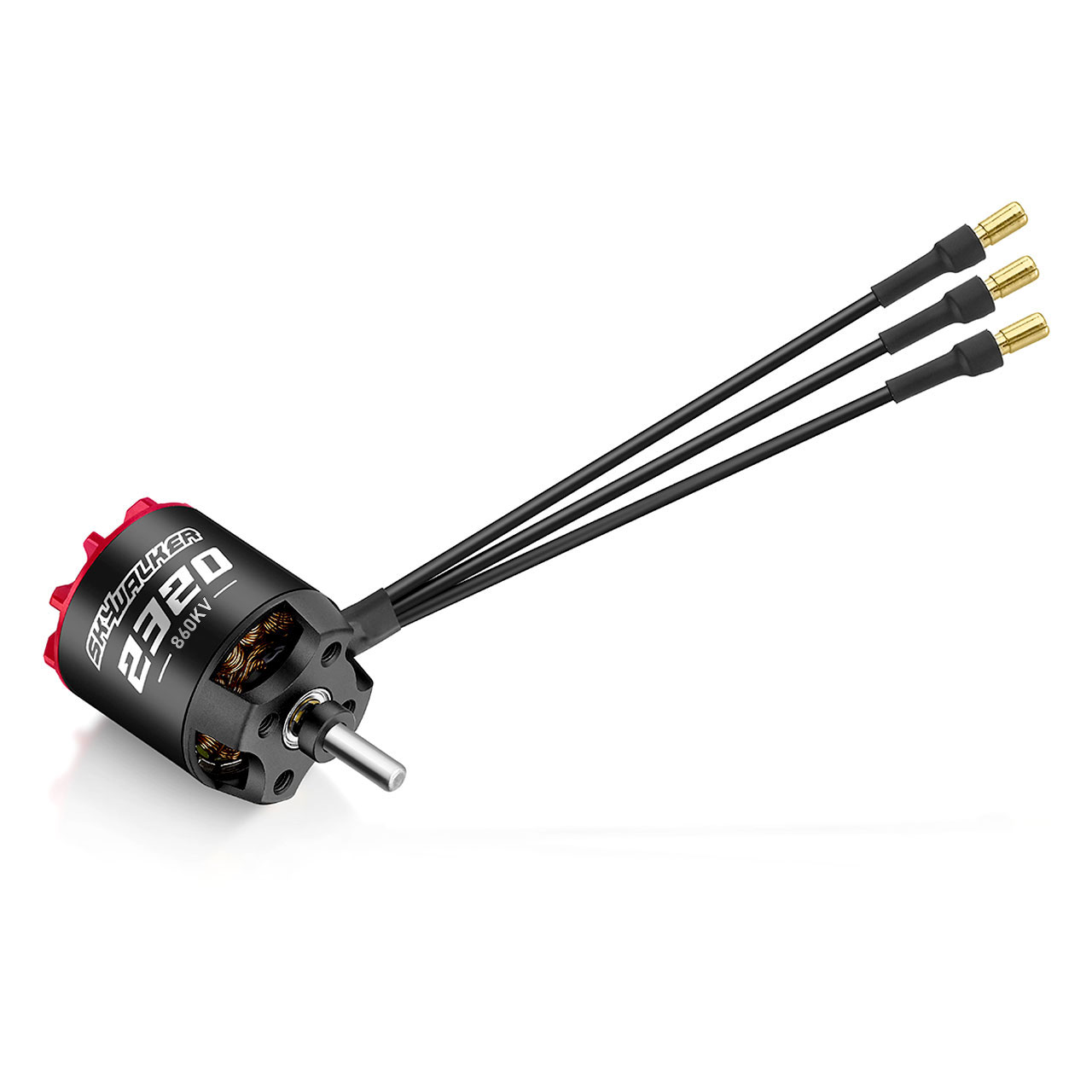

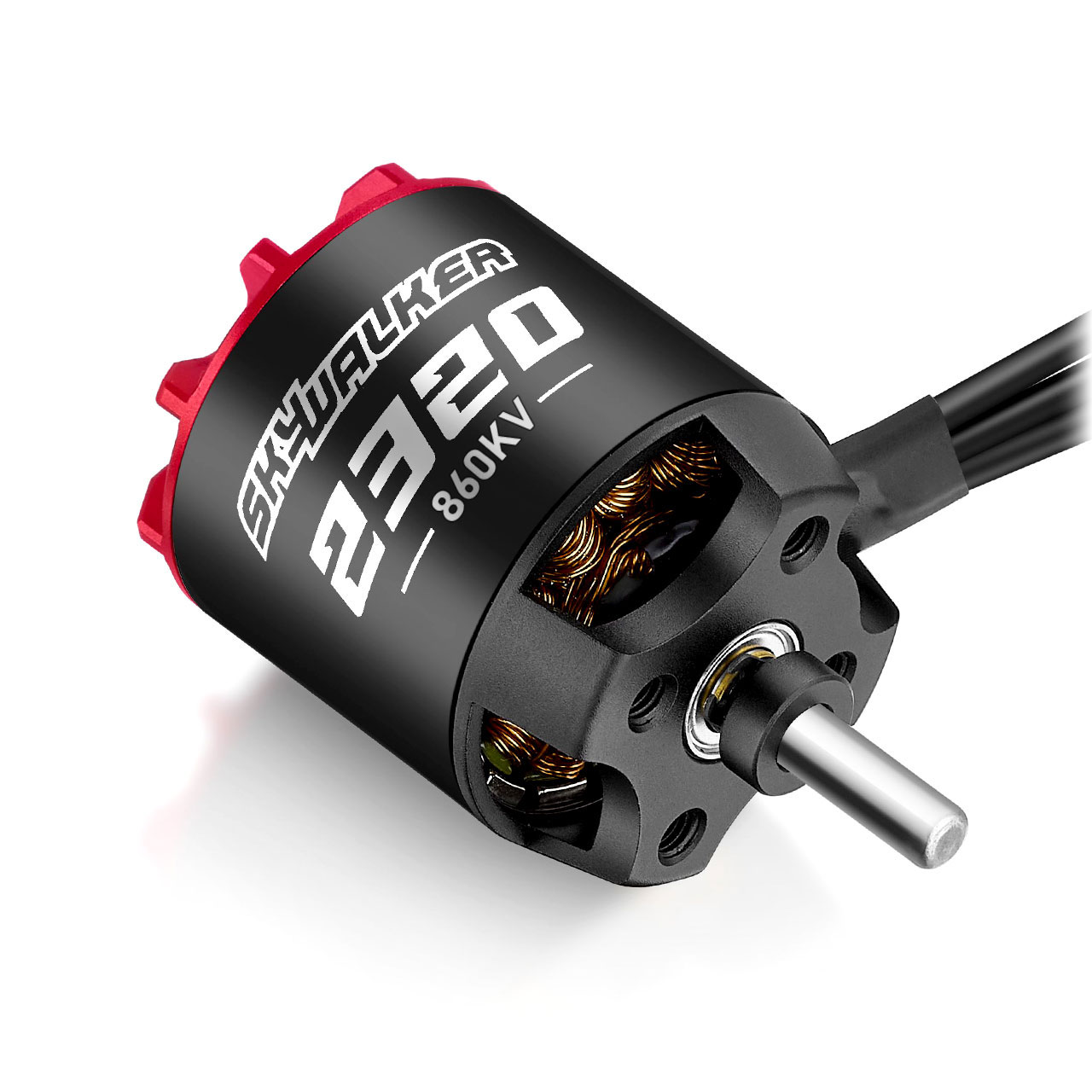

Skywalker 2320 SL 860kV Brushless motor for fixed-wing models
The first-generation 23-series Skywalker motor is a Brushless motor for fixed-wing models. It complements Skywalker ESCs and produces around 10% more output power than comparable motors with similar specifications.
A special propeller attachment increases torque. The motor uses N48 magnets, a 0.2 mm JNEH1200 silicon steel sheet and high-temperature-resistant enamelled wire. A generous cavity in the motor, together with the self-draining structure of the top cover, increases cooling performance. No problems due to excessive heating are to be expected. The rotor is secured through the interaction of the various components to increase reliability.
Highlights
- Suitable as a complement to Skywalker ESCs
- Rotor designed to reduce vibrations for smoother running
- Designed for cooling and heat dissipation
- 18AWG silicone cable
Specifications
| Type | Brushless |
| kV Rating | 860kV |
| No-Load Current | 1.5 A/14.8 V |
| Resistance | 48.4 m Ohm |
| LiPo Cells | 3–4S LiPo |
| Slots & Poles | 12N14P |
| Max. Continuous Current | 36 A/90 s |
| Max. Continuous Power | 540 W/90 s |
| Phase Wires | 18AWG, 100 mm |
| Bearings | 684ZZ (D9 × d4 × 4) |
| Diameter | 28.8 mm |
| Length | 54 mm |
| Shaft Diameter | 4 mm |
| Weight | 93 g |
| Recommended ESC | Skywalker V2 30 A–40 A |
| Propeller | 3S: 12x6E, 13x6.5E / 4S: 10x5E, 10x6E, 11x5.5E |
| Clip Mounting Hole Thread | D:12 mm-3 × M2.5 |
| Base Thread | D:16 mm-2 × M3 / D:19 mm-2 × M3 |
In the box
- 1× Skywalker motor 2320 SL 860kV
- 1× Manual
