Hobbywing Skywalker D28.8x32mm D4mm 980kV 3-4s Lipo
- Part No: HW30415050
- Retail: €30.90
- EAN: 6938994422024
- Notice: 30415050

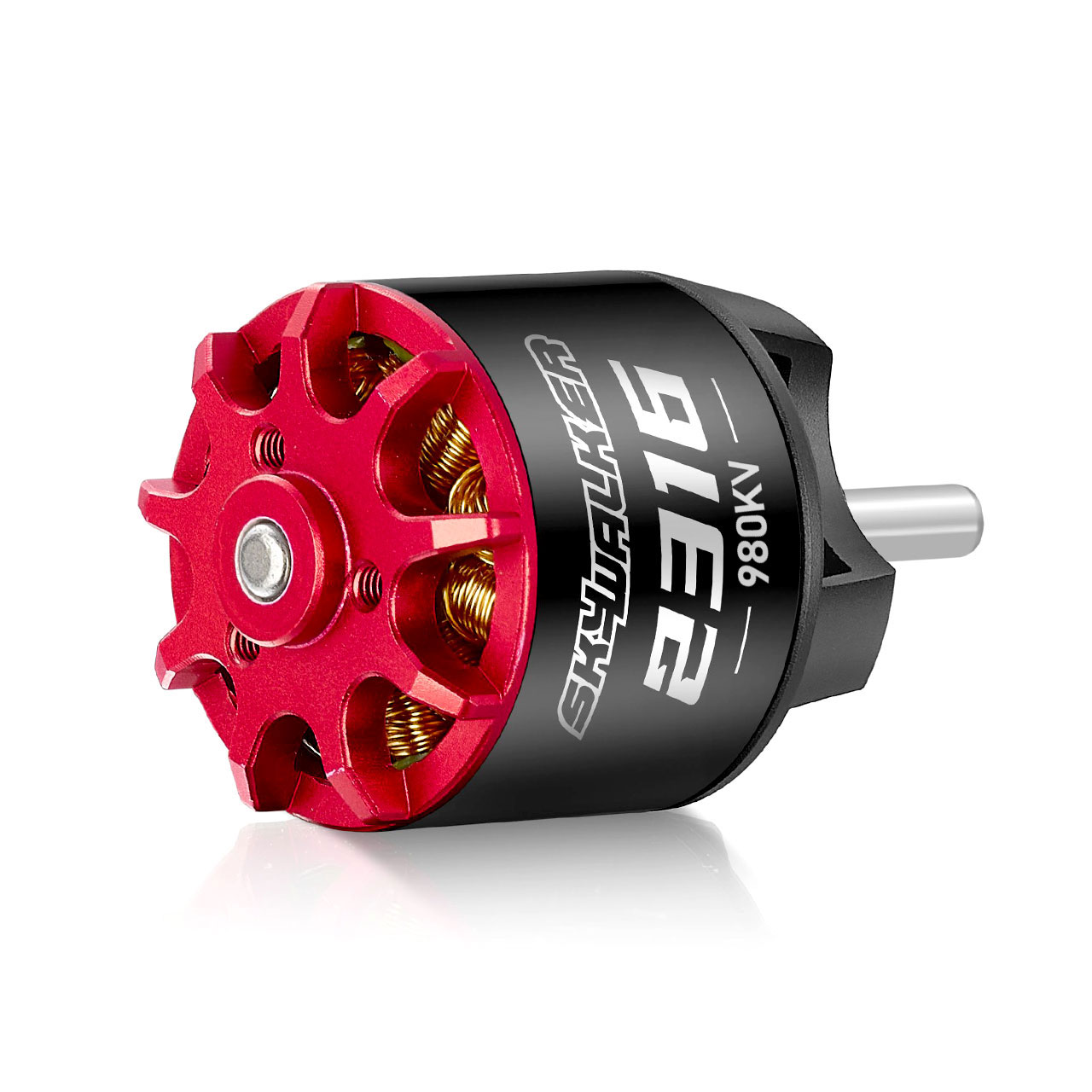

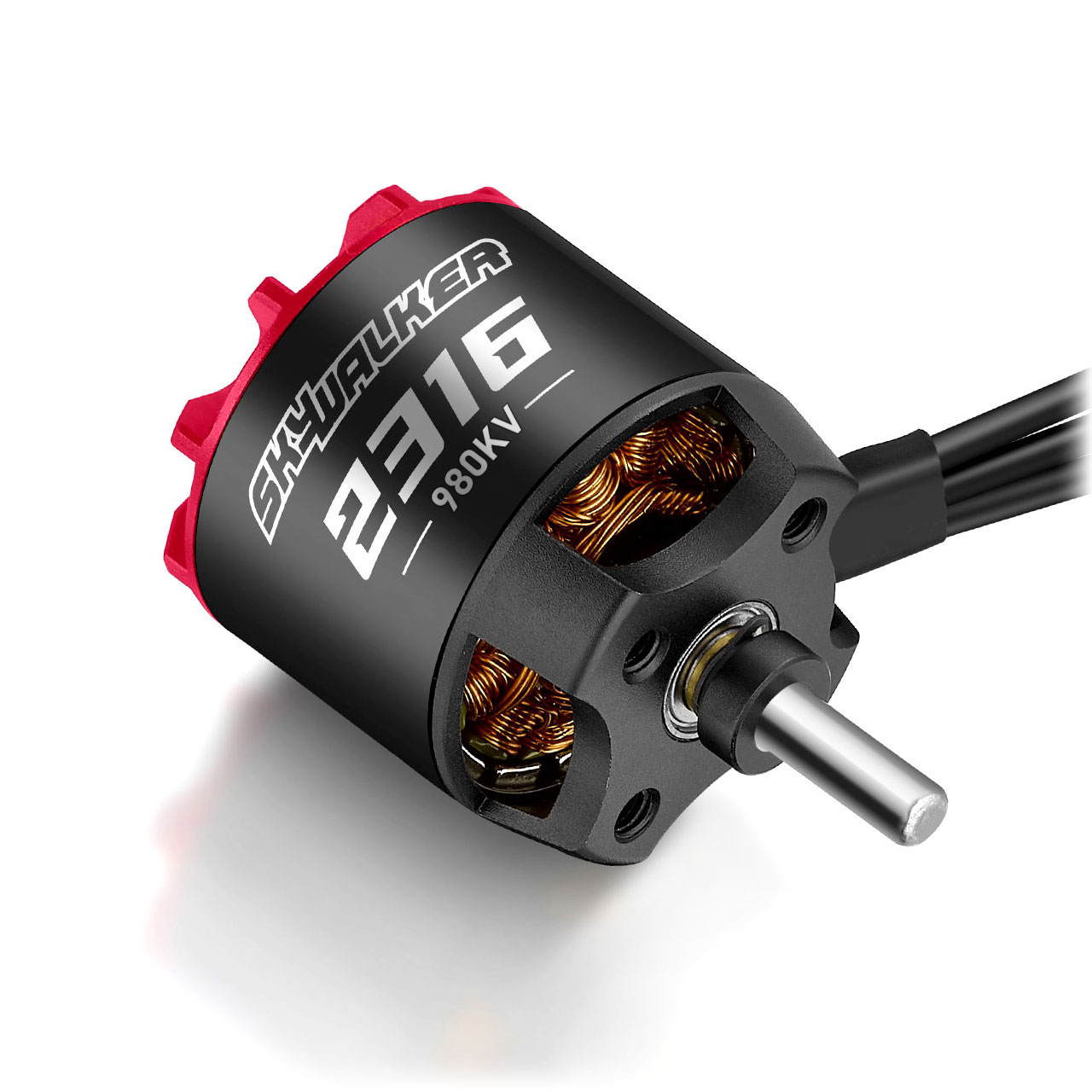

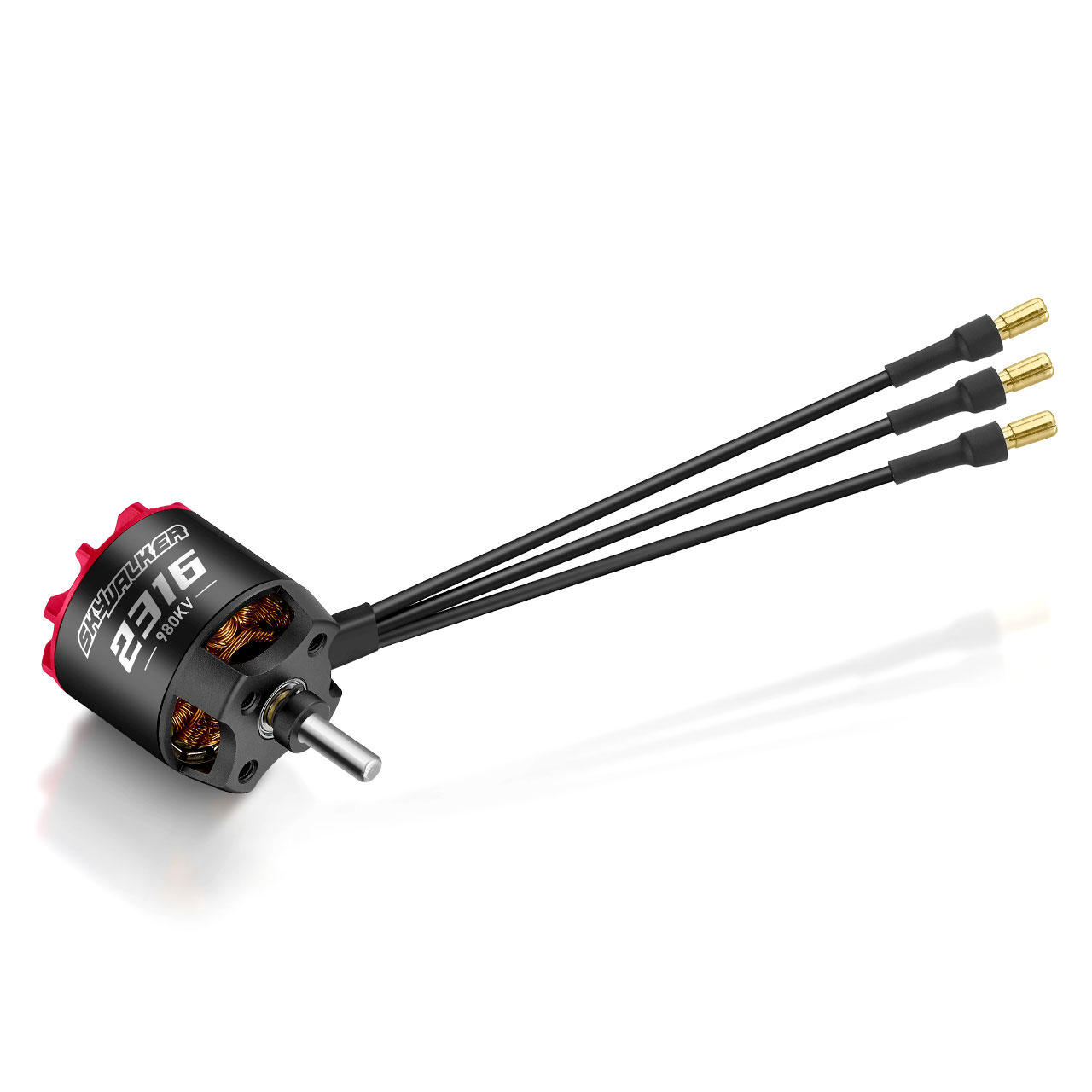

Skywalker 2316 SL 980kV Brushless motor for fixed-wing models
The first-generation 23-series Skywalker motor is a Brushless motor for fixed-wing models. It complements Skywalker ESCs and produces around 10% more output power than comparable motors with similar specifications.
A special propeller attachment increases torque. The motor uses N48 magnets, a 0.2 mm JNEH1200 silicon steel sheet and high-temperature-resistant enamelled wire. A generous cavity in the motor, together with the self-draining structure of the top cover, increases cooling performance, so no problems due to excessive heating are to be expected. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Highlights
- Powerful motor
- Suitable as a complement to Skywalker ESCs
- Rotor designed to reduce vibrations for smoother running
- Designed for cooling and heat dissipation
- 18AWG silicone cable
Specifications
| Type | Brushless |
| kV Rating | 980kV |
| No-Load Current | 1.5 A/14.8 V |
| Resistance | 53.6 m Ohm |
| LiPo Cells | 3–4S LiPo |
| Slots & Poles | 12N14P |
| Max. Continuous Current | 31 A/240 s |
| Max. Continuous Power | 455 W/240 s |
| Phase Wires | 18AWG, 100 mm |
| Bearings | 684ZZ (D9 × d4 × 4) |
| Diameter | 28.8 mm |
| Length | 50 mm |
| Shaft Diameter | 4 mm |
| Weight | 79 g |
| Recommended ESC | Skywalker V2 30 A–40 A |
| Propeller | 3S: 10x6E, 11x5.5E / 4S: 9x4.5E, 9x6E, 10x5E |
| Clip Mounting Hole Thread | D:12 mm-3 × M2.5 |
| Base Thread | D:16 mm-2 × M3 / D:19 mm-2 × M3 |
In the box
- 1× Skywalker motor 2316 SL 980kV
- 1× Manual
