Hobbywing Quicrun Brushed WP1080 Combo 540 40 Turn
Please inform me as soon as the product is available again.
- Part No: HW38020350
- Retail: €61.90
- EAN: 6938994420129
- Notice: 38020350
1/10 crawler combo with Quicrun WP1080 G2 ESC and 540 40T brushed motor The Quicrun combo... more
Product information "Hobbywing Quicrun Brushed WP1080 Combo 540 40 Turn"

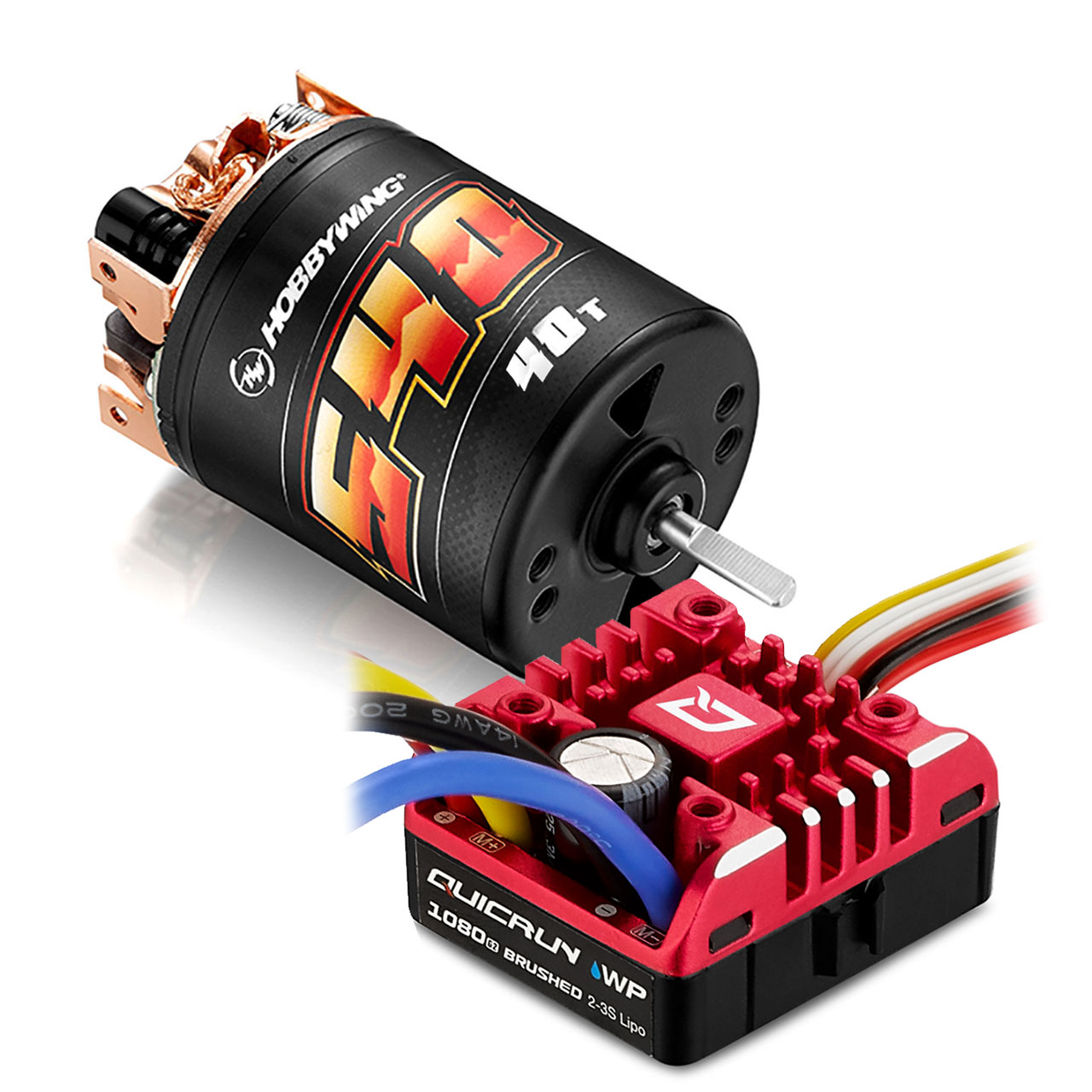

1/10 crawler combo with Quicrun WP1080 G2 ESC and 540 40T brushed motor
The Quicrun combo pairs a WP1080 G2 ESC with a Quicrun Brushed 540 40T motor for 1/10 scale crawlers.

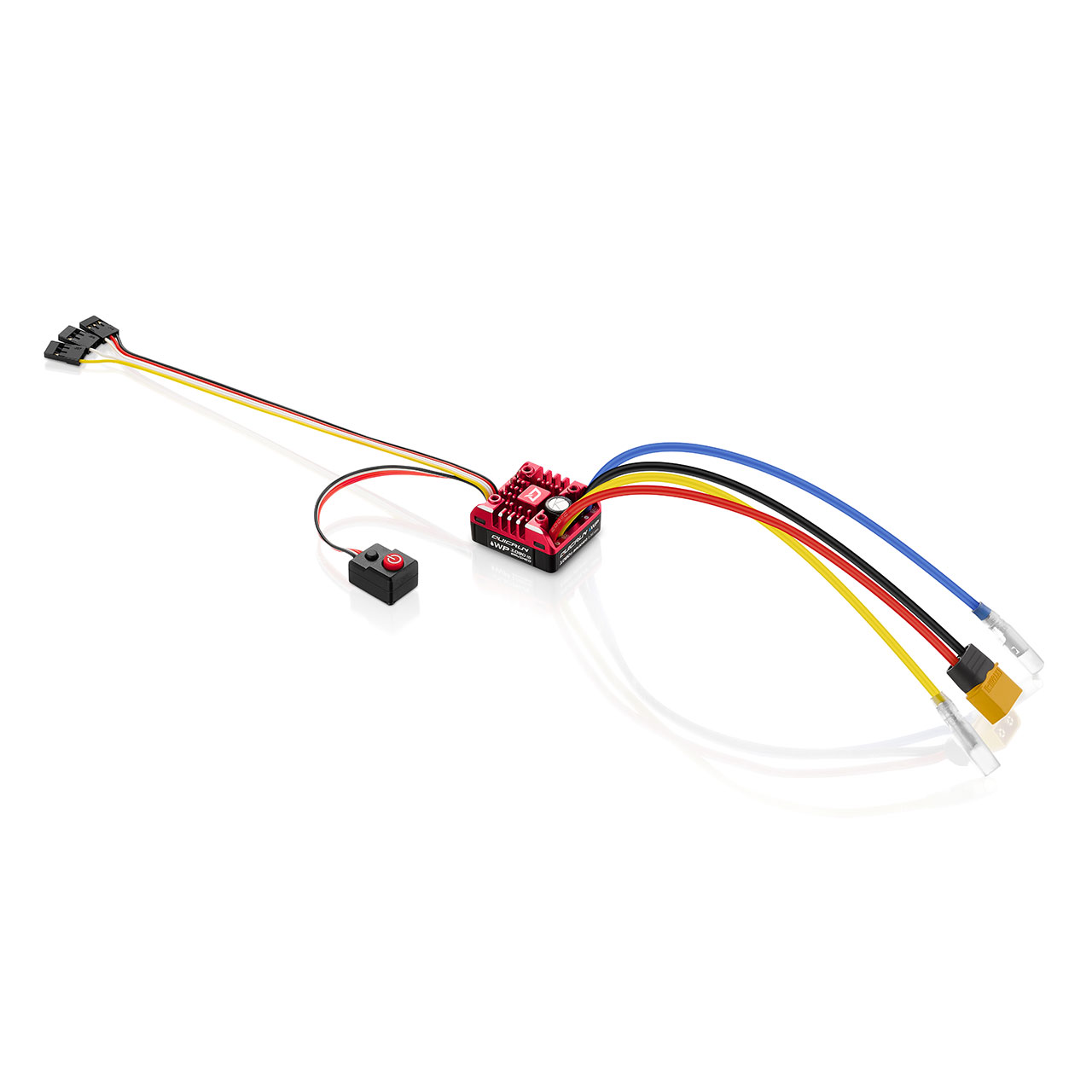

The ESC's Car Mode allows the motor direction to be switched in real time using an idle transmitter channel. Handbrake force can also be adjusted in real time. The ESC has 15 adjustable parameters and over 90 values.

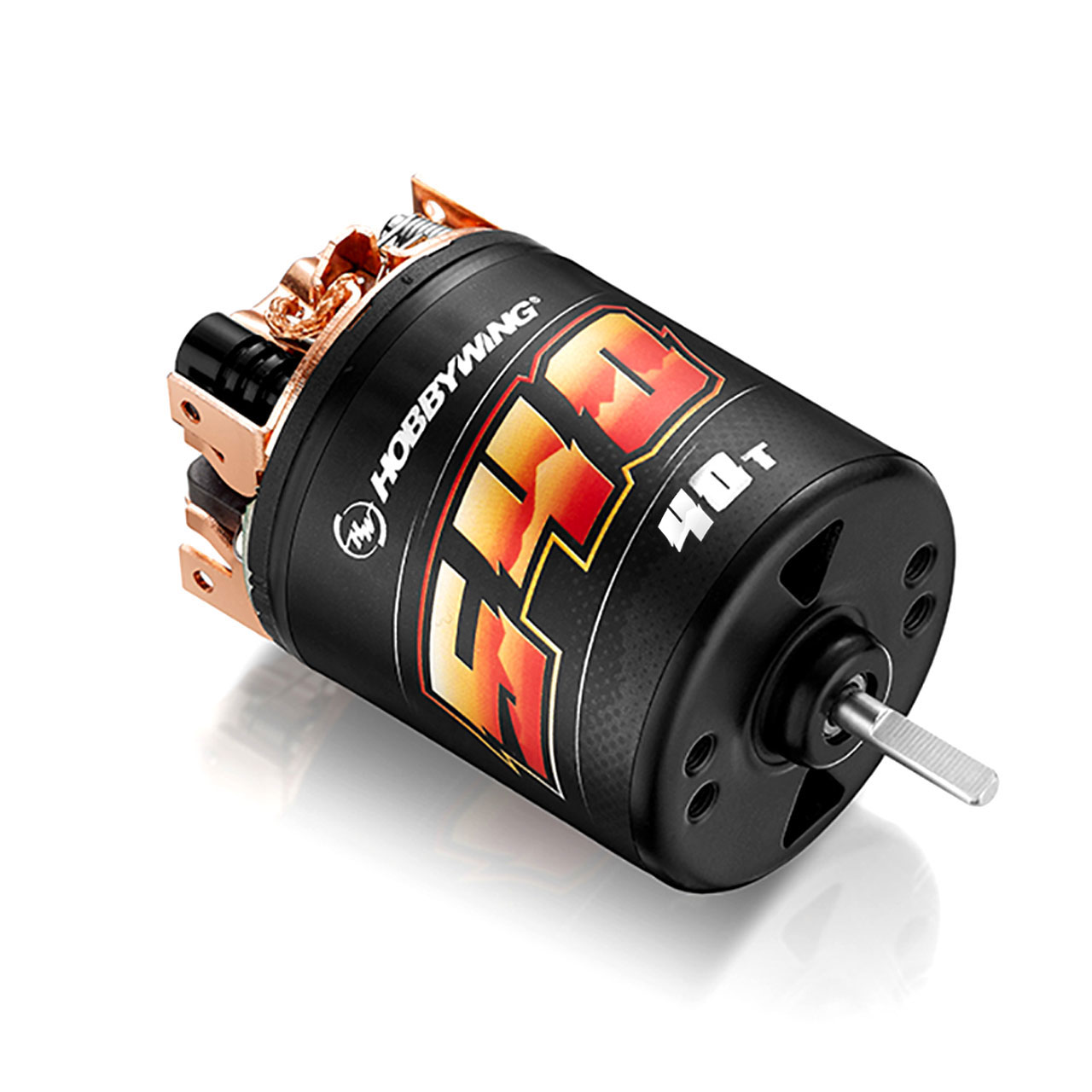

The motor has adjustable timing from −20° to +20°.
Highlights
- Designed for 1/10 Rock Crawlers
- BEC: 4 A continuous and up to 6 A peak, adjustable to 6 V, 7.4 V or 8.4 V
- Waterproof according to IP67
- Adjustable drag brake
- Separate programming port
- Small, light and yet robust
- XT60 connector installed
- Efficient with adjustable motor timing and zero-togging torque design
- Incl. PCB board to avoid interference
- Easily dismantled for maintenance work
Specifications
| ESC | |
|---|---|
| Type | Brushed |
| Current (Cont./Peak) | 80 A/400 A |
| Cells | 2–3S LiPo / 5–9 cells NiMH |
| BEC | Switch Mode: 6 V/7.4 V @ 3 A, 6 A peak |
| Battery Connector | XT60 |
| Dimensions | 37.2 × 31.9 × 18.4 mm |
| Weight | 70.2 g |
| Waterproof | Yes |
| Application | 1/10 Rock Crawler |
| Motor | |
| Type | Brushed |
| Turns | 40T |
| RPM @ 7.4 V | 10 500 |
| Input Voltage | ≤12.6 V |
| Slots | 3 |
| Length | 53.2 mm |
| Diameter | 36 mm |
| Shaft Diameter | 3.175 mm |
| Weight | 169 g |
| Application | 1/10 On-Road, Buggy, / Crawler & 2WD Truck |
In the box
- 1× Quicrun WP1080 G2 ESC
- 1× Quicrun Brushed 540 40T Motor
- 1× Manual (English)
