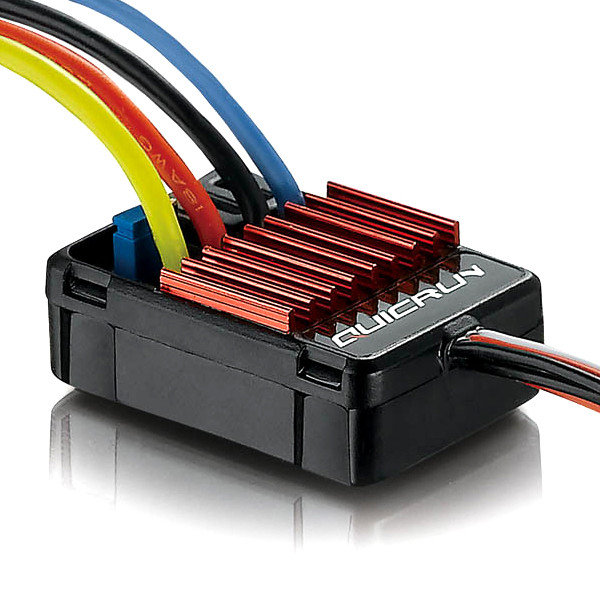

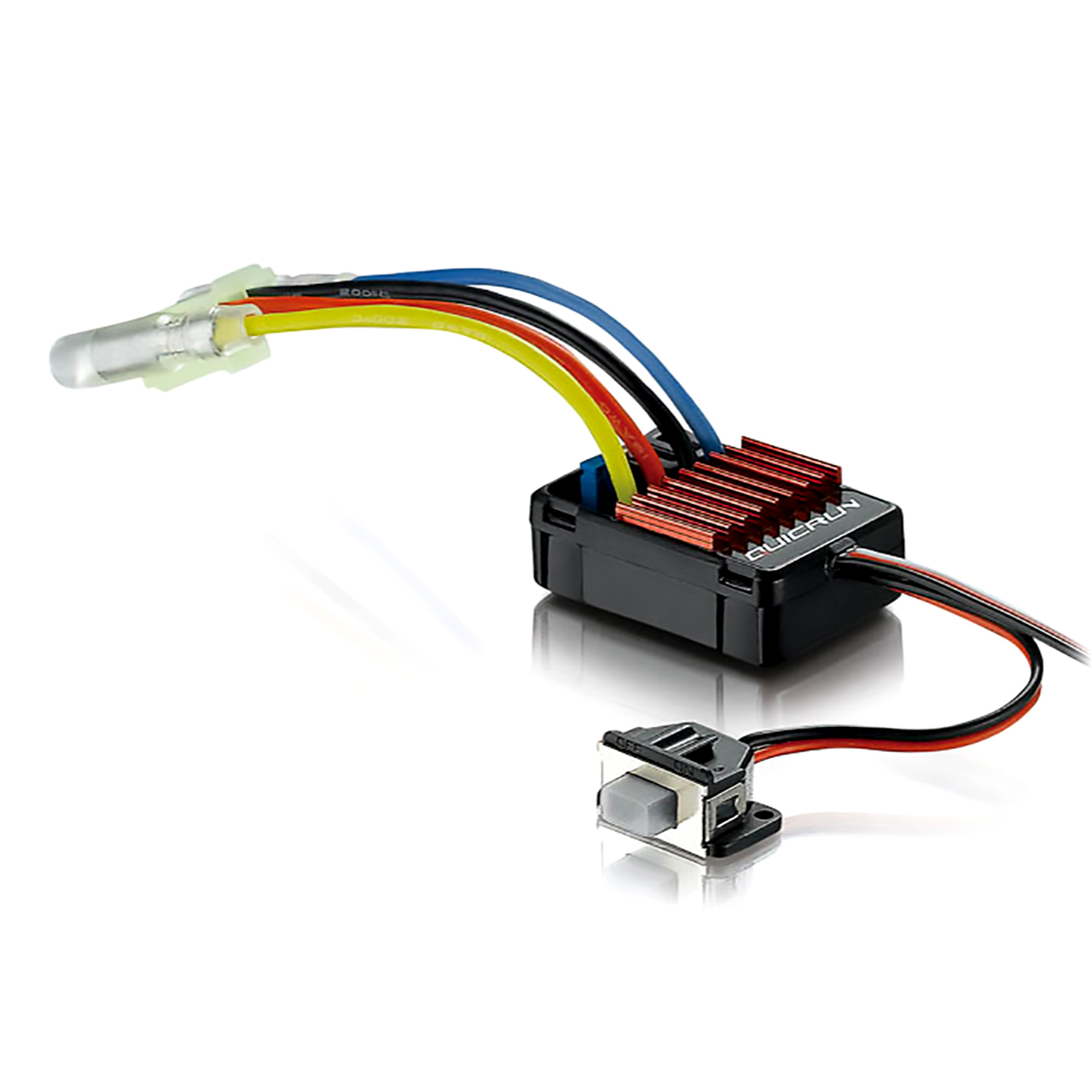

Hobbywing QuicRun 1625 Brushed ESC 25A for 1:16, 1:18

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Features

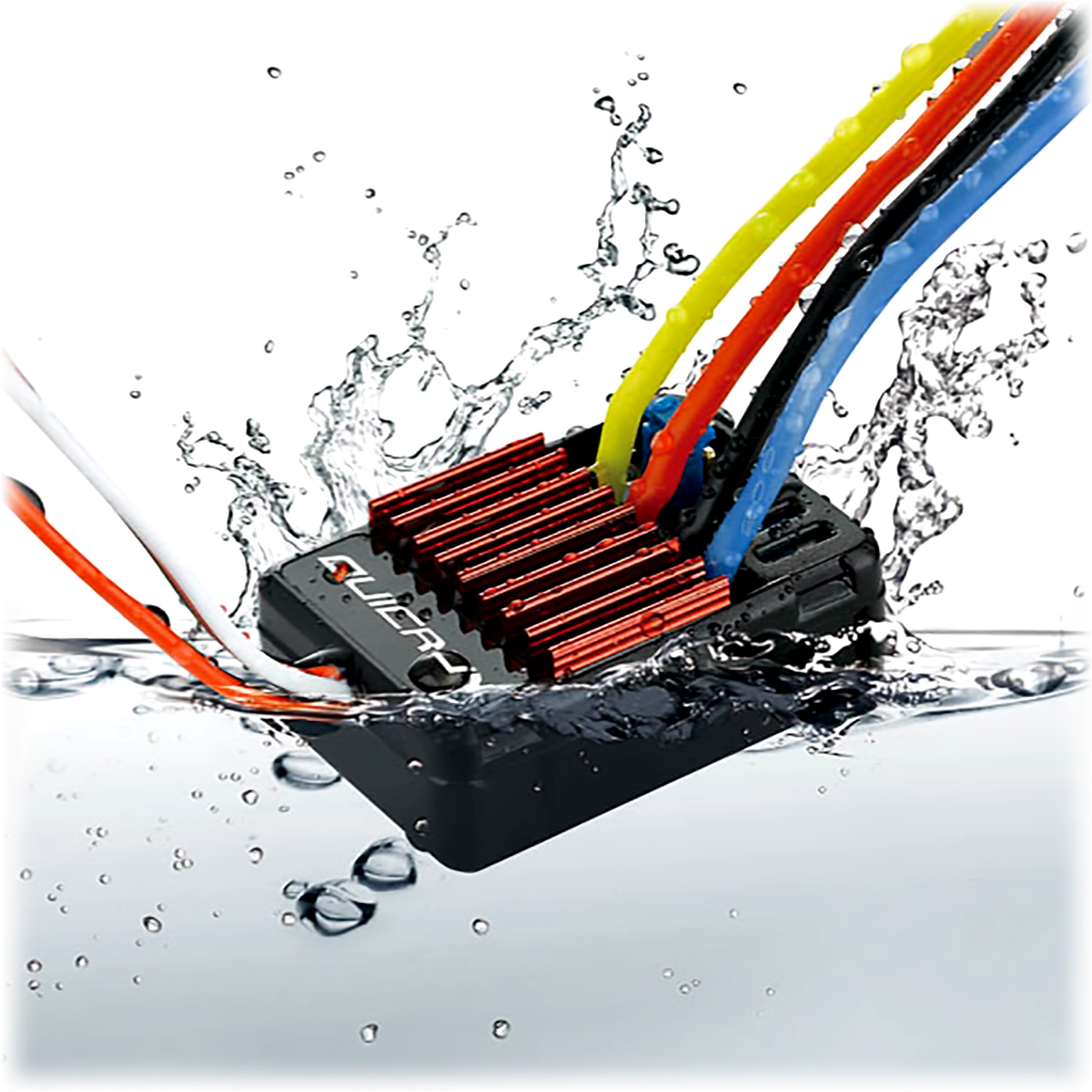

1. Water-proof and dust-proof, suitable for all-weather condition races.
2. Small size with built-in capacitor module.
3. Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
4. Great current endurance capability.
5. Switch mode built-in BEC has powerful output.
6. Automatic throttle range calibration, easy to use.
7. Easy to set the ESC parameters with jumpers.
8. Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

Specifications

• Fwd. Cont. / Peak Current: 25A / 100A
• Rev. Cont. / Peak Current: 25A / 100A
• Voltage Range: 2-3S Lipo or 5-9 NiMH
• Cars: 1/18 & 1/16
• Applicable:
  • Touring Car
  • Buggy
  • Short Course Truck
  • Monster
  • Truggy
• Motor Limit:
  • 2S Lipo or 6 cells NiMH: 280, 370, 380 Size Motor: = RPM<30000 @7.2V
  • 3S Lipo or 9 cells  NiMH: 280, 370, 380 Size Motor: = RPM<20000 @7.2V
• Resistance: Fwd 0.003O / Rev 0.003O
• BEC Output: 1A/5V (Linear Mode)
• PWM Frequency: 1KHz
• Dimension / Weight: 34*24*14 / 23,5g
• Cooling Fan: No

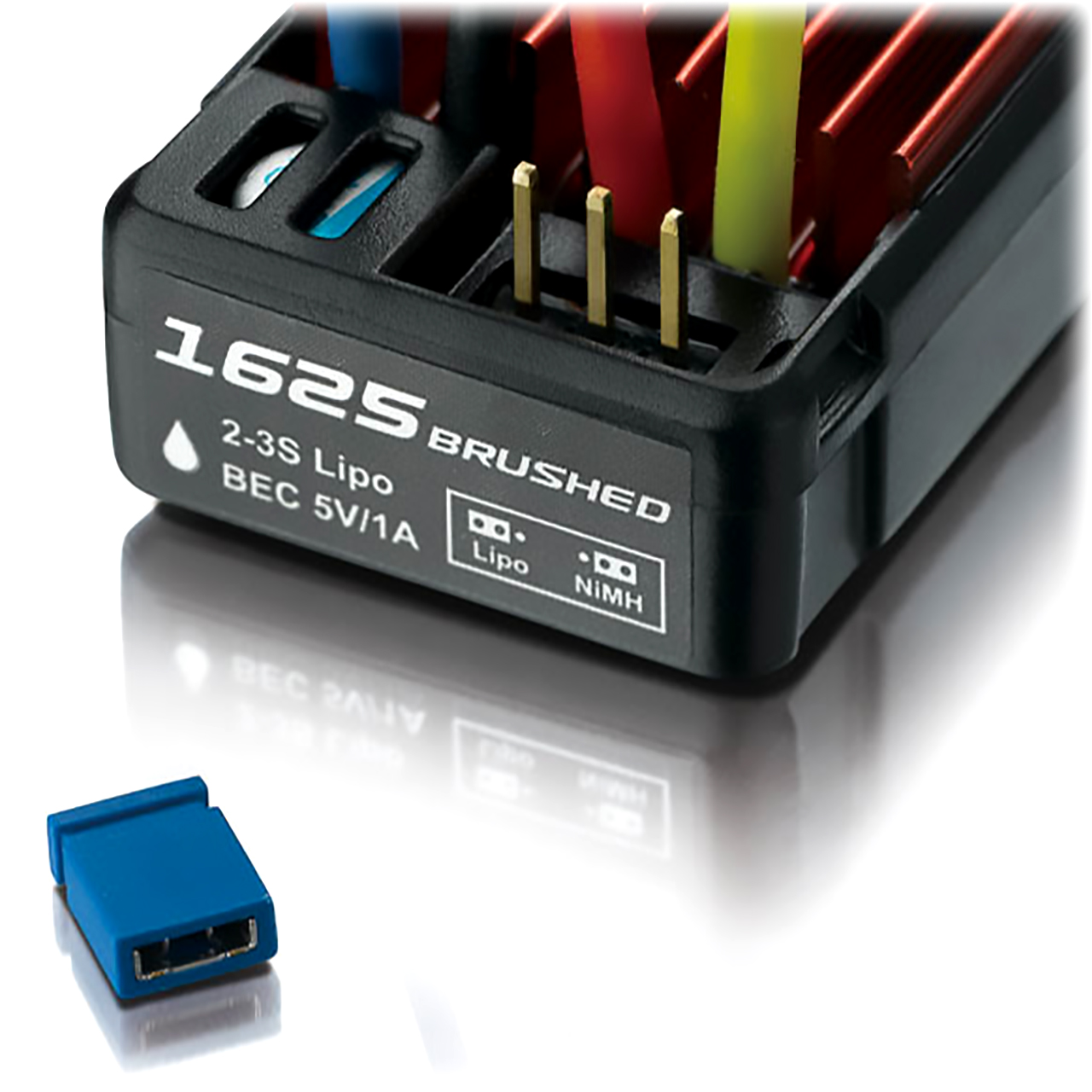

The battery type can be programmed by jumper.

• Battery Type: Lipo / NiMH
