Product information "Hobbywing Platinum Pro 25A ESC V4 3-6s, 3A BEC"

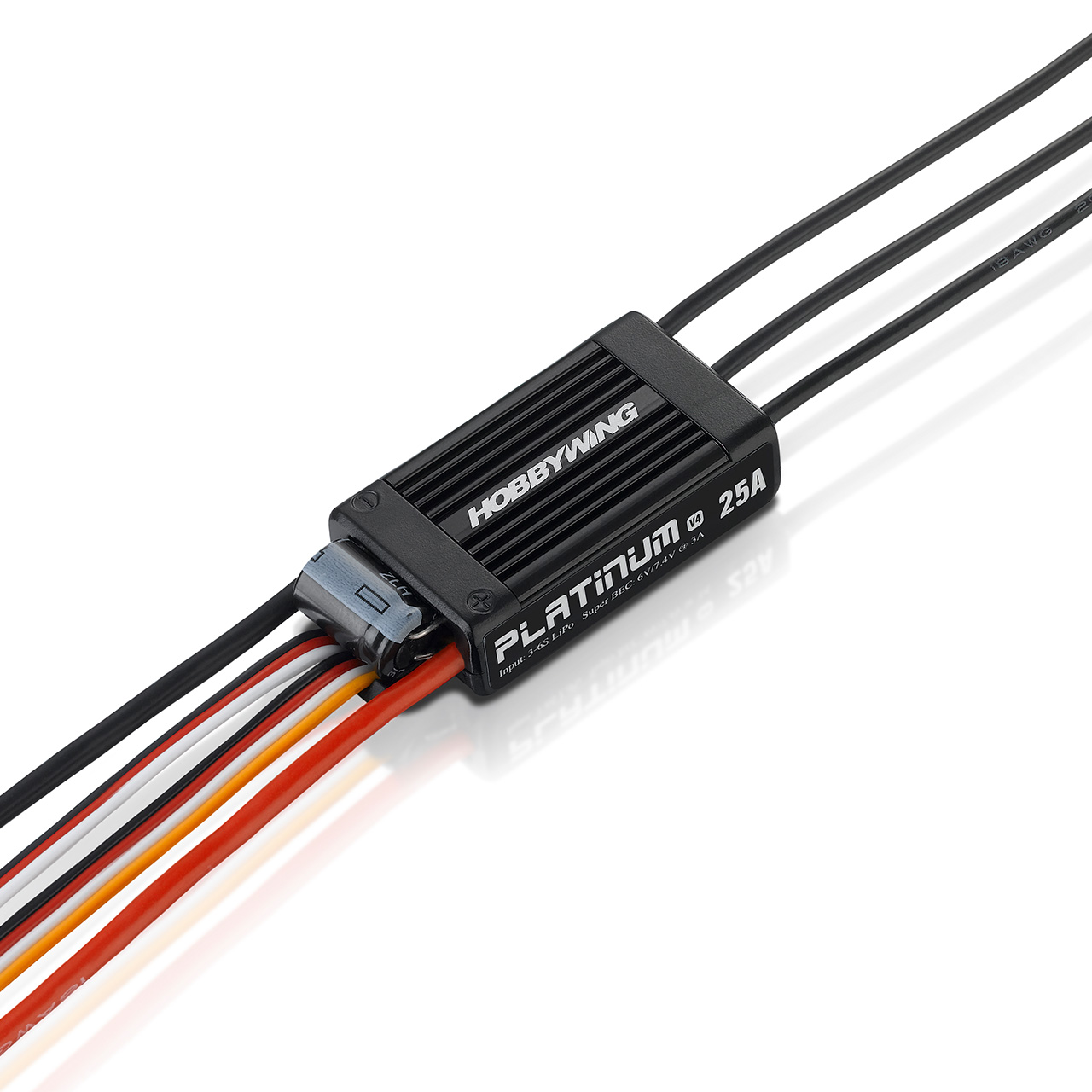

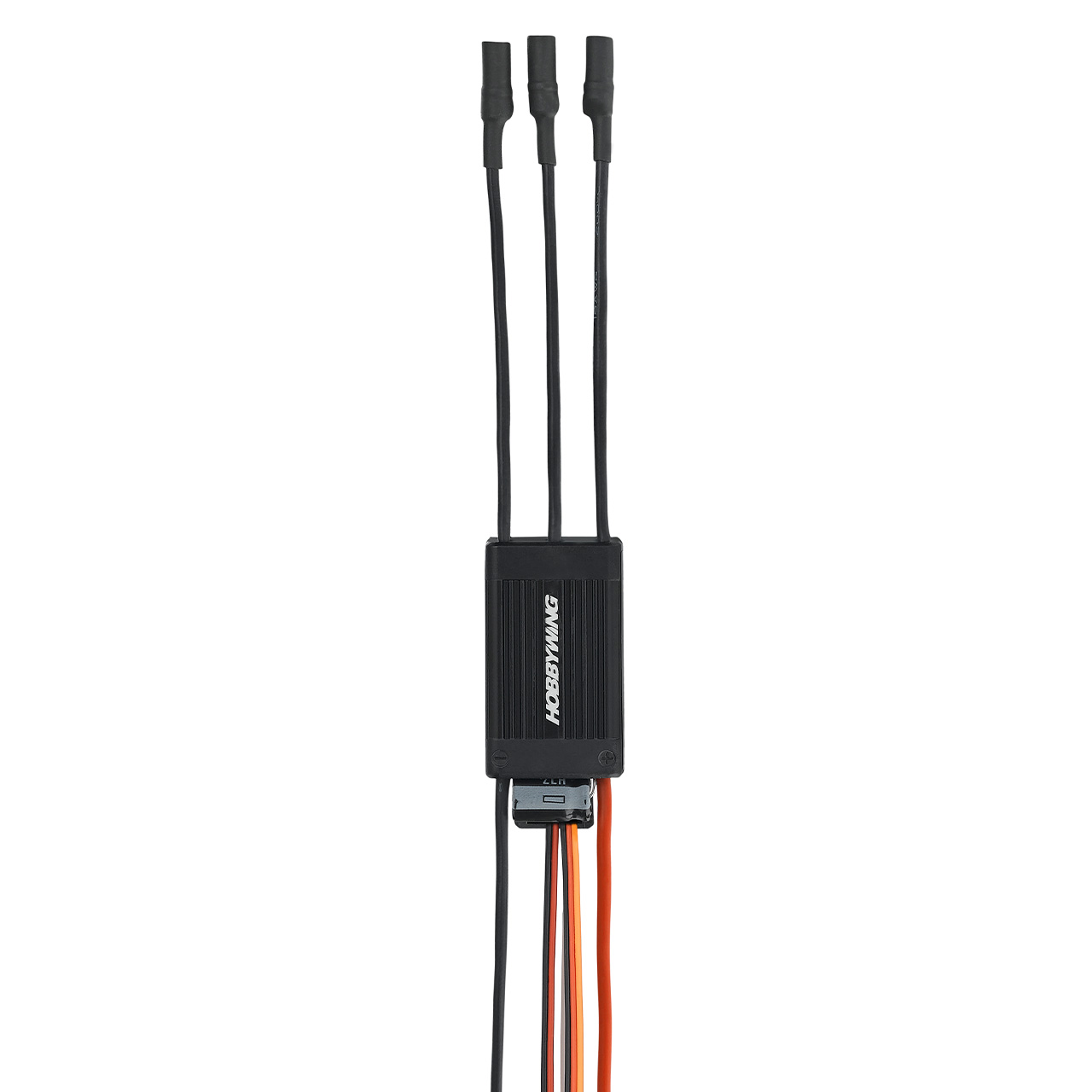

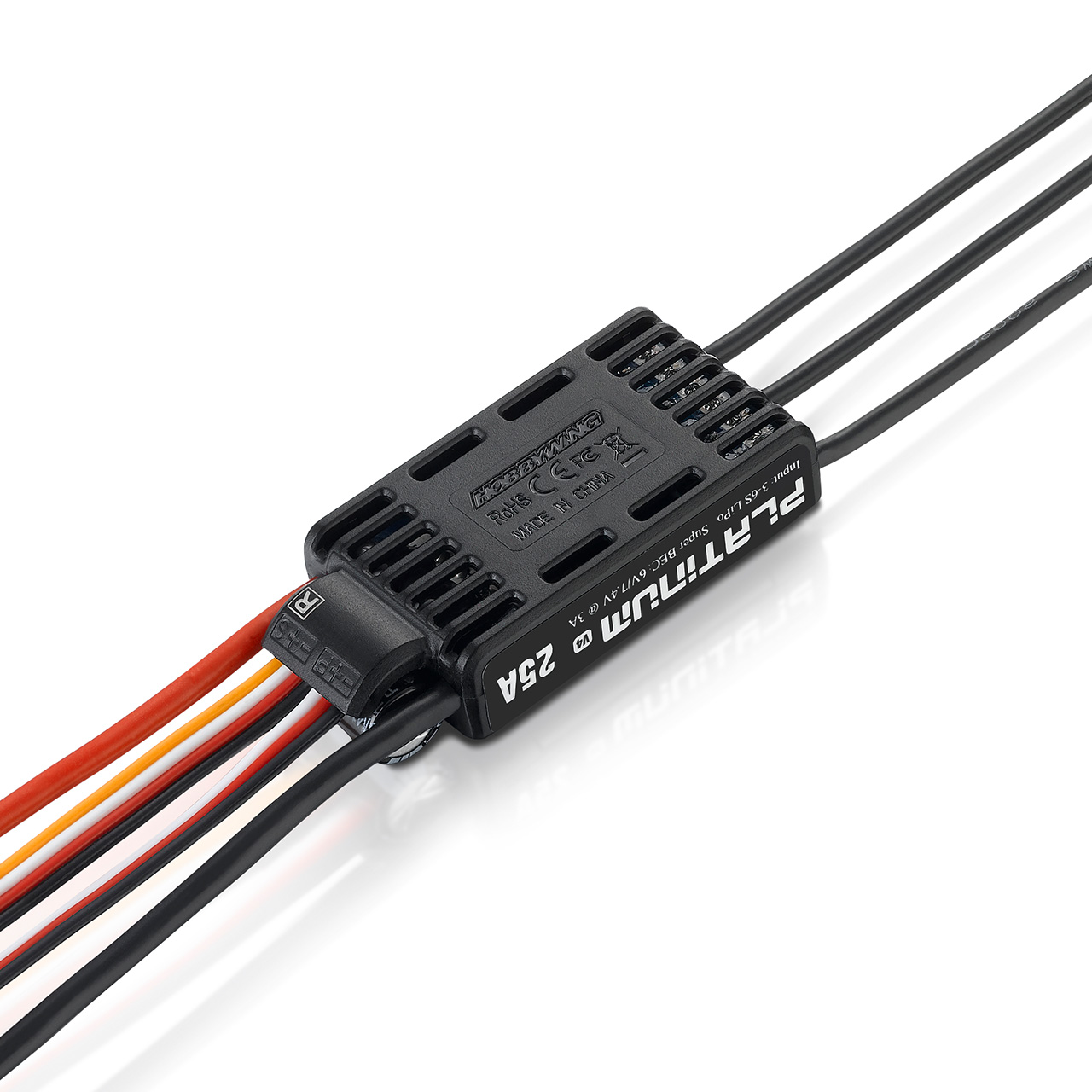

Hobbywing Platinum 25A V4
With the Platinum 25A V4, Hobbywing sets new standards in the field of controller technology.Excellent control behavior, protection mechanisms and extensive programming and application possibilities characterize this controller. This controller is suitable for Helicopters of the 250 class (Main Blade 200-300mm) as well as for Fixed-Wing models and Multicopter. In spite of the Power of 25A and operation with 3-6S LiPo, it has a compact size and low weight.
Features
New DEO technology For gentle and linear control. Startup function for soft start-up and programmable brake functions
Programmable About Hobbywing WiFi Express module or LCD programming box
Strong BEC BEC 6 /7,4 V with Cont./Peak 3A / 7A
Governor Function There are 3 different governor modes available. External Governor, Store governor and eleven governor
Technical Specifications
Type:
Brushless
Current (cont./peak):
25A/40A
Cells:
3-6S LiPo
BEC:
6-7.4V @7A (Switch Mode)
Cables:
1x 16AWG (red and black, 100mm) 3x 18AWG (black, 100mm)
Connector:
3.5mm gold plug (female)
Programming:
- LCD Programming Box - Wifi Module - OTA Module - Seperate Programming Port
Firmware Upgrade:
Yes
Dimensions:
47 x 22 x 10mm
Weight (incl. cable):
27g
Application:
250 Helicopter, Fixed Wing model and Multicopter
