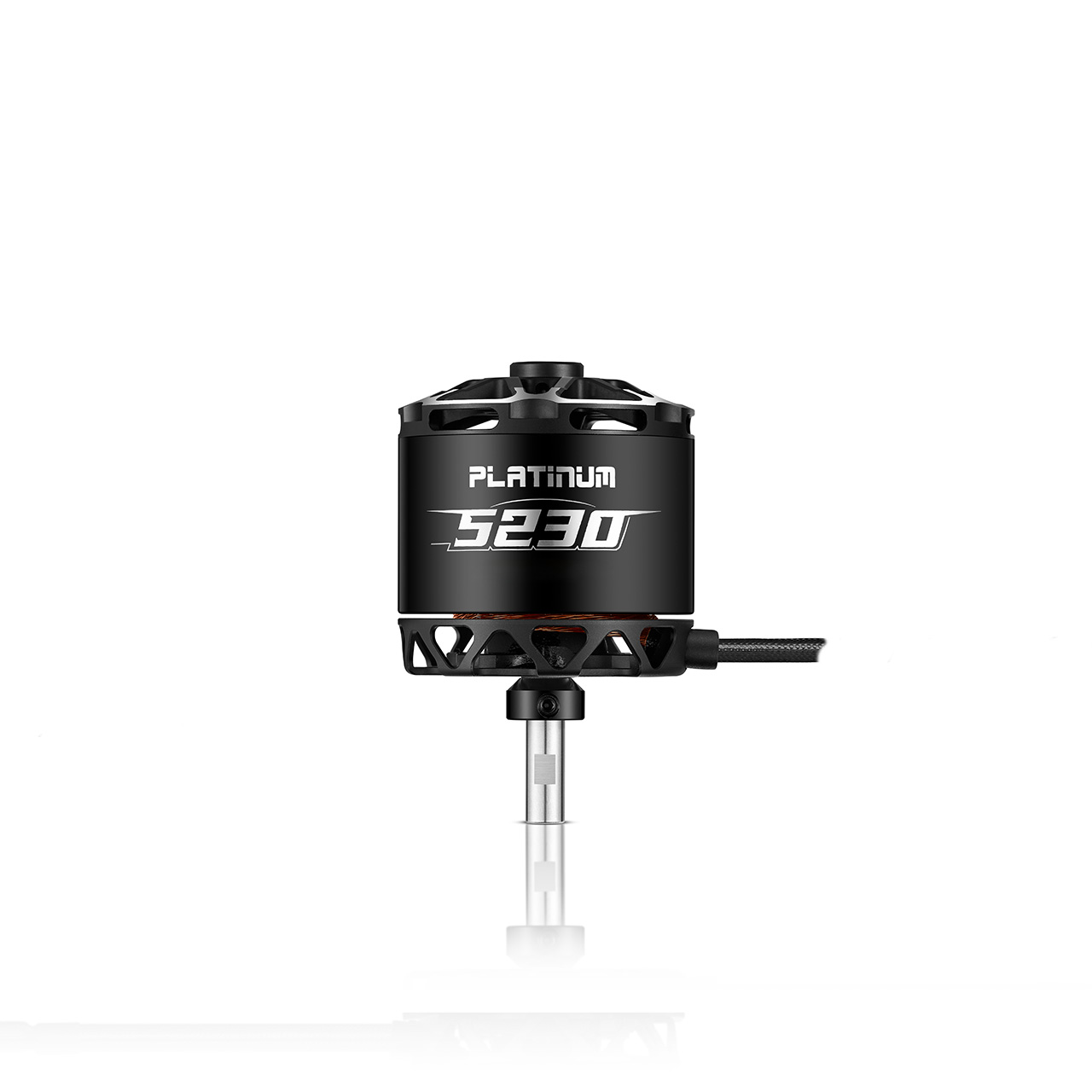

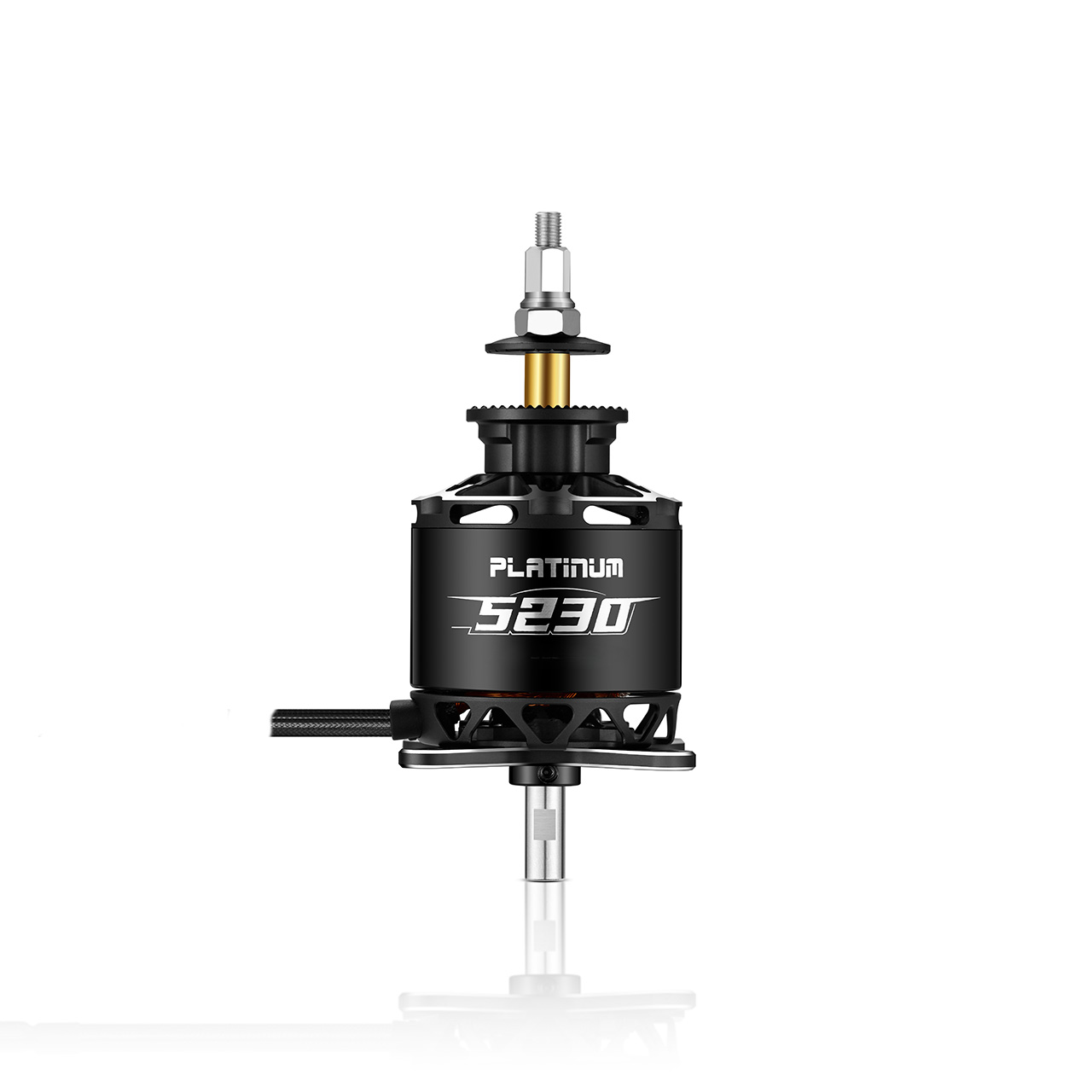

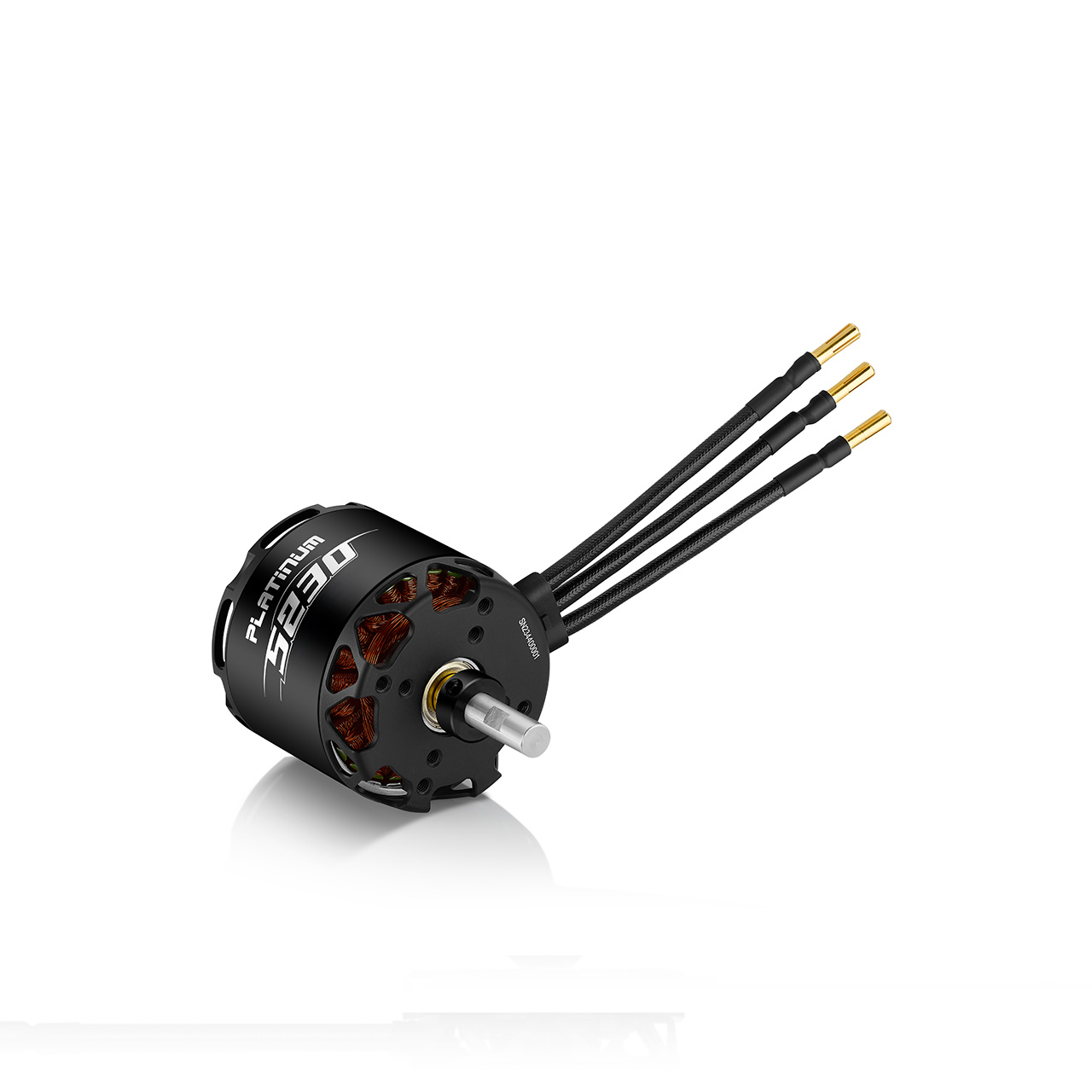

Hobbywing Platinum Motor 60x94 8mm 5230SL 380kV 6-8s Lipo
- Part No: HW30416202
- Retail: €136.90
- EAN: 6938994423489
- Notice: 30416202
Specifications Type Brushless kV Rating 380kV No-Load Current 4.0 A/44.4 V... more
Product information "Hobbywing Platinum Motor 60x94 8mm 5230SL 380kV 6-8s Lipo"
Specifications
| Type | Brushless |
| kV Rating | 380kV |
| No-Load Current | 4.0 A/44.4 V |
| Resistance | 7.8 m Ohm |
| LiPo Cells | 6–8S LiPo |
| Slots & Poles | 24N28P |
| Max. Continuous Current | 162 A/1 min 22 s |
| Max. Continuous Power | 4790 W/1 min 22 s |
| Max. Thrust | 11.49 kg |
| Bearings | 1560ZZ, 698ZZ |
| Diameter | 60.2 mm |
| Length | 93.5 mm |
| Shaft Diameter | 8 mm |
| Weight | 590 g |
| Recommended ESC | Platinum 120A V4, Platinum 150A V5 |
| Propeller | 6S: 19x10E, 20x10E, 22x10E; 8S: 17x10E, 18x10E, 18x12E |
| Mounting Thread | D: 22 mm, 3xM4 |
| Base Thread | D:30 mm-4xM4 / D:44 mm-4xM4 |
