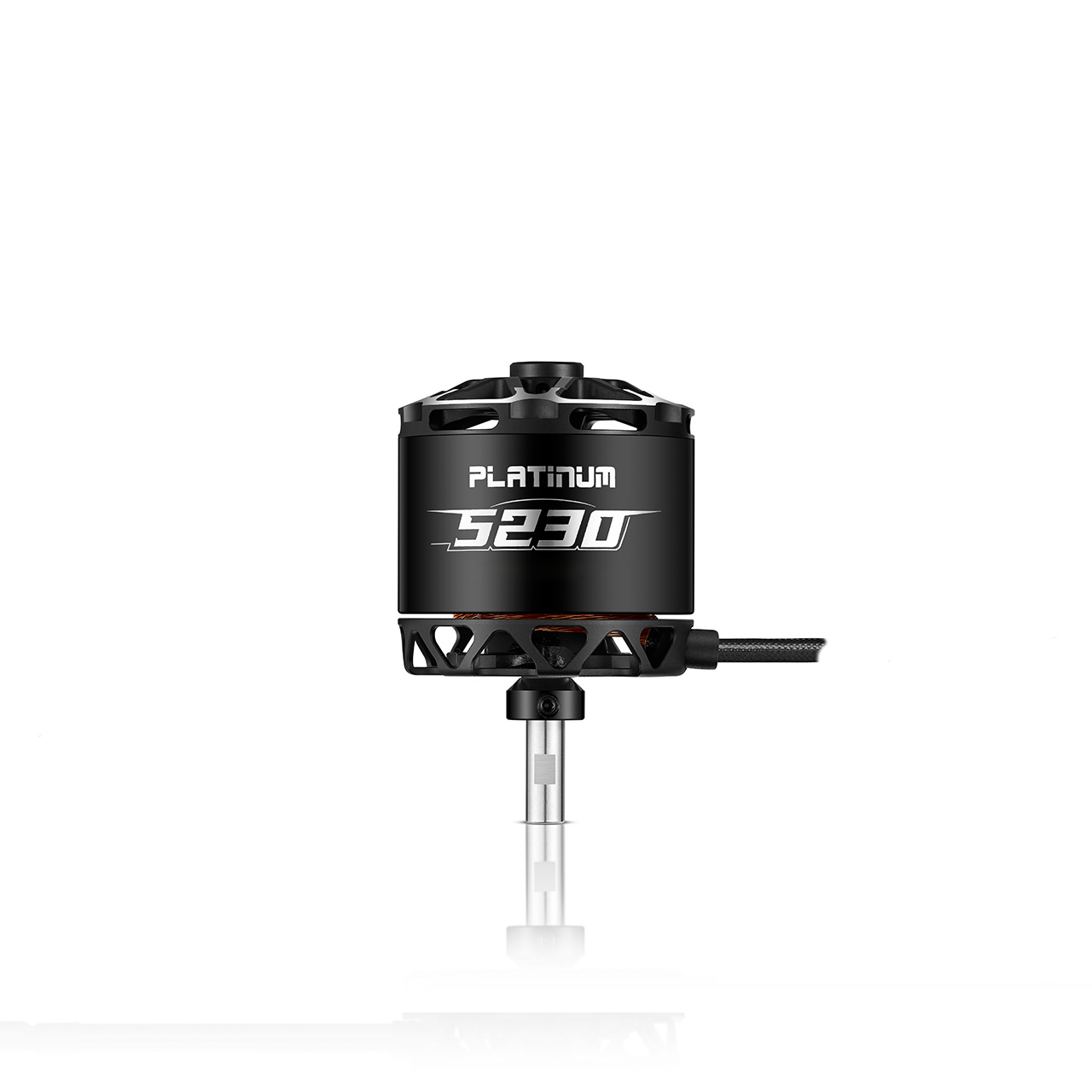

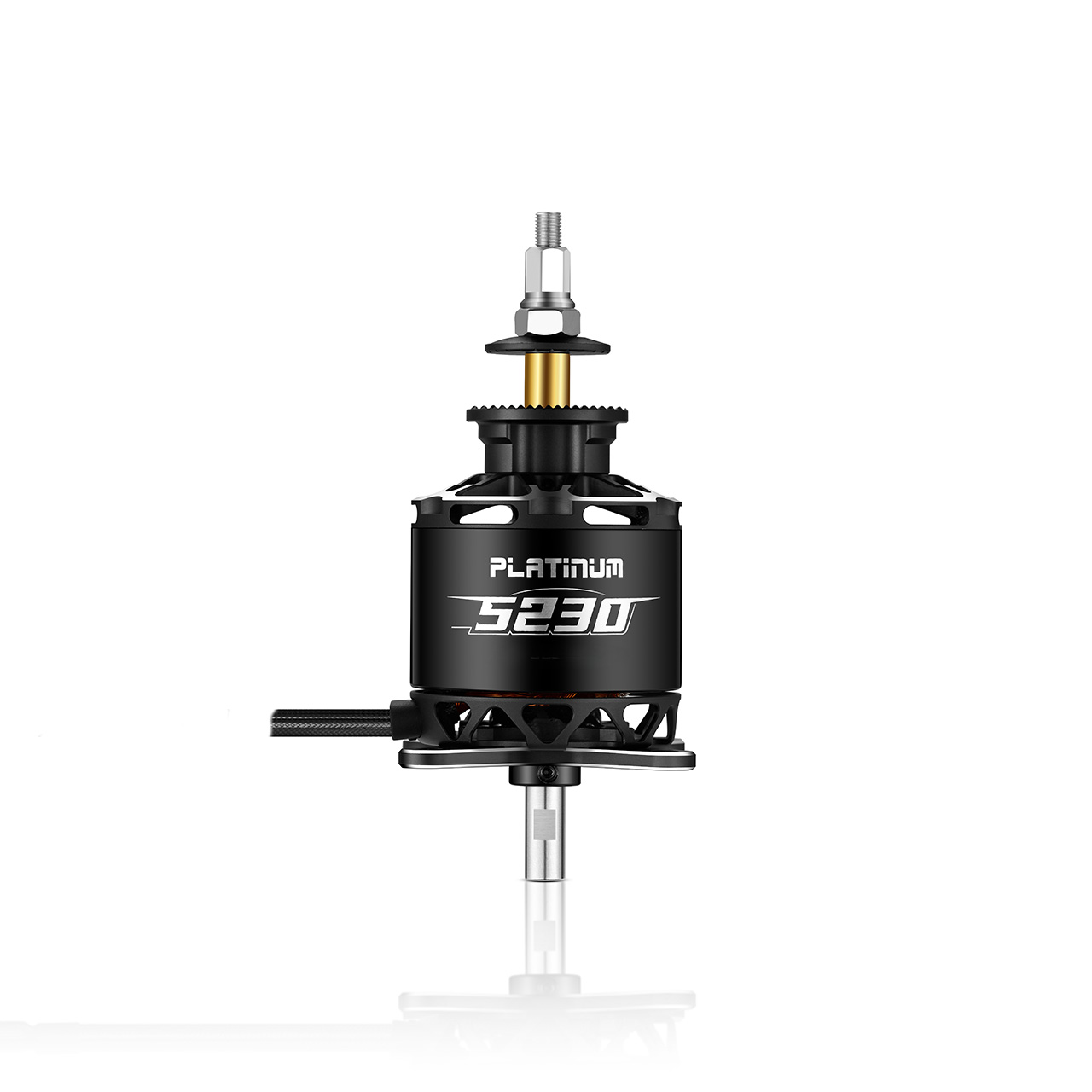

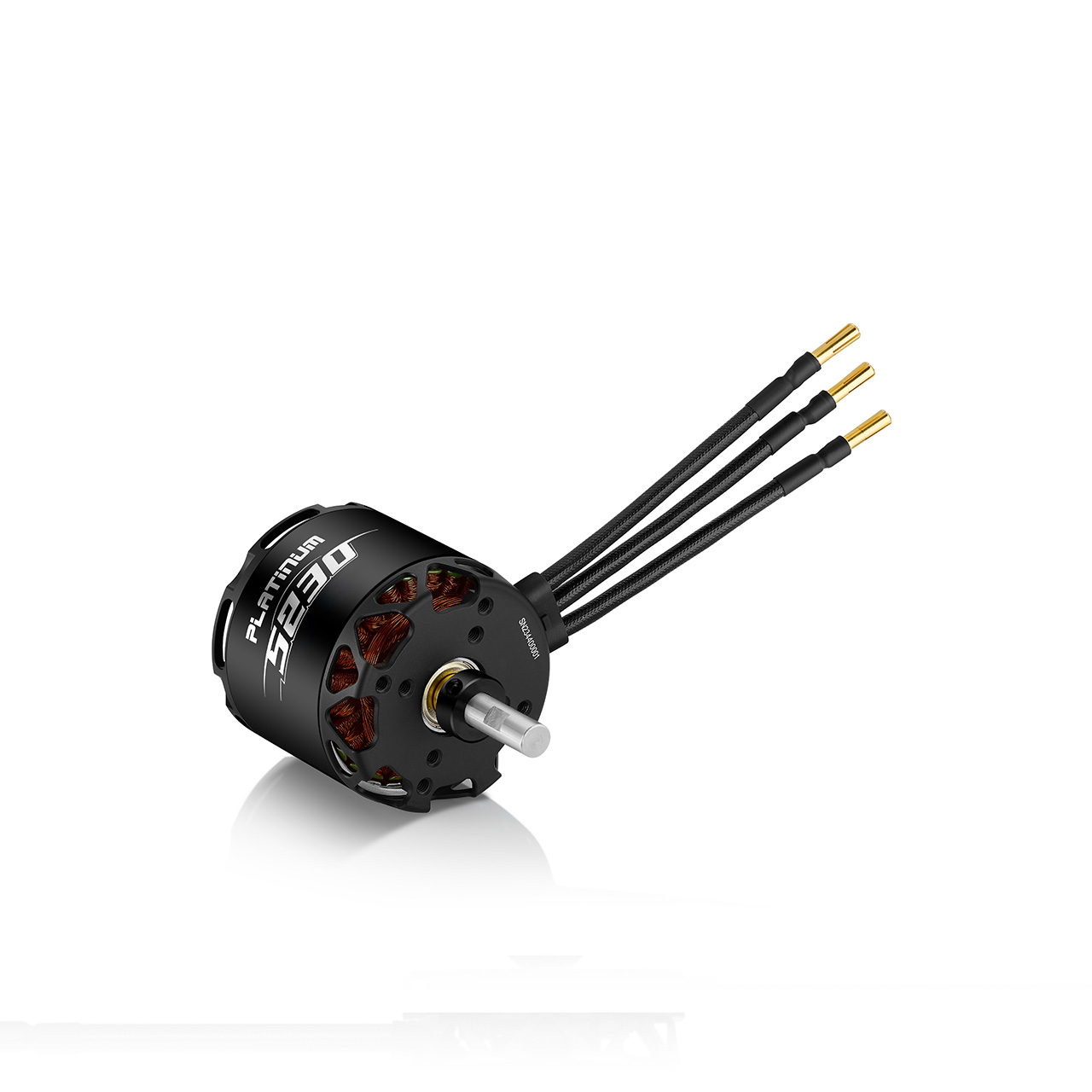

Hobbywing Platinum Motor 60x94 8mm 5230SL 190kV 10-12s Lipo
- Part No: HW30416200
- Retail: €136.90
- EAN: 6938994423465
- Notice: 30416200
The Hobbywing Platinum 5230SL is a Brushless motor rated at 190kV for 10–12S LiPo.... more
Product information "Hobbywing Platinum Motor 60x94 8mm 5230SL 190kV 10-12s Lipo"
The Hobbywing Platinum 5230SL is a Brushless motor rated at 190kV for 10–12S LiPo.
Specifications
| Type | Brushless |
| kV Rating | 190kV |
| No-Load Current | 3.0 A/44.4 V |
| Resistance | 22 m Ohm |
| LiPo Cells | 10–12S LiPo |
| Slots & Poles | 24N28P |
| Max. Continuous Current | 112.5 A/42 s |
| Max. Continuous Power | 4985 W/42 s |
| Max. Thrust | 14.99 kg |
| Bearings | 1560ZZ, 698ZZ |
| Diameter | 60.2 mm |
| Length | 93.5 mm |
| Shaft Diameter | 8 mm |
| Weight | 582 g |
| Recommended ESC | Platinum 130A V4, Platinum 180A V5 |
| Propeller | 10S: 20x10E, 22x10E, 22x12E; 12S: 20x8E, 20x10E, 22x10E |
| Mounting Thread | D:22 mm-3xM4 |
| Base Thread | D:30 mm-4xM4 / D:44 mm-4xM4 |
