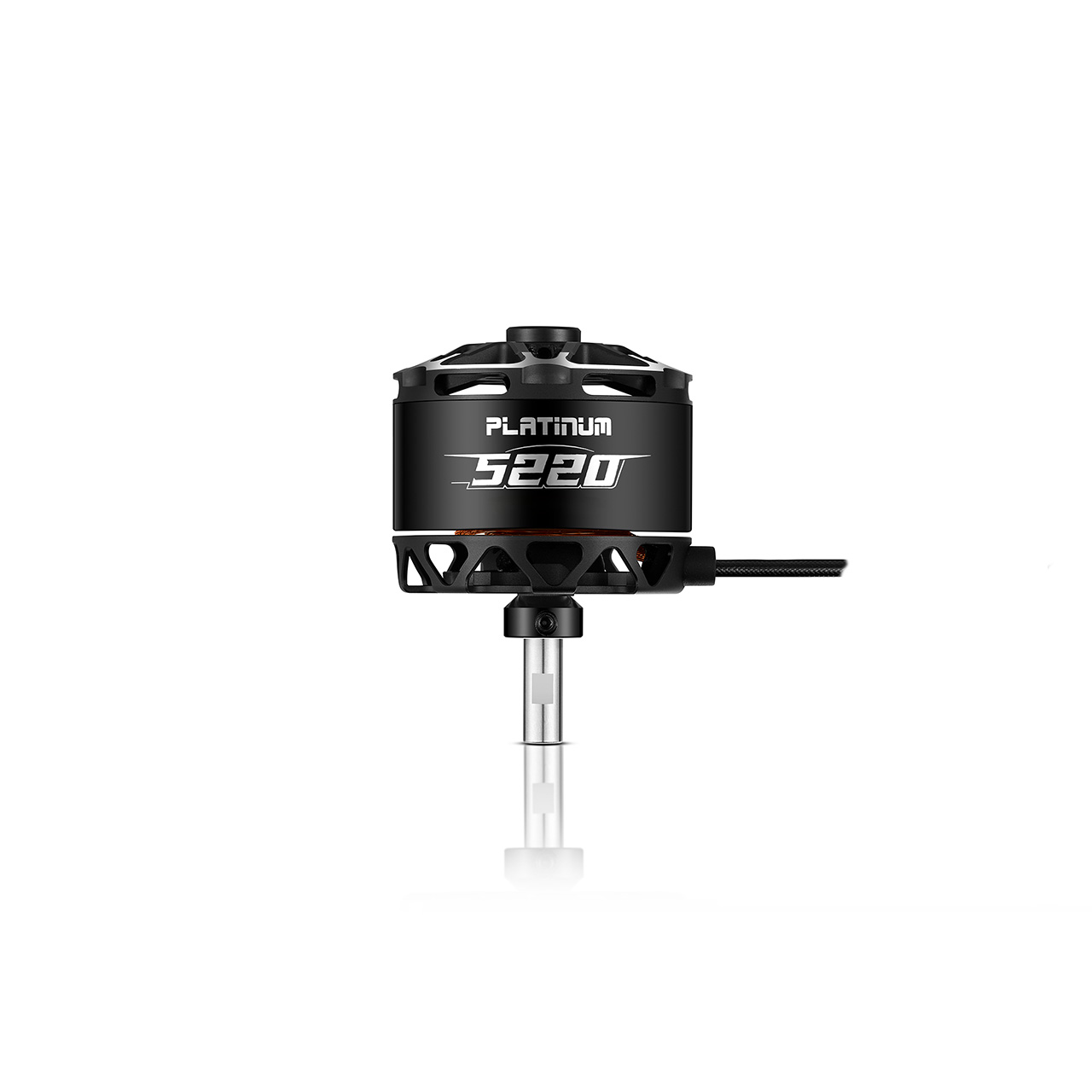

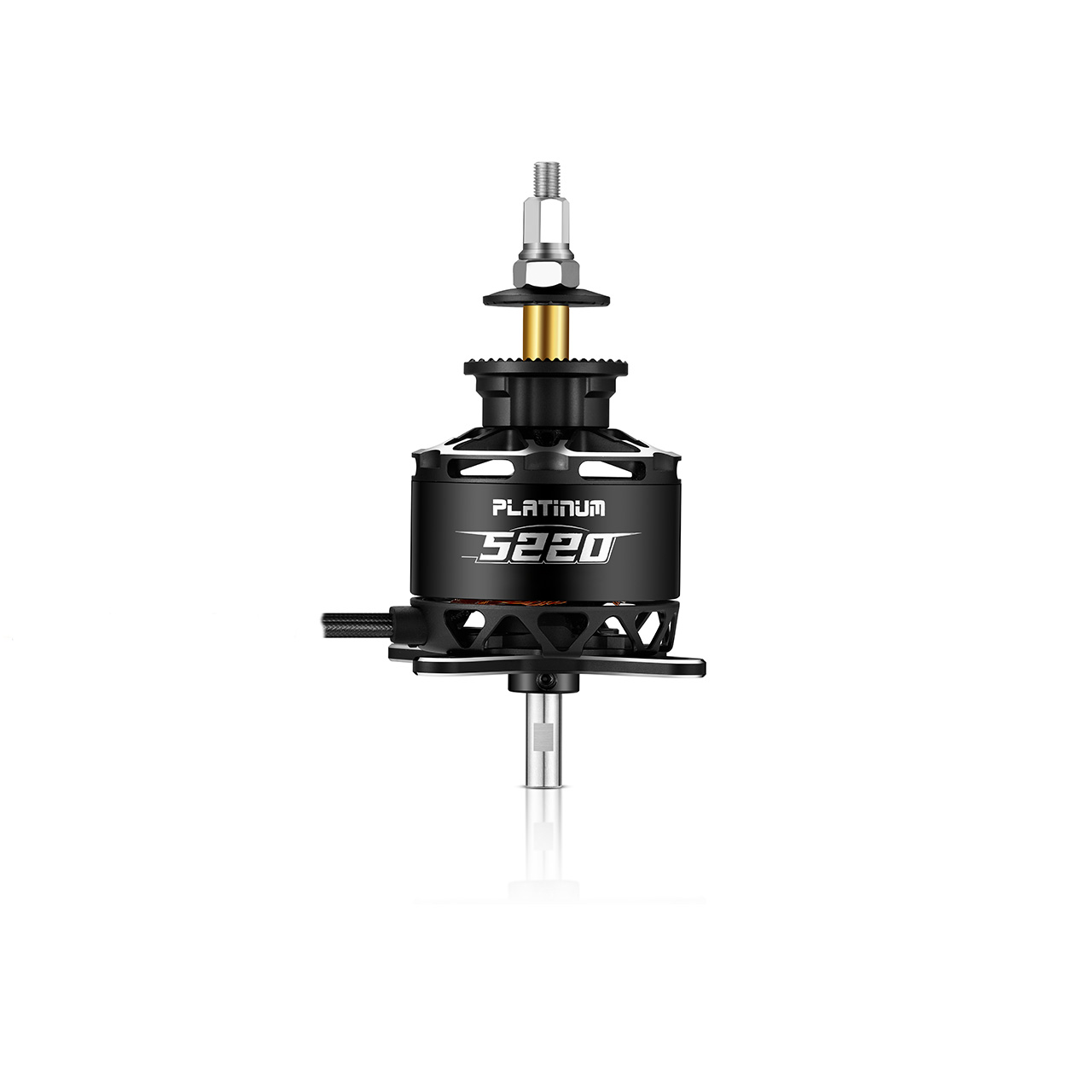

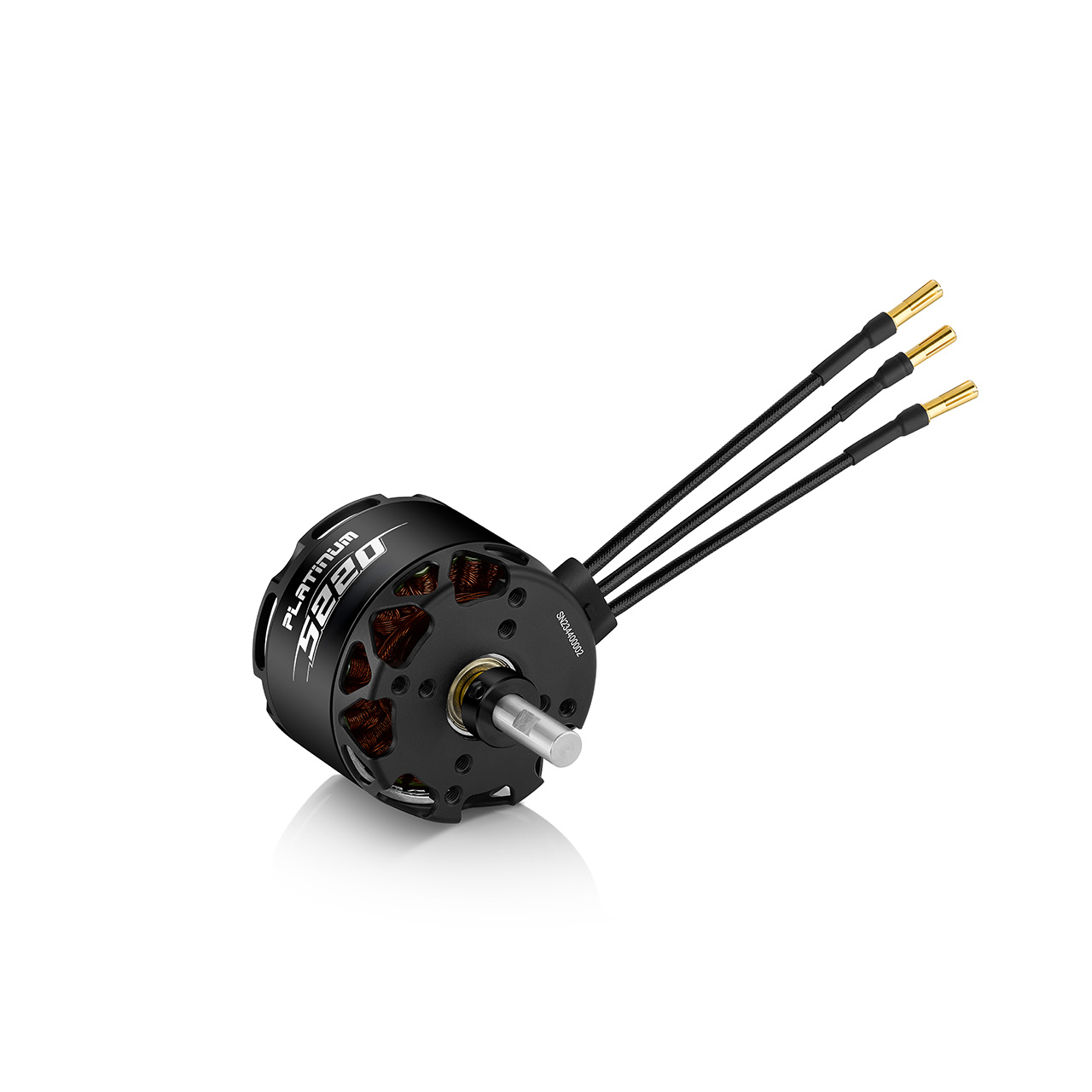

Hobbywing Platinum Motor 60x84 8mm 5220SL 380kV 6-8s Lipo
Please inform me as soon as the product is available again.
- Part No: HW30416151
- Retail: €116.90
- EAN: 6938994423458
- Notice: 30416151
The Hobbywing Platinum 5220SL 380kV is a Brushless motor for 6–8S LiPo. Specifications... more
Product information "Hobbywing Platinum Motor 60x84 8mm 5220SL 380kV 6-8s Lipo"
The Hobbywing Platinum 5220SL 380kV is a Brushless motor for 6–8S LiPo.
Specifications
| Type | Brushless |
| kV Rating | 380kV |
| No-Load Current | 3.7 A/22.2 V |
| Resistance | 11.3 m Ohm |
| LiPo Cells | 6–8S LiPo |
| Slots & Poles | 24N28P |
| Max. Continuous Current | 136.3 A/47 s |
| Max. Continuous Power | 4028 W/47 s |
| Max. Thrust | 10.14 kg |
| Bearings | 1560ZZ, 698ZZ |
| Diameter | 60.2 mm |
| Length | 83.5 mm |
| Shaft Diameter | 8 mm |
| Weight | 435 g |
| Recommended ESC | Platinum 120A V4, Platinum 150A V5 |
| Propeller | 6S: 18x10E, 19x10E, 20x10E; 8S: 16x10E, 17x10E, 18x10E |
| Mounting Thread | D: 22 mm–3xM4 |
| Base Thread | D: 30 mm–4xM4 / D: 44 mm–4xM4 |
