Hobbywing Platinum Motor 60x84 8mm 5220SL 220kV 10-12s Lipo
- Part No: HW30416150
- Retail: €116.90
- EAN: 6938994423441
- Notice: 30416150
The Hobbywing Platinum 5220SL is a Brushless motor rated 220kV for 10–12S LiPo. Specifications... more
Product information "Hobbywing Platinum Motor 60x84 8mm 5220SL 220kV 10-12s Lipo"

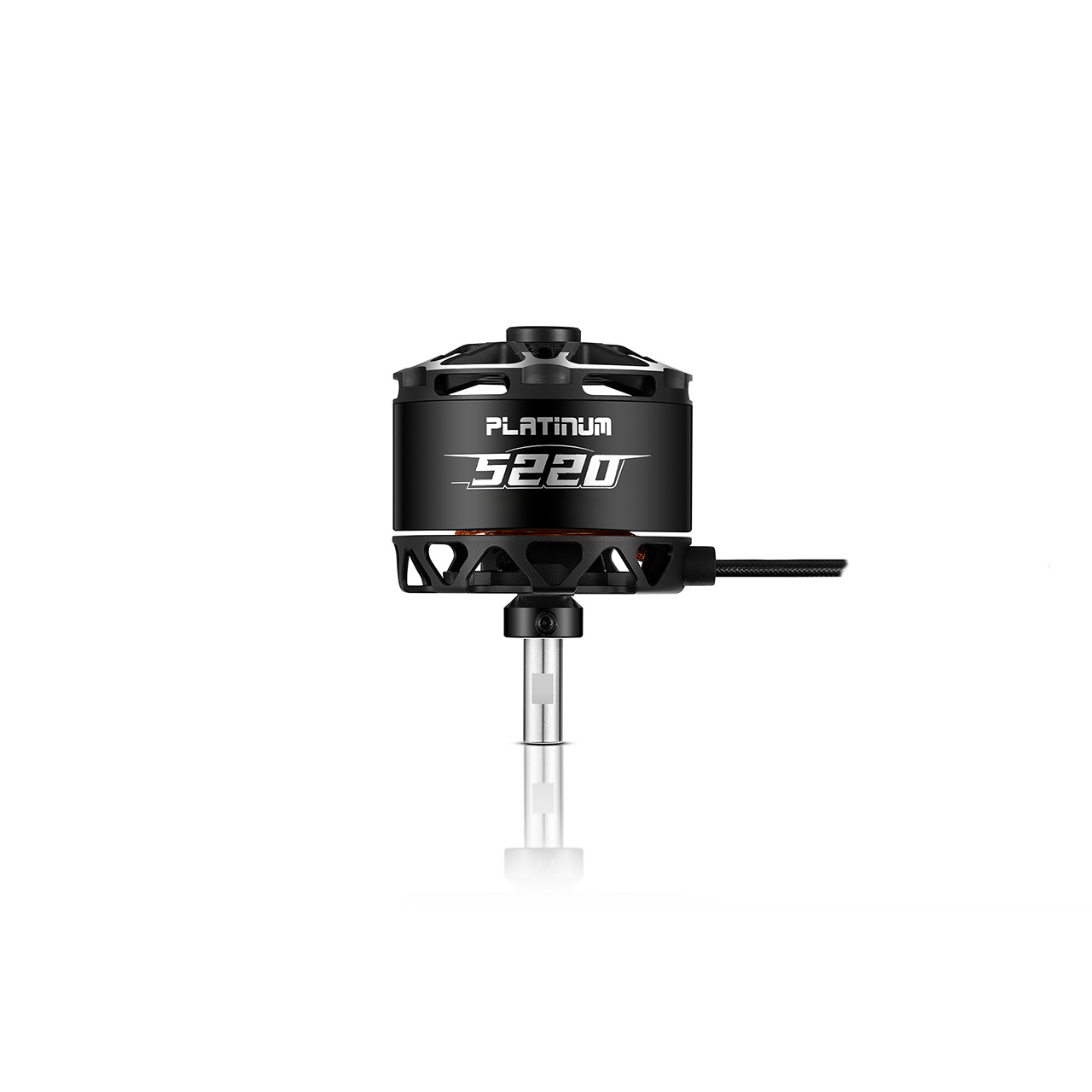

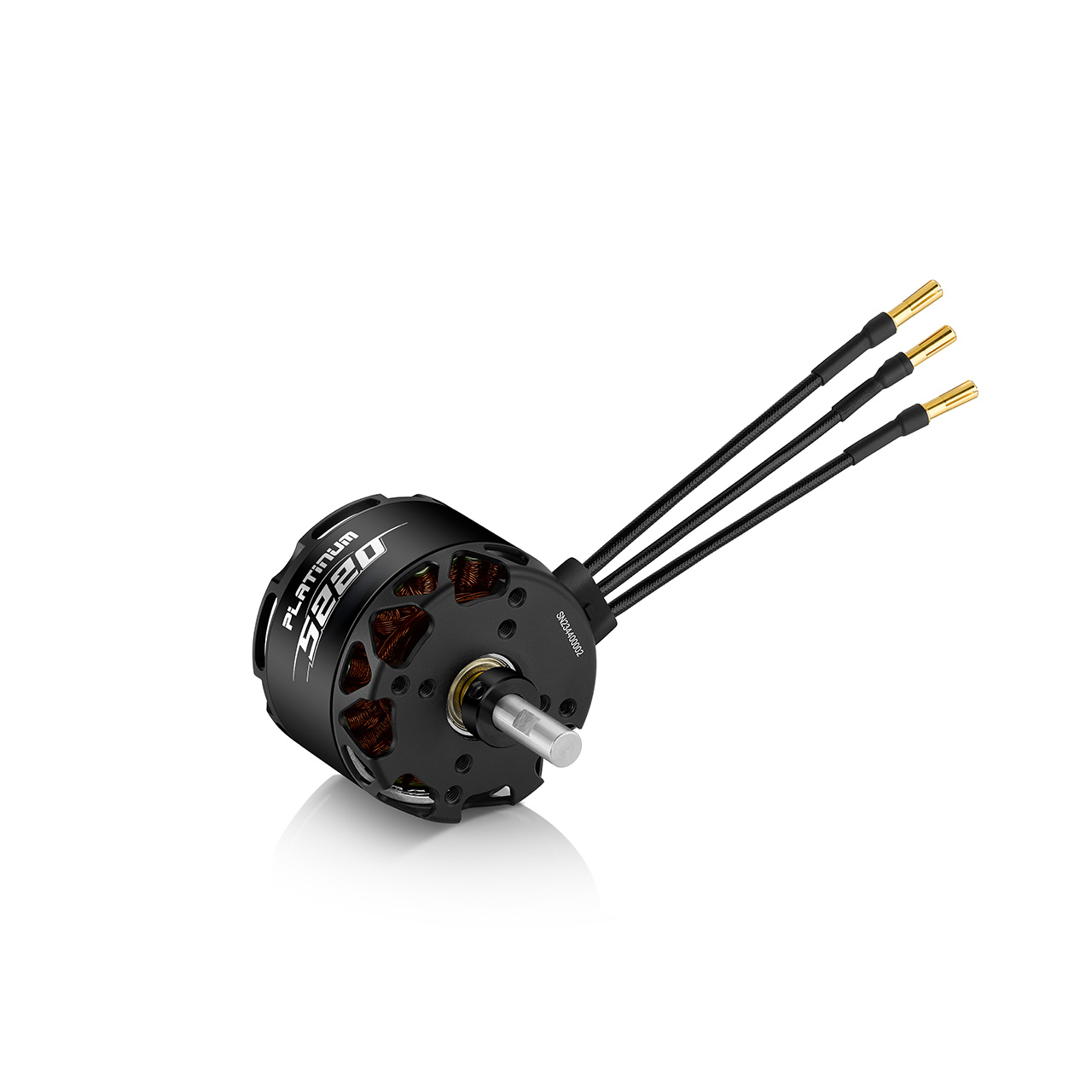

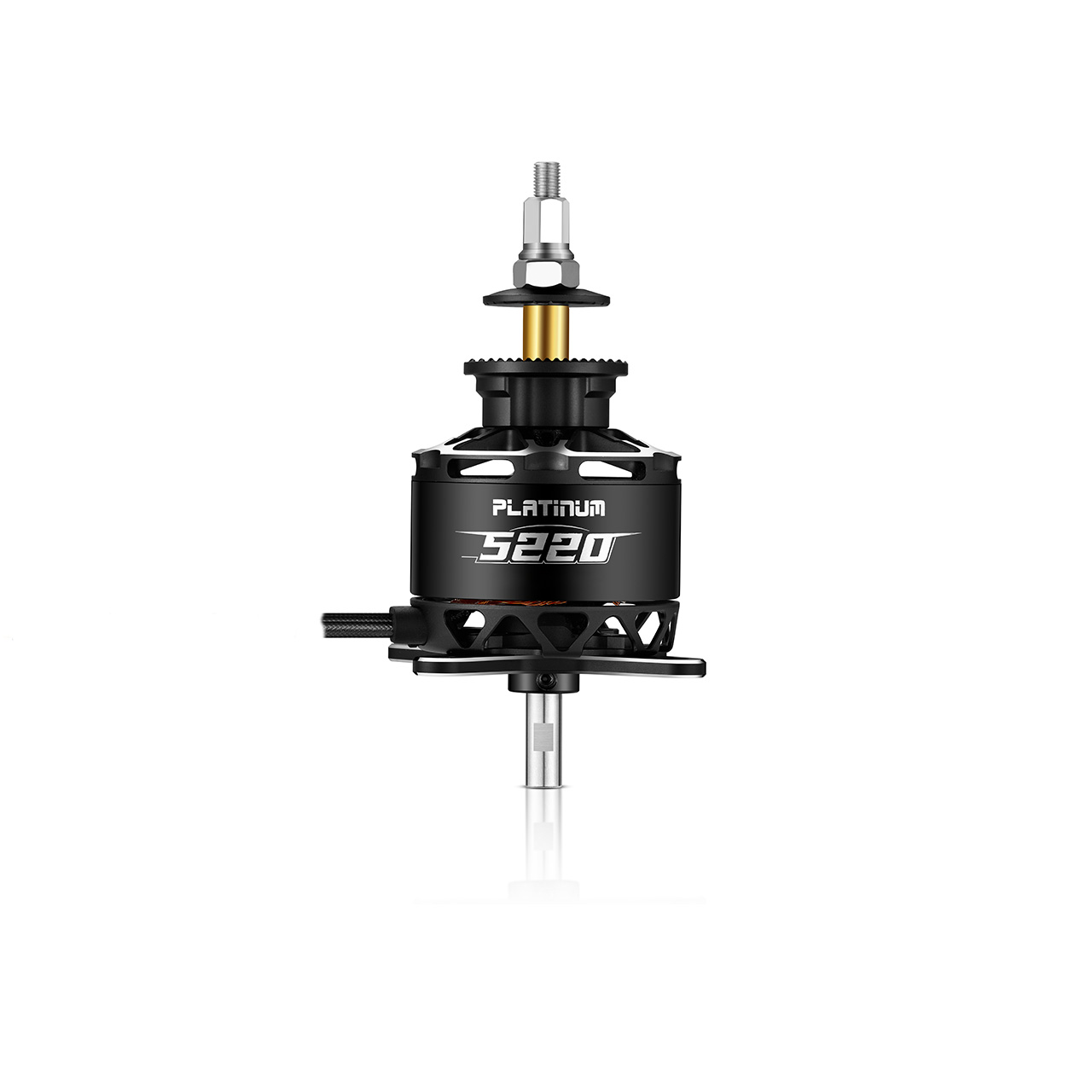

The Hobbywing Platinum 5220SL is a Brushless motor rated 220kV for 10–12S LiPo.
Specifications
| Type | Brushless |
| kV Rating | 220kV |
| No-Load Current | 3.5 A/44.4 V |
| Resistance | 27.5 m Ohm |
| LiPo Cells | 10–12S LiPo |
| Slots & Poles | 24N28P |
| Max. Continuous Current | 86 A/44 s |
| Max. Continuous Power | 3828 W/44 s |
| Max. Thrust | 10.05 kg |
| Bearings | 1560ZZ, 698ZZ |
| Diameter | 60.2 mm |
| Length | 83.5 mm |
| Shaft Diameter | 8 mm |
| Weight | 430 g |
| Recommended ESC | Platinum 130A V4, Platinum 180A V5 |
| Propeller | 10S: 20x8E, 20x10E; 12S: 17x8E, 18x8E, 18x10E |
| Mounting Thread | D:22 mm-3xM4 |
| Base Thread | D:30 mm-4xM4 / D:44 mm-4xM4 |
