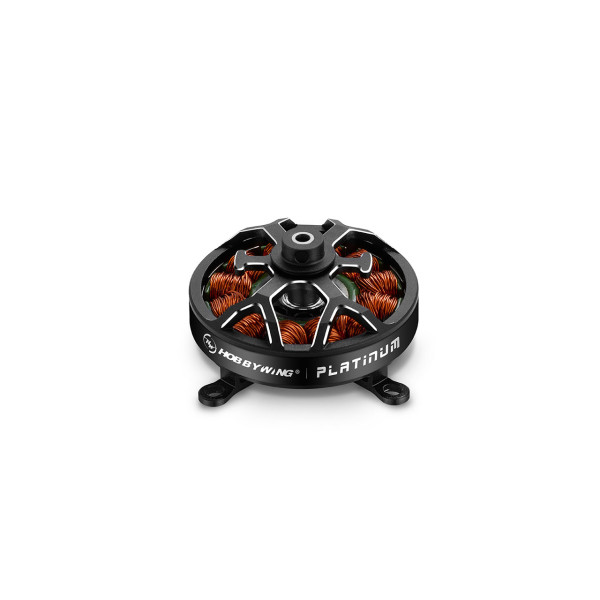

Hobbywing Platinum 2603SL Motor 1480kV
- Part No: HW30416250
- Retail: €25.90
- EAN: 6938994440035
The Hobbywing Platinum 2603/2604 is a high-performance brushless motor specifically designed... more
Product information "Hobbywing Platinum 2603SL Motor 1480kV"
The Hobbywing Platinum 2603/2604 is a high-performance brushless motor specifically designed for use in ultra-light F3P and indoor 3D aircraft.
Ultra-light & compact: Optimized for use in F3P and indoor 3D models where every gram counts.
High performance: When combined with the Platinum 18A V5 ESC, the motor delivers up to 870?g of thrust, offering an impressive power-to-weight ratio for precise maneuvers.
Precise control: Ensures linear power output and fast throttle response, which is especially beneficial for demanding flight maneuvers.
Technical Specifications
| RPM: | 1480kV |
| No-load current: | 0.5A/12V |
| Max. current: | 16A/34s |
| Max. power: | 187W/34s |
| Max. thrust: | 656g |
| Resistance: | 204m? |
| Battery: | 3S LiPo |
| Dimensions: | Motor: ?30*H16.2mm Stator: ?26*H2.6mm |
| Mounting: | 4×?2.1@D33 |
| Propeller: | UP8338 |
| Slots & Poles: | 12N14P |
| Weight: | 18g |
| ESC: | Platinum 18A V5 F3P |
