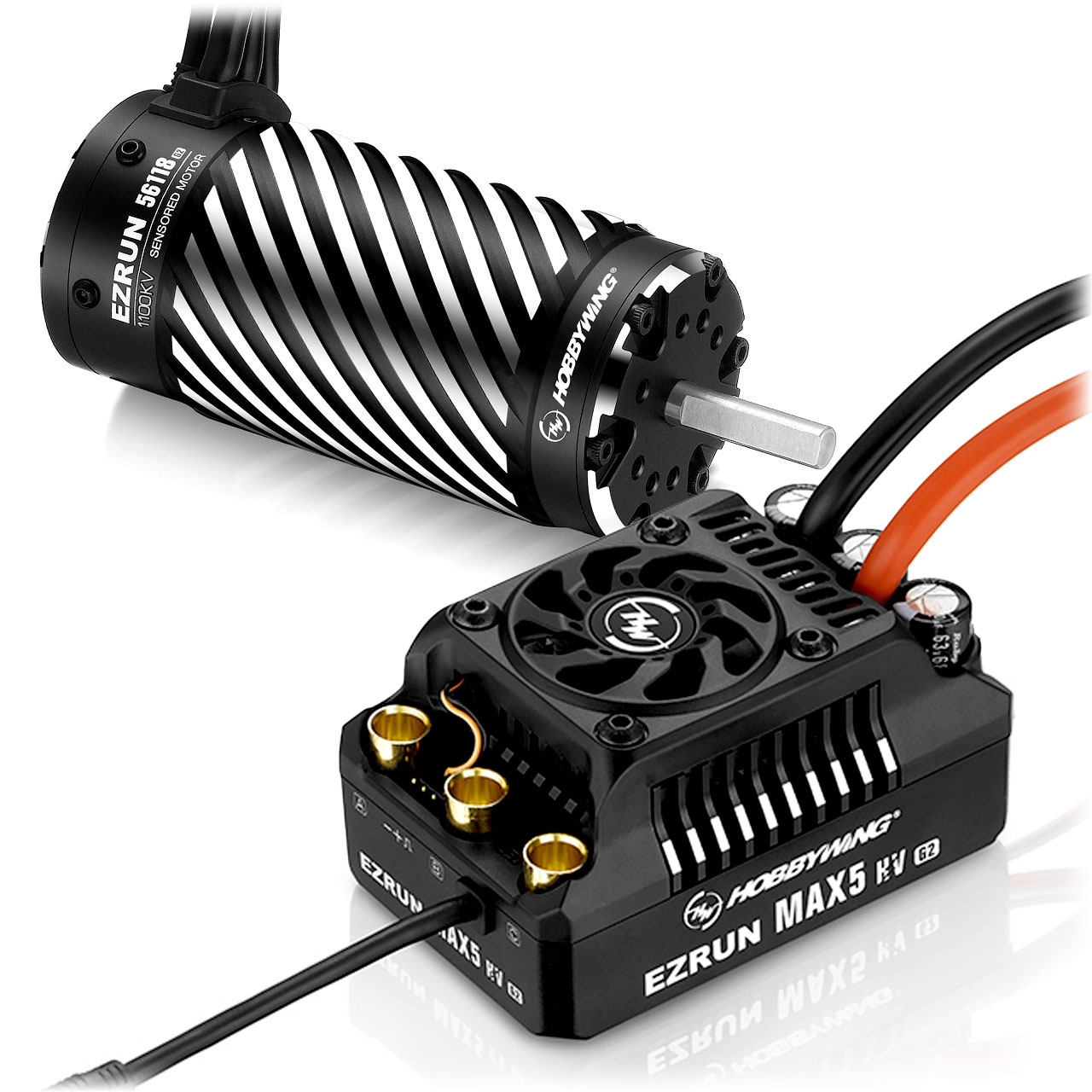

Hobbywing Ezrun MAX5 HV Combo 56118SD 1100kV G2
- Part No: HW38010604
- Retail: €403.90
- EAN: 6938994407632
- Notice: Brushless,38010604
Discover impressive performance with the second generation of the Ezrun MAX5 HV G2 ESC - now available in the combo version with the matching 56118SD G2 motor with 1100kV! This enhanced MAX5 series with 250A offers numerous innovations, making the driving experience with 1/5th scale buggies and trucks even more thrilling.
Compared to the regular MAX5 combo, the sensor mode has been significantly improved and equipped with a waterproof cable for reliable performance. The power has been increased by a whopping 18%, while reducing heat generation, resulting in even more power and efficiency. The ESC's strong, explosive, and stable output power, along with excellent low-speed linearity, ensures it excels in various applications. Quick acceleration, high-speed maneuvers, jumps, and slower driving are no problem at all. Overall, the ESC has been so greatly improved that you won't want to look back. Especially when paired with the EZRUN 56118SD G2 motor, you also benefit from motor overheating protection and turbo timing adjustment.
It's the perfect way to dive right into the 1/5th scale world with ease!
Features:
- Built-in ultra-strong switching mode BEC to support various servos.
- Up to 24° of turbo timing adjustment (when using a 56118 G2 motor).
- Data logging function.
- 12 adjustable parameters.
- Increased capacitor capacity by 45%.
- New waterproof sensor cable.
- Fully sensored system for enhanced acceleration and more powerful performance.
- With the EZRUN 56118SD G2 motor, the MAX5 HV G2 features integrated motor overheat protection.
- Easy-to-disassemble motor for maintenance work.
Technical Specifications:

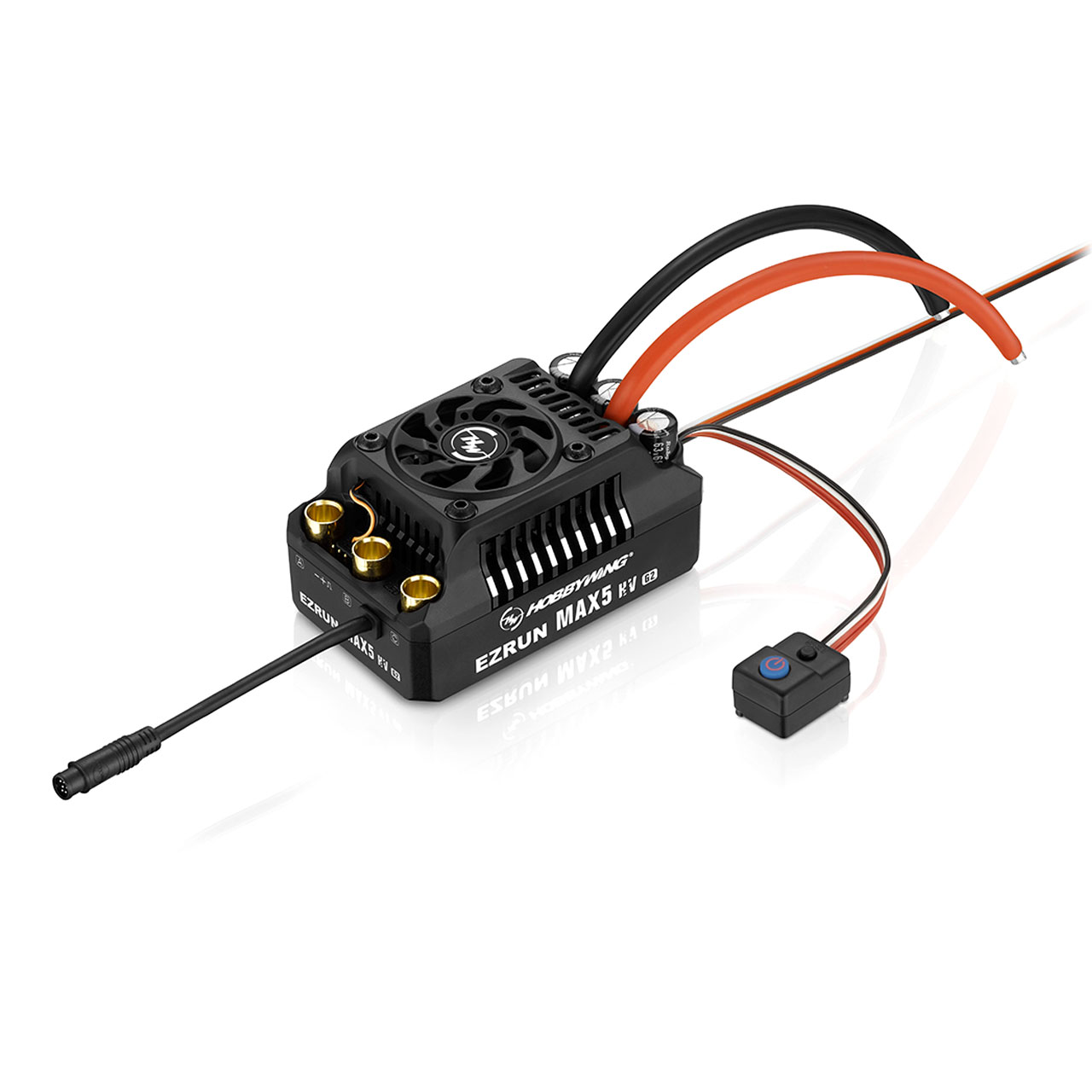

| ESC | |
| Type: | Brushless Sensored |
| Current (cont./peak): | 250A / 1600A |
| No. of Cells: | 6-12S LiPo |
| Motor Limit: | 8S Lipo: KV <= 1200 12S Lipo: KV <= 800 56118 Motor |
| BEC: | 6V/7.4V/8.4V @8A (Switch Mode) |
| Fan: | Yes (BEC) |
| Programming: | LED Program Card LCD Programming Box (G2) OTA Bluetooth Programmer Seperate Programming Port |
| Waterproof: | Yes |
| Dimensions: | 94.5x59.4x50.9mm |
| Weight: | 428.5g |
| Application: | 1/5 Buggy, Truck |

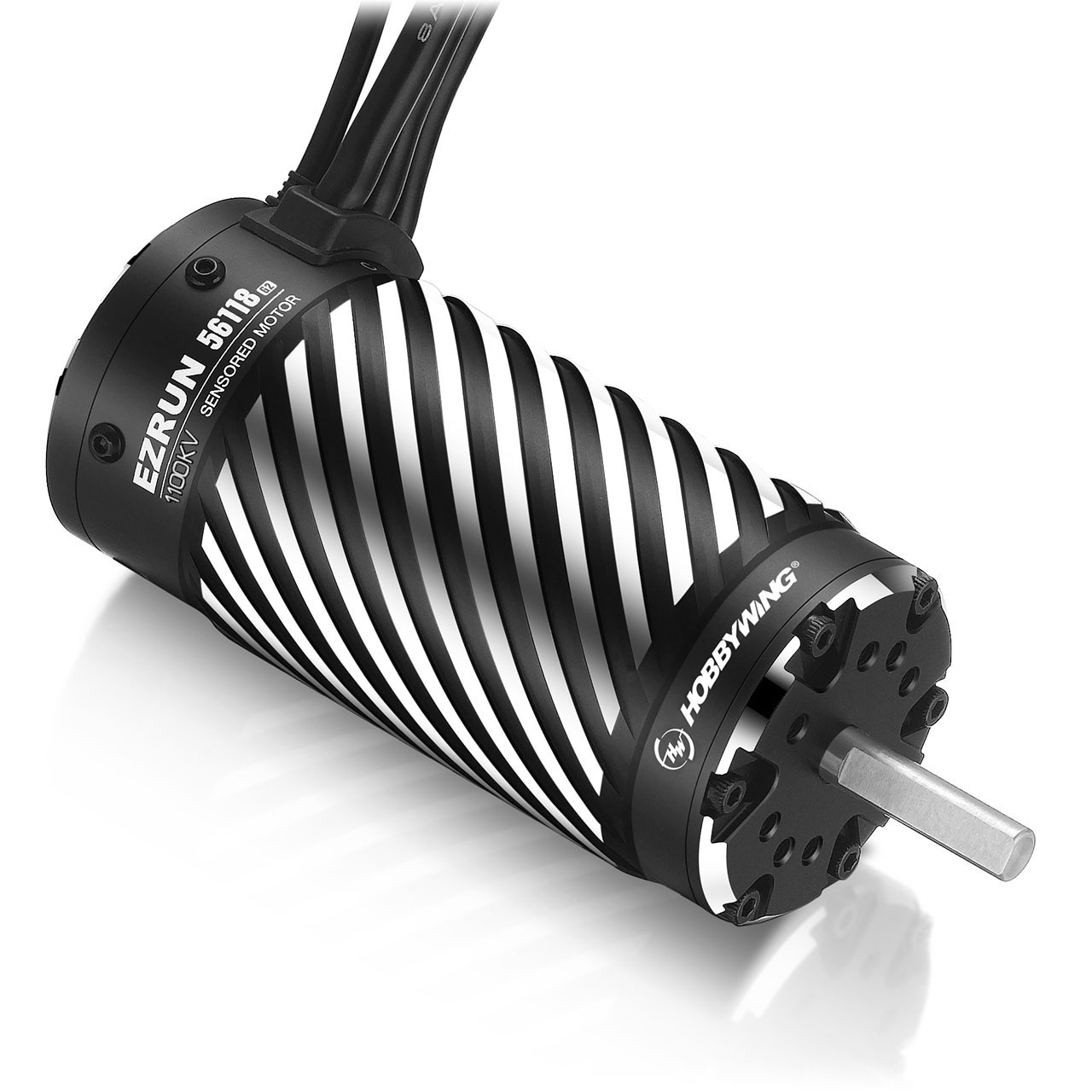

| Motor | |
| Type: | Brushless, Sensored |
| kV Rating: | 1100kV |
| No-Load Current: | 8.0A |
| No. of Cells: | 6-8S LiPo |
| Poles: | 4 |
| Diameter: | 56mm |
| Length: | 119.2mm |
| Shaft Diameter: | 8mm |
| Shaft Length: | 30mm |
| Weight: | 1287g |
| Application: | 1/5 Buggy, Truck |
Delivery:
1x Ezrun MAX5 HV G2 ESC with 250A
1x 56118SD G2 Motor with 1100kV
1x Manual
