Hobbywing Ezrun MAX4 HV Combo 70125 560kV

Sensored MAX4 combo with 70125SD 560kV motor for large-scale models

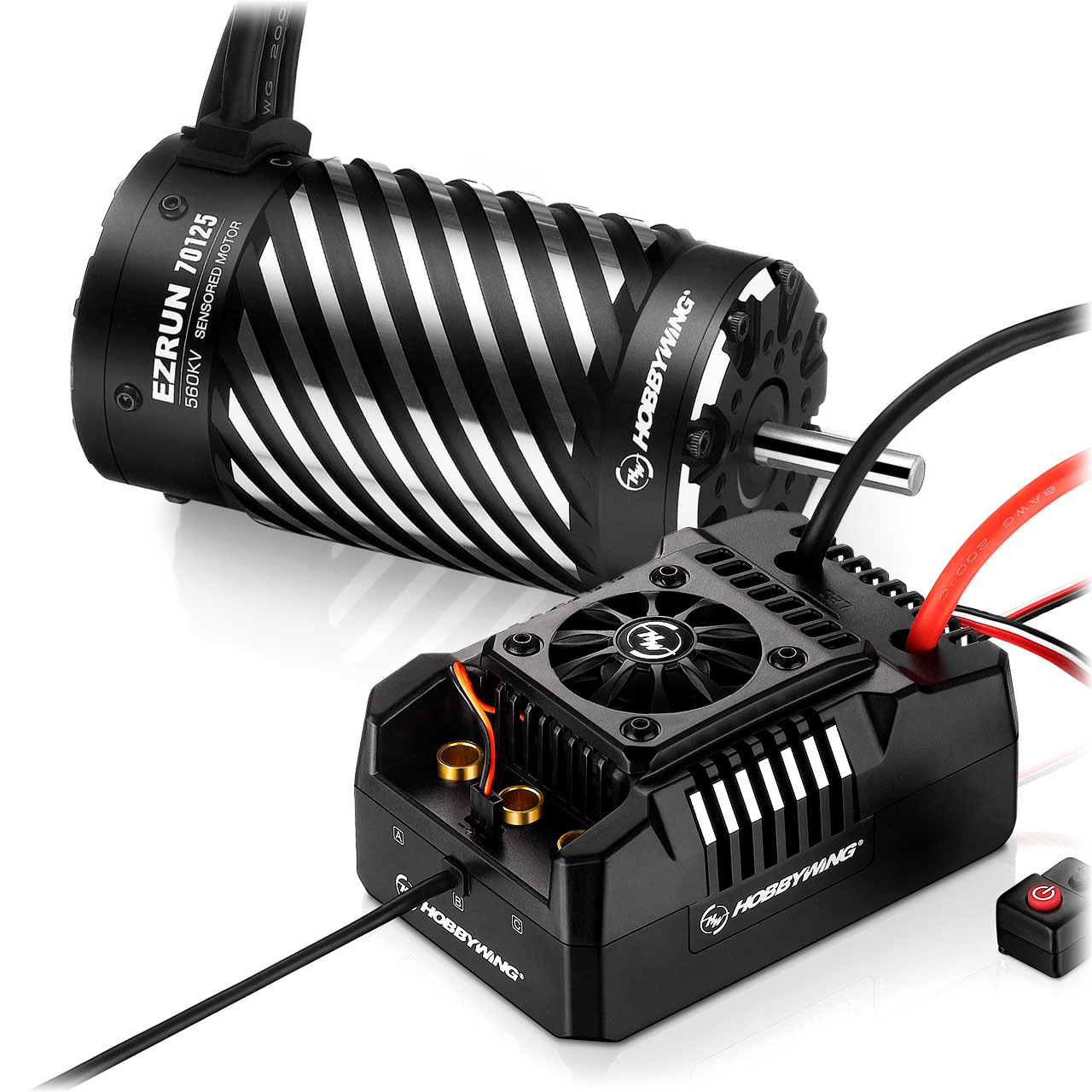

The Ezrun MAX4 ESC and included 70125 SD 560kV motor form a fully sensored combo for extra-large 1/4 and 1/5 scale models, including heavy-duty off-road models and trucks.

The ESC has a built-in high-current BEC with adjustable 6 V, 7.4 V and 8.4 V output. It supplies 10 A continuously and up to 25 A instantaneously for high-current servos. The electronic switch is protected against damage.

Highlights

• Fully sensored combo with an adjustable switch-mode BEC: 10 A continuous, 25 A instantaneous at 6 V, 7.4 V or 8.4 V
• Fireproof circuitry protects the battery connector; additional protections are built in
• Programmable functions and real-time data recording
• CNC-milled aluminium housing and 0.2 mm silicon steel sheets
• Four sintered NdFeB magnets
• Sensor interface and independent, high-precision motor encoder for rotor-position communication without interference
• Waterproof and dustproof thanks to rubber bearing covers
• More power and less heat development at the same load

Specifications

In the box

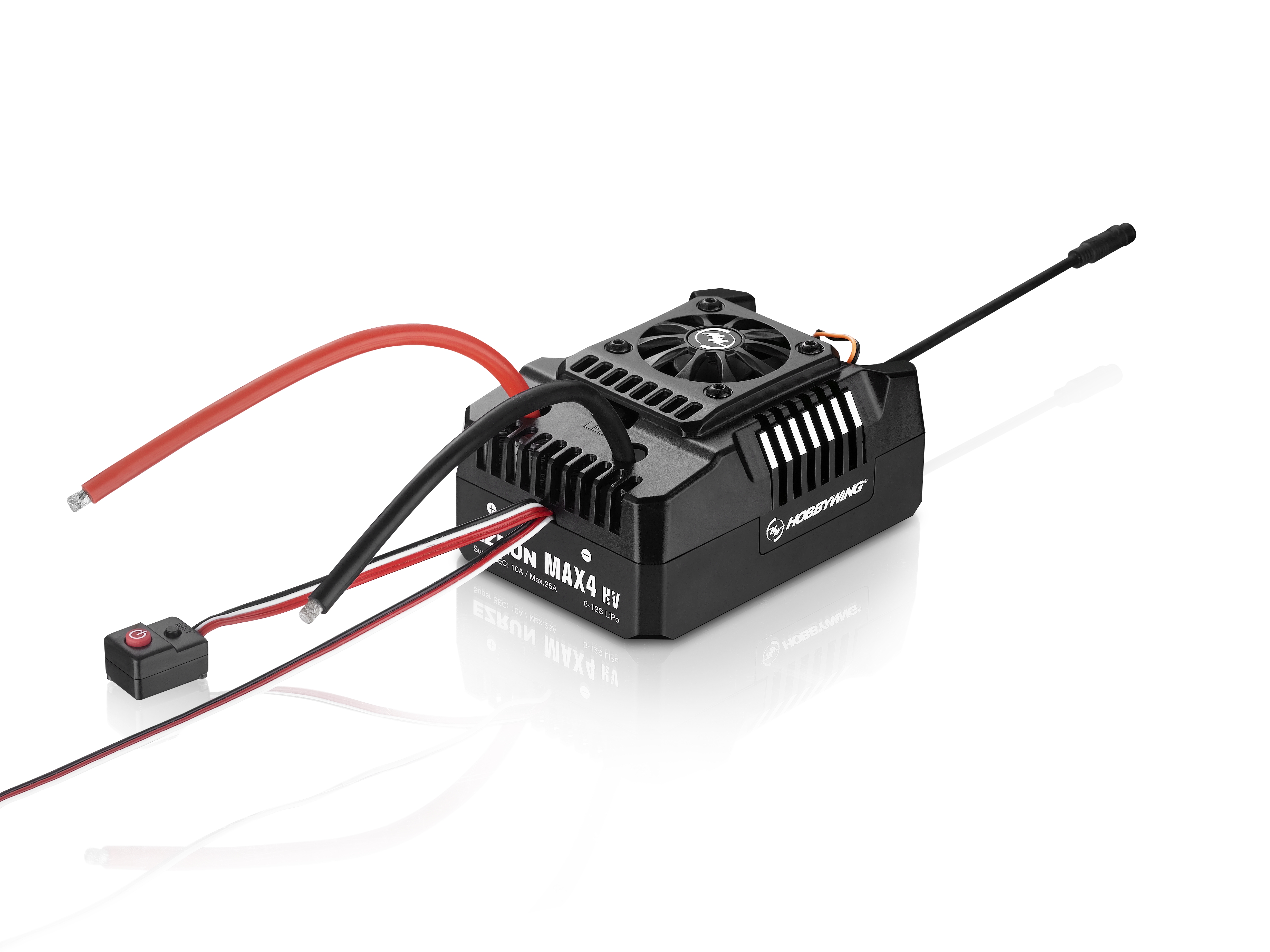

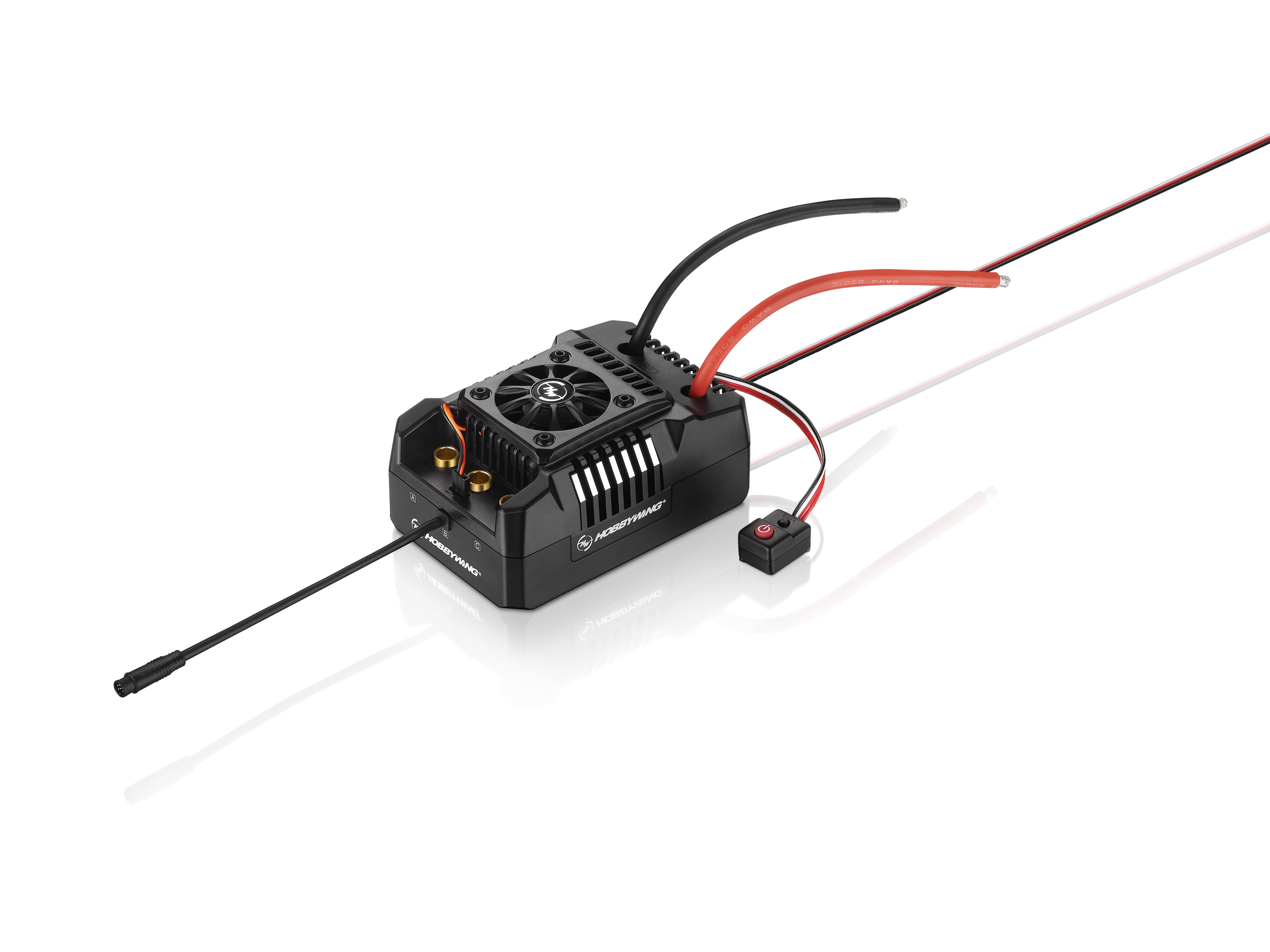

• 1× EzRun MAX4 ESC

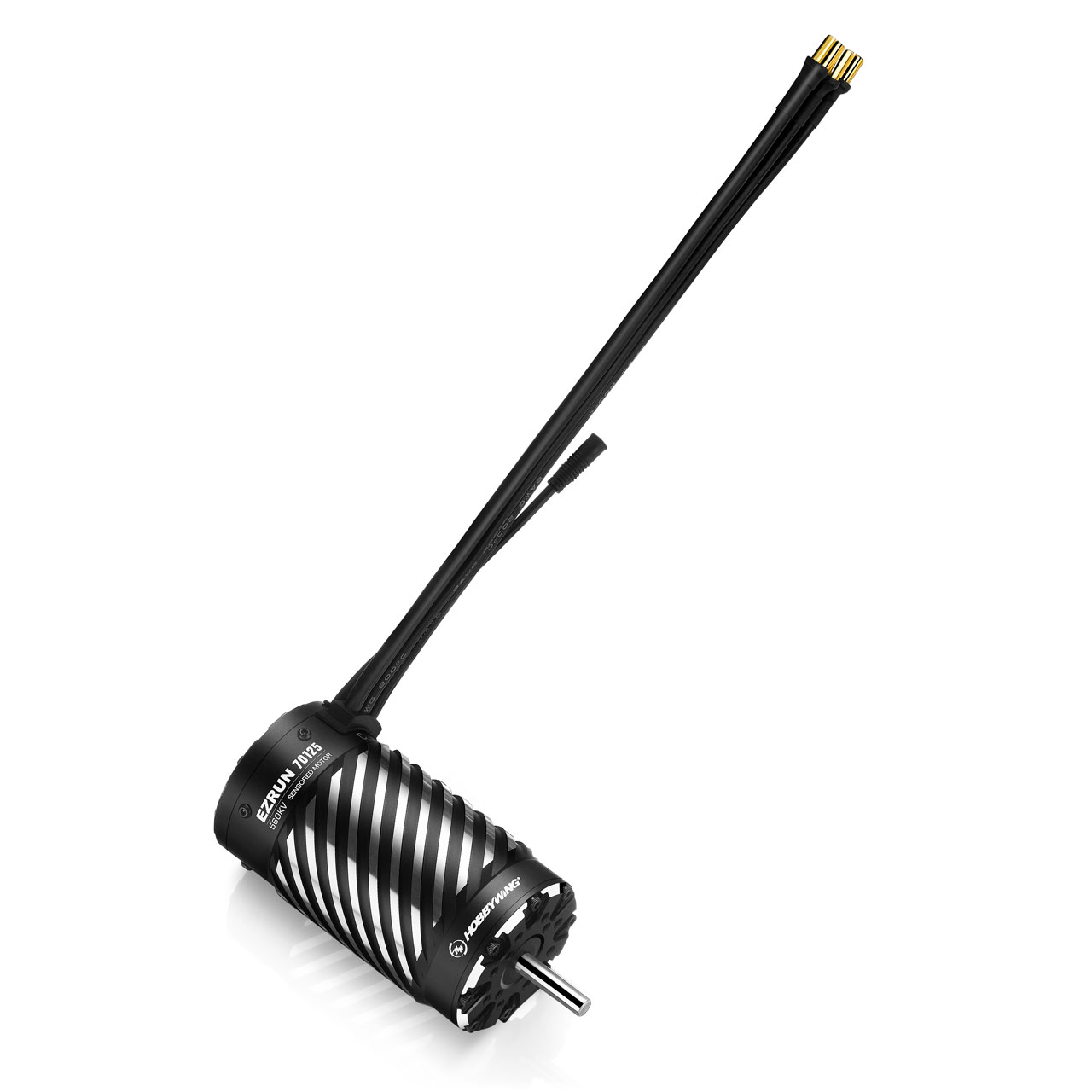

• 1× EzRun 70125SD Motor with 560kV
• 1× Manual
