Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5
- Part No: HW30402850
- Retail: €236.90
- EAN: 6938994405515
- Notice: Sensorless,30402850
Ezrun 70125SD 560kV motor with 8 mm shaft for 1/5 off-road vehicles and trucks The Hobbywing... more
Product information "Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5"

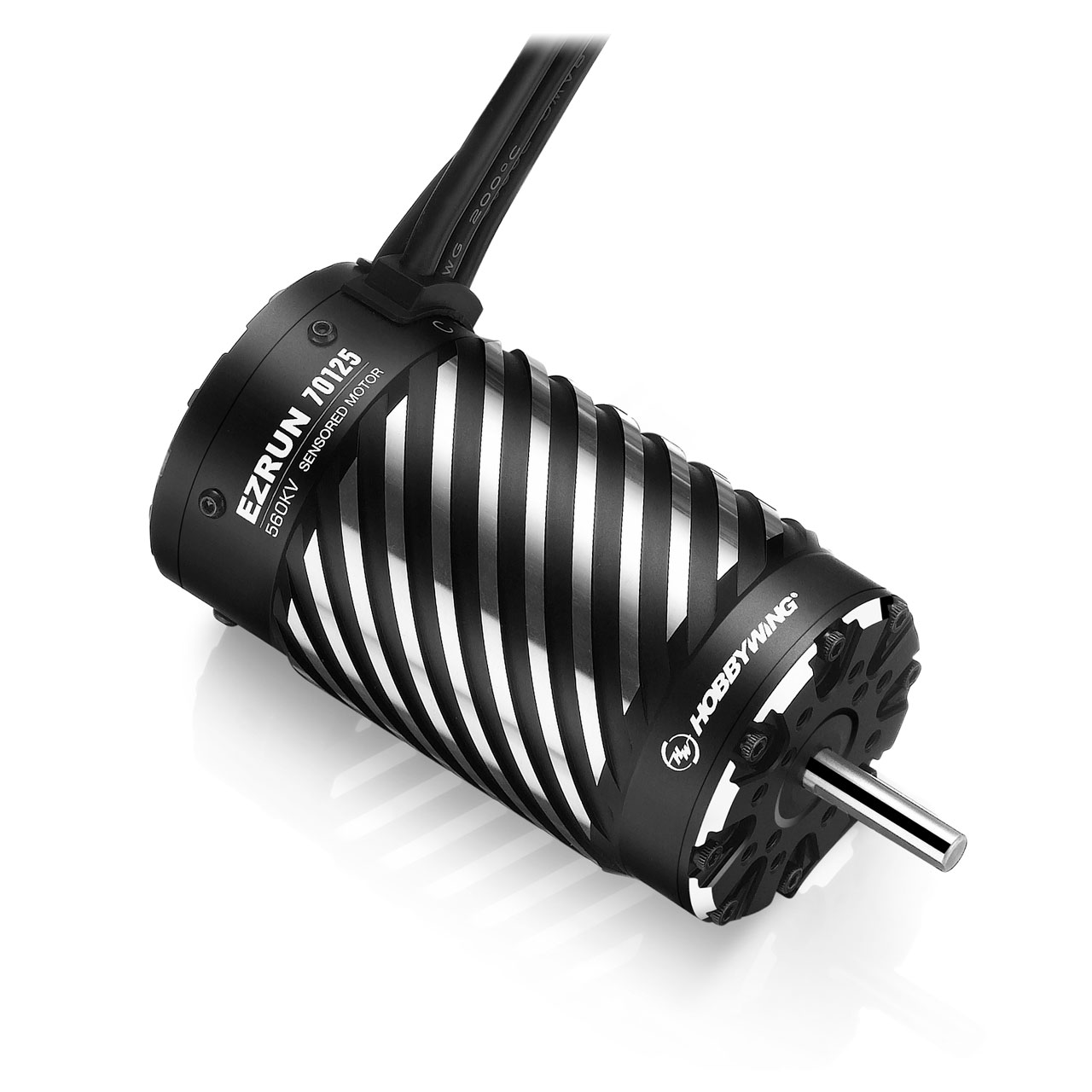

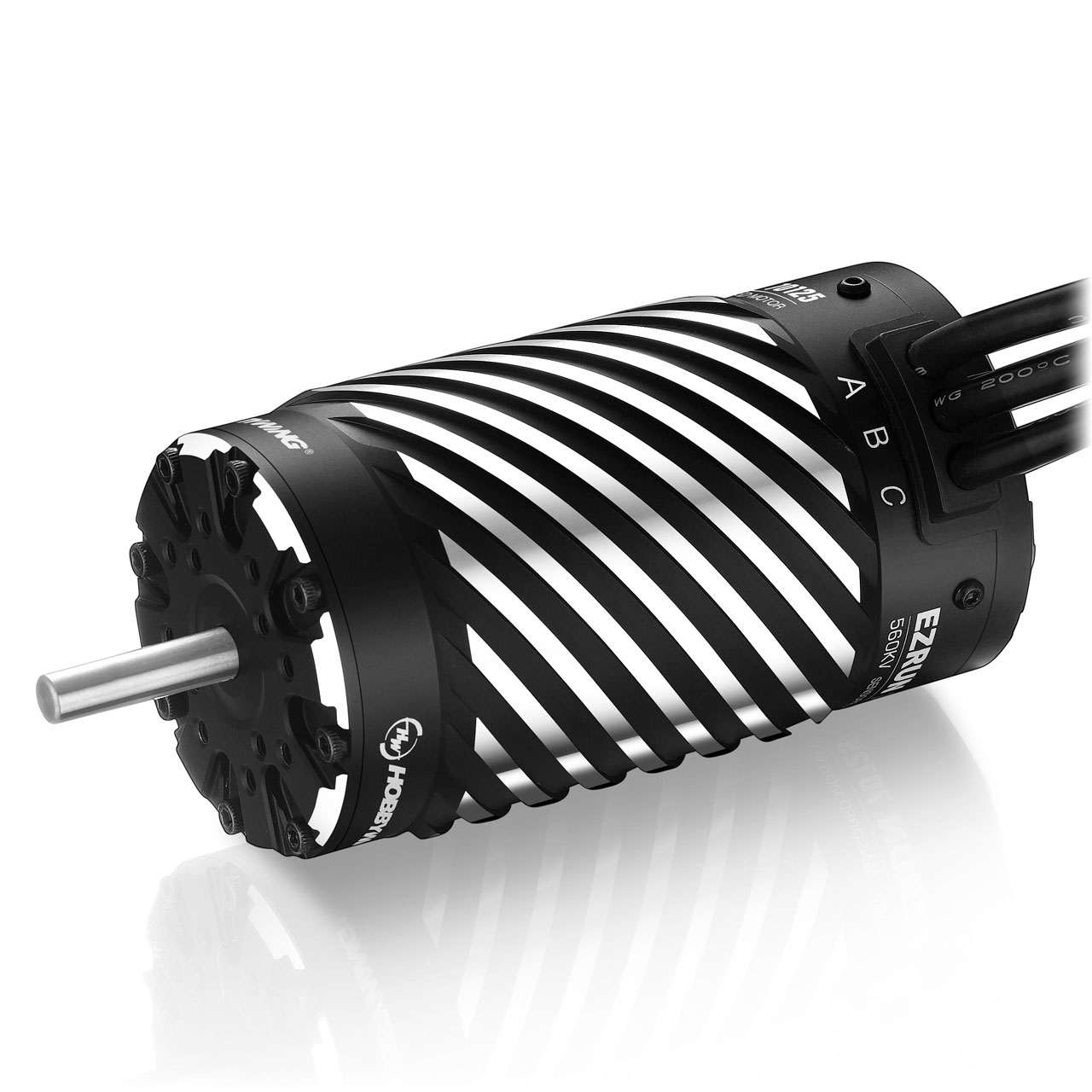

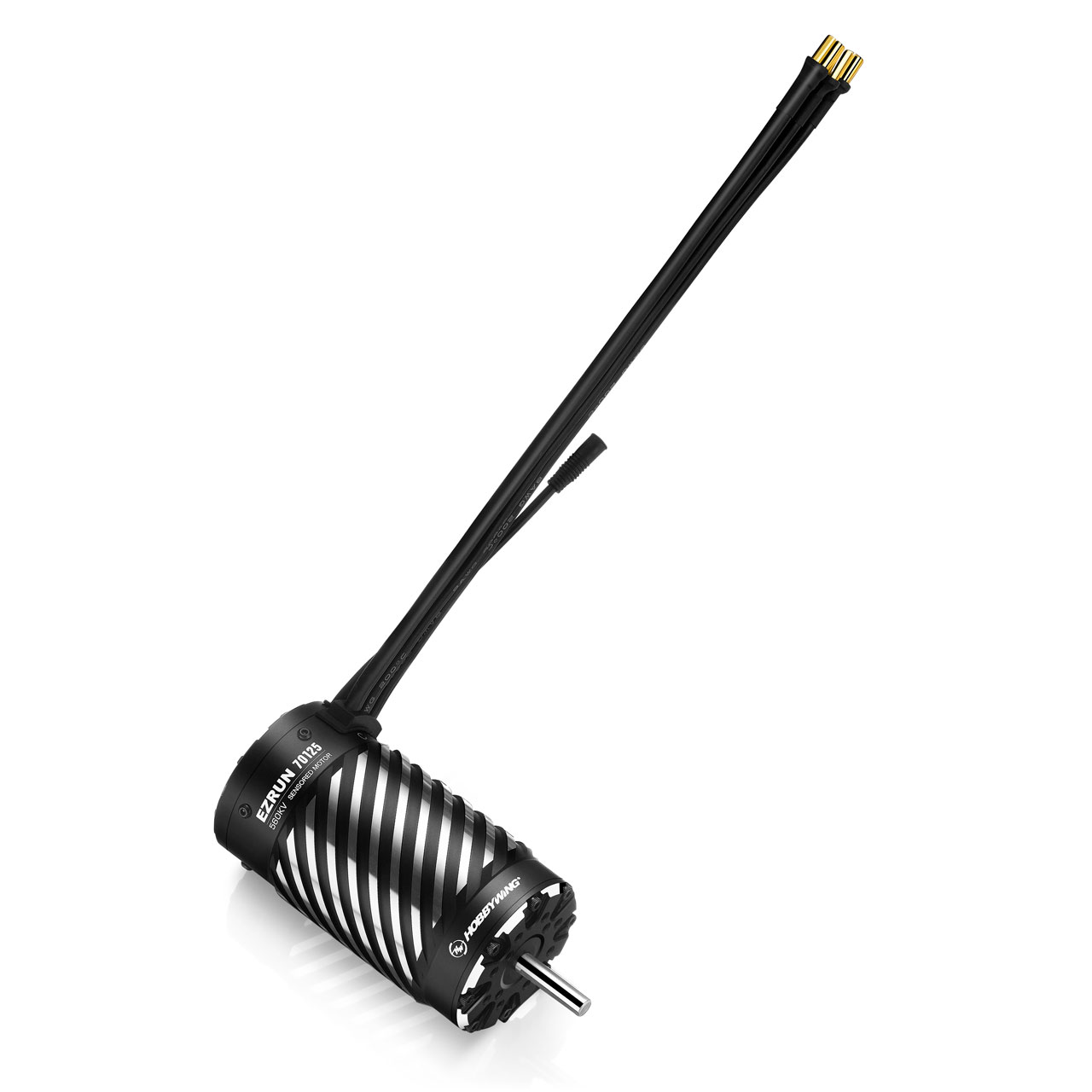

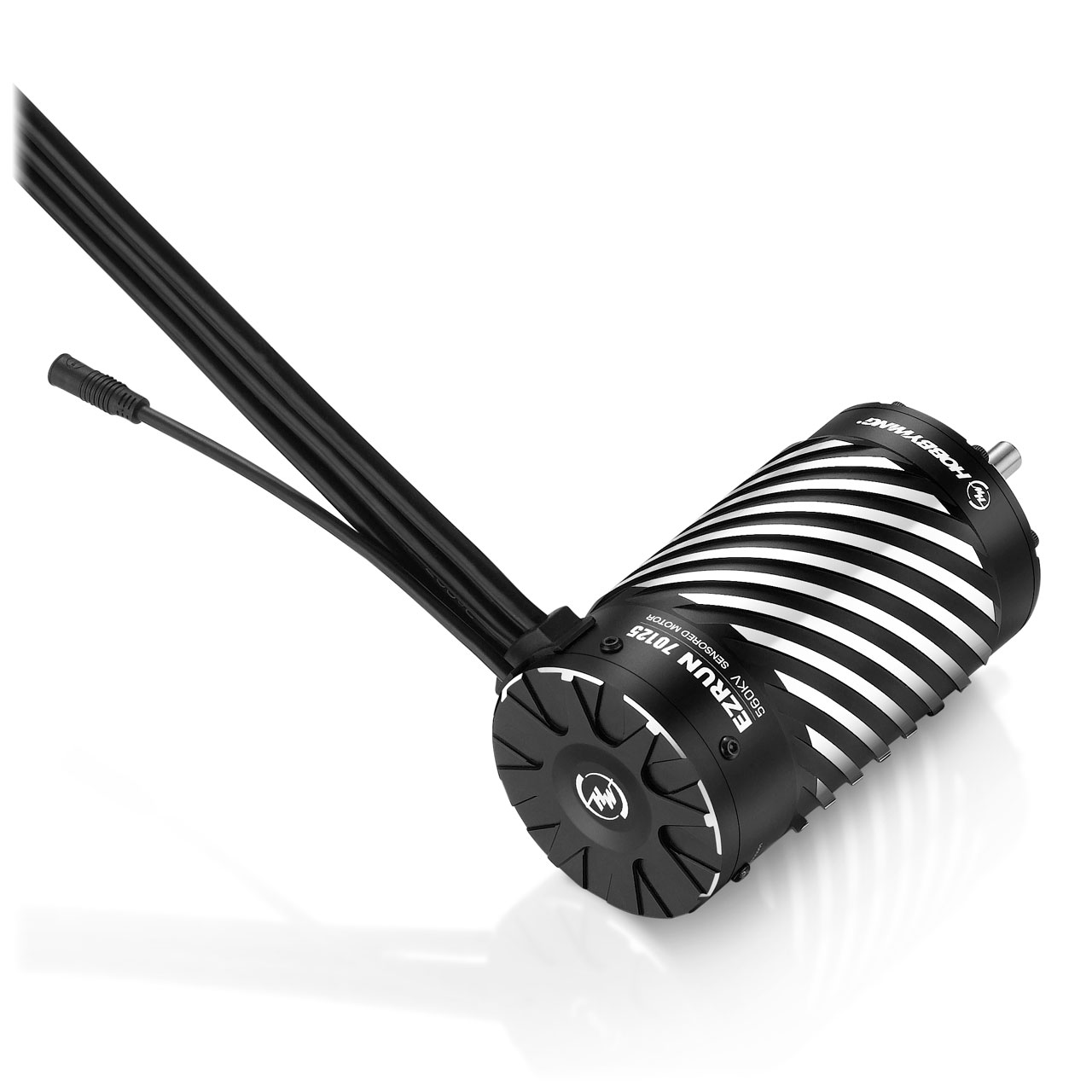

Ezrun 70125SD 560kV motor with 8 mm shaft for 1/5 off-road vehicles and trucks
The Hobbywing Ezrun 70125SD motor complements the MAX4 ESC and is intended for heavy-duty off-road vehicles and trucks.
Highlights
- Sensor mode in combination with the Ezrun MAX4 ESC
- CNC-milled aluminium housing, 0.2 mm silicon steel sheets and other building materials
- Four sintered NdFeB magnets for torque and stable performance
- Sensor interface

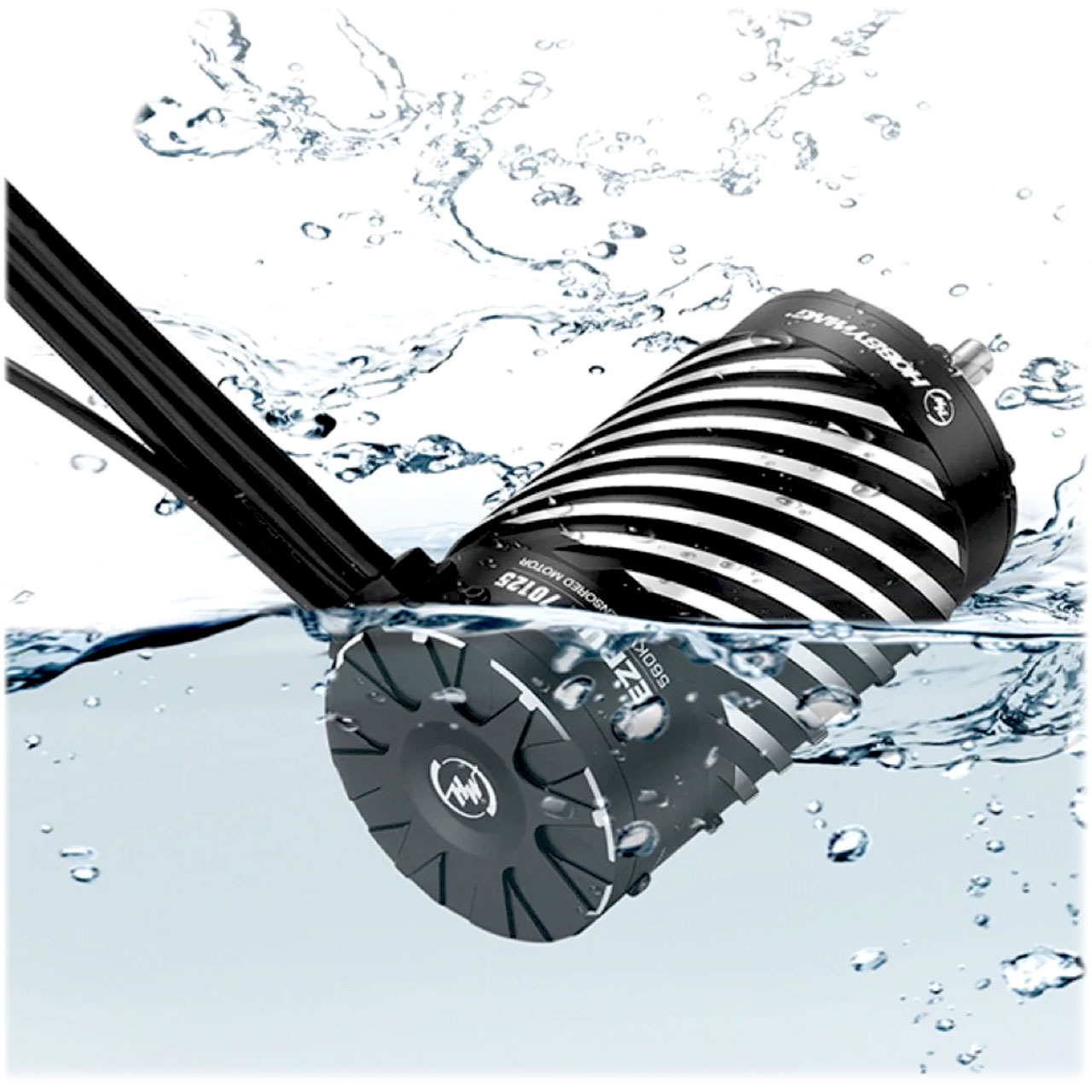

- Waterproof and dustproof thanks to the rubber cover of the bearing
- Independent, high-precision encoder communicates the rotor position without interference
- More power and less heat development with the same load
Specifications
| Sensor Type | Sensored |
| Poles | 4 |
| kV Rating | 560kV |
| LiPo Cells | 8–12S |
| No-Load Current | 3.6 A |
| Outer Diameter | 70 mm |
| Length | 125 mm |
| Shaft Diameter | 8 mm |
| Shaft Length | 30 mm |
| Weight | 1995 g |
| Application | 1/5 Heavy Duty Off-Road, Truck |
