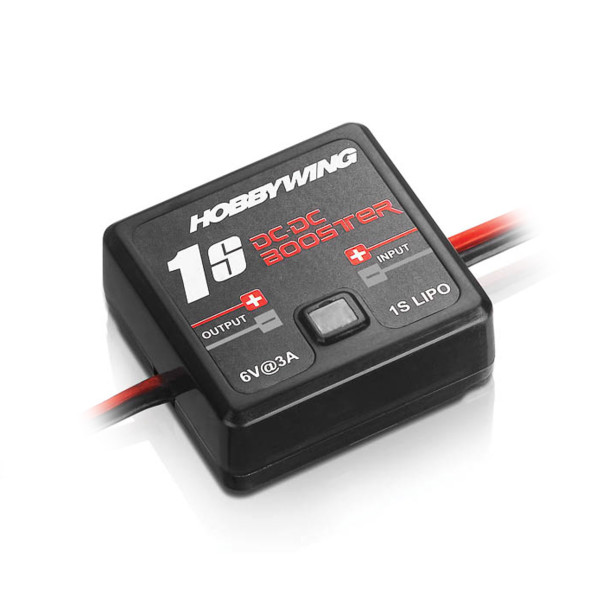

Hobbywing DC Booster Output 6V 2A for 1s LiPo
- Part No: HW30601000
- Retail: €25.90
- EAN: 6938994400145
- Notice: 30601000
DC-DC booster for 1S LiPo batteries with 6 V output and 3 A continuous current The 1S DC-DC... more
Product information "Hobbywing DC Booster Output 6V 2A for 1s LiPo"
DC-DC booster for 1S LiPo batteries with 6 V output and 3 A continuous current
The 1S DC-DC BOOSTER draws power from a 1S LiPo battery and boosts it to 6 V for a receiver and servo, with a continuous output current of up to 3 A. It is mainly used in 1/12 scale RC vehicles.
A 1/12 scale car typically uses a 1S LiPo battery. The step-down BEC in an ordinary speed controller produces an output below 4.2 V in this setup, which cannot meet the receiver and servo’s power demand. The booster provides an alternative to a purpose-built 1S ESC with a built-in DC-DC booster or a separate receiver battery, removing the need to charge and maintain a receiver battery.
Specifications
| Input Voltage | 1S LiPo or 3–4 Cell NiMH |
| Output Voltage | 6 V |
| Output Current | Continuous 3 A, Burst 6 A |
| Dimensions | 28.0 × 26.8 × 11.8 mm (L × W × H) |
| Weight | 10.2 g |
