Hobbywing Combo WP10BL120G2 3660SL-3150kV-G2 Sensorless
- Part No: HW38030210
- Retail: €92.90
- EAN: 6938994420181
- Notice: 38030210
Brushless combo with WP 10BL120 G2 ESC and 3660SL G2 3150kV motor The combo pairs the... more
Product information "Hobbywing Combo WP10BL120G2 3660SL-3150kV-G2 Sensorless"

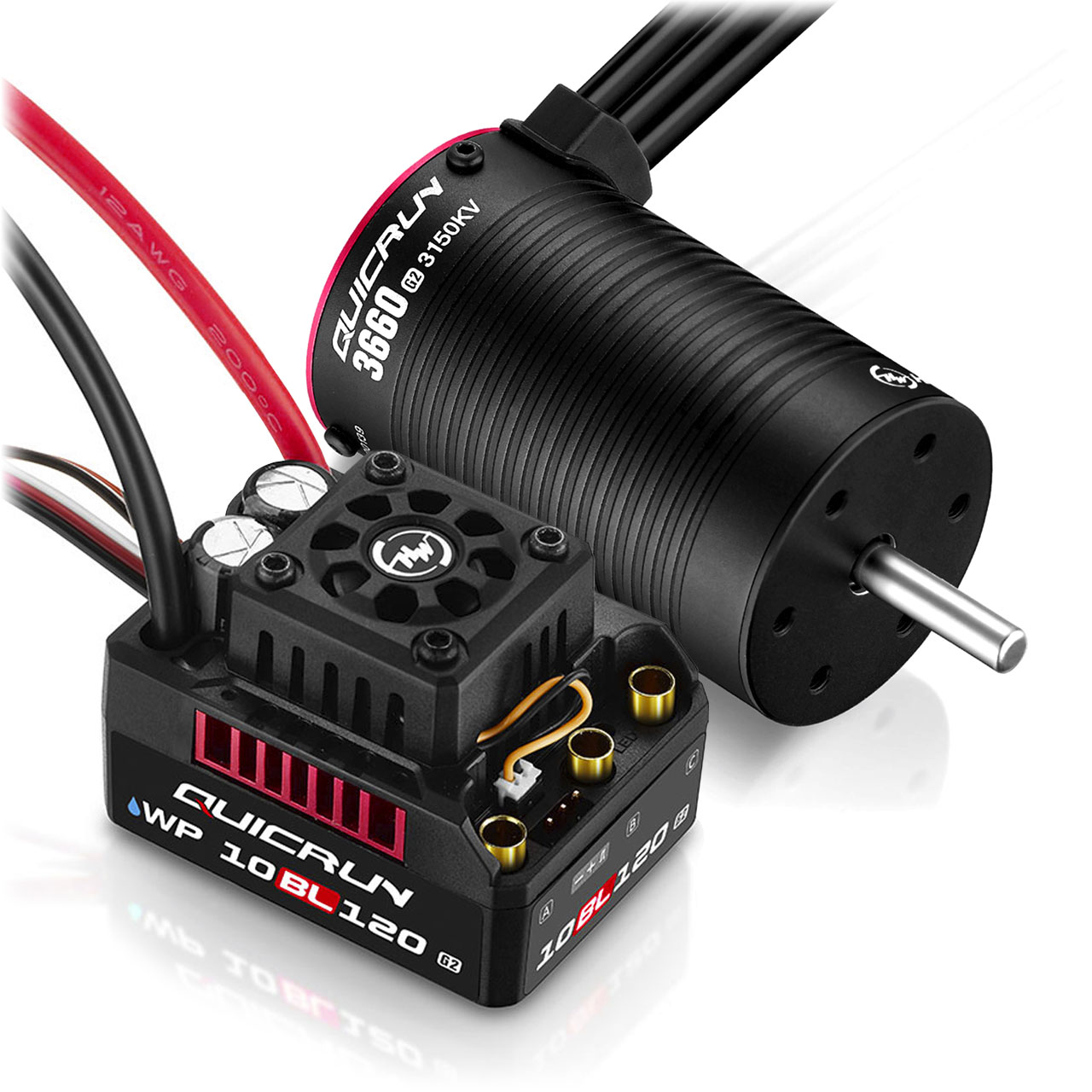

Brushless combo with WP 10BL120 G2 ESC and 3660SL G2 3150kV motor

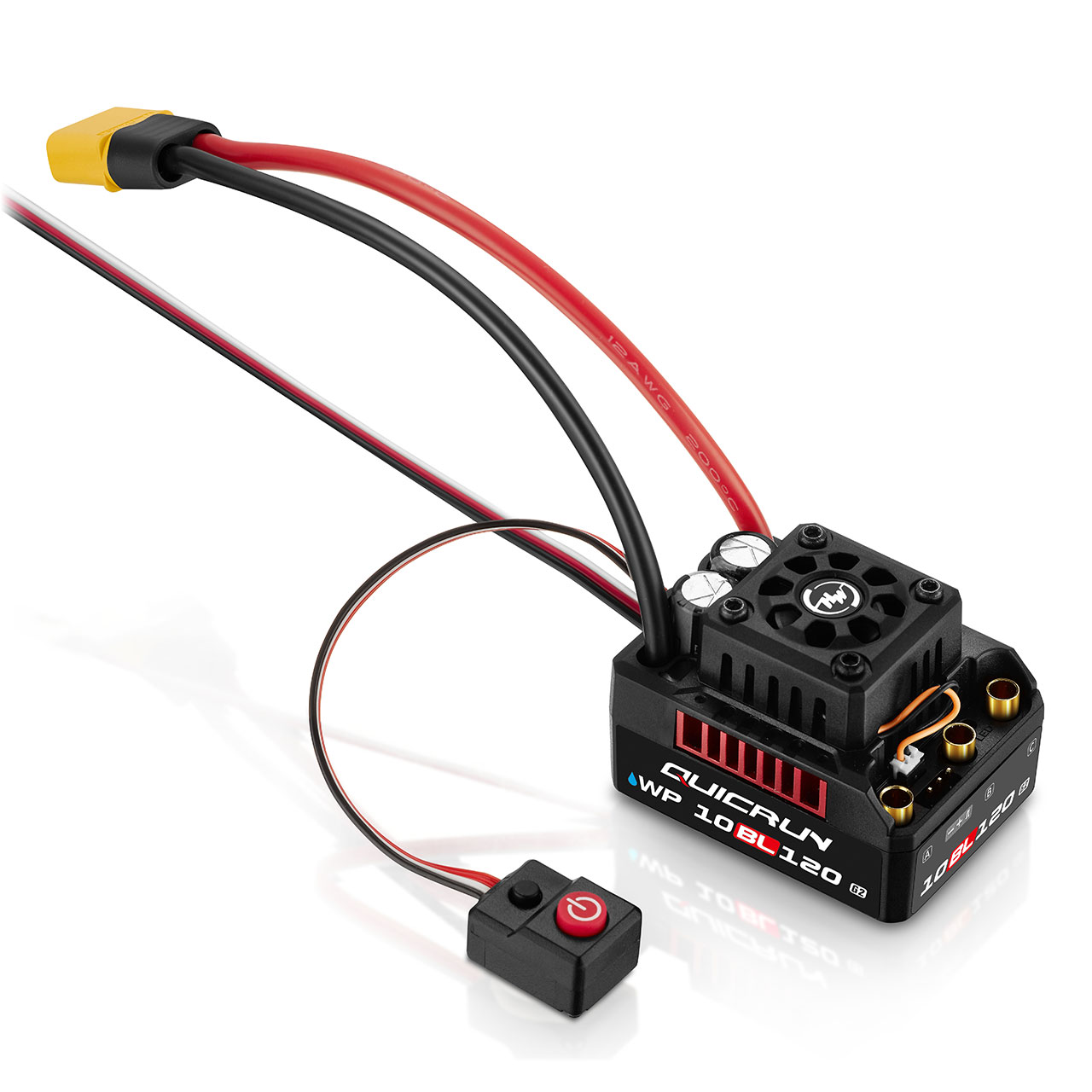

The combo pairs the QuicRun WP 10BL120 G2 ESC with the Quicrun 3660SL G2 motor. The ESC uses intelligent freewheeling technology for improved driving efficiency. It has an integrated BEC with switchable output voltage, a cooling system and IP67 protection against water and dust. It can be used in mud, sand, ice, snow and water.

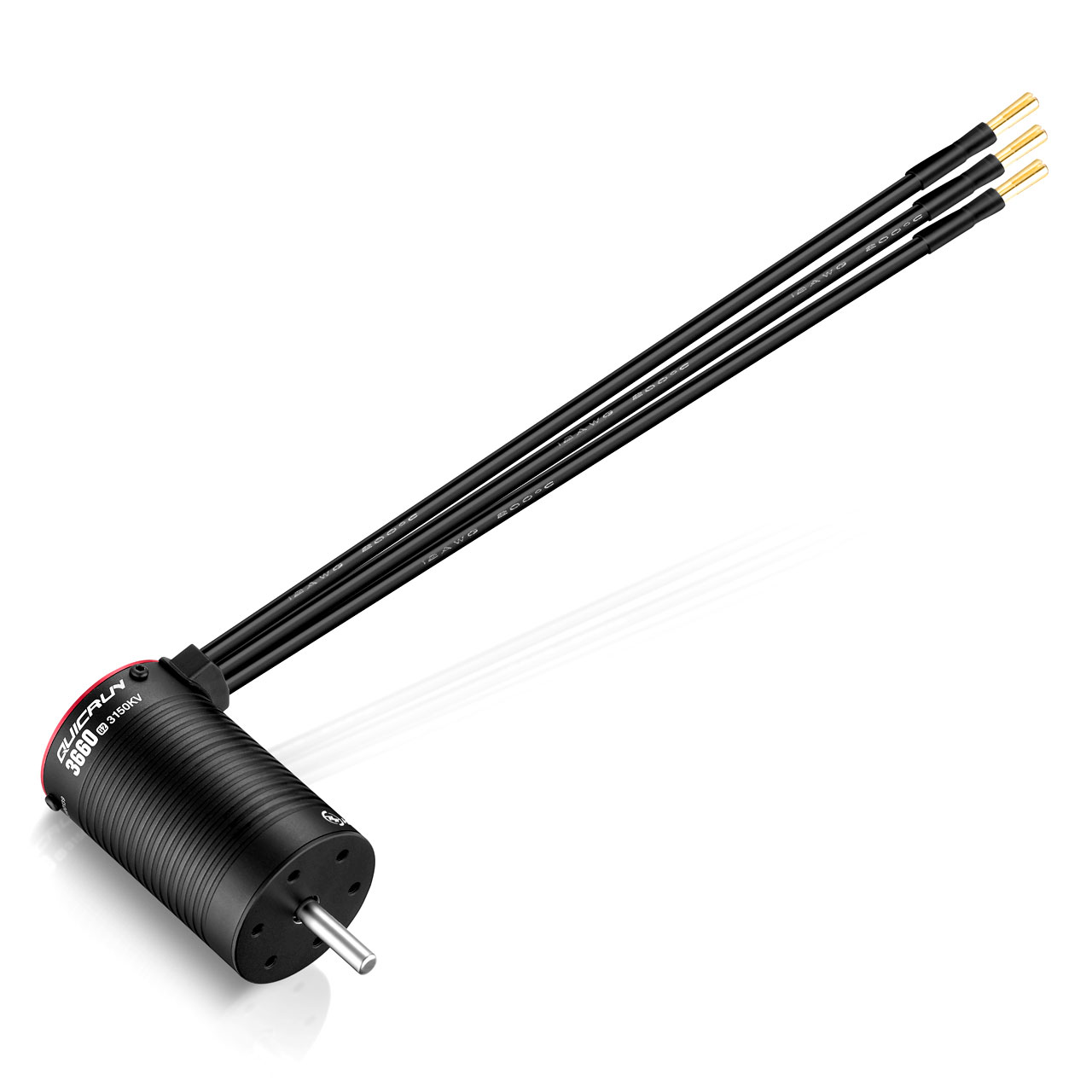

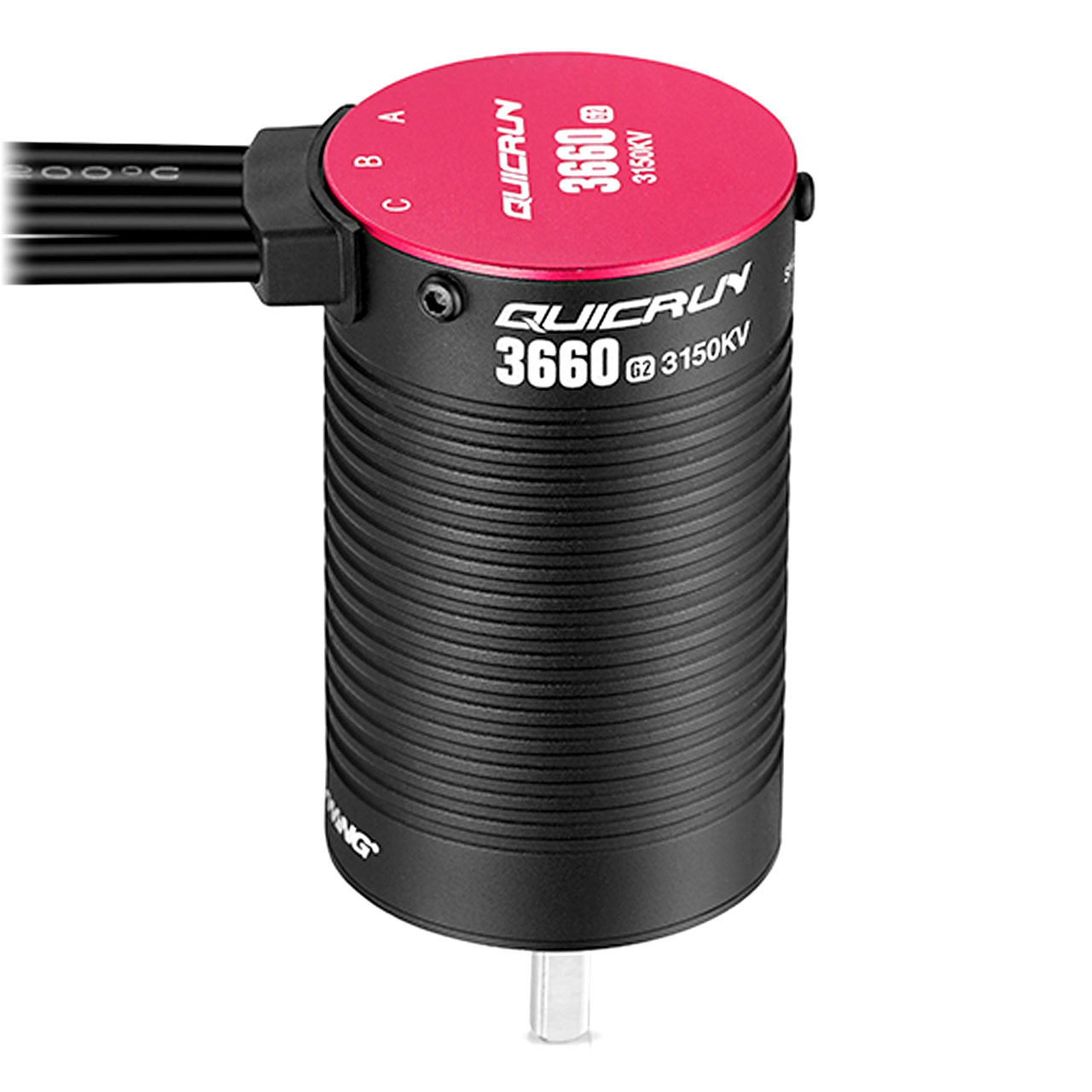

The Quicrun 3660SL G2 motor delivers over 10% more power than its predecessor while generating less heat. It has a hardened aluminium cover and internal wires that withstand temperatures of up to 200 °C.
Highlights
- More tuning options than its predecessor, including Turbo Timing; improved switchable BEC output
- Selectable motor rotation direction (CW or CCW); ESC protection features
- Compact design suitable for a variety of chassis
- Suitable for many applications and competitions
- Enhanced acceleration
- CNC-machined aluminium motor housing; motor components designed for durability and smooth operation
- Motor can be disassembled for maintenance
Specifications
| ESC | |
|---|---|
| Type | Brushless, Sensored |
| Current (Cont./Peak) | 120 A / 760 A |
| Input Voltage | 2–4S LiPo |
| BEC | 6 V / 7.4 V @ 5 A (switch mode) |
| Motor Types | Brushless motors (with/without sensor) |
| Motor Limit | 3S LiPo: kV ≤ 4000 3660 motor / 4S LiPo: kV ≤ 2600 4268 motor |
| Fan | Yes, powered by BEC |
| Programming | LED Program Box / LCD Program Box (G2) / Separate Programming Port |
| Waterproof | Yes (IP67) |
| Dimensions | 52.8 × 39.8 × 38.2 mm |
| Weight | 119 g |
| Application | 1/10 Short Course, Monster Truck |
| Motor | |
| Type | Brushless / Sensorless |
| Poles | 4 |
| kV Rating | 3150kV |
| LiPo Cells | 2–3S |
| No-Load Current | 5.4 A |
| Outer Diameter | 36 mm |
| Length | 60 mm |
| Shaft Diameter | 5 mm |
| Shaft Length | 18.5 mm |
| Weight | 273 g |
| Application | Truck, Monster Truck |
In the box
- 1× Quicrun WP10BL120 G2 ESC
- 1× Quicrun 3660SL Motor with 3150kV
- 1× Manual
- 1× Sticker & Accessories
Notes
- Optional accessories: LCD Program Box G2 (HW30502001), LED Program Box (HW30501003).
