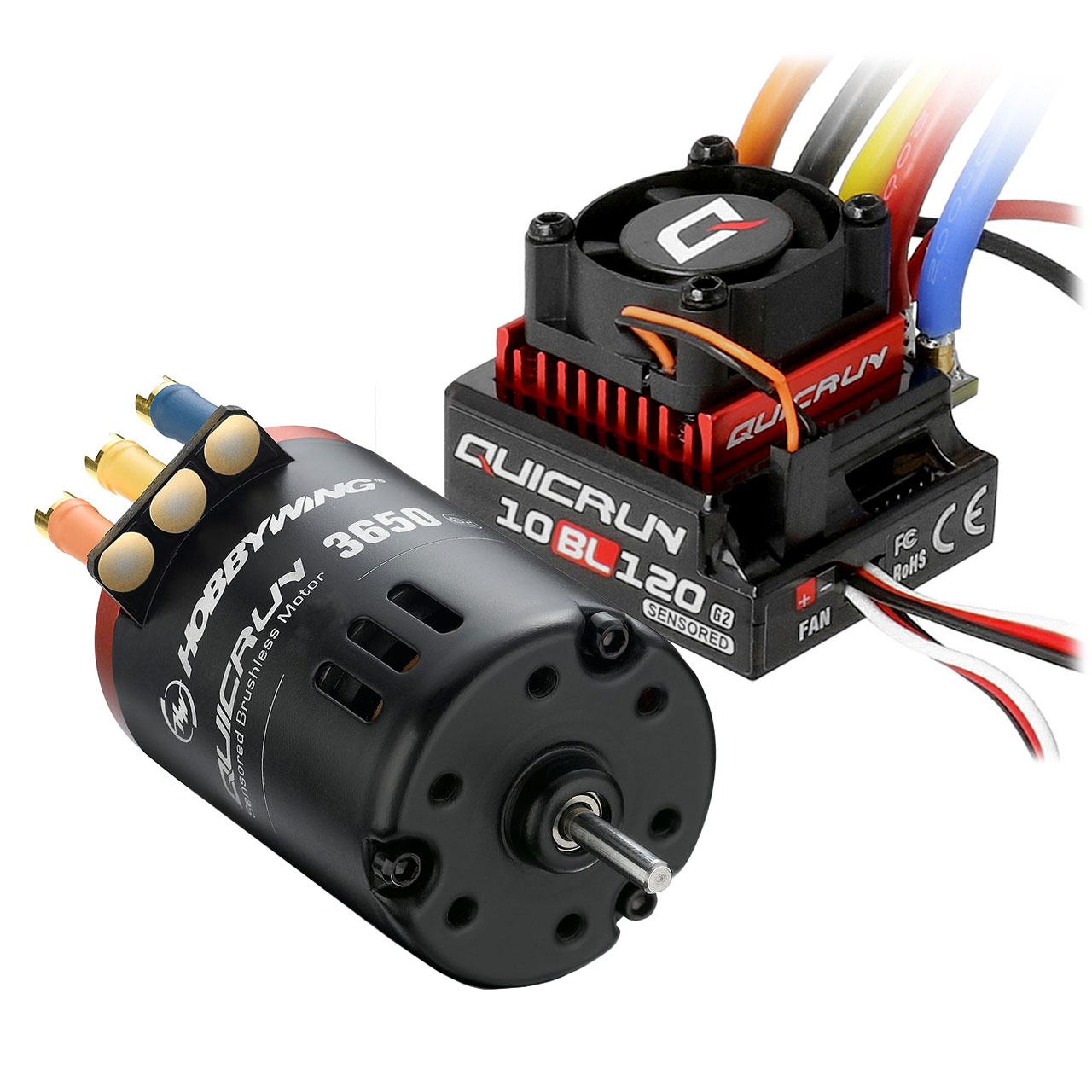

Hobbywing Combo 10BL120 G2 mit 3650SD 13.5T Sensored
- Part No: HW38020382
- Retail: €114.00
- EAN: 6938994416924
- Notice: 38020382
This Quicrun combo includes the G2 version of the Quicrun 10BL120 ESC as well as a versatile 3650SD G2 motor with 13.5T aka 2850kV. The 2nd generation of the Quicrun 10BL120 controller is a classic, solid brushless solution for 1/10 vehicles such as touring cars, buggies and drifters. With an extended BEC and a variety of additional parameters, the controller is in no way inferior to its predecessor. Hobbywing's QuicRun series offers a cost-effective alternative for all drivers who simply want to achieve more with their setups - whether with brushless motors or not. It is aimed primarily at beginners and advanced pilots and impresses with the outstanding, well-known quality of Hobbywing products as well as the uncomplicated commissioning.
Together, these two components form a cost-effective electronics team for beginners and advanced users alike.
Features (ESC):
- A great variety of programmable options (including turbo delay, turbo timing and boost timing)
- Improved BEC output with switch instead of linear mode
- Motor rotation direction freely selectable (CW or CCW)
- Top performance at a low price
- Compact design, suitable for a variety of chassis
- Ideal for many areas of application and competitions
- Various protective functions:
- Overheating protection
- Cutoff voltage
Features (Motor):
- 2-pole rotor design.
- Smooth and linear power
- Good heat dissipation
- Plug 'n Play
Technical Specifications:
| ESC | |
| Type: | Brushless, Sensorled |
| Current (cont./peak): | 120A / 760A |
| Input Voltage: | 2-3S LiPo |
| BEC: | 6V / 7.4V @ 4A (Switch Mode) |
| Motor Types: | Brushless Motors (with/without sensor) |
| Motor Limit: | 2S: >= 4.5T, 3650 motor 3S: >= 10.5T, 3650 motor |
| Fan: | Yes, powered by the BEC |
| Programming: | - SET Button - LED Program Box - LCD Program Box (G2) |
| Dimensions: | 44 x 36.8 x 32.3mm |
| Weight: | 101.5g |
| Application: | 1/10 Touring, Buggy, Drift |
| Motor | |
| Type: | Brushless / Sensorless |
| Poles: | 2 |
| kV Rating: | 2850kV |
| Turns: | 13.5T |
| Cells: | 2-3S |
| No-Load Current: | 2.4A |
| Outer Diameter: | 36mm |
| Motor Length: | 52.8mm |
| Shaft Diameter: | 3.17mm |
| Weight: | 186g |
| Timing: | Fixed |
| Application: | - 1/10th, 1/12th On-Road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-Road (Buggies/2WD SCTs & Trucks) - STOCK/SPORT Class Competitions - Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors) |
Delivery:

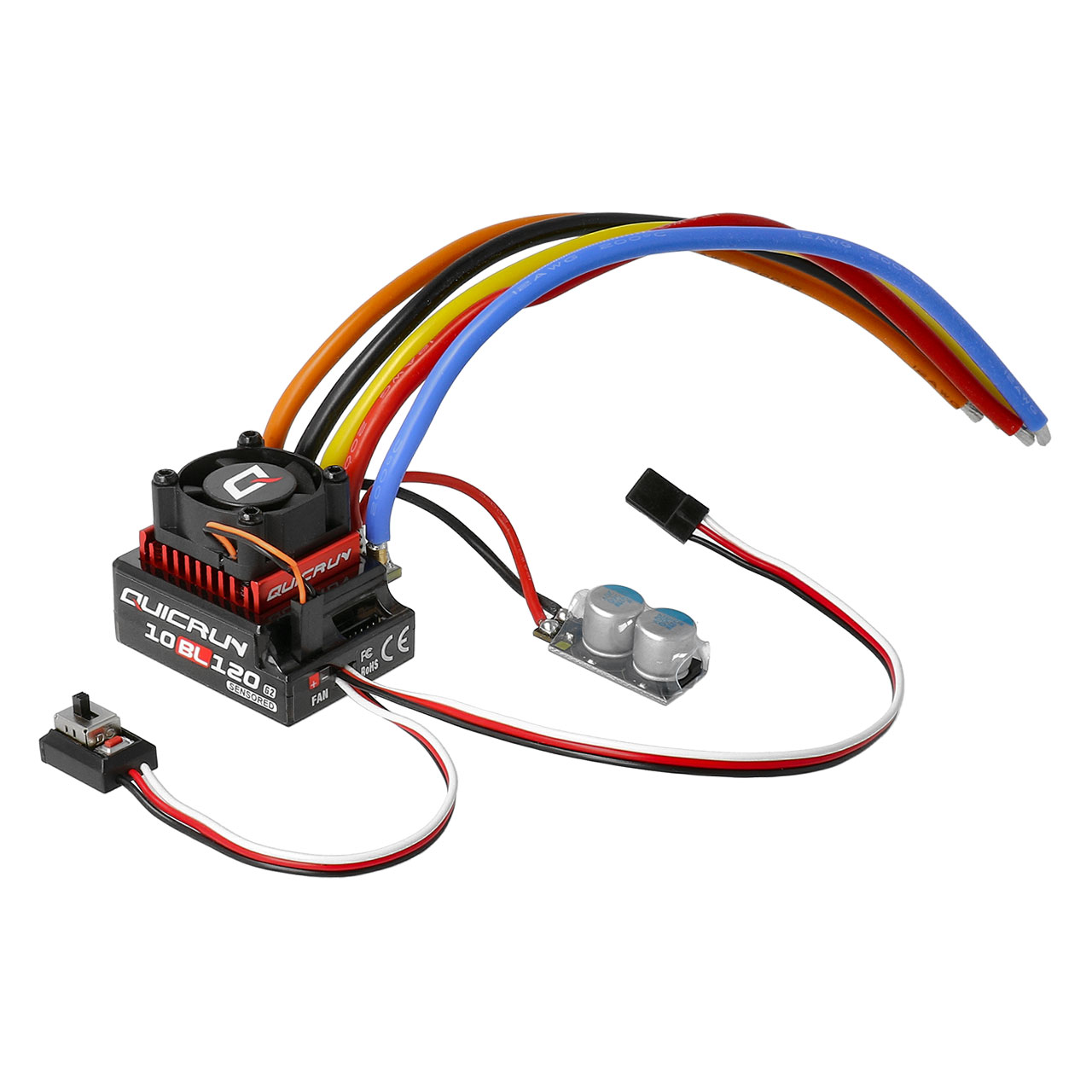

- 1x Quicrun 10BL120 G2 ESC

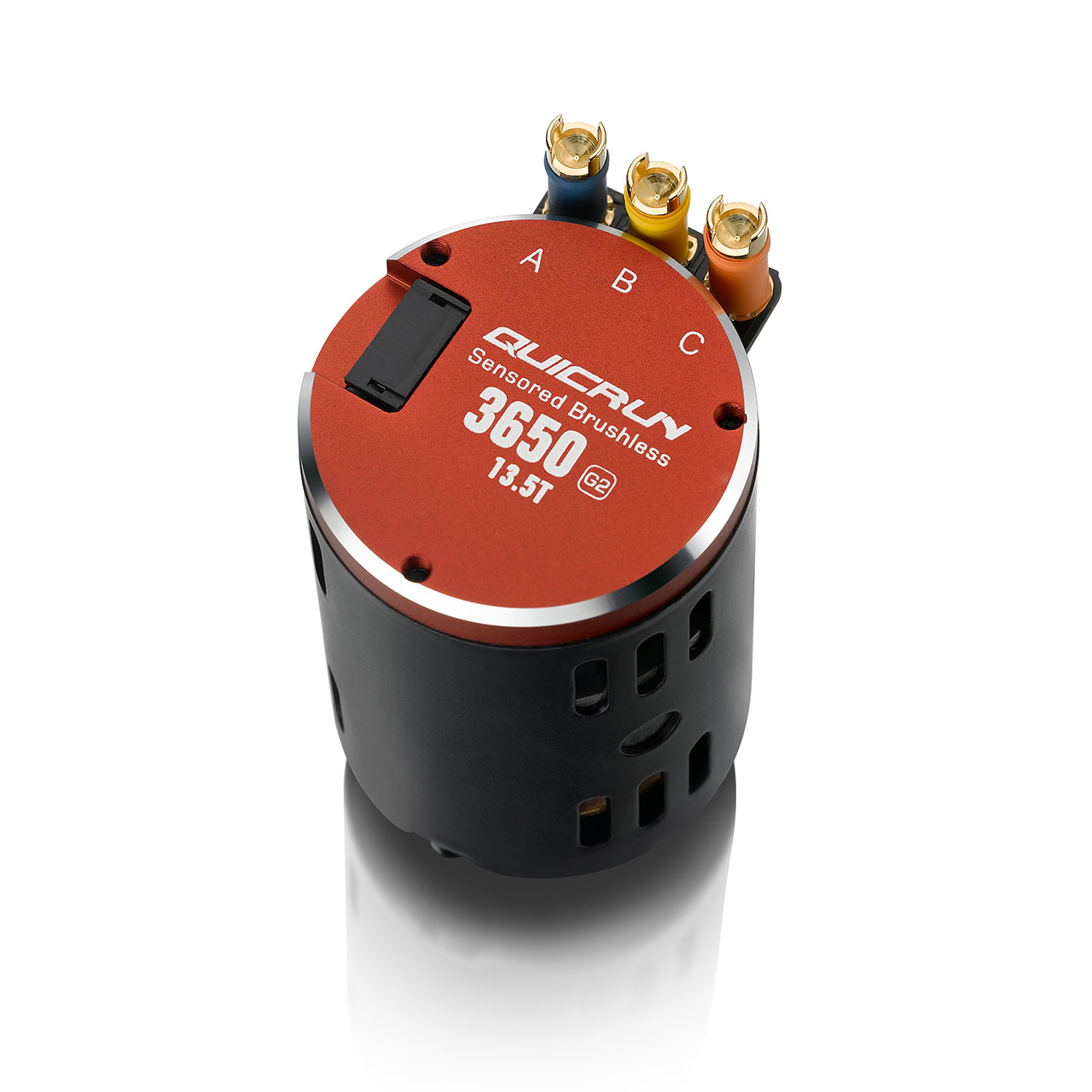

- 1x Quicrun 3650SD G2 motor with 13.5T / 2850KV
