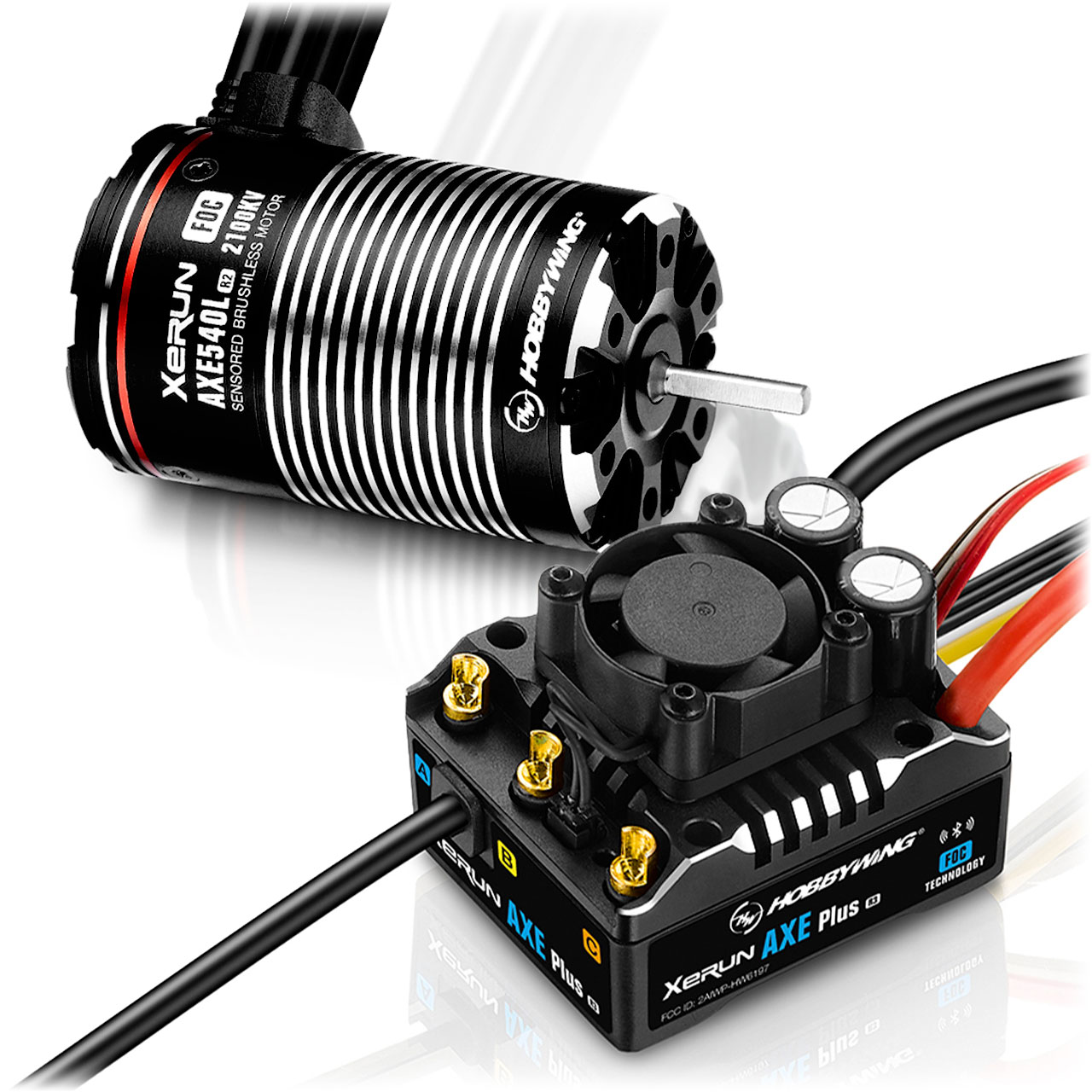

Navigating through any terrain becomes effortless with the AXE Plus Combo, which includes the R3 ESC and 2100kV 540L R2 motor. Thanks to the integrated FOC technology, this combo delivers linear power, ample torque, and nearly silent operation, making it ideal for challenging landscapes.

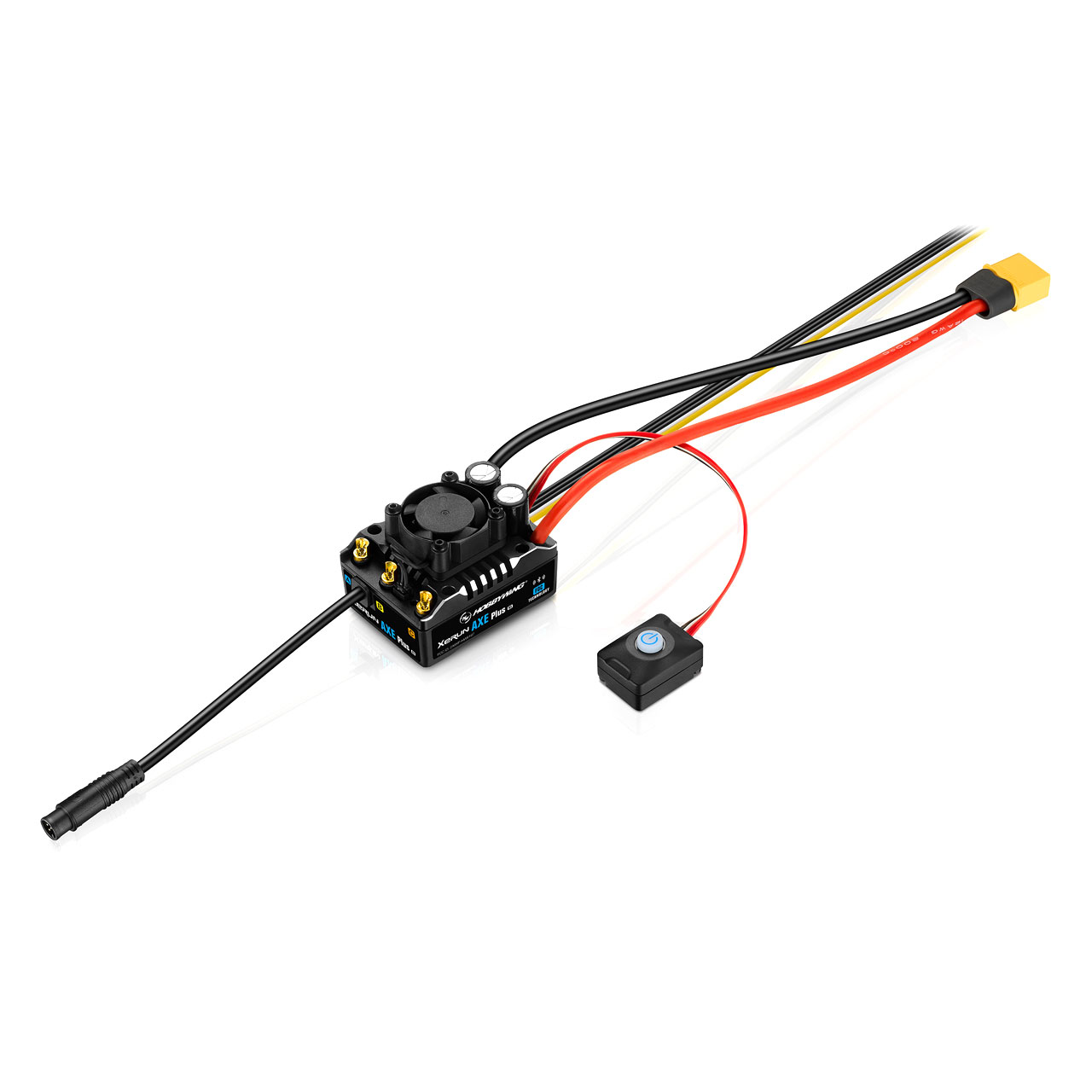

The intelligent control utilized in the R3 ESC allows for automatic torque adjustment, ensuring seamless climbing and descent of hills, while the smart fan activates only when necessary. This keeps energy consumption low and optimizes operating temperature during Your adventure. With versatile programming options and a wide range of adjustable parameters, the Xerun AXE Plus R3 ESC offers both powerful performance and excellent control for crawler RC cars under various conditions.

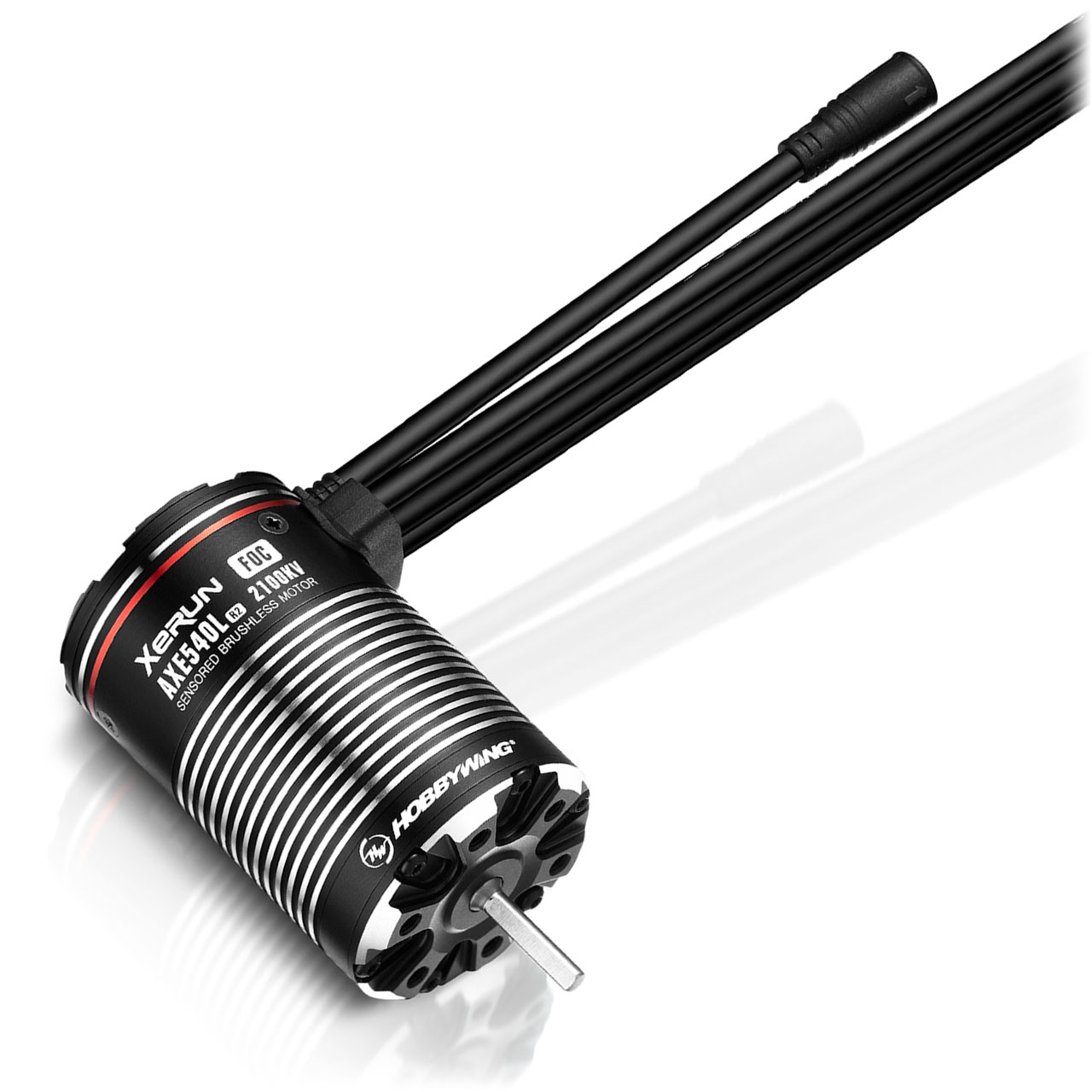

Additionally, the included 4-pole motor with a 3.175mm shaft and 2100KV features minimal cogging and runs smoothly under all conditions. This is also supported by Hobbywing's patented "Staggered Pole Rotor" design. To ensure this crawler combo operates flawlessly, it is also protected against water and dust according to the IP67 standard, allowing for long-lasting drives in diverse weather conditions. During product development, special attention was further given to ensure that the sensor port prevents water ingress.
Features
- Enhanced performance thanks to FOC (Field-Oriented Control) technology.
- Drag brake adjustable up to 200% for unparalleled holding power on inclines.
- Super BEC with a maximum of 6A and three voltage levels for various servo uses.
- Water and dust resistant to IP67 standard, including a waterproof sensor port.
- Intelligent torque delivery and speed control.
- The ESC features a built-in Bluetooth module for wireless programming.
- Motor with minimal cogging and smooth startup behavior.
- Optimized for sensitive power delivery.
Technical Specifications:
ESC | |
Type: | Brushless Sensored FOC |
Current (cont./peak): | 135A / 600A |
Cells: | 2-6S LiPo |
BEC: | 6V / 7.4V / 8.4V (adjustable) @6A Switch Mode |
Waterproof: | Yes |
Cables: | 1x 12AWG (black, 265mm) 1x 12AWG (red, 265mm) |
Fan: | 25 x 25 x 10mm, powered by BEC |
Connectors: | XT60 |
Programming: | Via Bluetooth and "HW LINK"-App |
Firmware Upgrade: | Yes |
Dimensions: | 49.5 x 37.9 x 32.8mm |
Weight: | 126.5g |
Application: | 1/10, 1/8, 1/6 Rock Crawler |
Motor | |
Type: | Brushless Sensored FOC |
Poles: | 4 |
kV Rating: | 2100kV |
Cells: | 2-3S |
No-Load Current: | 2.7A |
Outer Diameter: | 36mm |
Length: | 57.8mm |
Shaft Diameter: | 3.175mm |
Shaft Length: | 16mm |
Waterproof: | Yes |
Weight: | 212g |
Application: | 1/10 Rock Crawler |
Delivery:
- 1x Xerun AXE Plus R3 ESC
- 1x Xerun AXE540L R2 Motor with 2100kV
- 1x Manual
