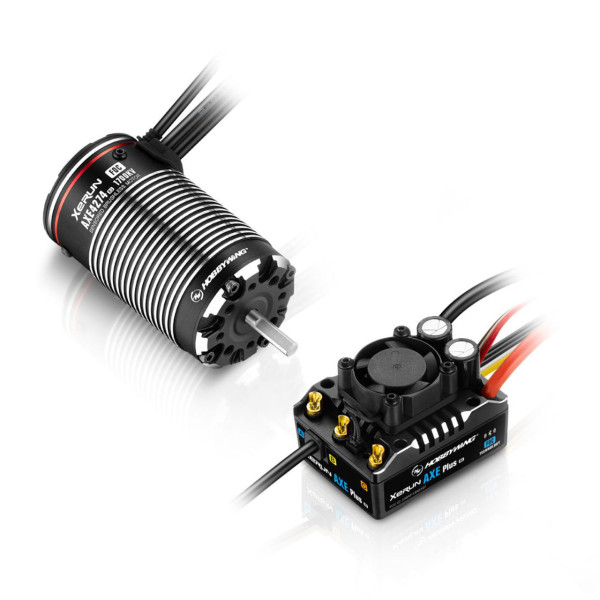

Hobbywing AXE Plus R3 4274SD 2000kV R3 Combo
- Part No: HW38020383
- Retail: €191.90
- EAN: 6938994416931
- Notice: 38020383
FOC crawler combo with AXE Plus R3 ESC and 4274SD 2000kV R3 motor The Hobbywing XeRun AXE... more
Product information "Hobbywing AXE Plus R3 4274SD 2000kV R3 Combo"
FOC crawler combo with AXE Plus R3 ESC and 4274SD 2000kV R3 motor
The Hobbywing XeRun AXE Plus R3 combo pairs the AXE Plus R3 brushless ESC with the AXE 4274SD 2000kV R3 motor for RC rock crawlers. Its FOC (Field Oriented Control) system provides torque at low RPM, linear operation and nearly silent running. The 2000kV version offers higher top speed. An integrated magnetic encoder detects rotor position 60 times more accurately than traditional sensors.
The ESC is compatible with all AXE R2 motors.
Highlights
- Smart Torque Output – automatic torque increase under load
- Intelligent fan control (start/stop as needed)
- Dual external control channels for real-time parameter adjustment
- 106% more maximum output power and 11% higher efficiency compared to the R2
- CNC aluminium housing, brand bearings and 200 °C heat-resistant enamelled wire
Specifications
| ESC | |
|---|---|
| Type | Brushless Sensored, FOC |
| Continuous Current | 135 A |
| Cells | 2–6S LiPo |
| BEC | 6 V/7.4 V/8.4 V, max. 15 A |
| Application | 1/10, 1/8 crawler (compatible with 1/7 & 1/6) |
| Motor | |
| Type | Brushless, Sensored (FOC) |
| kV Rating | 2000kV |
| No-Load Current | 4.7 A |
| Cells | 3–6S LiPo |
| Poles | 4 |
| Length | 74 mm |
| Diameter | 42 mm |
| Shaft Diameter | 5 mm (length 18.5 mm) |
| Mounting | 25.4 mm (30 mm adapter optional) |
| Weight | 405 g |
| Waterproof | Yes, IP67 |
| Application | 1/8, 1/7, 1/6 Rock Crawler |
In the box
- 1× Hobbywing XeRun AXE Plus R3 ESC
- 1× Hobbywing AXE 4274SD 2000kV R3 motor
