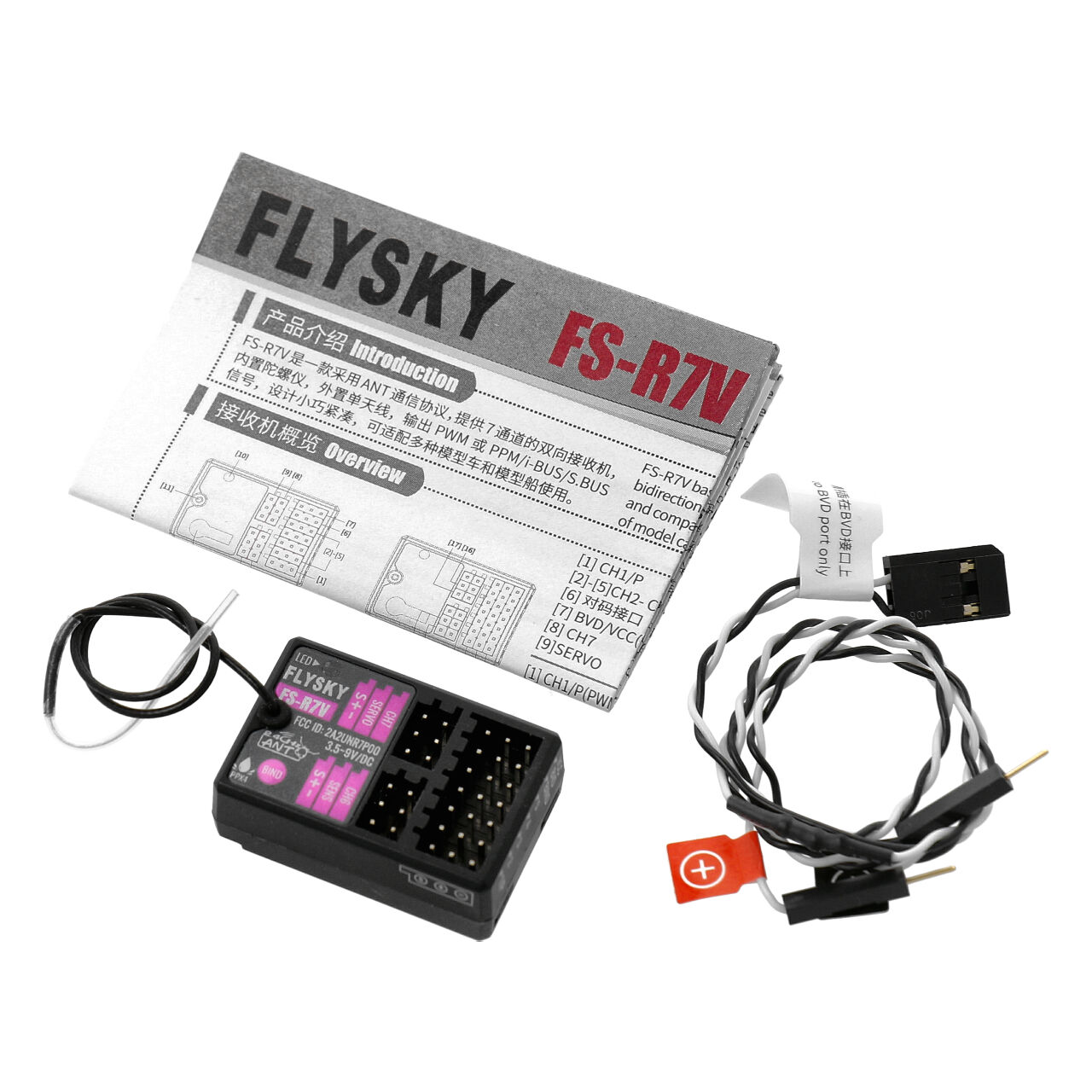

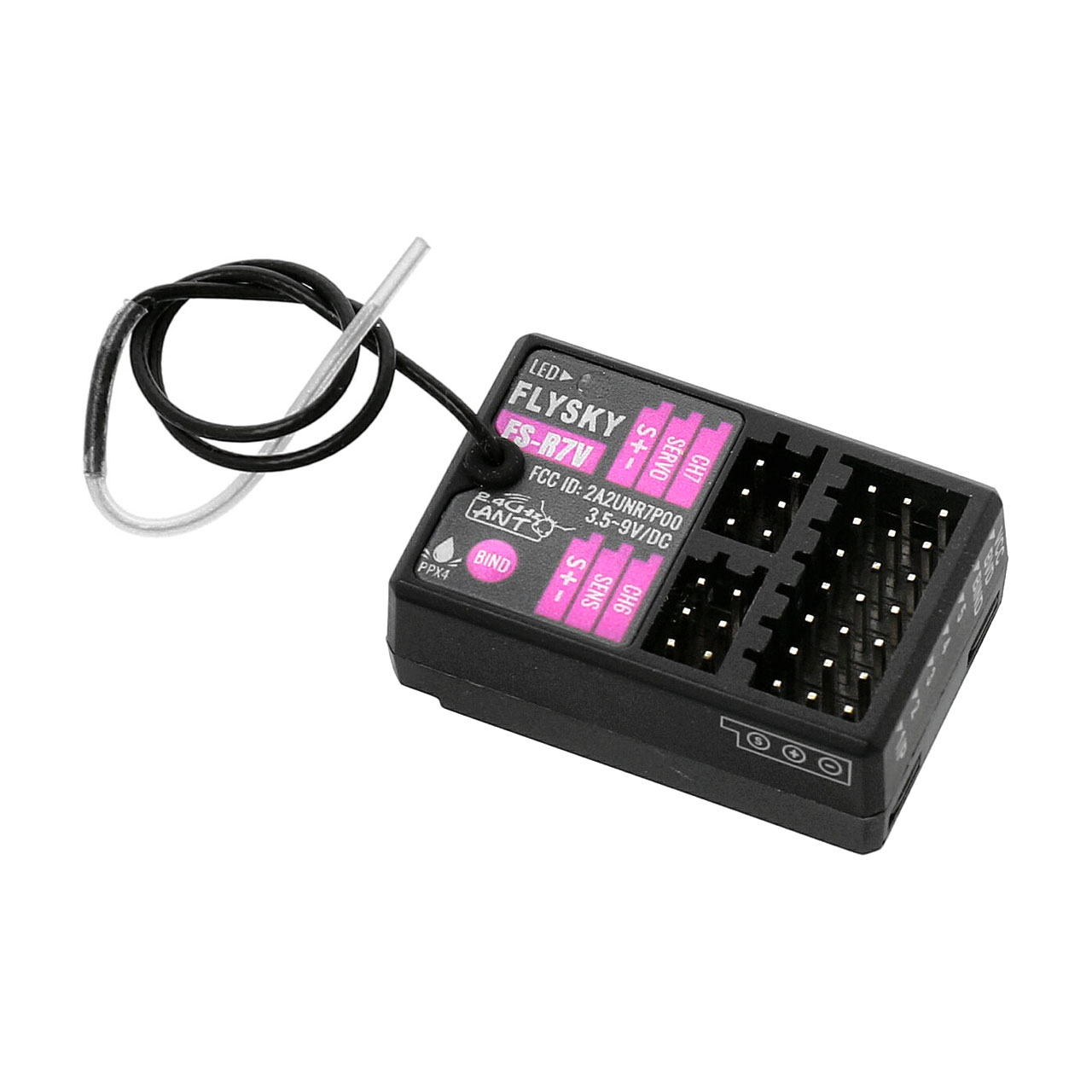

Product information "Flysky R7V ANT Receiver with Gyro 7CH"
The R7V receiver is the ideal partner when using a Flysky remote control and with its built-in gyroscope it is specially designed for the installation and output of PWM signals. Therefore it is supported by all ANT-capable transmitters and is waterproof in terms of the PPX4 regulation.
Technical Specifications
PWM-Channels:
7
RF:
2.4GHz ISM
Protocol:
ANT
Antennas:
Single
Input Voltage:
3.5-9V
Range:
>=300m (Ground)
Output:
PWM
Resolution:
4096
Temperature:
-10°C to +60°C
Max. Humidity:
20%-95%
Update:
Ja
Dimensions:
35.2x23.3x13.3mm
Weight:
8g
Compatible Transmitter:
all ANT-Transmitter
