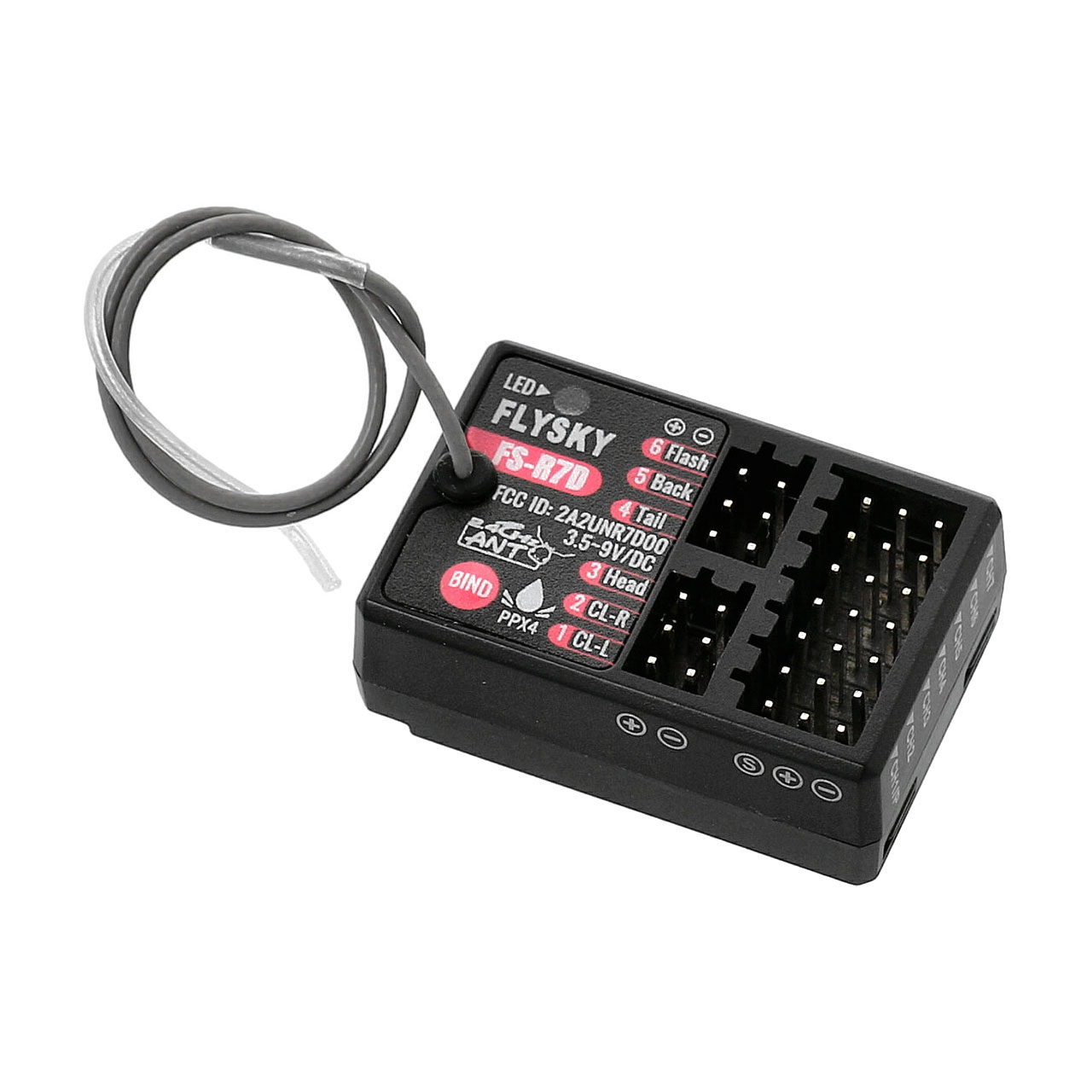

Product information "Flysky R7D ANT Receiverwit LED Controller 7CH"
The R7V receiver is the ideal partner when using a Flysky remote control and is specially designed for the installation and output of PWM and PPM signals and supports also the 2-way transfer-back function. Therefore it is supported by all ANT-capable transmitters and is waterproof in terms of the PPX4 regulation.
Technical Specifications
PWM-Channels:
7
Light Interfaces:
6
RF:
2.4GHz ISM
Protocol:
ANT
Antennas:
Single
Input Voltage:
3.5-9V
Range:
>300m (Ground)
Output:
PWM/PPM
Temperature:
-10°C to +60°C
Max. Humidity:
20%-95%
Update:
Ja
Dimensions:
35x23.3x13.3mm
Weight:
8g
Compatible Transmitter:
all ANT-Transmitter
