Flysky FS-ST8 Standard 8 channel Radio Set
- Part No: FS005
- Retail: €98.90
- EAN: 4046032095511

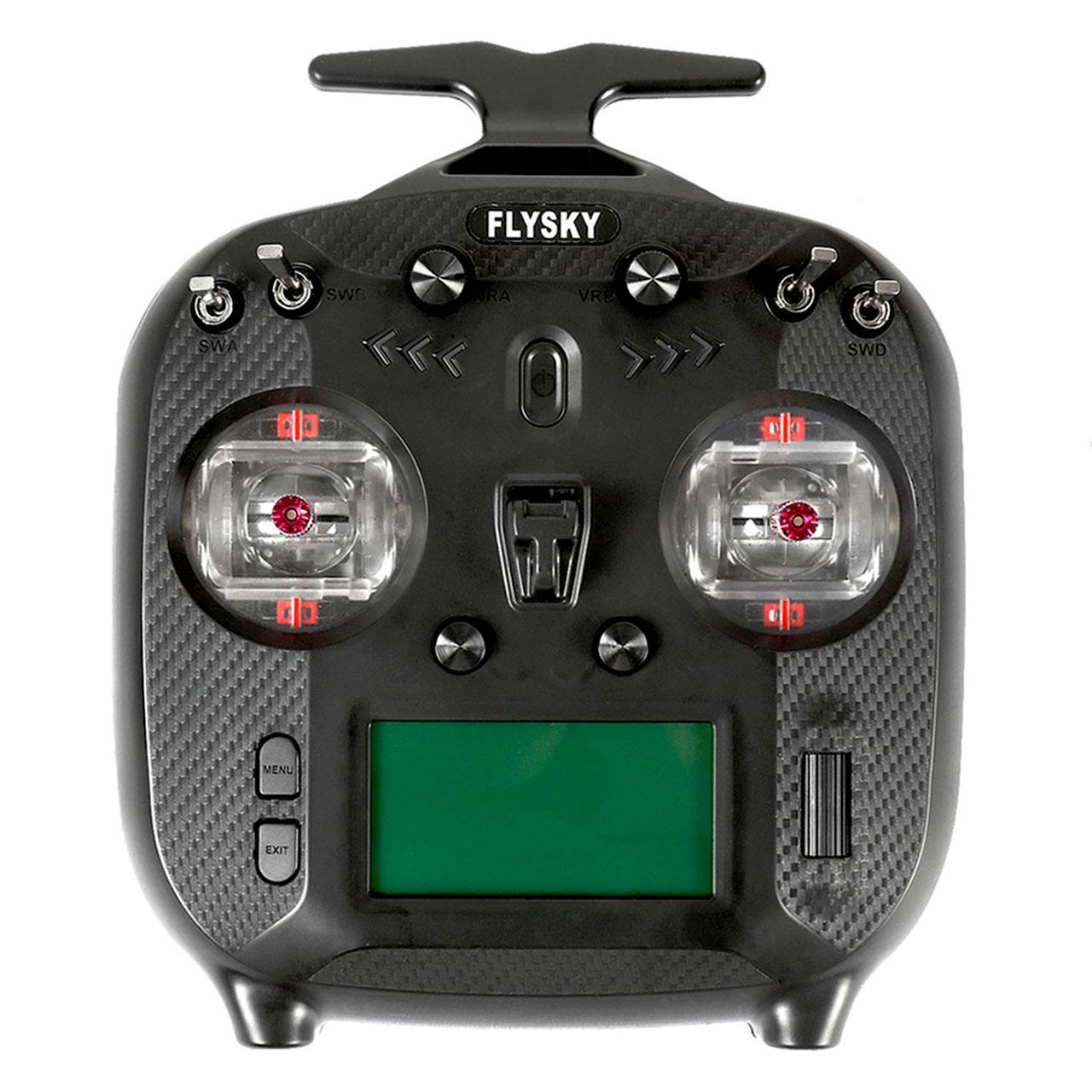

ST8 transmitter with 8–10 channels, ANT protocol and FS-SR8 receiver
The FlySky ST8 is a transmitter for model aircraft with optical adjustment options and a built-in STM32 G-series chip. It has 8–10 channels and is suitable for beginners and experienced flyers.

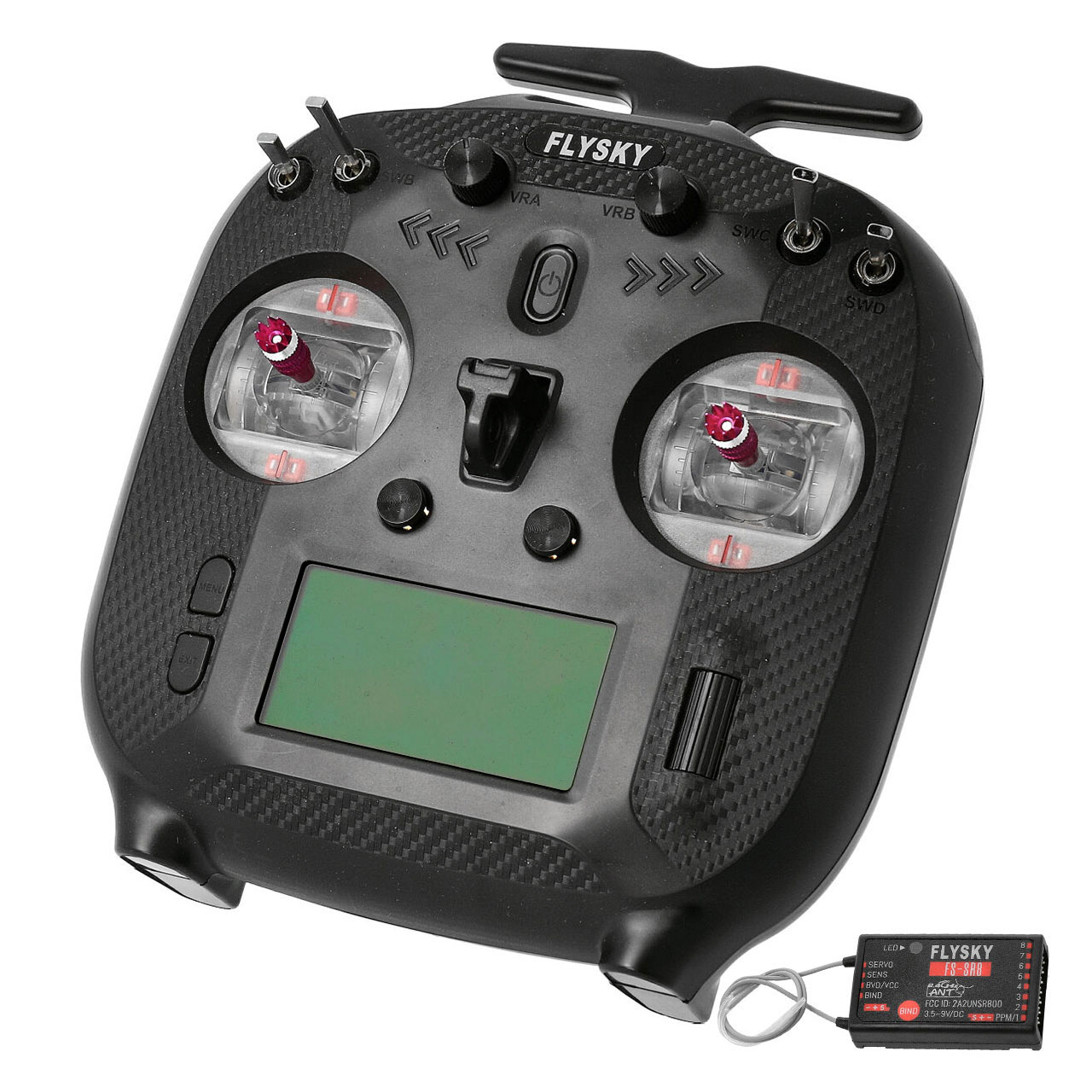

The standard ST8 includes an FS-SR8 receiver. Other receivers can be used if they support the ANT protocol. A mobile phone holder, an RF head adapter and personalised LED lights under transparent control-stick caps are optional.
Highlights
- Suitable for a wide range of RC flight applications
- Vibration function
- RGB ambient light
- Ergonomic design
- Free assignment of switches and buttons
- Sensor support for altitude, rotation speed, temperature and voltage, among others
- 20 profiles available
Specifications
| Transmitter | |
|---|---|
| Type | 2.4 GHz ISM |
| Frequency Protocol | ANT |
| Channels | 8–10 |
| Suitable RC Models | Fixed Wing, Delta Wing, Gliders, Helicopters, Multi-Axis, FPV, RC Cars & Boats, Robots |
| Distance | >1000 m (Air) |
| Channel Resolution | 4096 |
| Battery | 4 × 1.5 AA batteries or 2S battery |
| Low-Voltage Warning | < 4.2 V / 7.2 V |
| Antenna Type | Dual antenna |

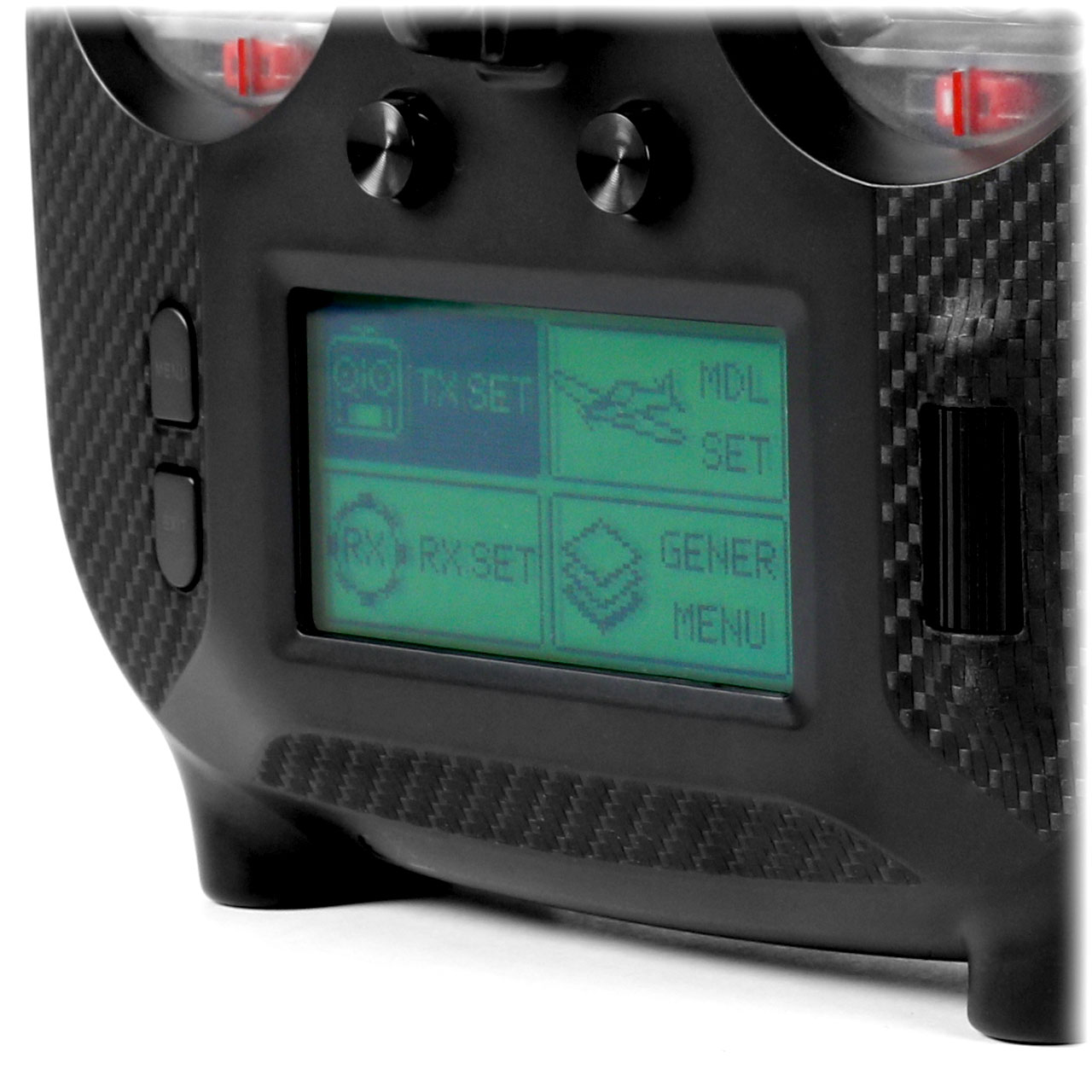

| Display | 128 × 64 px LCD display (black-and-white dot matrix) |
| Simulator | - |
| Charging Interface | No |

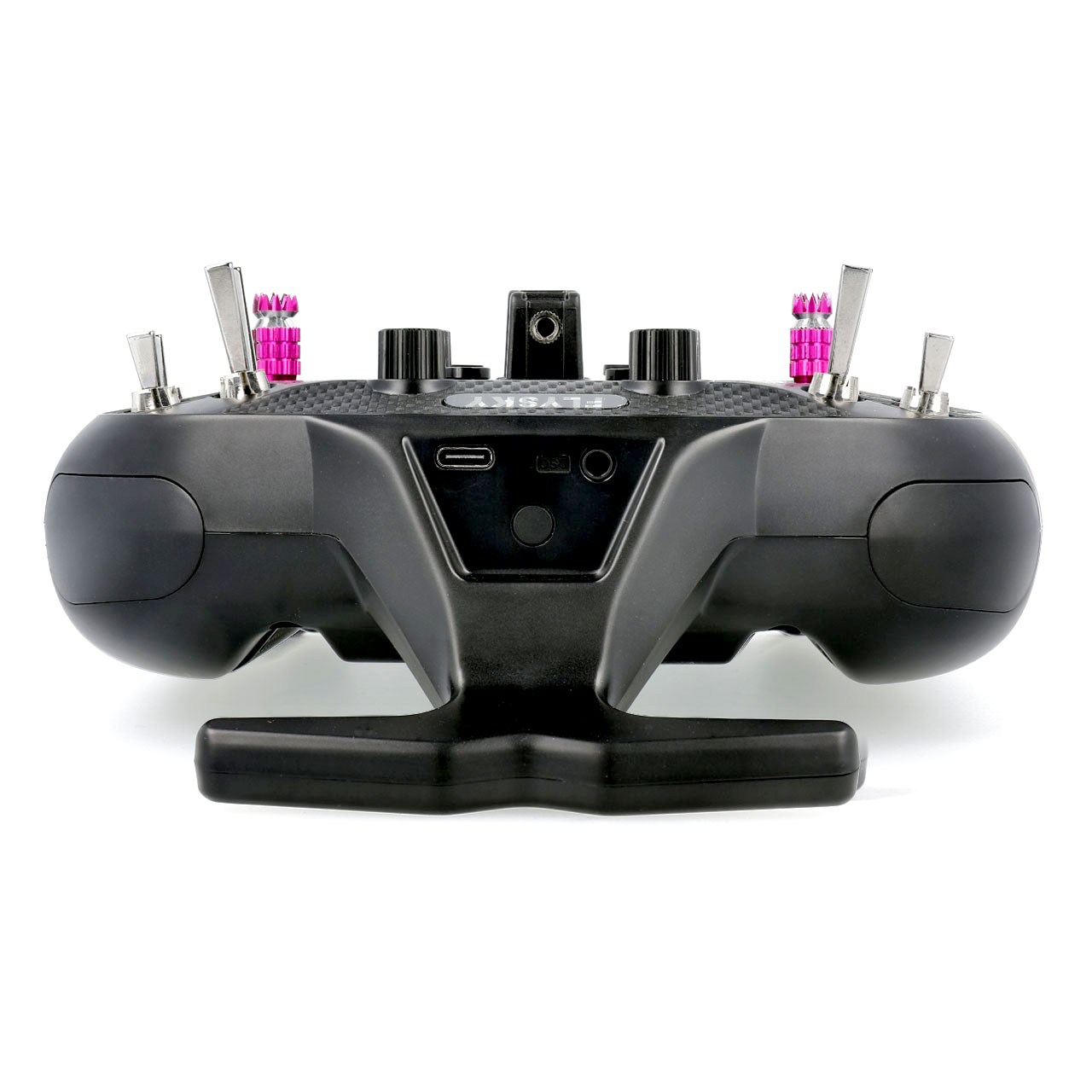

| Data Interface | DSC, USB Type-C |
| Temperature Range | -10 °C to +60 °C |
| Humidity Range | 20% to 95% |
| Online Update | Yes |
| Weight | 420 g |
| Receiver | |
| Receiver | FS-SR8 |
| PWM | 7 |
| Type | 2.4 GHz ISM |
| Frequency Protocol | ANT |
| Compatible Transmitters | All radios with ANT support |
| Antenna Type | Two antennas |
| Voltage | 3.5–9 V (DC) |
| Data Interface | PWM/PPM/i-BUS/S.BUS |
| Temperature Range | -10 °C to +60 °C |
| Humidity Range | 20% to 95% |
| Online Update | Yes |
| Dimensions | 44.8 × 26.6 × 11.3 mm |
| Weight | 10 g |

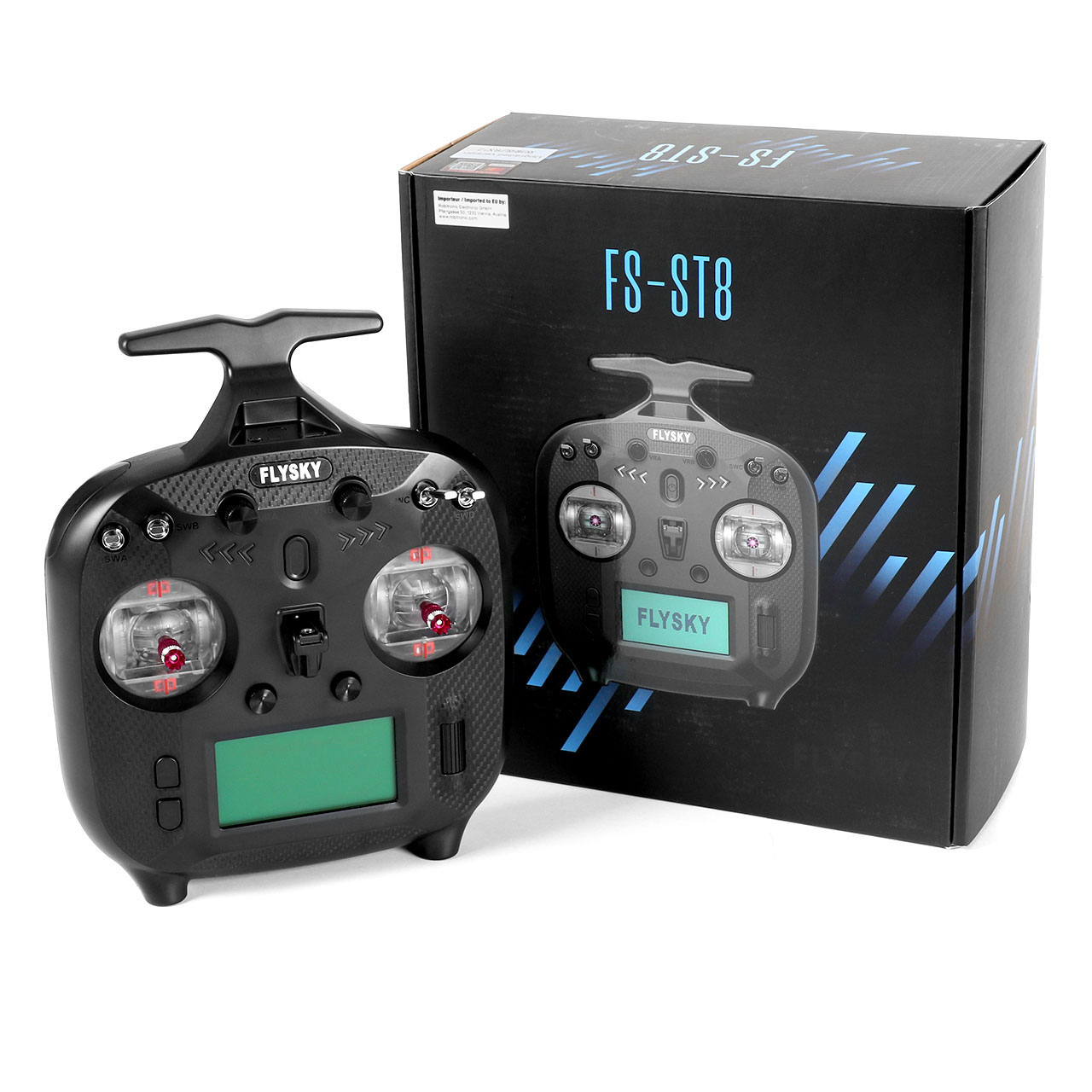

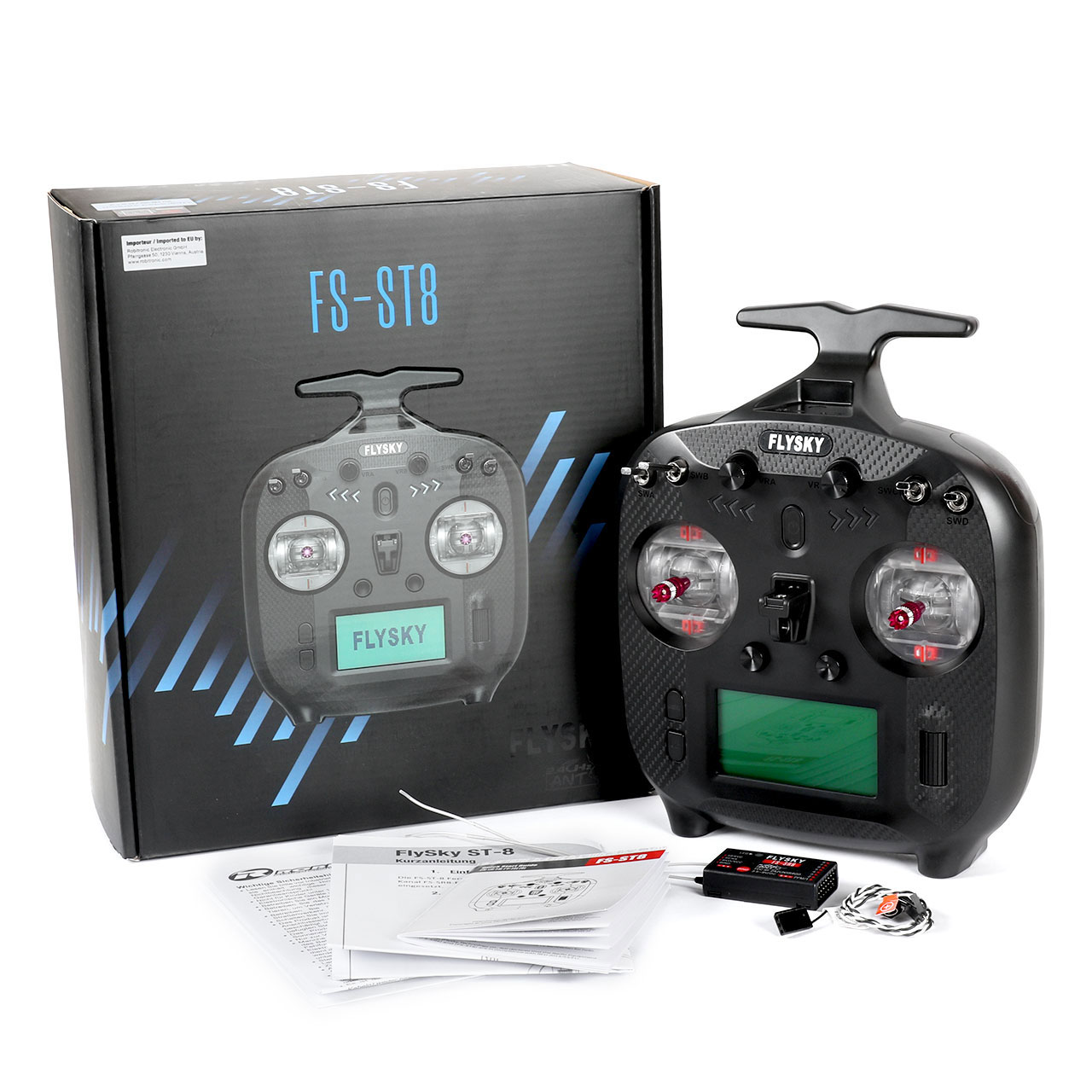

In the box
- 1× FlySky "ST8" transmitter
- 1× FS-SR8 receiver
- 1× Manuals
