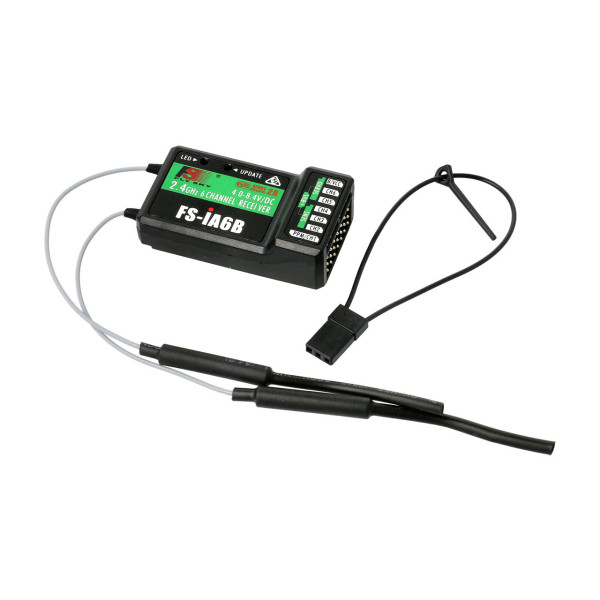

Product information "Flysky FS-IA6B AFHDS2A Receiver 6CH with ibus"
The FS-iA6B receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS 2A). This receiver is specially designed for the installation and output of PWM/PPM/i-BUS and S.BUS signals.
Technical Specifications
PWM-Channels:
6
RF:
2.4GHz
Protocol:
AFHDS 2A
Antennas:
Dual (2x 150mm)
Input Voltage:
4-8.4V
Output:
PWM/PPM/i-BUS/S.BUS
RSSI:
Yes
Range:
500-1500m (air)
Temperature:
-10°C to +60°C
Max. Humidity:
20%-95%
Update:
Yes, online
Dimensions:
47x26.2x15mm
Weight:
10g
Compatible Transmitter:
all AFHDS 2A-Transmitter
