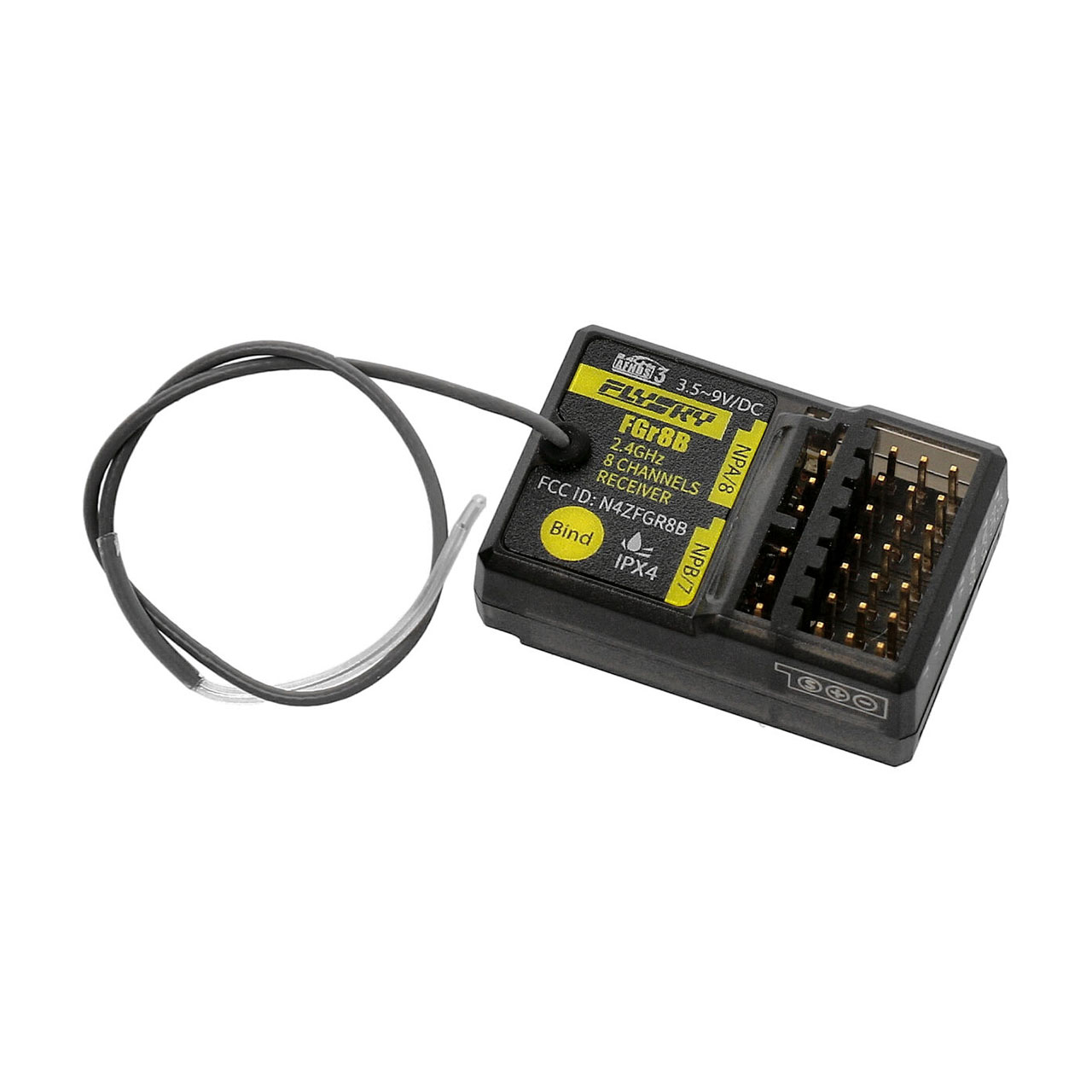

Product information "Flysky FGr8B AFHDS3 Receiver 8CH"
The FGr8B receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antenna, this receiver is specially designed for the installation and output of PWM/PPM/i-BUS in signals. All AFHDS3-capable transmitters are supported.
Technical Specifications
PWM-Channels:
7 (at Vers2.0 upgradable to 8)
RF:
2.4GHz
Protocol:
AFHDS 3
Antennas:
Single
Input Voltage:
3.5-9V
Output:
PWM/PPM/i-BUS in
Temperature:
-10°C to +60°C
Max. Humidity:
20%-95%
Update:
Yes, online
Dimensions:
35x23.3x13.3mm
Weight:
9.4g
Suitable for:
Cars, Boats, etc.
Compatible Transmitter:
all AFHDS3-Transmitter and RF-Modules (PL18, Paladin EV, NB4, NB4 Lite etc.)
