Brand:

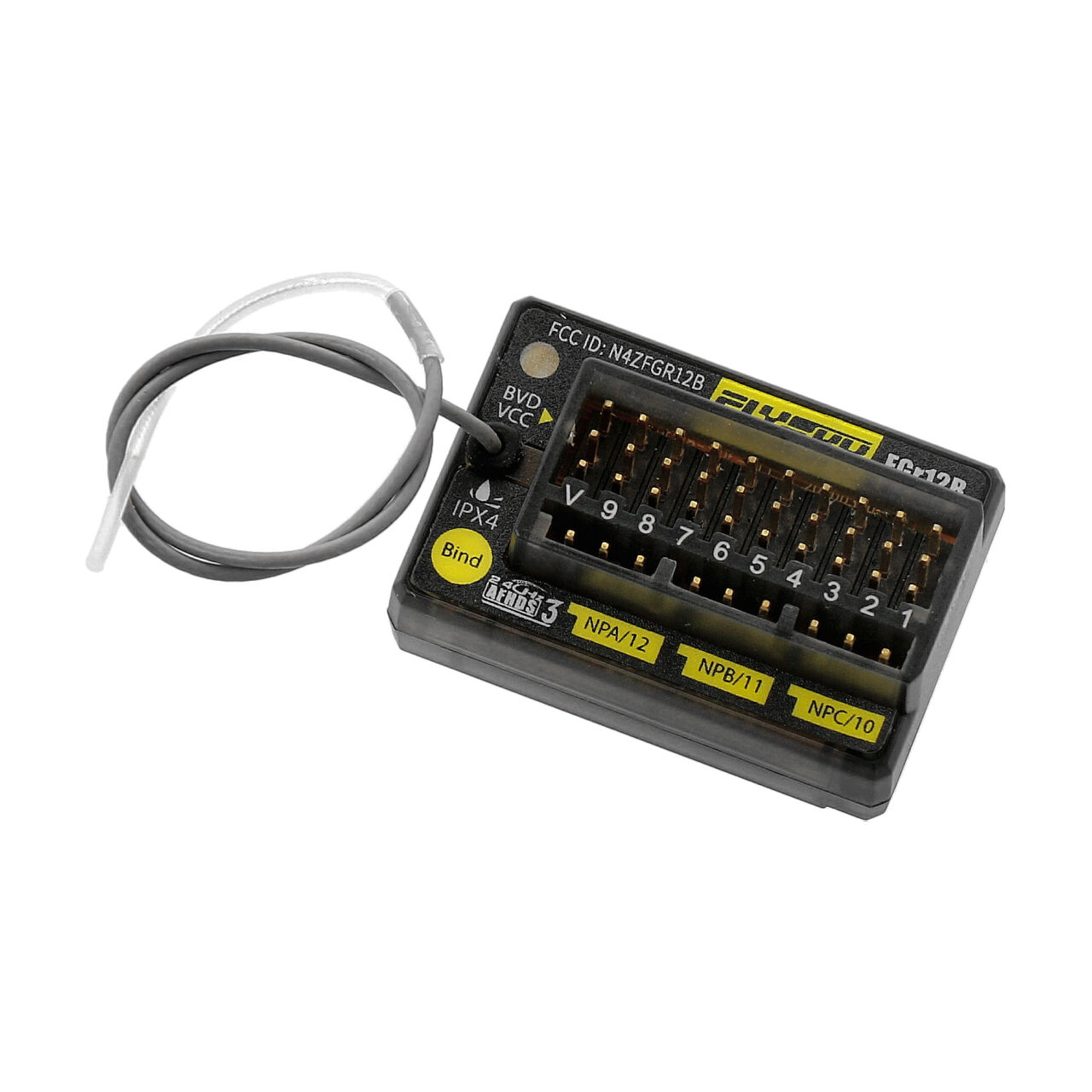

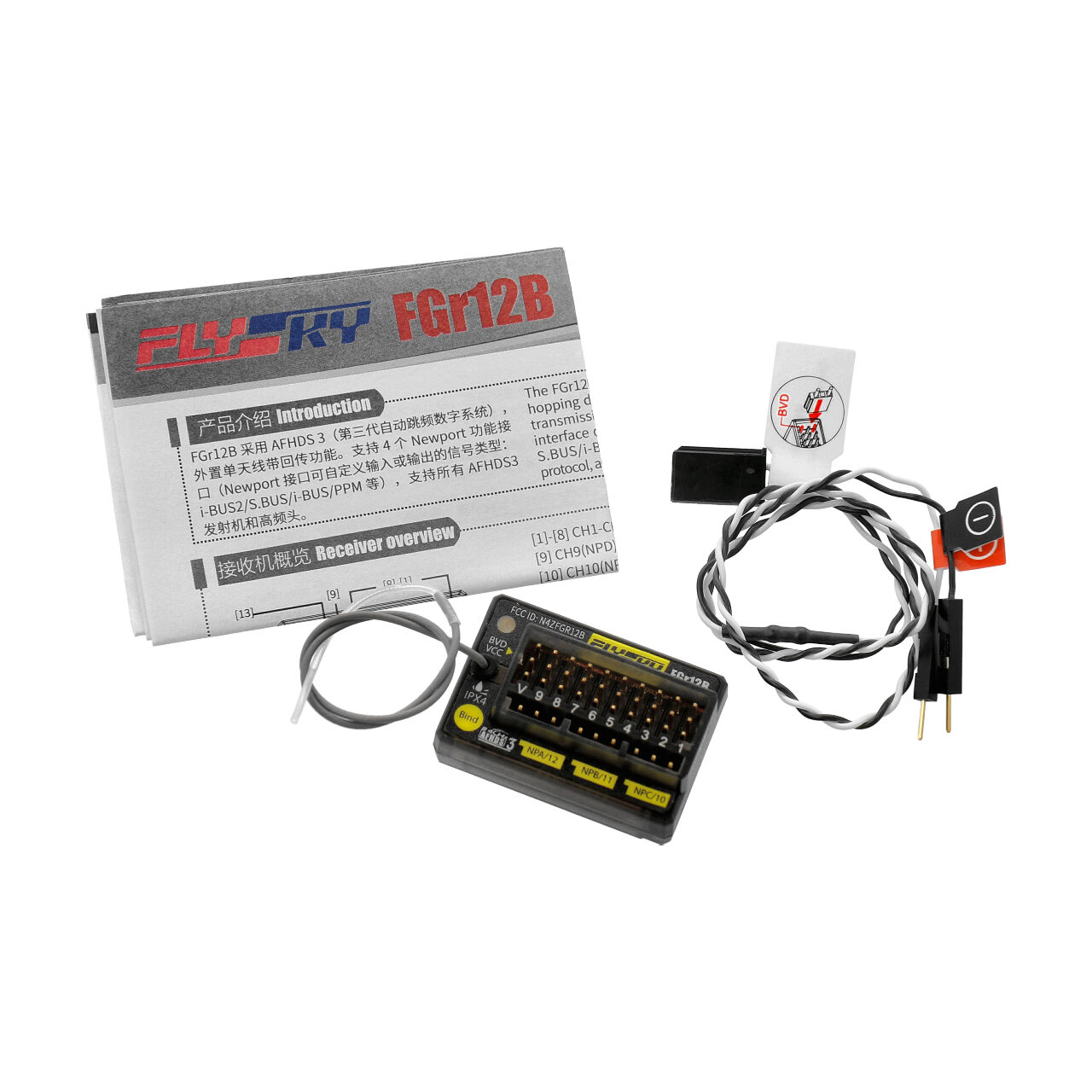

FGr12B AFHDS3 Receiver 12CH
12-channel AFHDS3 receiver with PWM/PPM/i-BUS signal output
- Item number
- FS012
- EAN
- 4046032095542
€60.90incl. VAT, plus shipping
RRP €60.90
Description
The Flysky FGr12B is a 12-channel receiver for Flysky remote controls. It uses the automatic frequency hopping digital system (AFHDS3) and bidirectional transmission via its antenna. It is designed for PWM/PPM/i-BUS signals and supports all AFHDS3-capable transmitters.
Specifications
| PWM Channels | 12 |
|---|---|
| RF | 2.4 GHz |
| Protocol | AFHDS 3 |
| Antennas | Single |
| Input Voltage | 3.5–9 V |
| Output | PWM/PPM/i-BUS in |
| Temperature Range | -10 °C to +60 °C |
| Max. Humidity | 20%–95% |
|---|---|
| Update | Yes, online |
| Dimensions | 37 × 25 × 17.5 mm |
| Weight | 11.2 g |
| Suitable For | Cars, Boats, etc. |
| Compatible Transmitter | all AFHDS3-Transmitter and RF-Modules (PL18, NB4, NB4 Lite etc.) |
Documents
Safety & manufacturer
Manufacturer
Flysky
Item number: FS012
EAN: 4046032095542
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
