Egodrift Tengu 2520HS 1880kV Motor

Egodrift
Preview: Tengu 2520HS 1880kV Motor Preview: Tengu 2520HS 1880kV Motor Preview: Tengu 2520HS 1880kV Motor
Tengu 2520HS 1880kV Motor
Tengu 2520HS 1880kV Motor
Tengu 2520HS 1880kV Motor

€124.00 *

Prices incl. VAT plus shipping costs

Ready to ship, Stock Amount: 1 pcs

  • Part No: ED11783
  • Retail: €124.00
  • EAN: 0760412643072
  • Notice: 11783
Description Egodrift Evaluations 0 für Modelle
Description
EGODRIFT Tengu high-performance brushless motors for RC heli are the result of intensive of... more
Close menu
Product information "Egodrift Tengu 2520HS 1880kV Motor"

EGODRIFT Tengu high-performance brushless motors for RC heli are the result of intensive of testing and development.

The dipped stator is hand-wound with high-temperature wire. Optimized cooling and optimally balanced motors result in high continuous performance without compromise.

The 2520HS is designed for 6s operation in the 450 helicopter class.

Features:

  • Hand-wound stator
  • High-temperature wire
  • Designed for maximum power
  • Best efficieny
  • Perfectly balanced
  • Optimized cooling

Technical Specifications:

KV Rating:1880KV
LiPo Cells:6s
Pole:10
Max. Power (2 Sek):1222W
Max. Current (2 Sek):58.2A
Max. Cont. Current:44.2A
Idle Current:2.3A

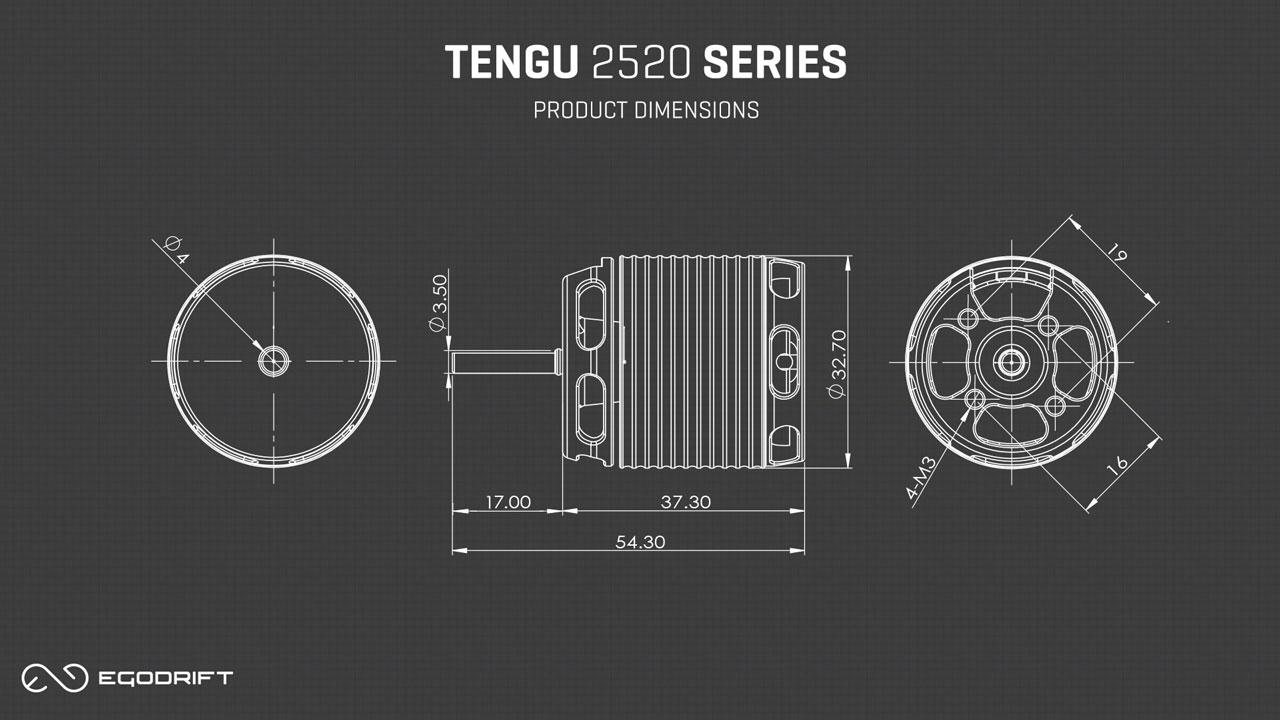

Shaft Diameter:3.5mm
Shaft Length:17mm
Stator Diameter:25mm
Stator Length:20mm
Body Diameter:32.7mm
Body Length:37.3mm
Weight:106g
Applications:450 class

Delivery:

1x Motor
3x Plugs/Sockets
4x Mounting Screws
1x Certificate of Authenticity
2x EGODRIFT Sticker Sheets
