Description

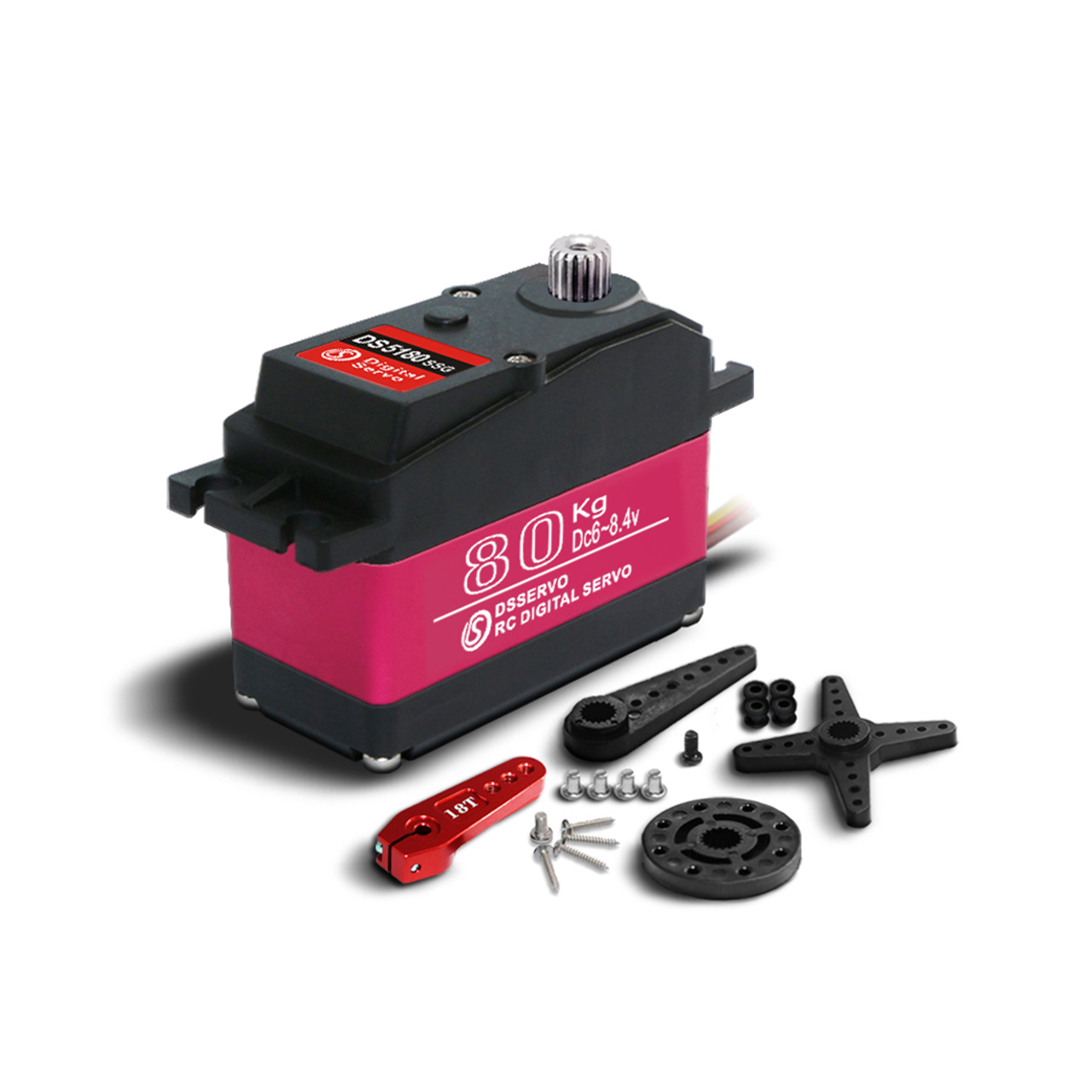

The DS5180 is a digital Servo with up to 105 kg·cm stall torque at 8.4 V.
Highlights
- Up to 105 kg·cm torque at 8.4 V

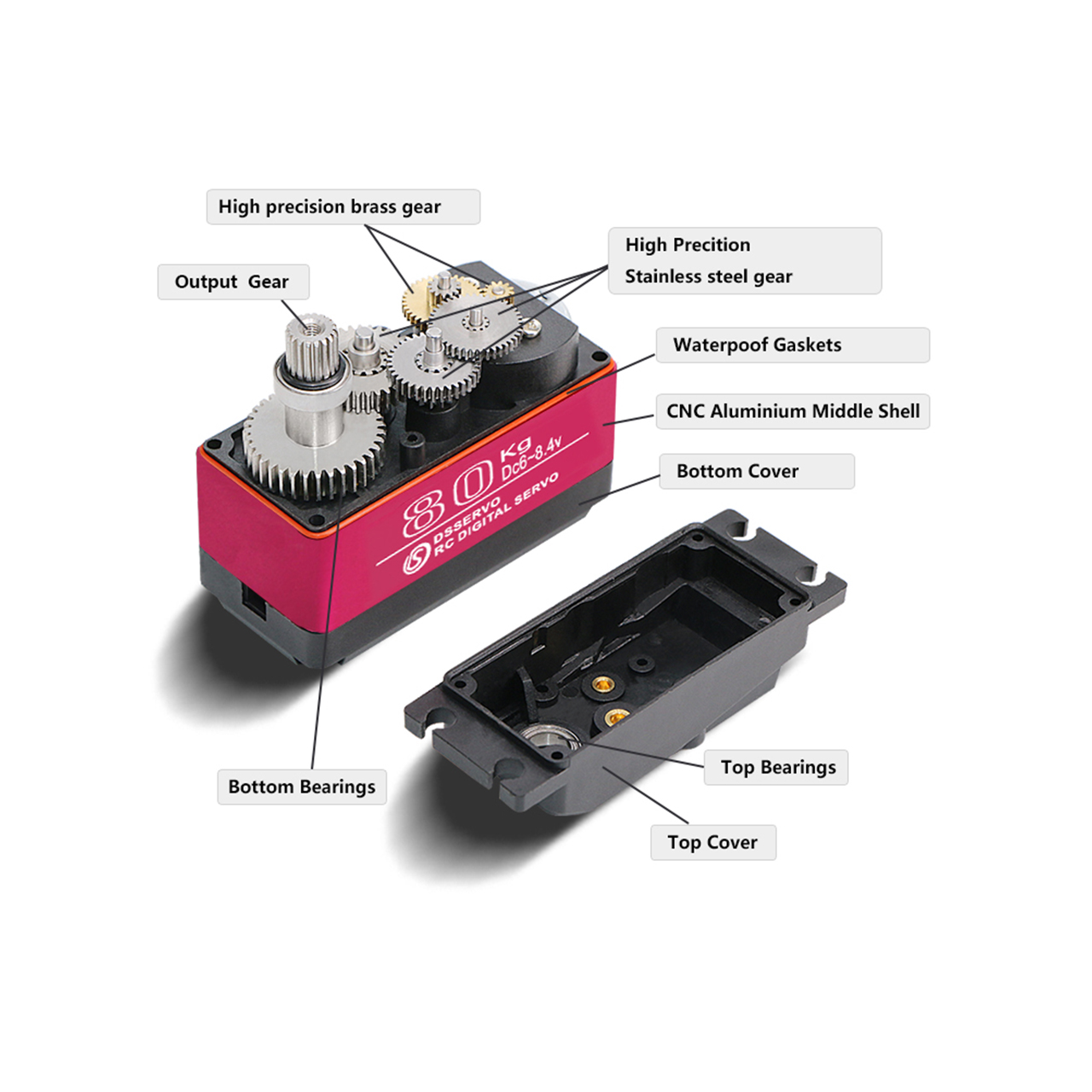

- 3-pole motor in a large-format aluminium housing
- Dust- and waterproof to IP67
- Dual ball bearings
- PWM-compatible control with 3 µs deadband
- For 1/5-scale models, large-scale models and construction equipment
- Selectable control range: 180°
Specifications
| Speed | 0.24 s/60° (6.0 V) · 0.21 s/60° (7.4 V) · 0.19 s/60° (8.4 V) |
|---|---|
| Torque (Stall) | 85 kg·cm (6.0 V) · 98 kg·cm (7.4 V) · 105 kg·cm (8.4 V) |
| Motor | 3-Pole |
| Gear Ratio | 357 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
| Bearings | Dual |
|---|---|
| Dimensions | 65 × 30 × 48 mm |
| Weight | 158.0 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP67 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS024
EAN: 4046032111686
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
