Description

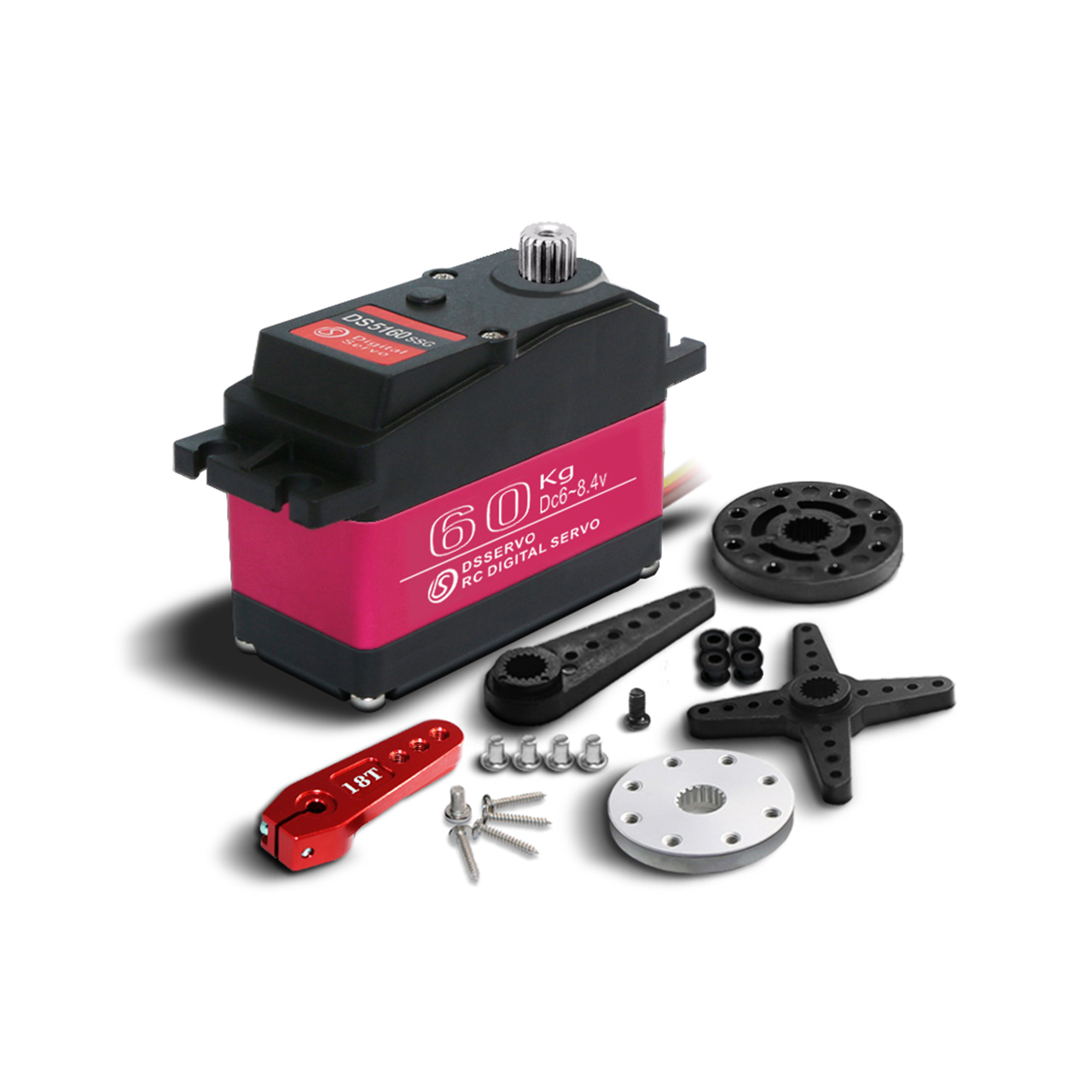

The DS Servo DS5160 is a digital large-format Servo with a 3-pole motor in an aluminium housing, designed for heavy-duty applications including 1/5 scale models and large crawlers.
Highlights

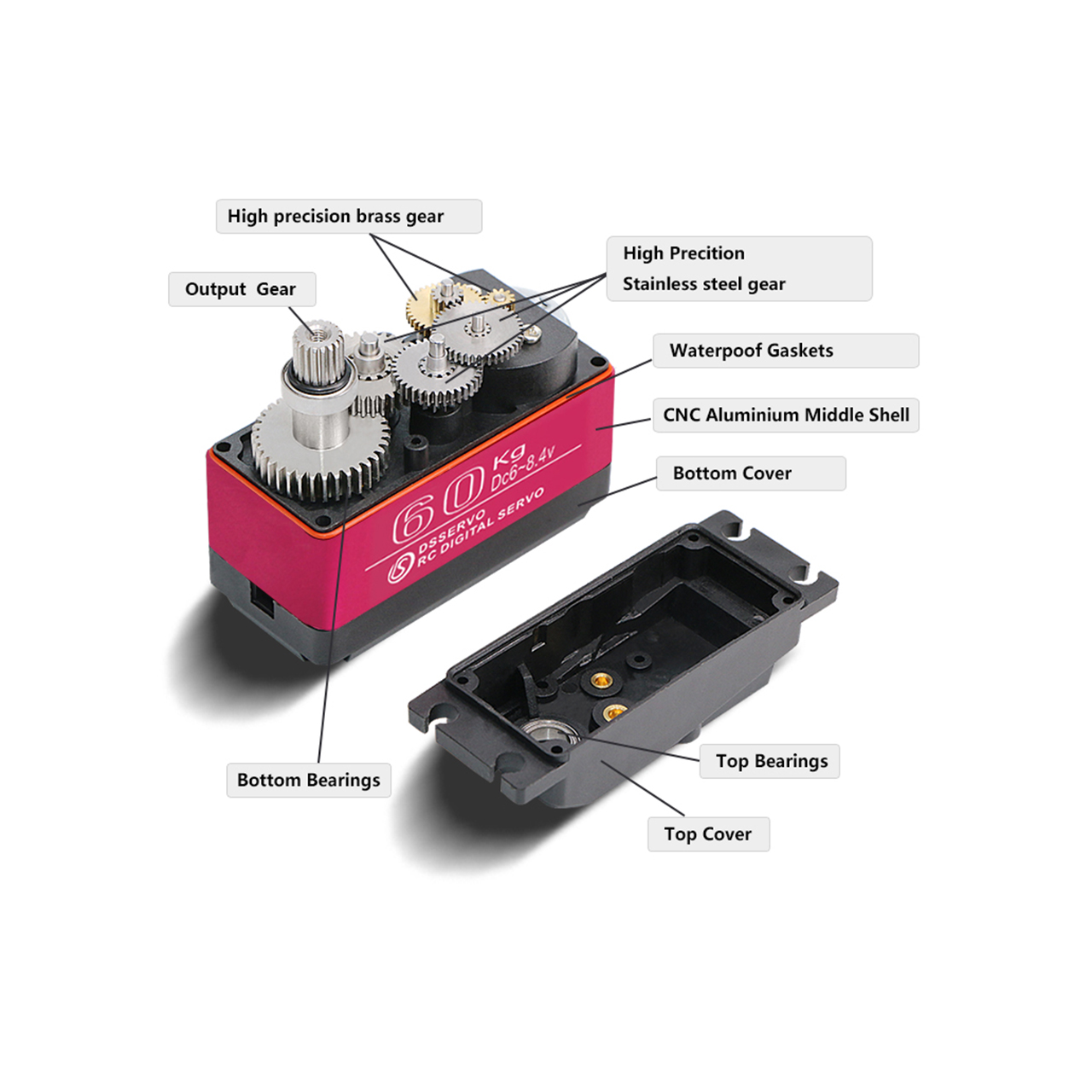

- 3-pole motor in an aluminium housing
- Large Servo format for heavy-duty applications
- Dust- and waterproof to IP67
- Dual ball bearings and 3 µs deadband
- For 1/5 scale models or large crawlers
Specifications
| Speed | 0.17 s/60° (6.0 V) · 0.15 s/60° (7.4 V) · 0.13 s/60° (8.4 V) |
|---|---|
| Torque (Stall) | 58 kg·cm (6.0 V) · 65 kg·cm (7.4 V) · 70 kg·cm (8.4 V) |
| Motor | 3-Pole |
| Gear Ratio | 279 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
| Bearings | Dual |
|---|---|
| Dimensions | 65 × 30 × 48 mm |
| Weight | 158.0 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP67 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS023
EAN: 4046032111679
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
