Description

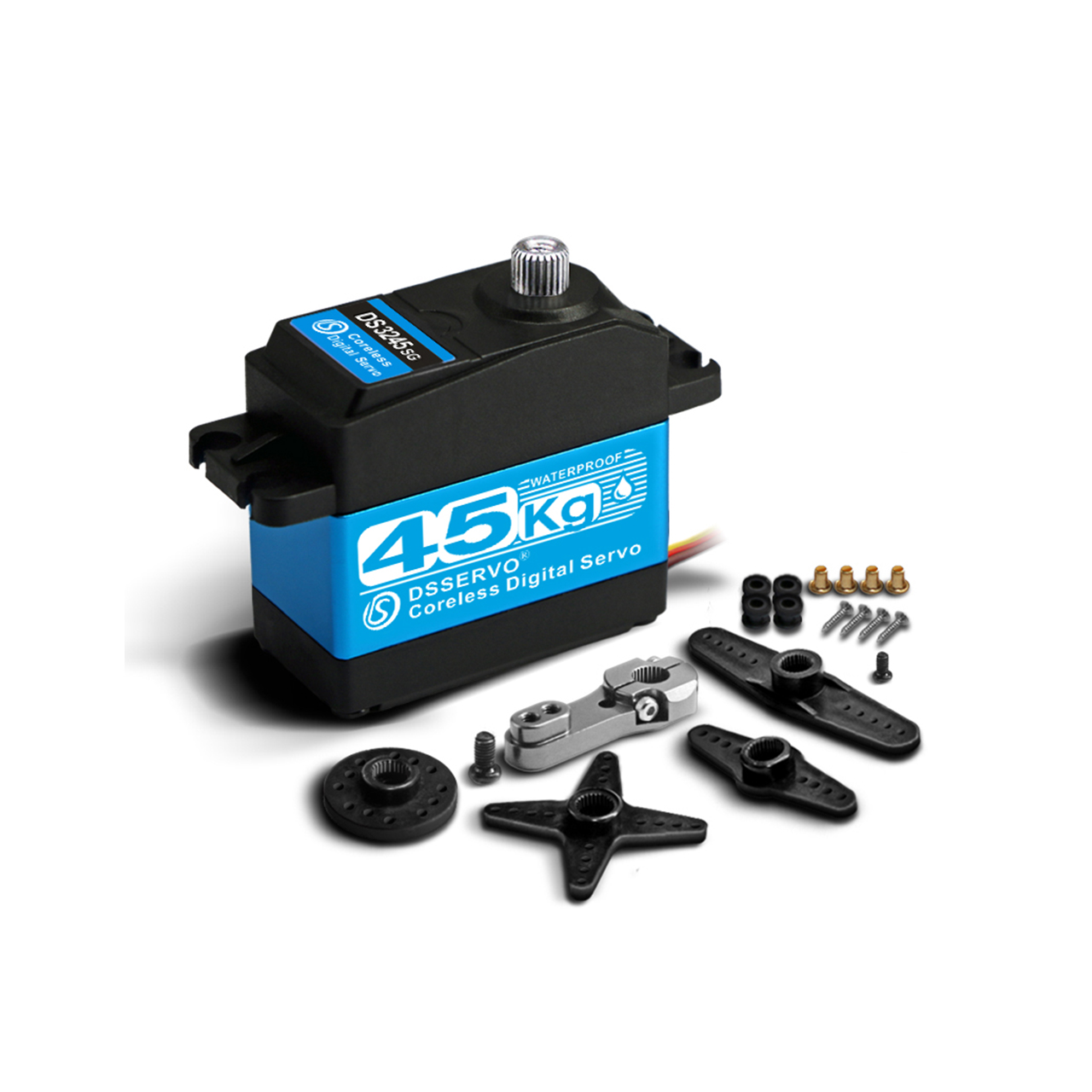

The DS3245 is a digital coreless servo with up to 51 kgcm stall torque at 8.4 V.
Highlights
- Coreless motor
- Up to 51 kgcm stall torque at 8.4 V
- Response as fast as 0.11 s/60°

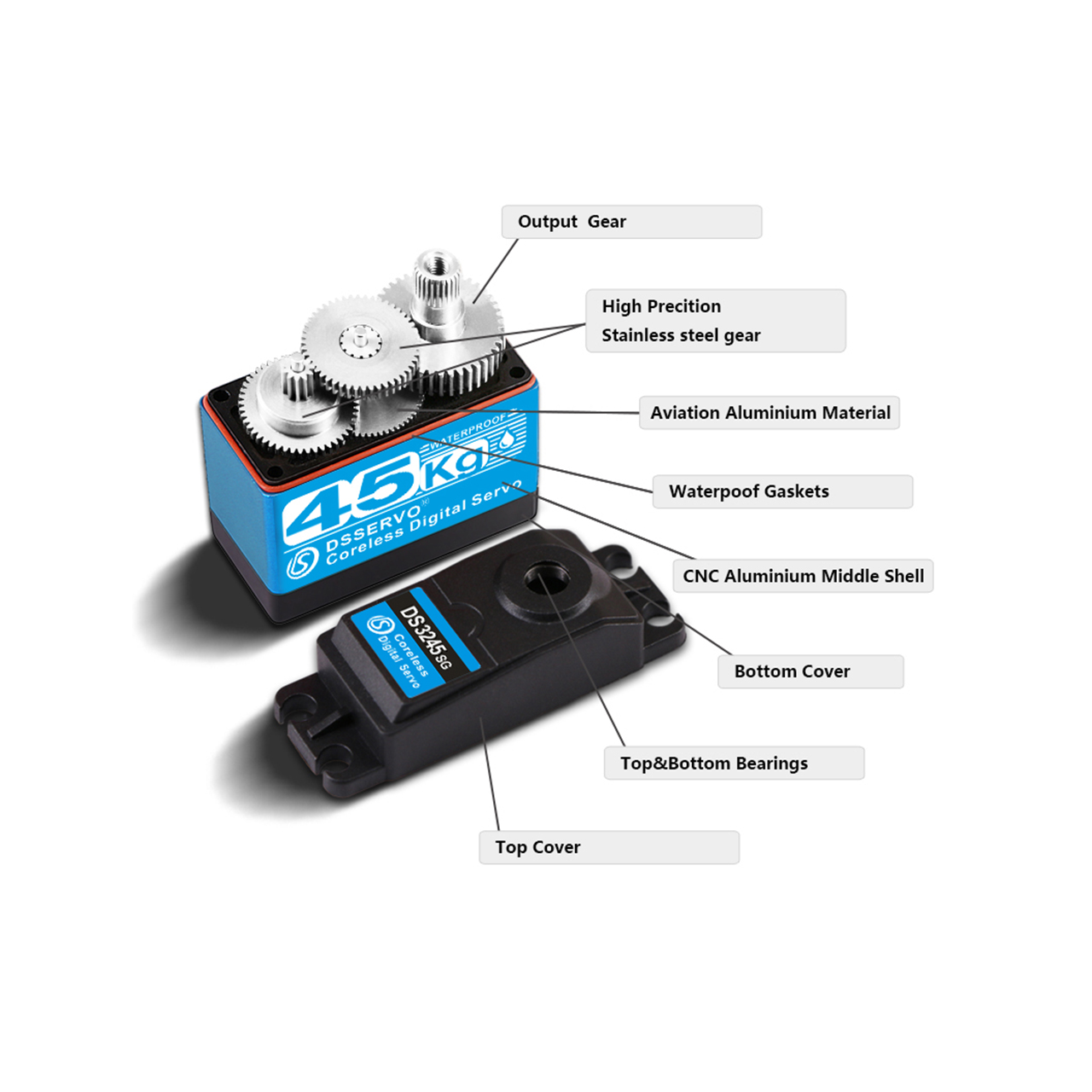

- Double ball bearings
- Water-resistant to IP66
- Standard 3-wire 300 mm servo cable
Specifications
| Torque (Stall) | 35 kgcm (5.0 V) · 40 kgcm (6.0 V) · 46 kgcm (7.4 V) · 51 kgcm (8.4 V) |
|---|---|
| Speed (No Load) | 0.18 s/60° (5.0 V) · 0.15 s/60° (6.0 V) · 0.13 s/60° (7.4 V) · 0.11 s/60° (8.4 V) |
| Motor | Coreless |
| Gear Ratio | 342 |
| Bearings | Double |
| Frequency | 50–330 Hz |
| PWM Range | 500–2500 µs |
| Deadband | 2 µs |
|---|---|
| Rotation | Counterclockwise |
| Angle Range | 180° |
| Dimensions | 40 × 20 × 38.5 mm |
| Weight | 60 g |
| Waterproof | IP66 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS012
EAN: 4046032111563
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
