Description

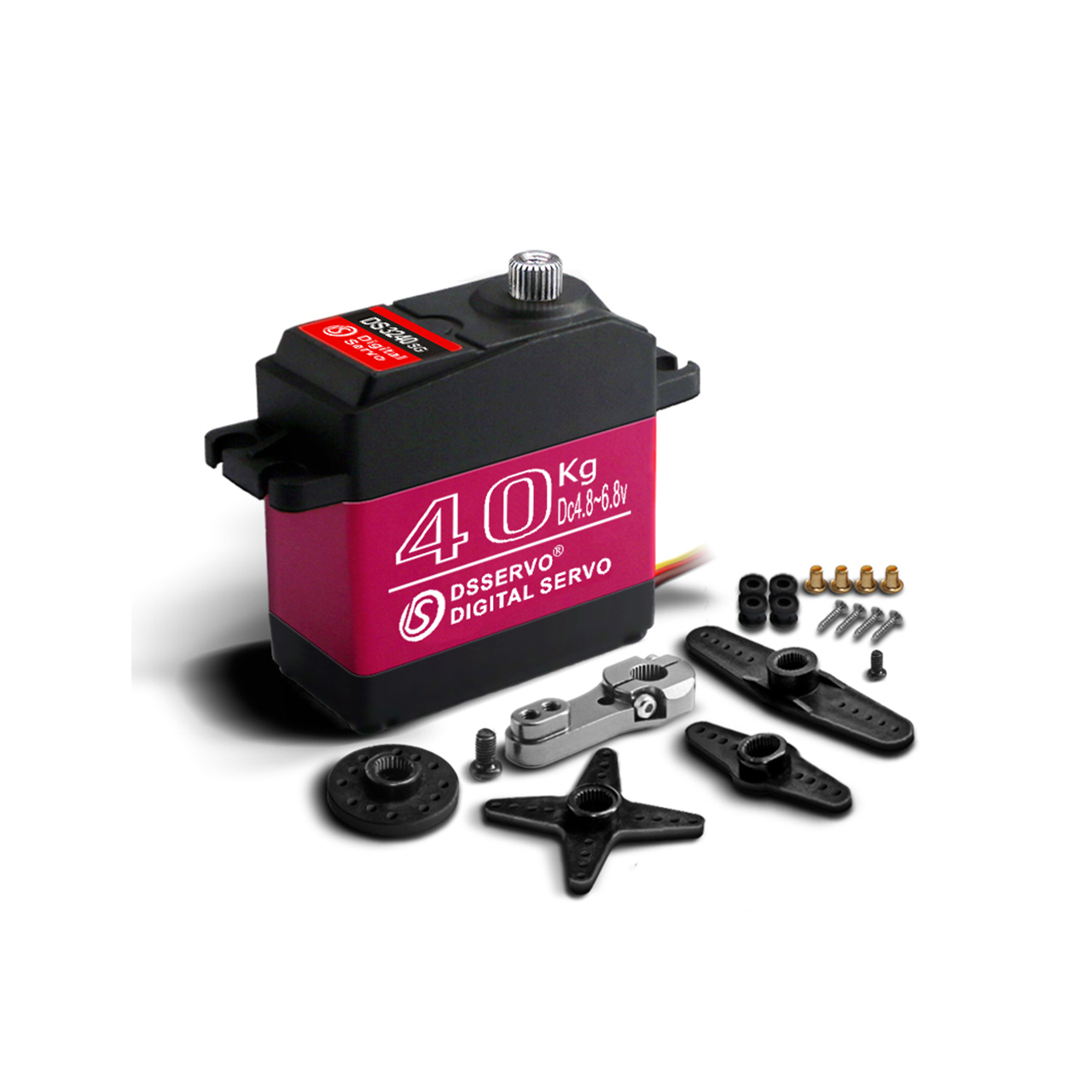

The DSSERVO DS3240 is a digital Servo for RC applications.
Highlights
- Up to 45 kgcm torque at 6.8 V
- 3-pole motor
- Dual ball bearings and precise gearing (342:1)
- Dust- and splash-resistant (IP66 rated)
- PWM-compatible with 3 µs deadband
Specifications
| Speed | 0.20 s/60° (5.0 V) · 0.17 s/60° (6.8 V) |
|---|---|
| Stall Torque | 36 kgcm (5.0 V) · 45 kgcm (6.8 V) |
| Motor | 3-pole |
| Gear Ratio | 342 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
| Bearings | Dual |
|---|---|
| Dimensions | 40 × 20 × 40.5 mm |
| Weight | 60.0 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP66 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS007
EAN: 4046032111518
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
