Description

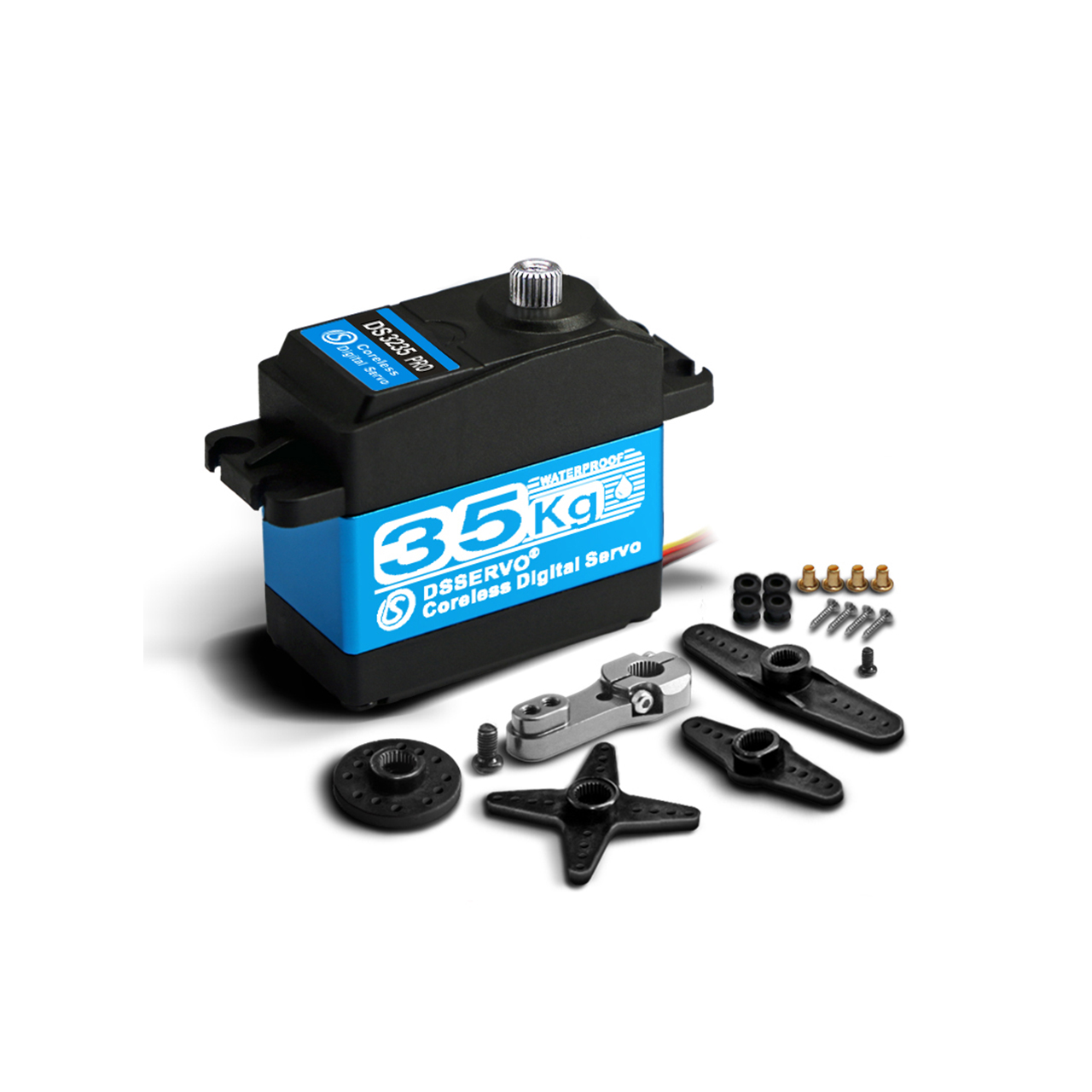

The DSSERVO DS3235 PRO is a digital coreless servo with a full metal case and IP66 dust and water protection.
Highlights
- Coreless motor with up to 45 kgcm torque

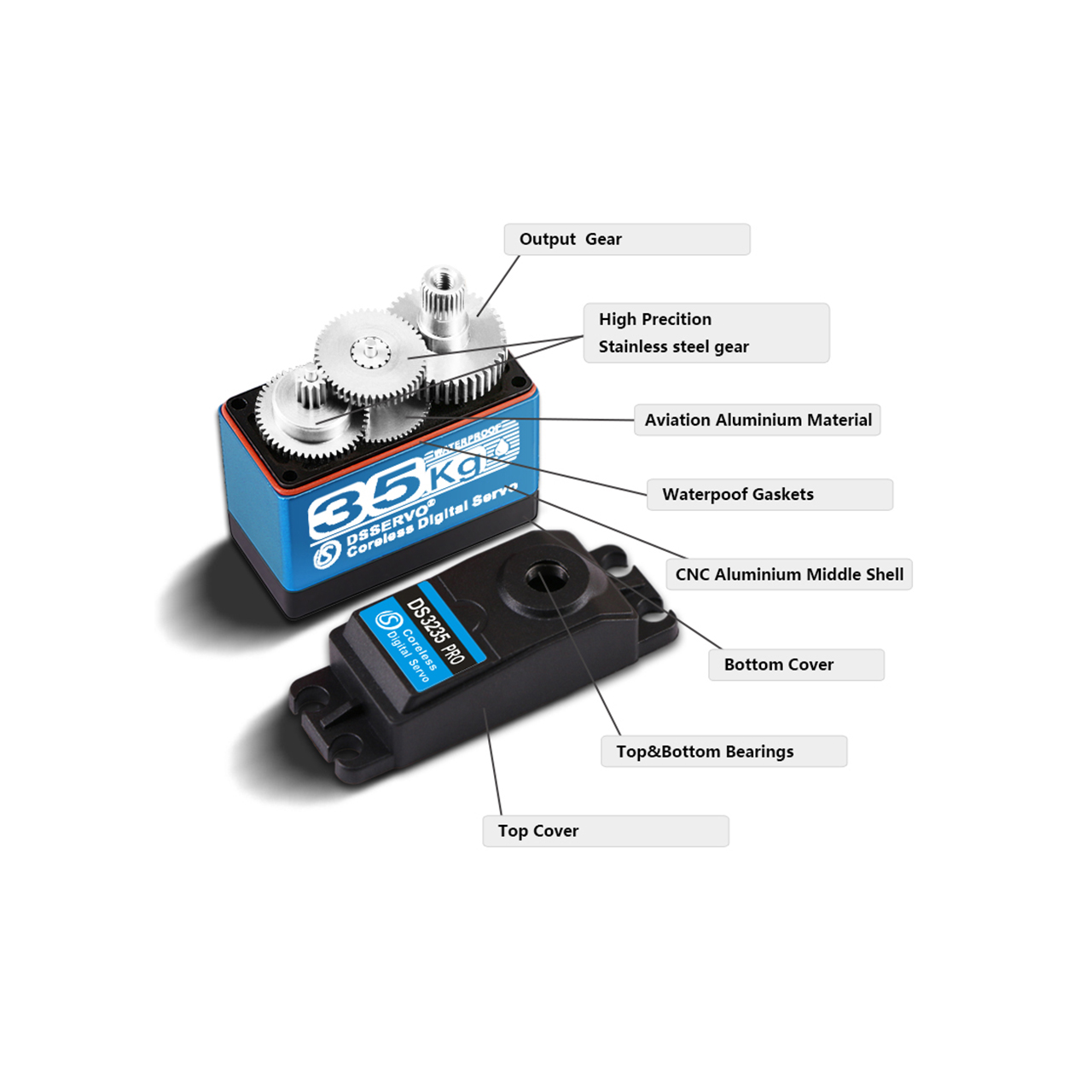

- Full metal case with IP66 dust and water protection
- Response time down to 0.095 s/60°
- Dual ball bearings for precise movement
- PWM compatible with 2 µs deadband
- For 1/10 and 1/8 off-road, crawlers, truggies, buggies and robotics
Specifications
| Speed | 0.16 s/60° (5.0 V) · 0.13 s/60° (6.0 V) · 0.11 s/60° (7.4 V) · 0.095 s/60° (8.4 V) |
|---|---|
| Torque (Stall) | 31 kgcm (5.0 V) · 35 kgcm (6.0 V) · 41 kgcm (7.4 V) · 45 kgcm (8.4 V) |
| Motor | Coreless |
| Gear Ratio | 275 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
| Bearings | Dual |
|---|---|
| Dimensions | 40 × 20 × 38.5 mm |
| Weight | 60 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP66 |
| Deadband | 2 µs |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS011
EAN: 4046032111556
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
