Description

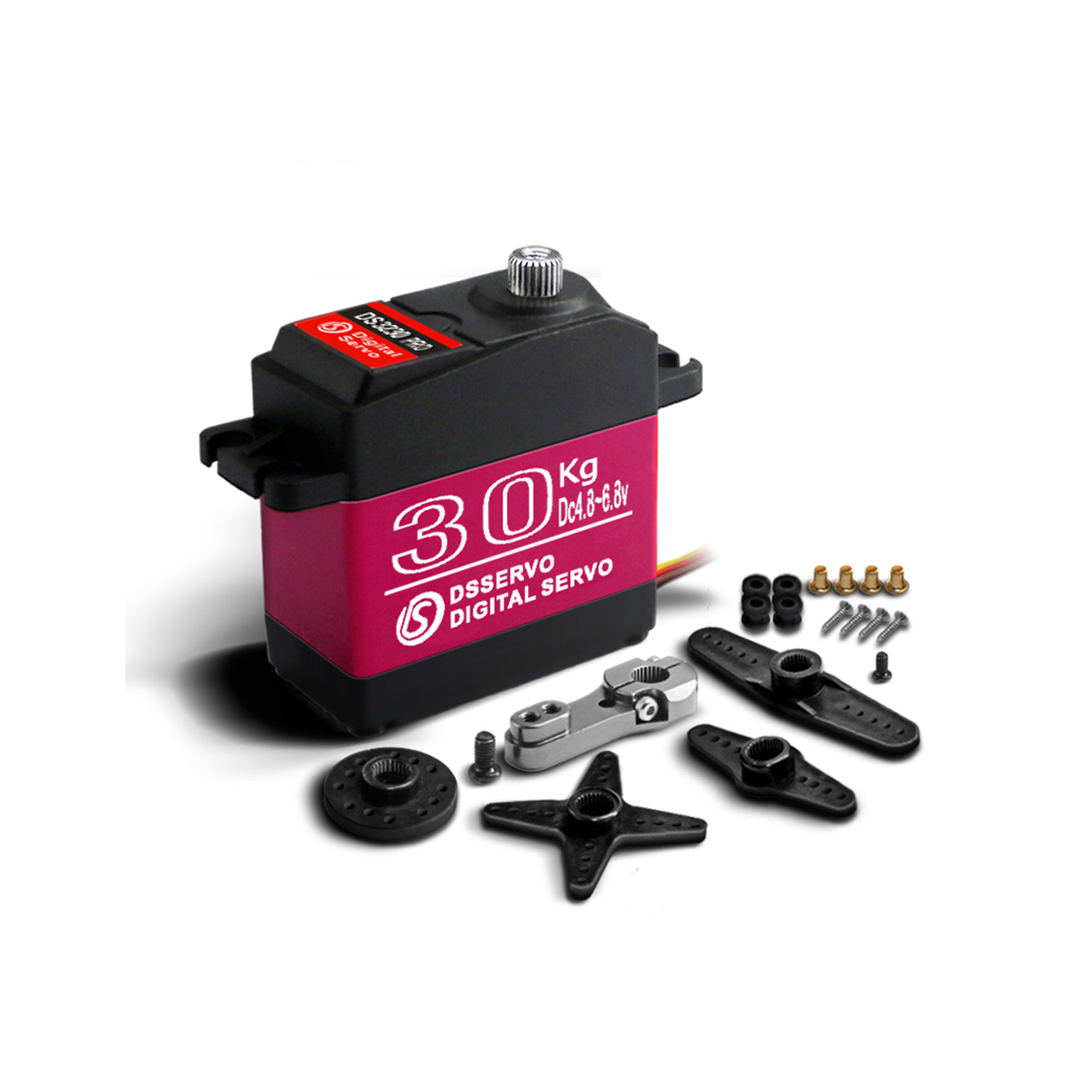

The DS3230 PRO is a digital RC Servo with up to 38 kgcm stall torque at 6.8 V.
Highlights

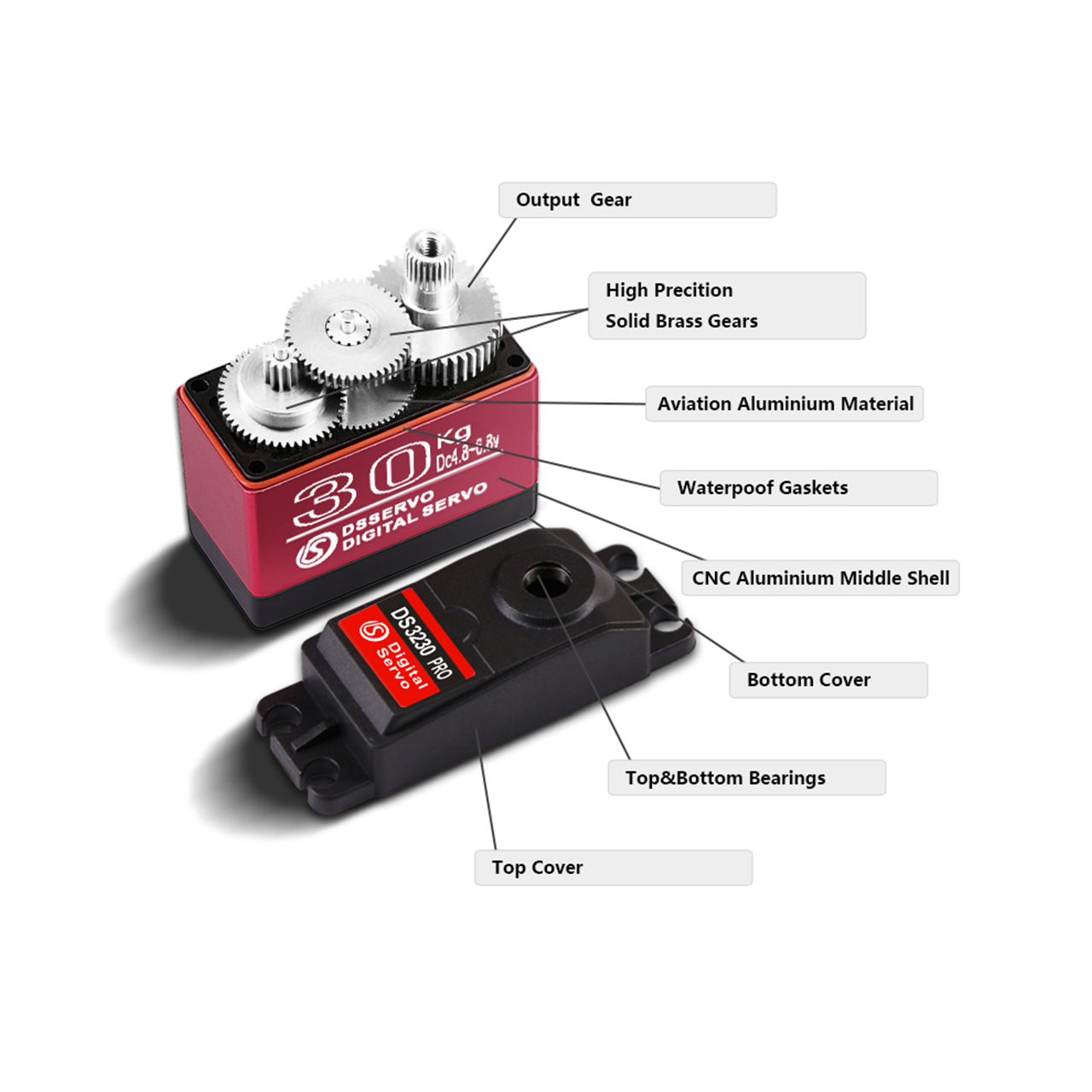

- 3-pole motor with precise control
- Response time of up to 0.09 sec/60°
- Dual ball bearings for smooth operation
- Water- and dust-resistant (IP66)
- For crawlers, 1/8 scale vehicles and RC robots
- PWM-compatible with 3 µsec deadband
Specifications
| Voltage | 5.0 V · 6.8 V |
|---|---|
| Speed | 0.11 sec/60° (5.0 V) · 0.09 sec/60° (6.8 V) |
| Stall Torque | 28.5 kgcm (5.0 V) · 38 kgcm (6.8 V) |
| Motor | 3-pole |
| Gear Ratio | 221 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
|---|---|
| Bearings | Dual |
| Dimensions | 40 × 20 × 40.5 mm |
| Weight | 60.0 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP66 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS006
EAN: 4046032111501
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
