DS Servo DS3120 Digital 25KG/0.17sec@6.8V

DS Servo DS3120 Digital 25KG/0.17sec@6.8V
€12.90 *

Prices incl. VAT plus shipping costs

Ready to ship, Stock Amount: >20 pcs

  • Part No: DS004
  • Retail: €12.90
  • EAN: 4046032111488
Description Evaluations 0 für Modelle
Description
DSSERVO DS3120 - Powerful Standard Servo with 25kgcm Torque Features: 3-pole motor... more
Close menu
Product information "DS Servo DS3120 Digital 25KG/0.17sec@6.8V"

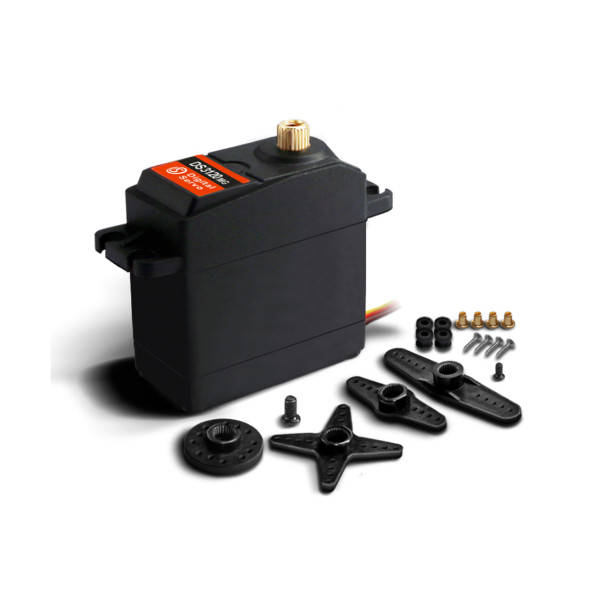

DSSERVO DS3120 - Powerful Standard Servo with 25kgcm Torque

Features:

  • 3-pole motor with high efficiency
  • Up to 25kgcm torque at 6.8V operating voltage
  • Dual ball bearings for smooth operation
  • High gear ratio (397:1) for controlled power
  • Compact standard size – ideal for 1/10 models
  • PWM-compatible with 3µsec deadband
  • Not waterproof - recommended for dry environments

Technical Specifications:

Voltage: 5.0V 6.8V
Speed: 0.20 sec/60° 0.17 sec/60°
Stall Torque: 21.5 kgcm 25 kgcm
Motor: 3-pole
Gear Ratio: 397
Type: Digital (PWM)
Control Frequency: 50–330Hz
Bearings: Dual
Dimensions: 40 × 20 × 40.5mm
Weight: 60.0g
Rotation Range: 180° or 270° (500–2500µs)
Waterproof: No
