Description

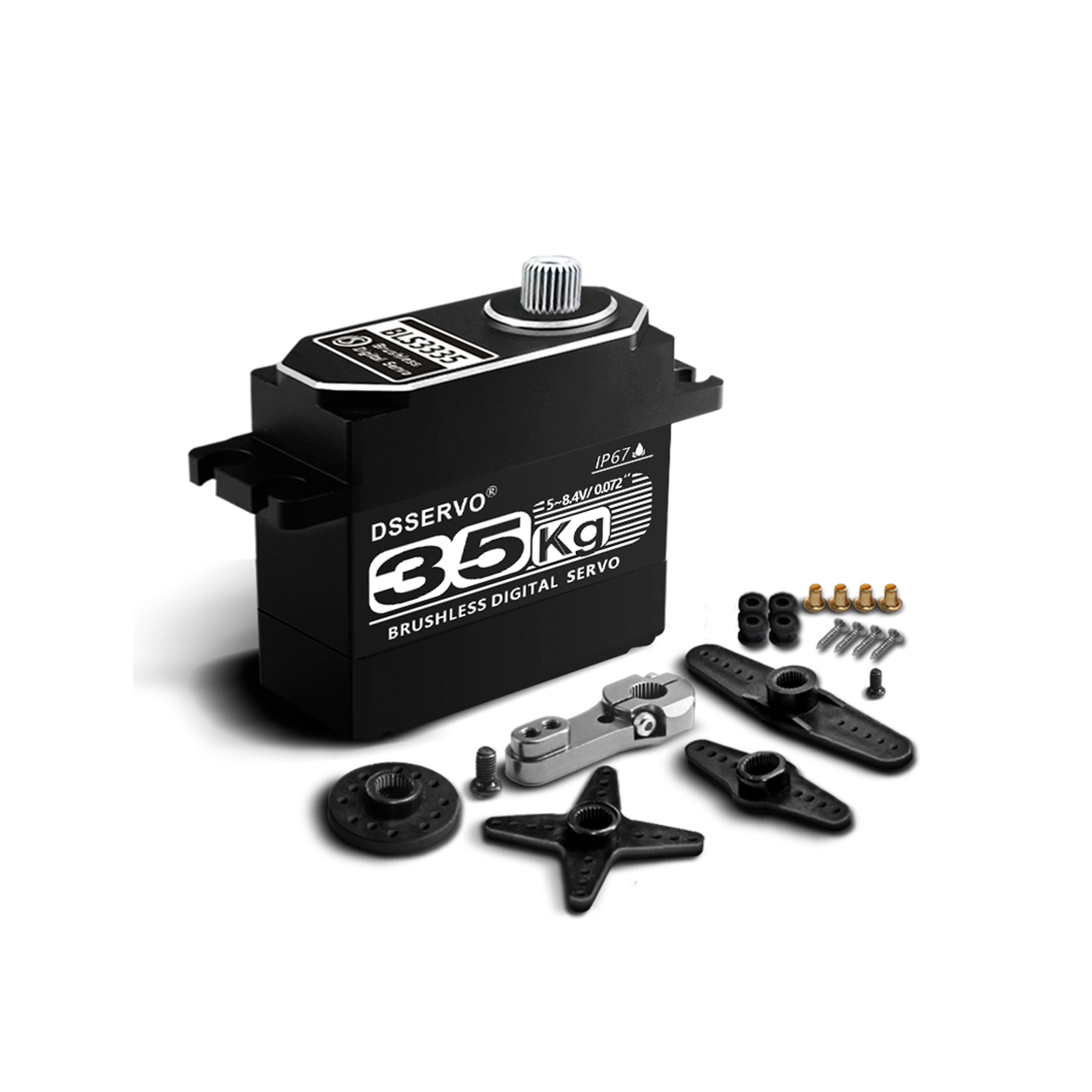

The DSSERVO BLS3335 is a brushless servo with a full-metal housing and up to 45 kg cm stall torque at 8.4 V.
Highlights

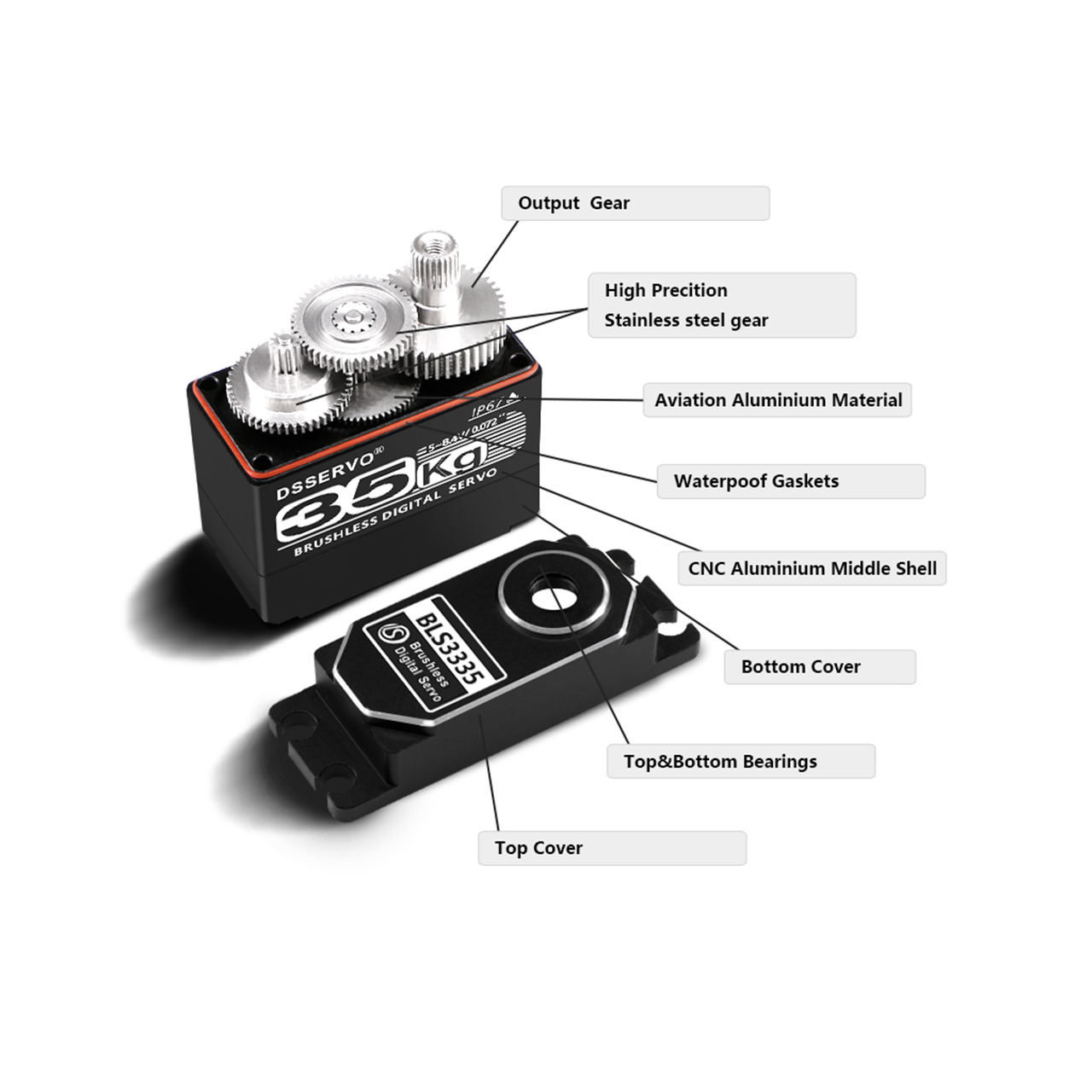

- Brushless motor in a full-metal housing
- Up to 45 kg cm torque and 0.072 s/60° speed at 8.4 V
- IP67-certified
- High resolution with 2 µs deadband
- Dual ball bearings
- PWM-compatible; operates from 4.8 V to 8.4 V
Specifications
| Voltage | 4.8 V · 6.0 V · 7.4 V · 8.4 V |
|---|---|
| Speed | 0.11 s/60° (4.8 V) · 0.095 s/60° (6.0 V) · 0.08 s/60° (7.4 V) · 0.072 s/60° (8.4 V) |
| Stall Torque | 27 kg cm (4.8 V) · 32 kg cm (6.0 V) · 39 kg cm (7.4 V) · 45 kg cm (8.4 V) |
| Motor | Brushless |
| Gear Ratio | 275 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
|---|---|
| Bearings | Dual |
| Dimensions | 40 × 20 × 38 mm |
| Weight | 85 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP67 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS017
EAN: 4046032111617
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
