Description

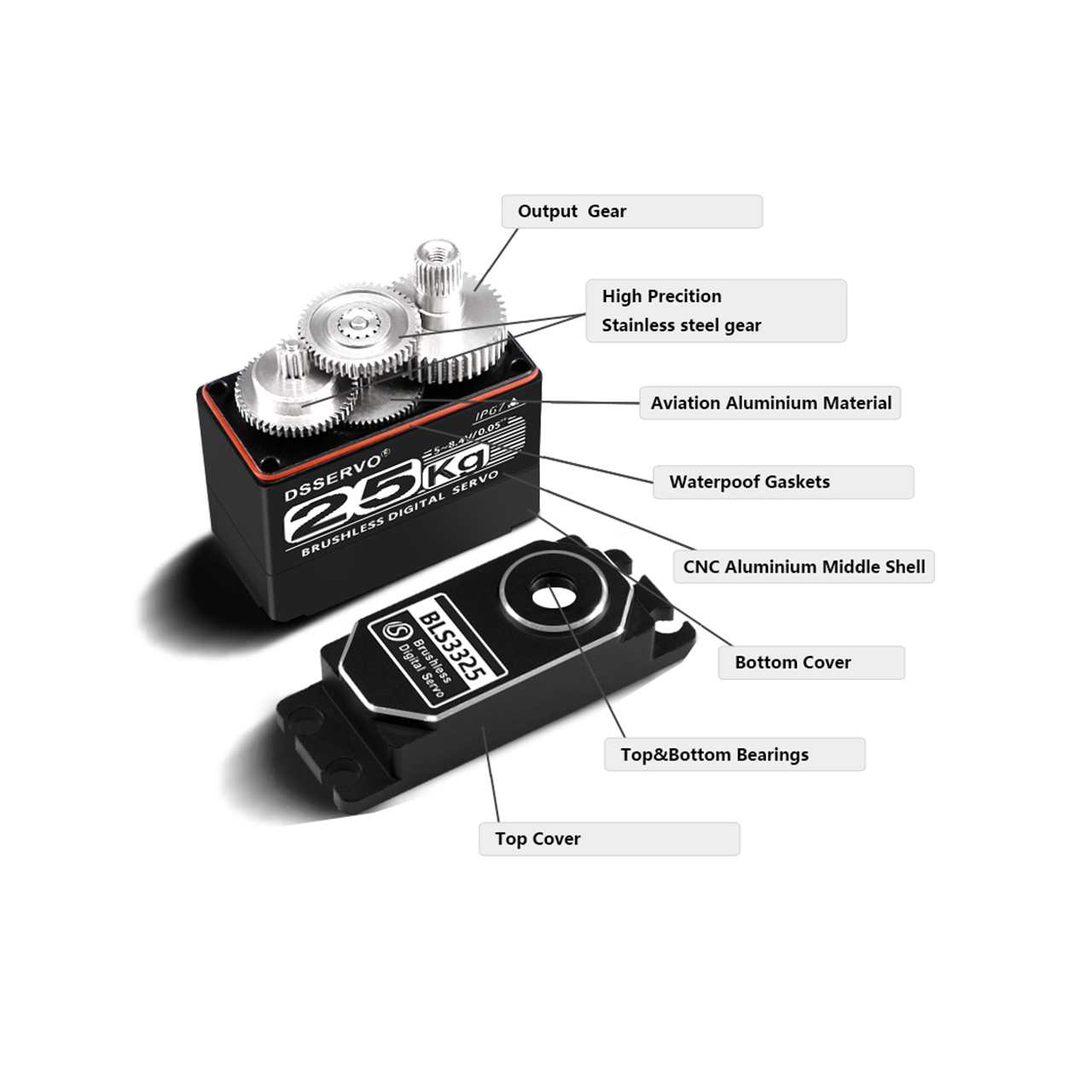

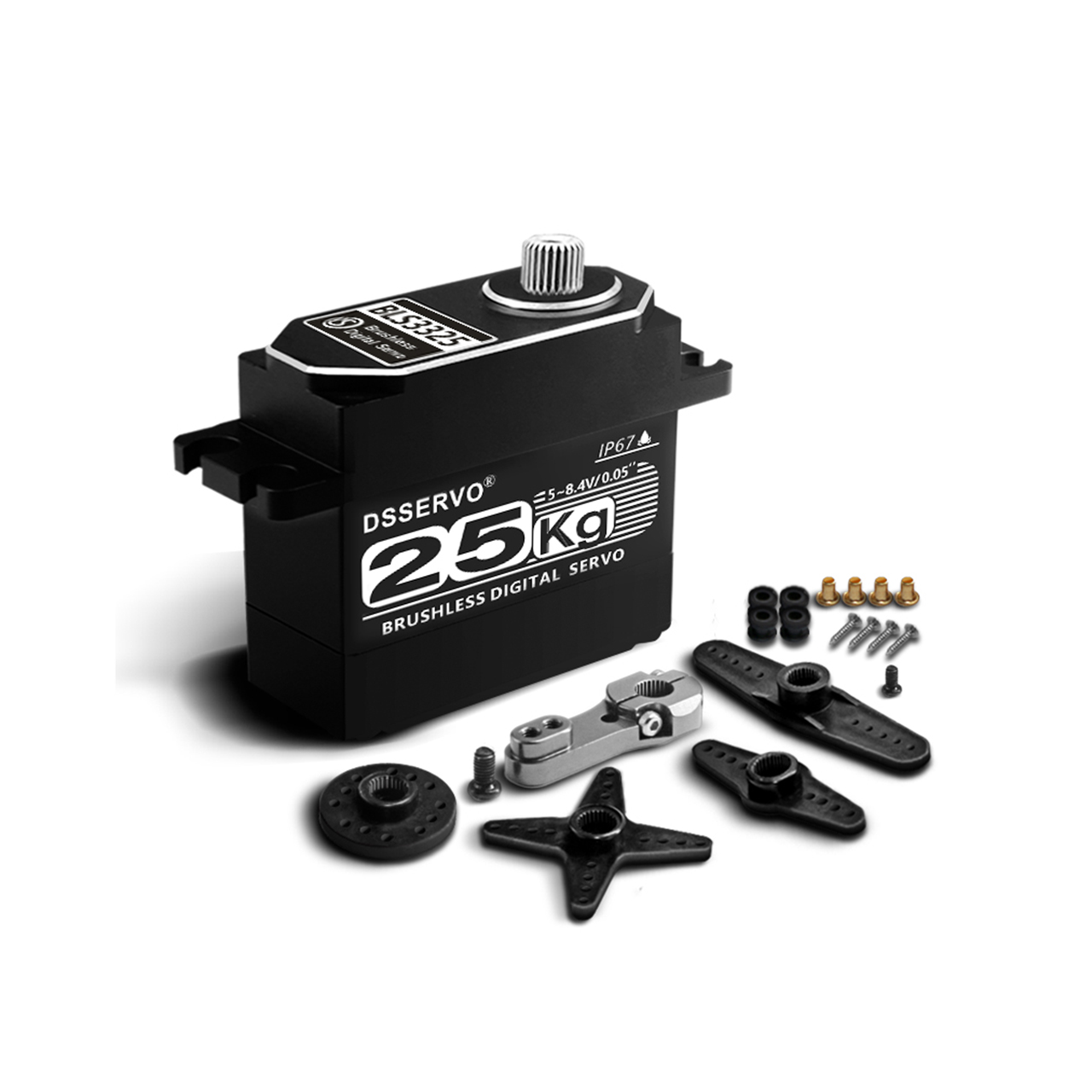

The DSSERVO BLS3325 is a high-speed brushless servo with a full-metal housing.
Highlights
- High-speed brushless motor
- Full-metal housing
- Up to 30 kgcm at 0.05 s/60°
- Dual ball bearings for precise control
- IP67-rated – dustproof and waterproof
- PWM-compatible with 2 µs deadband
Specifications
| Voltage | 4.8 V · 6.0 V · 7.4 V · 8.4 V |
|---|---|
| Speed | 0.08 s/60° (4.8 V) · 0.065 s/60° (6.0 V) · 0.055 s/60° (7.4 V) · 0.05 s/60° (8.4 V) |
| Stall Torque | 18 kgcm (4.8 V) · 22 kgcm (6.0 V) · 26 kgcm (7.4 V) · 30 kgcm (8.4 V) |
| Motor | Brushless |
| Gear Ratio | 183 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
|---|---|
| Bearings | Dual |
| Dimensions | 40 × 20 × 38 mm |
| Weight | 85.0 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP67 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS016
EAN: 4046032111600
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
