Description

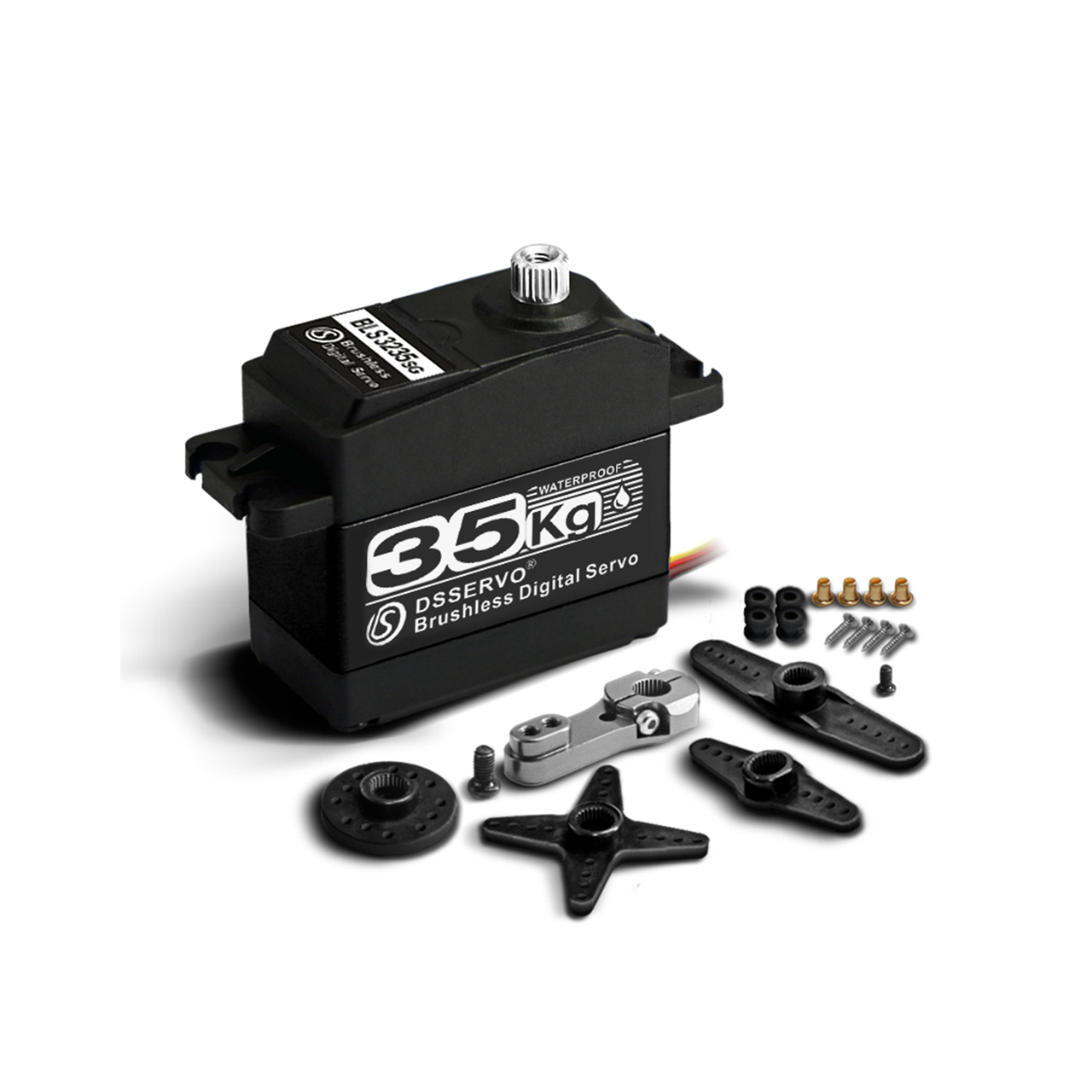

The DSSERVO BLS3235 is a brushless Servo with IP67 protection.
Highlights
- Brushless motor
- Up to 37 kgcm torque with 0.072 s/60° response time
- Dual ball bearings
- Dustproof and waterproof to IP67
- Digital PWM control with 2 µs deadband
- Supports up to 8.4 V operating voltage
Specifications
| Voltage | 4.8 V · 6.0 V · 7.4 V · 8.4 V |
|---|---|
| Speed | 0.11 s/60° (4.8 V) · 0.095 s/60° (6.0 V) · 0.08 s/60° (7.4 V) · 0.072 s/60° (8.4 V) |
| Stall Torque | 23 kgcm (4.8 V) · 28 kgcm (6.0 V) · 33 kgcm (7.4 V) · 37 kgcm (8.4 V) |
| Motor | Brushless |
| Gear Ratio | 266 |
| Type | Digital (PWM) |
| Control Frequency | 50–330 Hz |
|---|---|
| Bearings | Dual |
| Dimensions | 40 × 20 × 37.5 mm |
| Weight | 60.0 g |
| Angle Range | 180° (500–2500 µs) |
| Waterproof | IP67 |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS014
EAN: 4046032111587
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
