Description

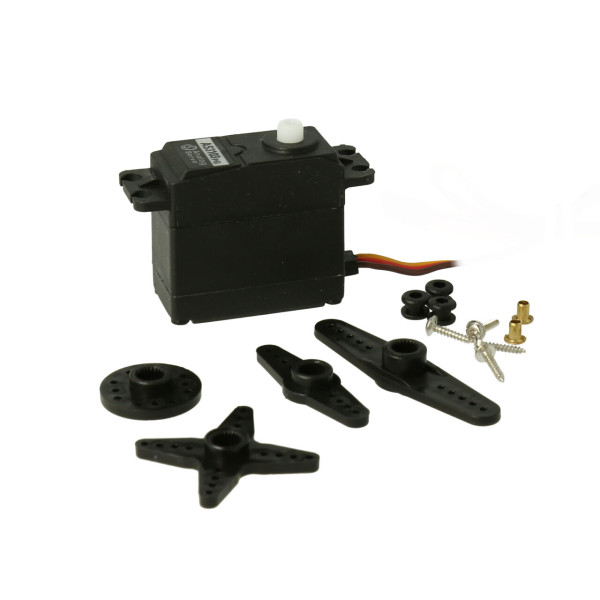

The DSSERVO AS3103-180 is a standard-size PWM digital Servo with a 180° control range.
Highlights
- 3-pole motor with dual ball bearings
- 3 µs deadband
- PWM control at 50–330 Hz
- Suitable for 4.8–6 V operating voltage
Specifications
| Voltage | 4.8 V · 6.0 V |
|---|---|
| Speed | 0.19 s/60° (4.8 V) · 0.22 s/60° (6.0 V) |
| Stall Torque | 5.0 kgcm (4.8 V) · 5.5 kgcm (6.0 V) |
| Motor | 3-pole |
| Gear Ratio | 240 |
| Type | PWM Digital |
| Control Frequency | 50–330 Hz |
|---|---|
| Bearings | Dual |
| Dimensions | 40 × 20 × 37.5 mm |
| Weight | 38.0 g |
| Angle Range | 180° (500–2500 µs PWM) |
Safety & manufacturer
Manufacturer
DS Servo
Item number: DS002
EAN: 4046032111464
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
