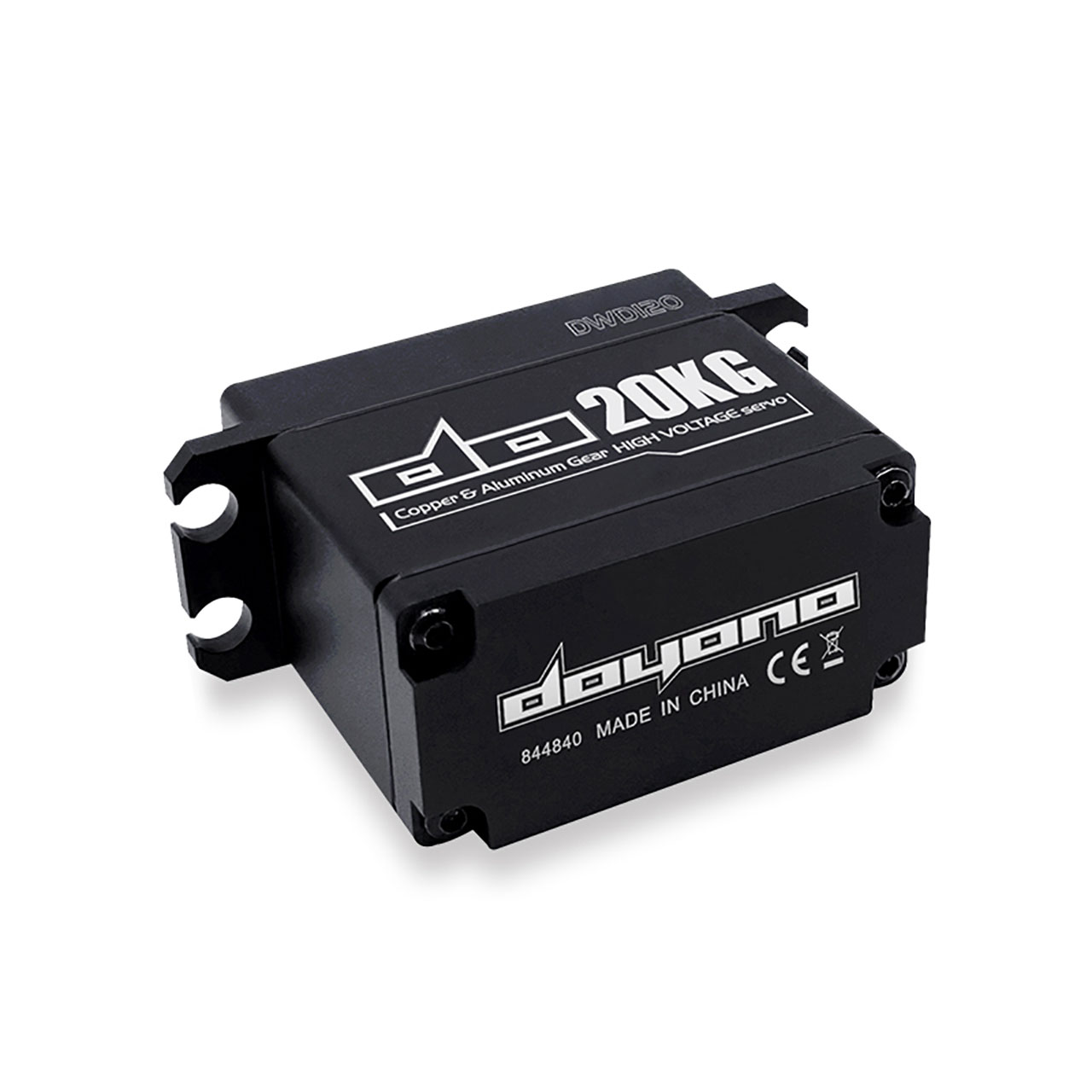

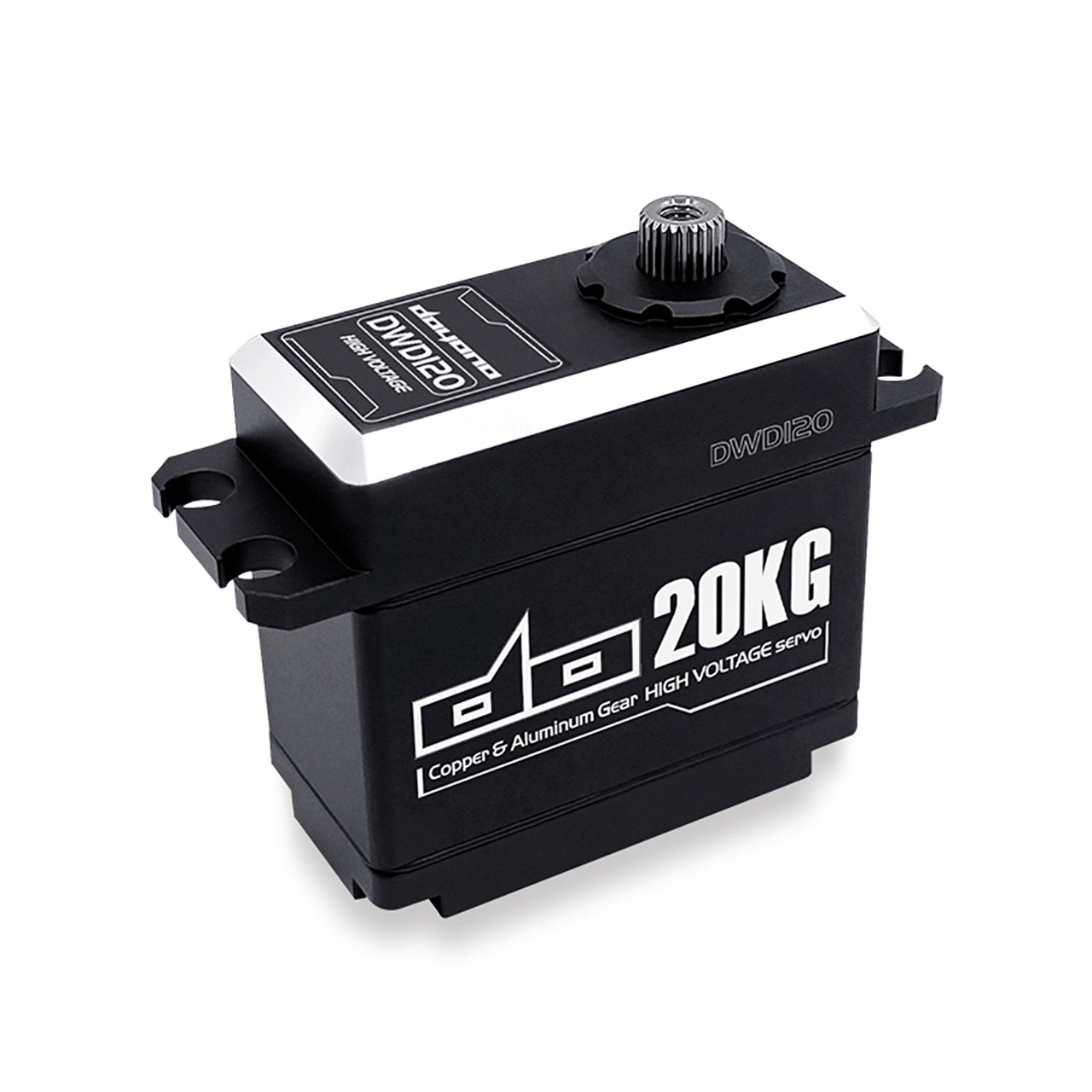

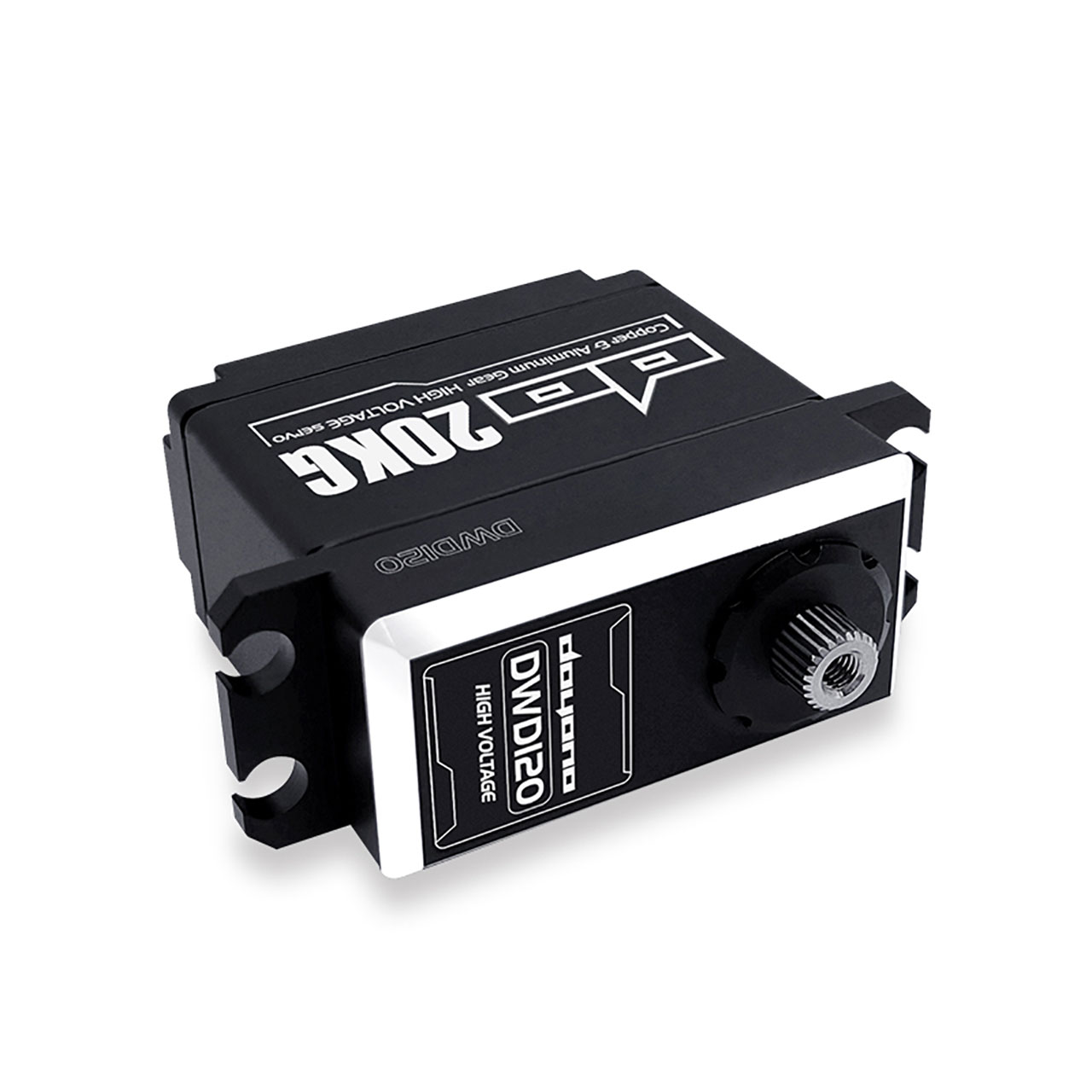

Doyono Digital Servo Waterproof 20.0kg/0.14sec @7.4V
- Part No: DWD120
- Retail: €39.90
- EAN: 6959009001201
- Notice: DWD120
Waterproof DC digital servo with 20.0 kgcm torque at 7.4 V The Doyono DC digital servo has... more
Product information "Doyono Digital Servo Waterproof 20.0kg/0.14sec @7.4V"
Waterproof DC digital servo with 20.0 kgcm torque at 7.4 V
The Doyono DC digital servo has aluminium and copper gears and an aluminium housing.
Highlights
- DC digital servo
- Durable aluminium and copper gears
- Lightweight aluminium housing
- Waterproof
- Operating voltage: 6.0–7.4 V
- 2 µs dead band, 1520 µs neutral point
- 360 mm connection wire length
Specifications
| Voltage | 6.0 V · 7.4 V |
| Speed | 0.16 s (6.0 V) · 0.14 s (7.4 V) |
| Torque | 15.0 kgcm (6.0 V) · 20.0 kgcm (7.4 V) |
| Motor | DC |
| Gears | Aluminium / Copper |
| Bearings | yes, dual |
| Max. Travel | ~130° (at 800: 2200 µs) |
| Quiescent Current | 40 mA at 6.0 V |
| Rated Current | 0.7 A at 6.0 V |
| Stall Current | 3.2 A at 6.0 V |
| Dimensions | 40.7 × 20.5 × 38.9 mm |
| Weight | 84.0 g |
| Spline | 25T |
| Application | RC Crawler |
