Brand:

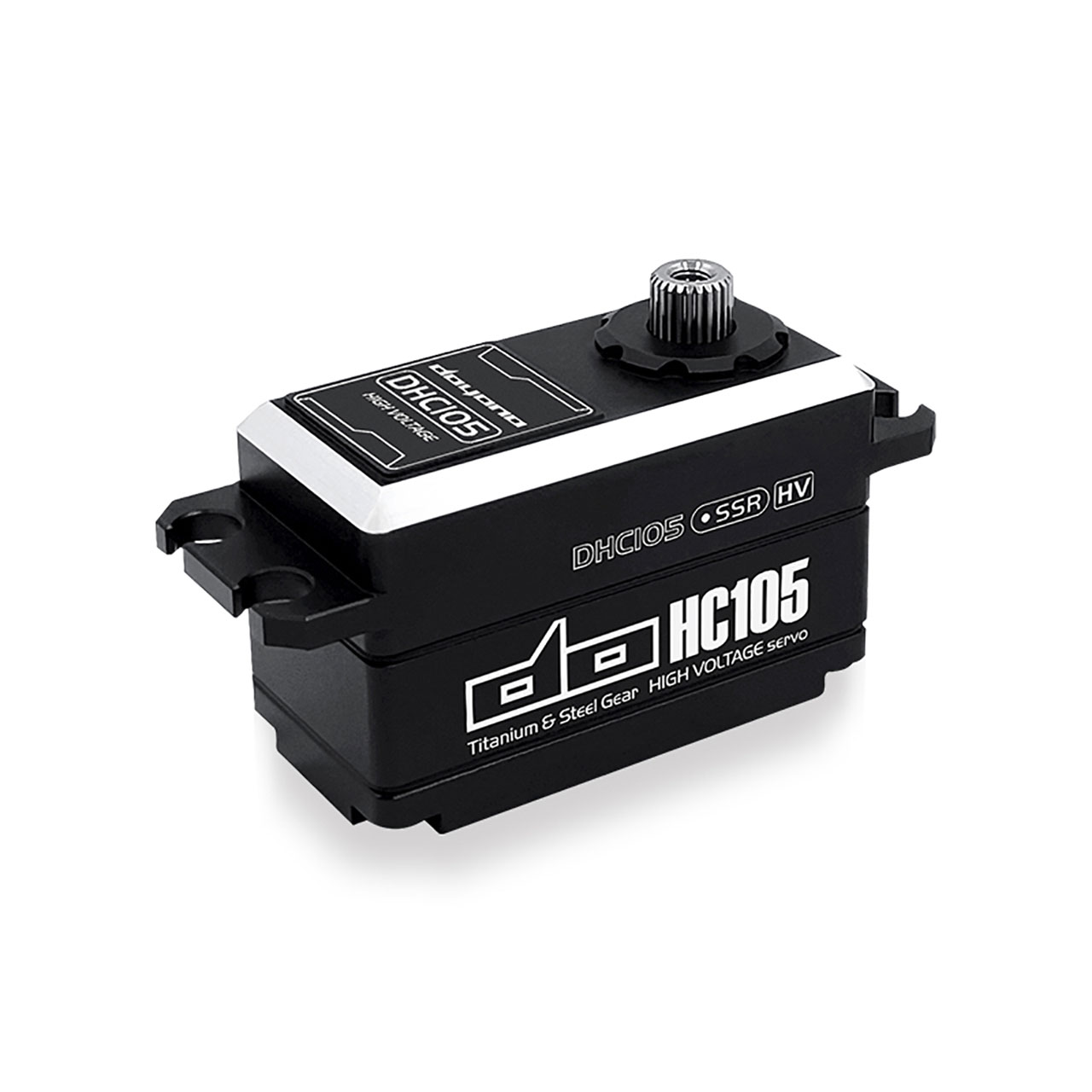

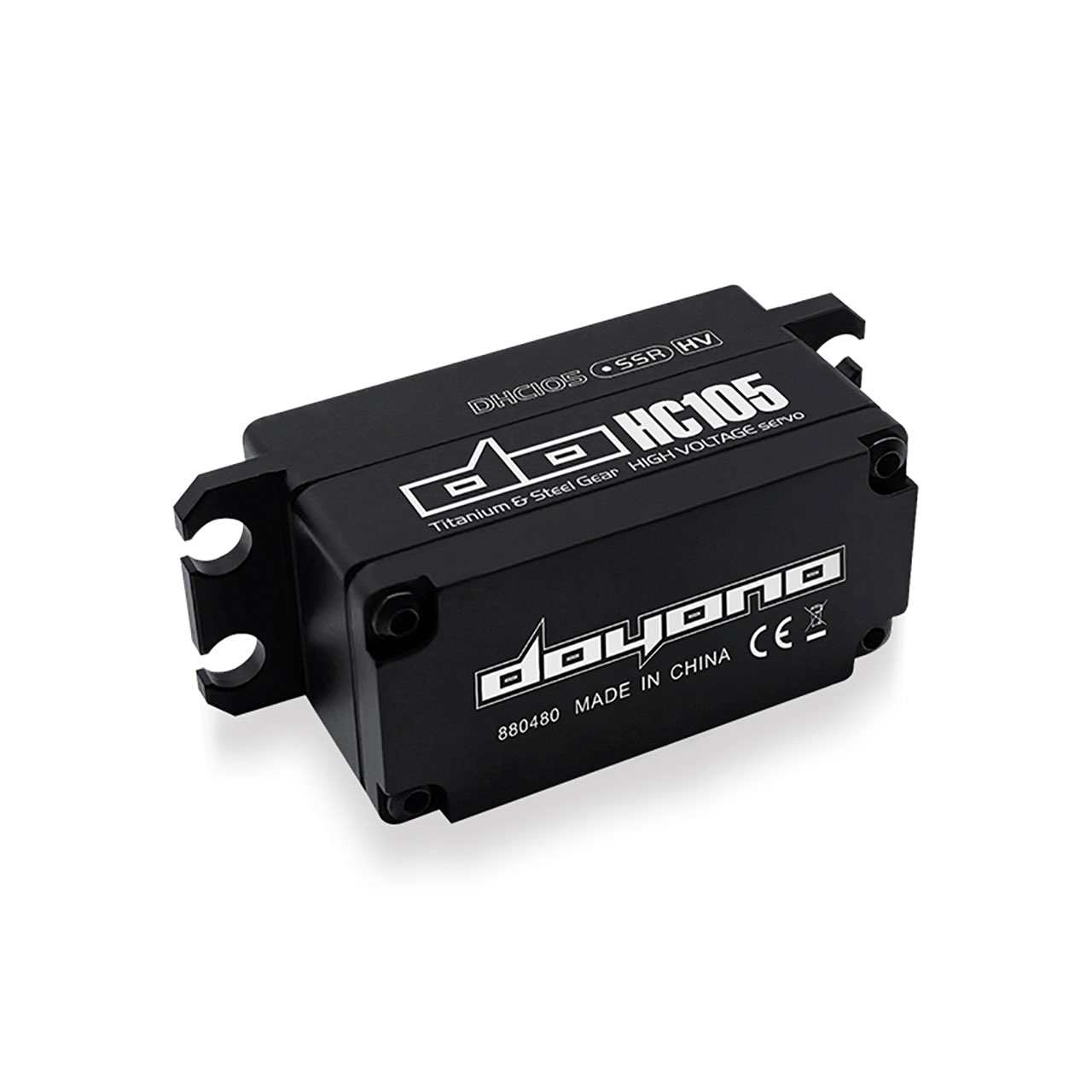

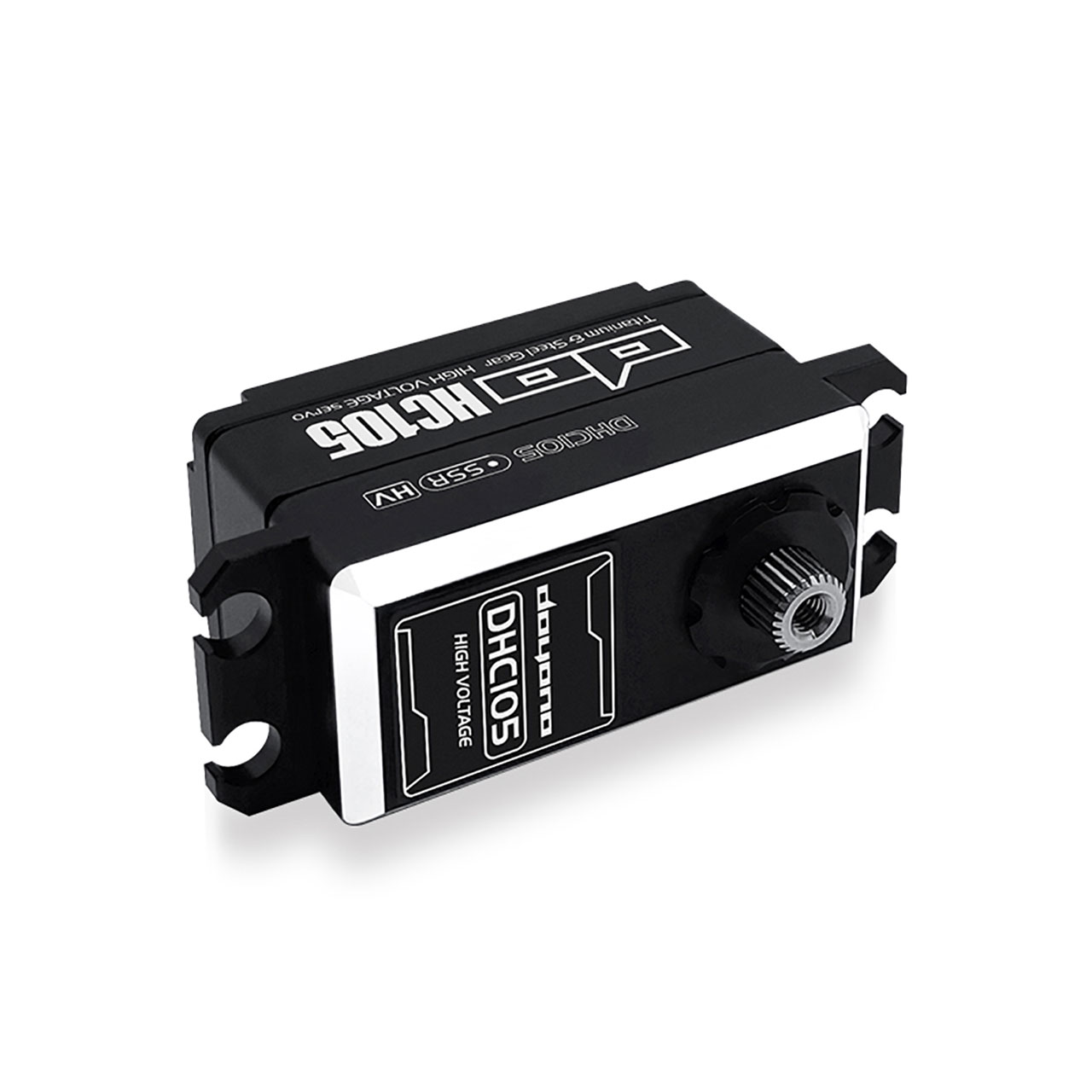

Coreless Servo HV Low Profile CNC aluminium case 26.0kg/0.09
High-voltage low-profile servo with titanium and steel gears and aluminium case
- Item number
- DHC105
- EAN
- 6959009001058
€58.90incl. VAT, plus shipping
RRP €58.90
Description
The Doyono high-voltage low-profile servo delivers up to 26.0 kgcm of torque. It has a coreless motor, titanium and steel gears and an aluminium case.
Highlights
- High-voltage servo
- Titanium and steel gears
- Lightweight aluminium housing
- Operating voltage: 6.0–8.4 V
- 2 µs dead band, 1520 µs neutral point
Specifications
| Speed | 0.105 s (6.0 V) · 0.09 s (8.4 V) |
|---|---|
| Torque | 15.0 kgcm (6.0 V) · 26.0 kgcm (8.4 V) |
| Motor | Coreless |
| Gears | Titanium / Steel |
| Bearings | yes, dual |
| Max. Travel | ~115° (at 800: 2200 µs) |
| Quiescent Current | 4 mA @ 6.0 V |
| Rated Current | 0.2 A @ 6.0 V |
|---|---|
| Stall Current | 2.6 A @ 6.0 V |
| Dimensions | 41.0 × 20.0 × 26.3 mm |
| Weight | 55.0 g |
| Spline | 25T |
| Application | 1/10 On-Road and Off-Road |
| Connection Wire Length | 180 mm |
Safety & manufacturer
Manufacturer
Doyono
Item number: DHC105
EAN: 6959009001058
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
