Coreless Servo HV Waterproof 40.0kg/0.18sec @7.4V
Waterproof high-voltage coreless servo with 40.0 kgcm torque at 7.4 V
- Item number
- DWC135
- EAN
- 6959009001355
€55.90incl. VAT, plus shipping
RRP €55.90
Description

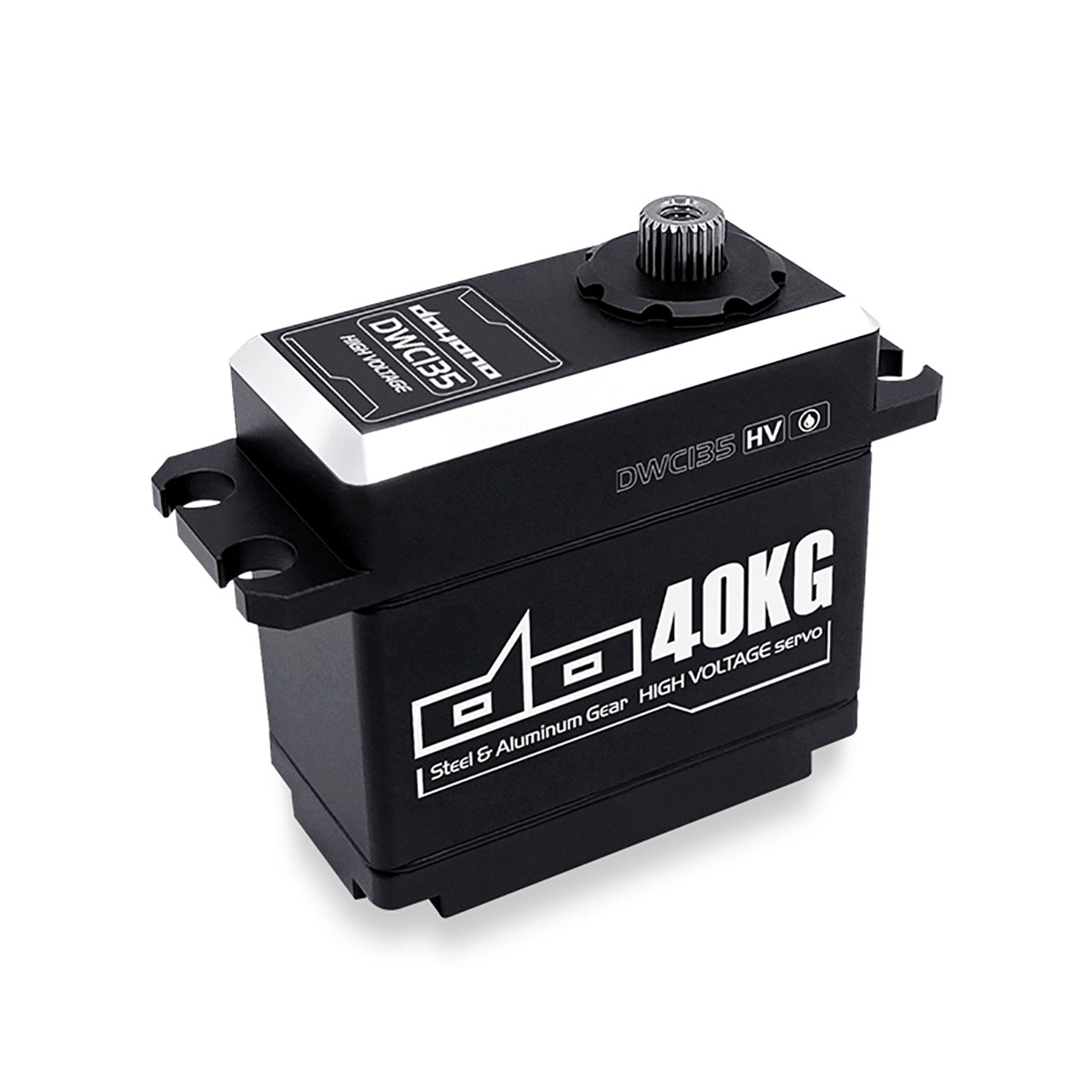

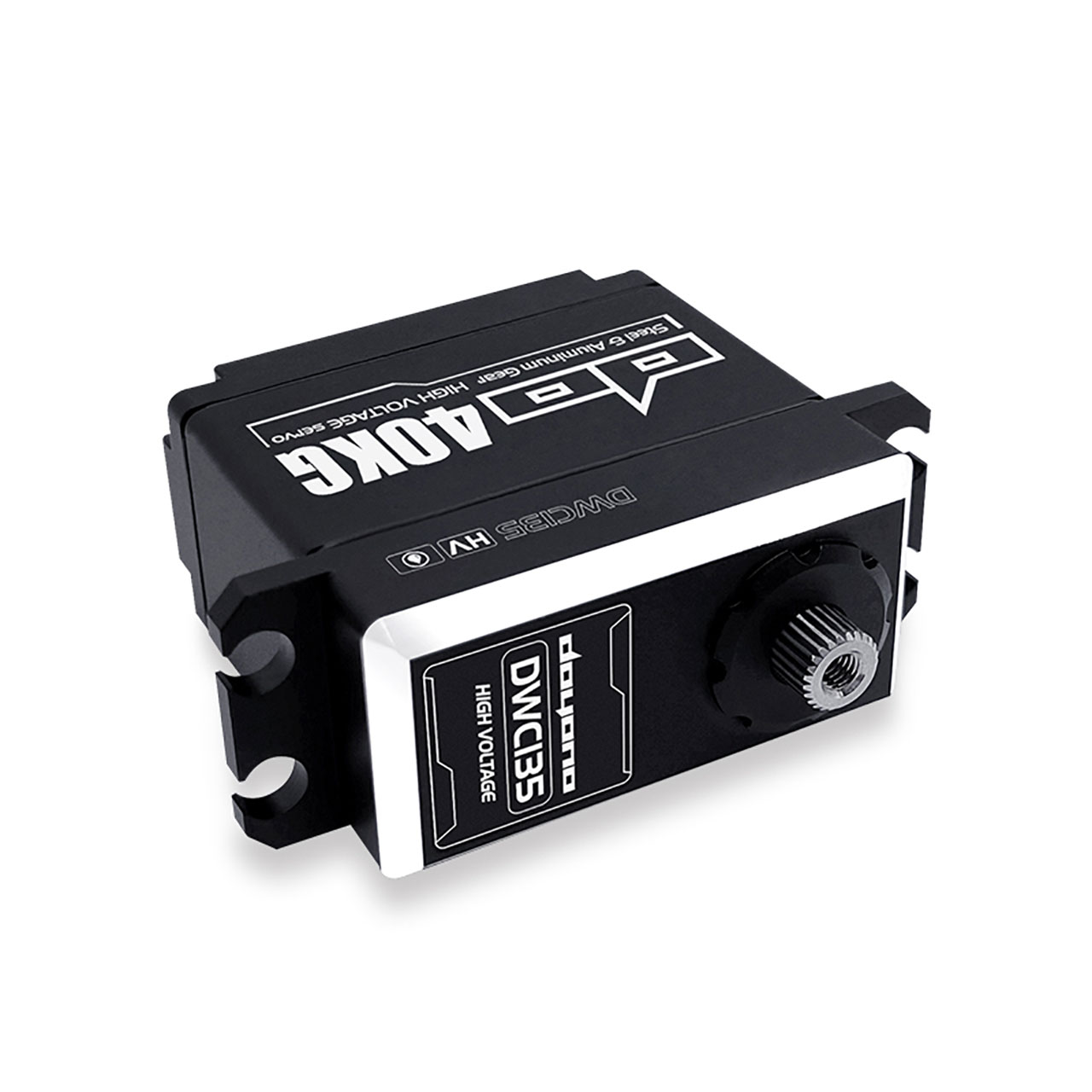

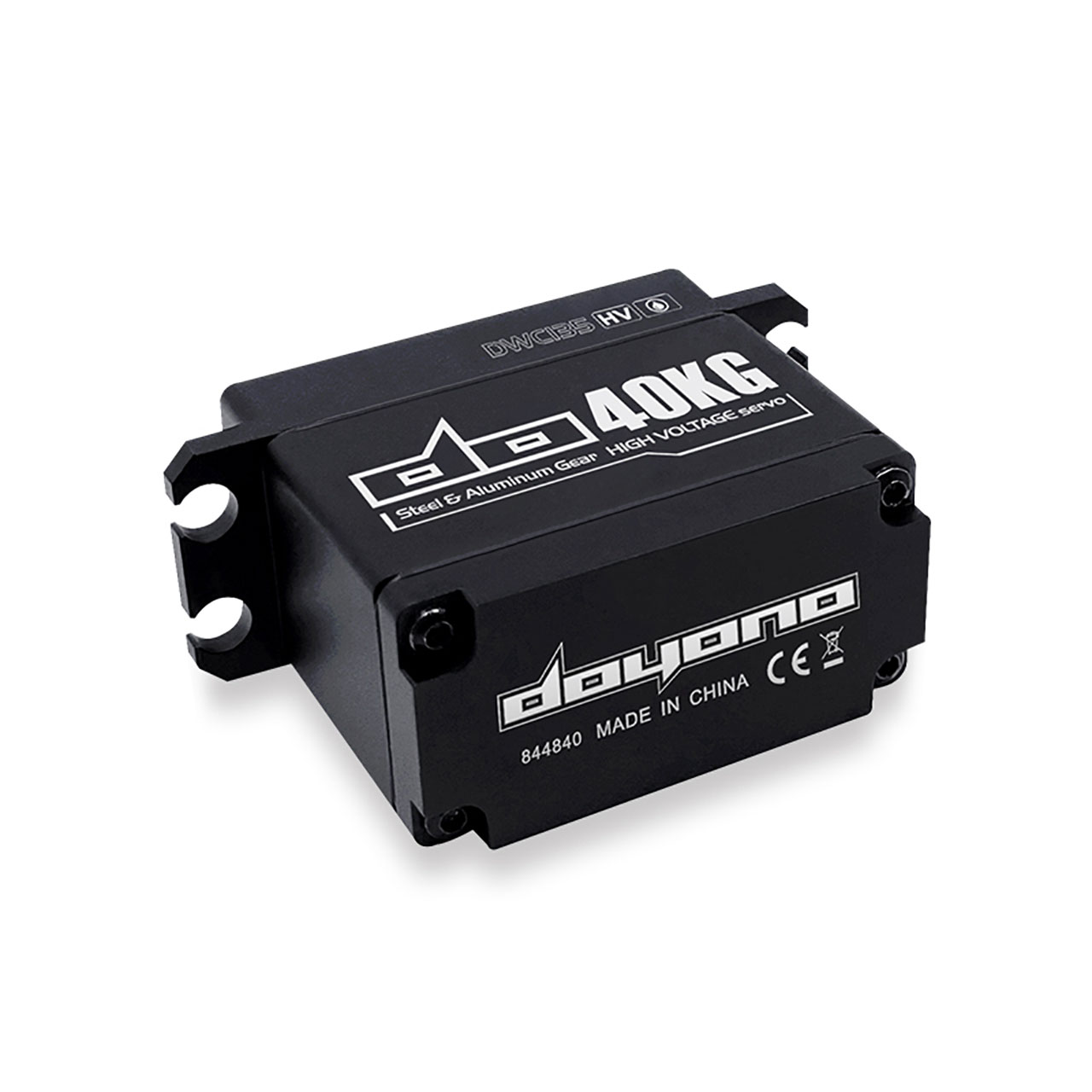

The Doyono high-voltage servo has a coreless motor, aluminium and steel gears, and an aluminium housing. It is waterproof and delivers up to 40 kgcm of torque.
Highlights
- High-voltage Servo
- Durable aluminium and steel gears
- Lightweight aluminium housing
- Waterproof
- Operating voltage: 6.0–7.4 V
- 2 µs dead band, 1520 µs neutral point
- 360 mm connection wire length
Specifications
| Speed | 0.21 sec (6.0 V) · 0.18 sec (7.4 V) |
|---|---|
| Torque | 33.0 kgcm (6.0 V) · 40.0 kgcm (7.4 V) |
| Motor | Coreless |
| Gears | Aluminium / Steel |
| Bearings | yes, dual |
| Max. Travel | ~110° (at 800: 2200 µs) |
| Quiescent Current | 40 mA @ 6.0 V |
| Rated Current | 0.2 A @ 6.0 V |
|---|---|
| Stall Current | 2.5 A @ 6.0 V |
| Dimensions | 40.7 × 20.5 × 38.9 mm |
| Weight | 84.0 g |
| Spline | 25T |
| Application | RC Crawler, 1/10 and 1/8 Off-Road, Electric Boats |
Safety & manufacturer
Manufacturer
Doyono
Item number: DWC135
EAN: 6959009001355
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
