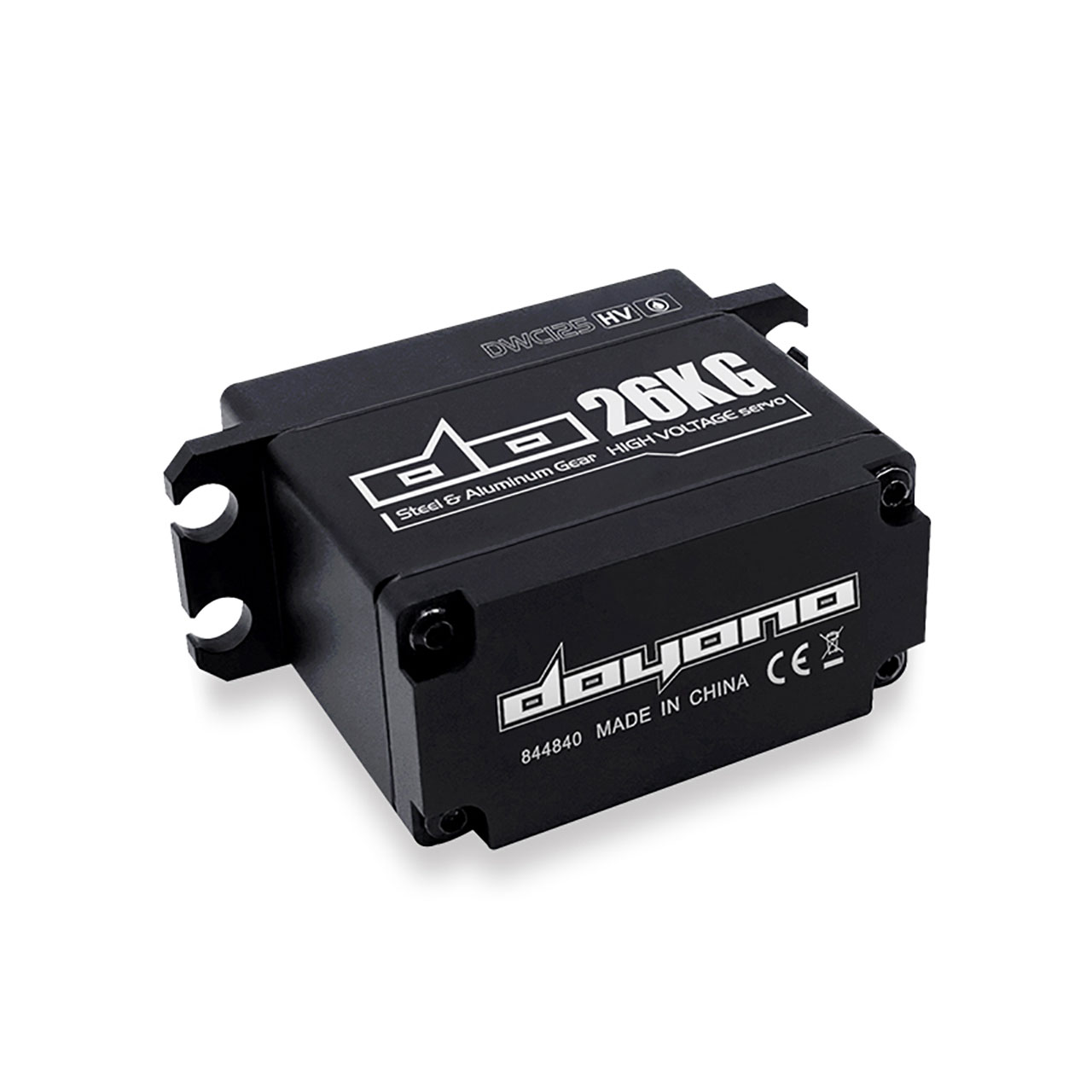

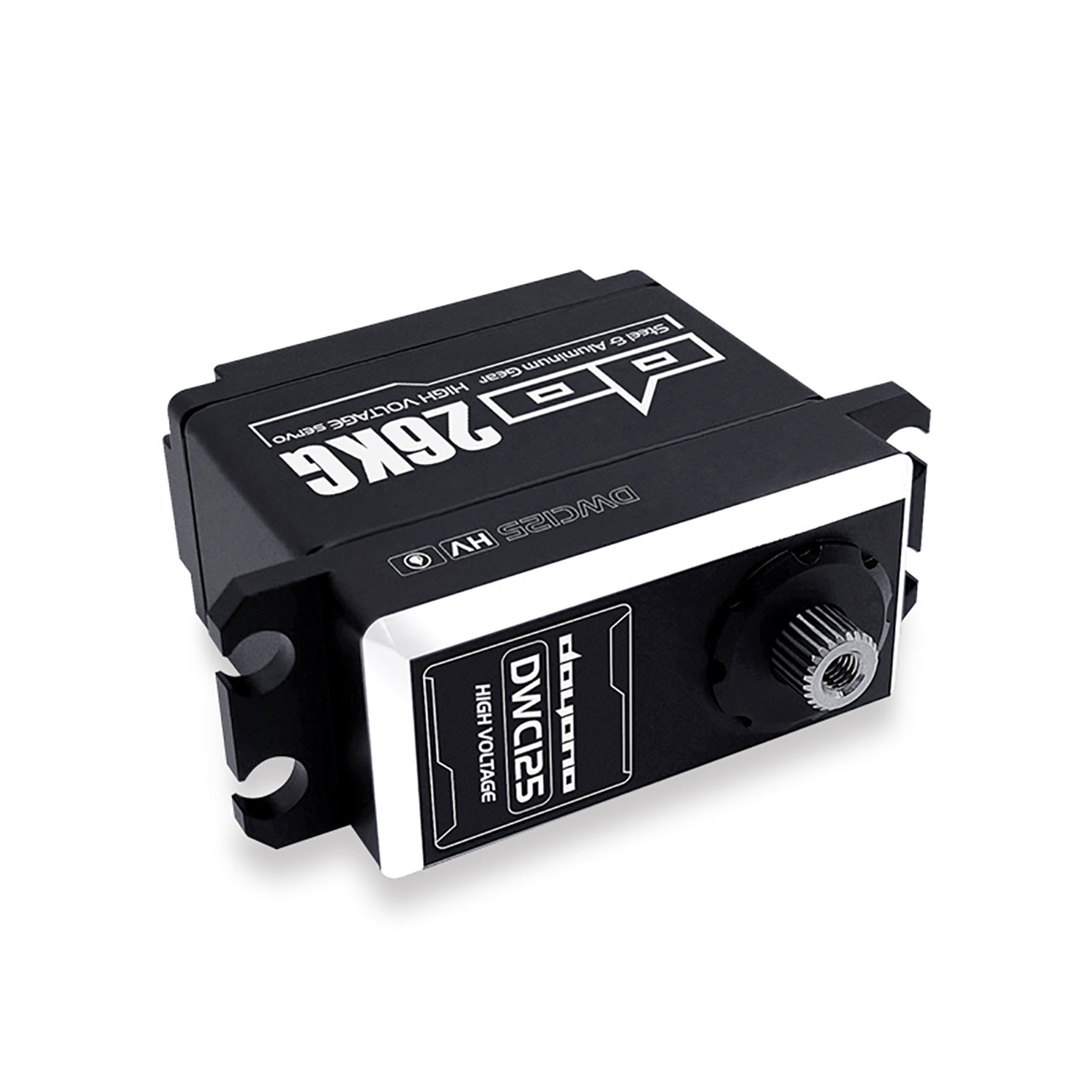

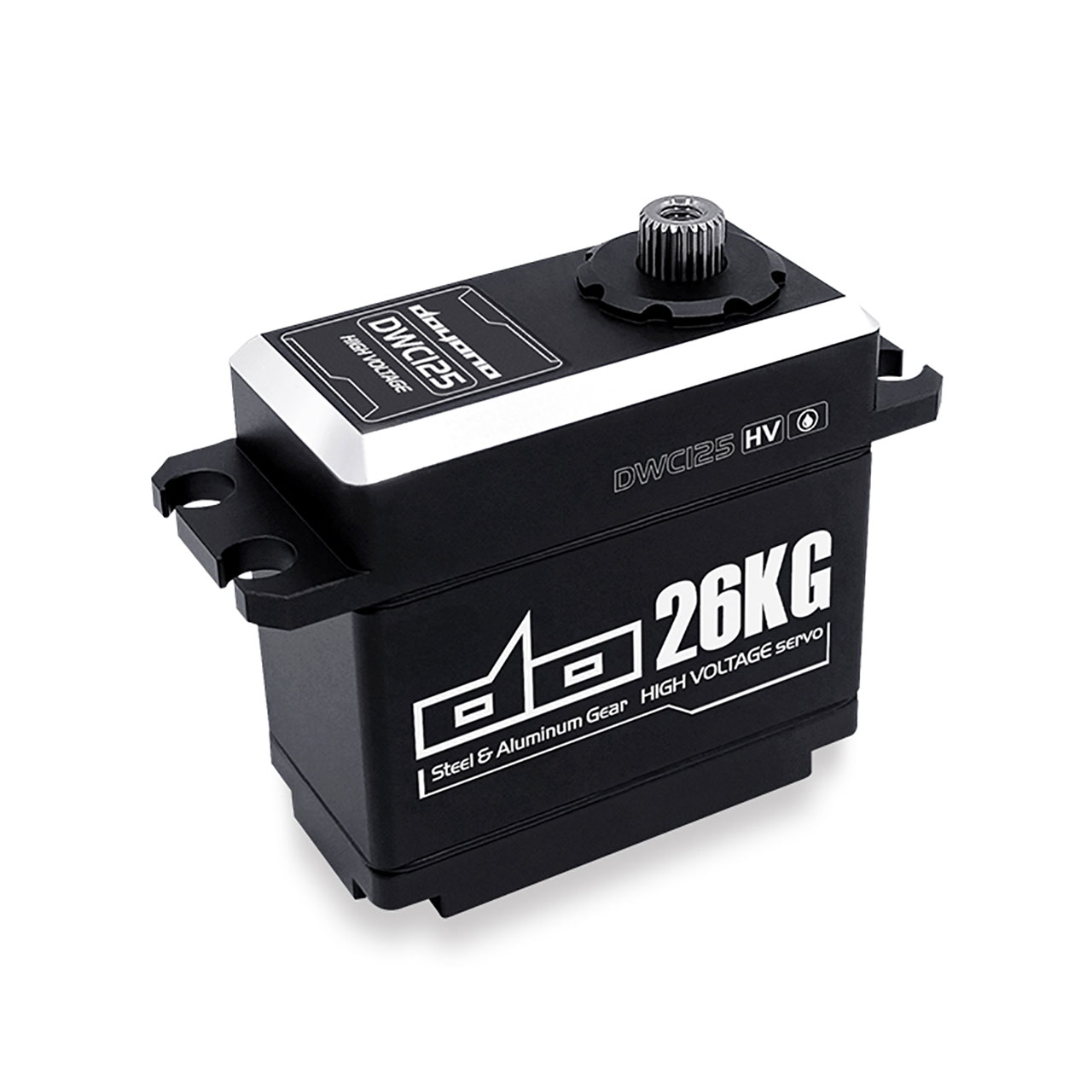

Doyono Coreless Servo HV Waterproof 26.0kg/0.14sec @7.4V

€67.90 *

Prices incl. VAT plus shipping costs

Ready to ship, Stock Amount: 8 pcs

  • DWC125
  • €67.90
  • 6959009001256
Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 26kgcm... more
Product information "Doyono Coreless Servo HV Waterproof 26.0kg/0.14sec @7.4V"

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 26kgcm and coreless motor has a aluminium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

  • High Voltage Servo
  • Gears made of durable aluminium and steel
  • Lightweight aluminum housing
  • Waterproof
  • Operating Voltage: 6.0-7.4V
  • 2µs dead band, 1520µs neutral point
  • 360mm connection wire length

Technical Specifications:

Voltage:6.0V7.4V
Speed:0.16sec0.14sec
Torque:20.0kgcm26.0kgcm
Motor:Coreless
Gear:Aluminium / Steel
Bearing:yes, dual
Max. Travel:~110° (bei 800: 2200µs)
Quiescent Current:40mA @6.0V
Rated Current:0.2A @6.0V
Blocking Current:2.5A @6.0V
Dimensions:40.7x20.5x38.9mm
Weight:84.0g
Output Gear:25T
Application:RC Crawler
