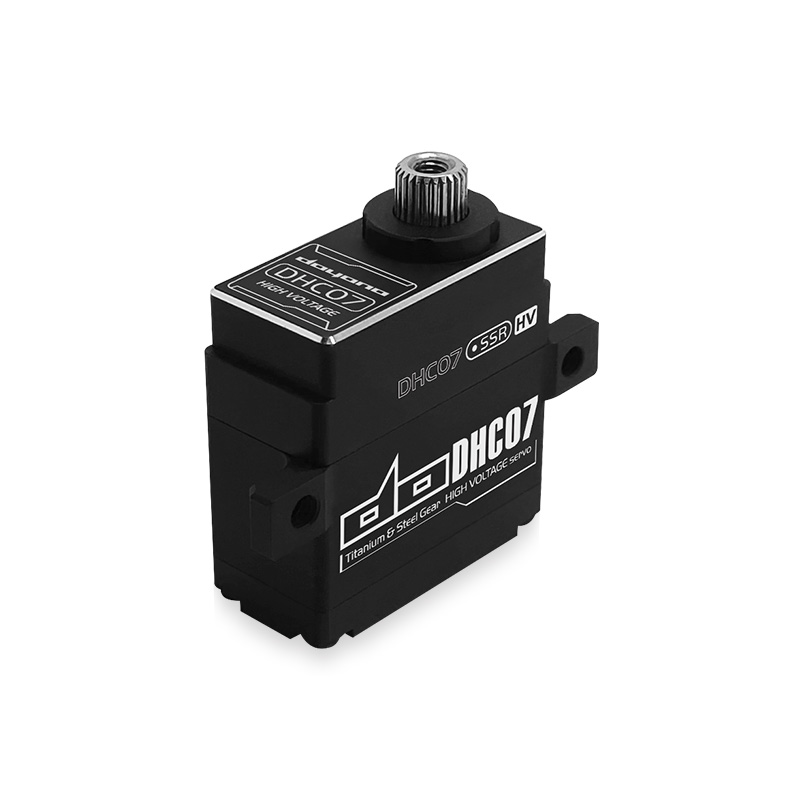

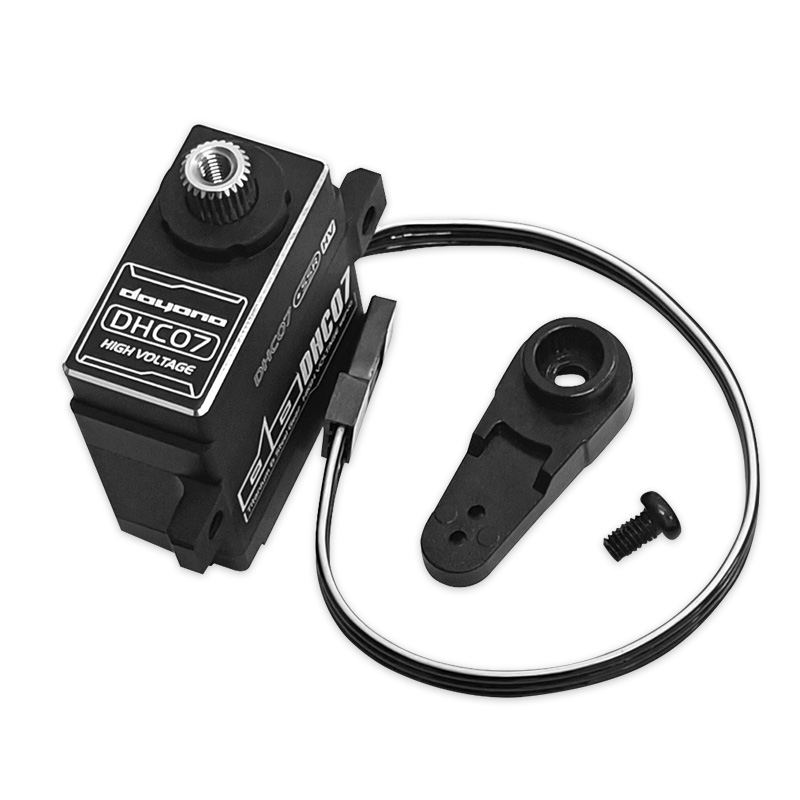

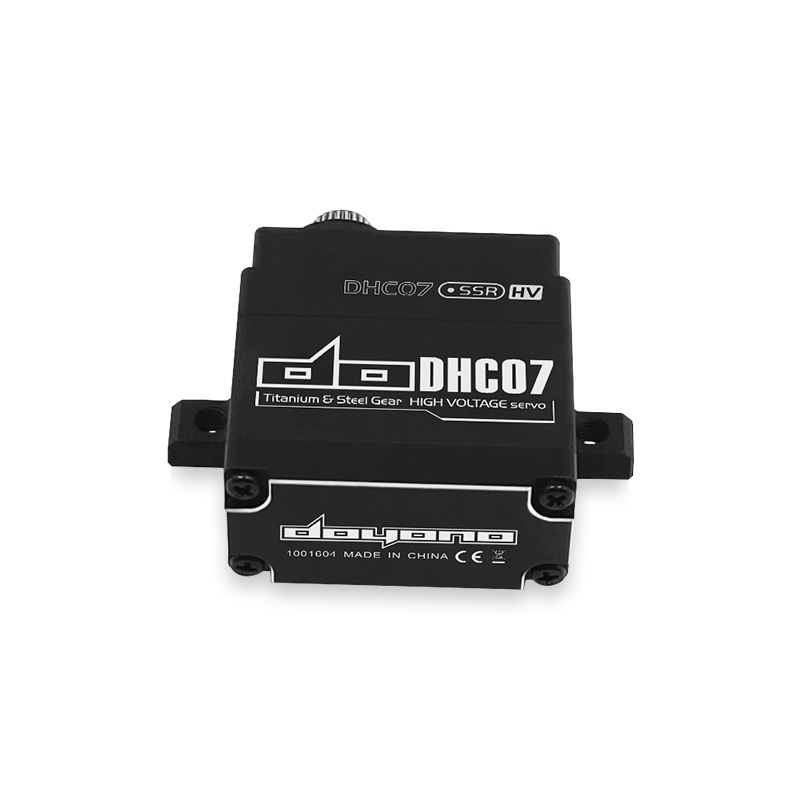

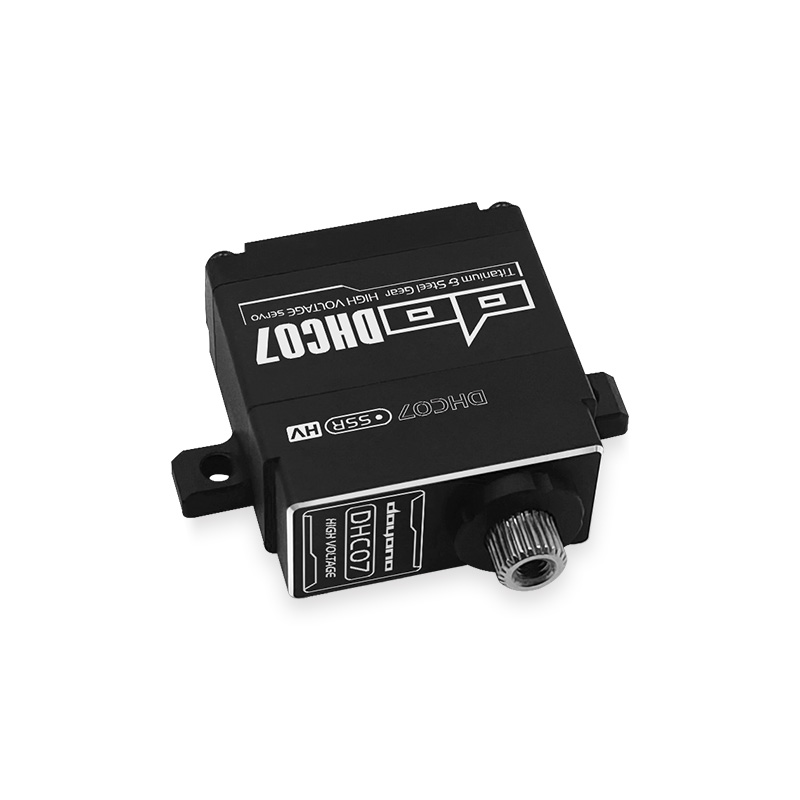

Doyono Coreless Servo HV for 1/12 8.0kg/0.059sec @8.4V
- Part No: DHC07
- Retail: €57.90
- EAN: 6959009070702
- Notice: DHC07
High-voltage coreless servo for 1/12 with 8 kg·cm torque at 8.4 V The Doyono high-voltage... more
Product information "Doyono Coreless Servo HV for 1/12 8.0kg/0.059sec @8.4V"
High-voltage coreless servo for 1/12 with 8 kg·cm torque at 8.4 V
The Doyono high-voltage servo for 1/12 has a coreless motor, titanium and steel gears, and an aluminium housing. It delivers up to 8 kg·cm torque.
Highlights
- High-voltage servo
- Titanium and steel gears
- Lightweight aluminium housing
- Operating voltage: 6.0–8.4 V
- Coreless motor
- 25T output shaft

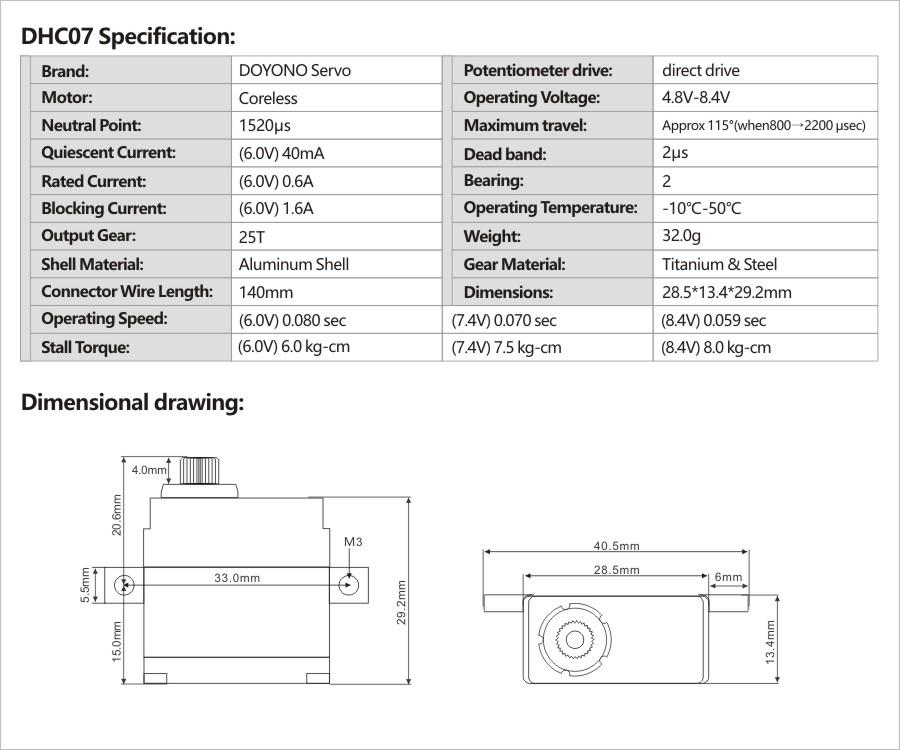

Specifications
| Transit Speed | 0.08 s (6.0 V) · 0.07 s (7.4 V) · 0.059 s (8.4 V) |
| Torque | 6 kg·cm (6.0 V) · 7.5 kg·cm (7.4 V) · 8 kg·cm (8.4 V) |
| Motor | Coreless |
| Gears | Titanium / Steel |
| Bearings | Yes, dual |
| Dimensions | 28.5 × 13.4 × 29.2 mm |
| Weight | 32 g |
| Spline | 25T |
