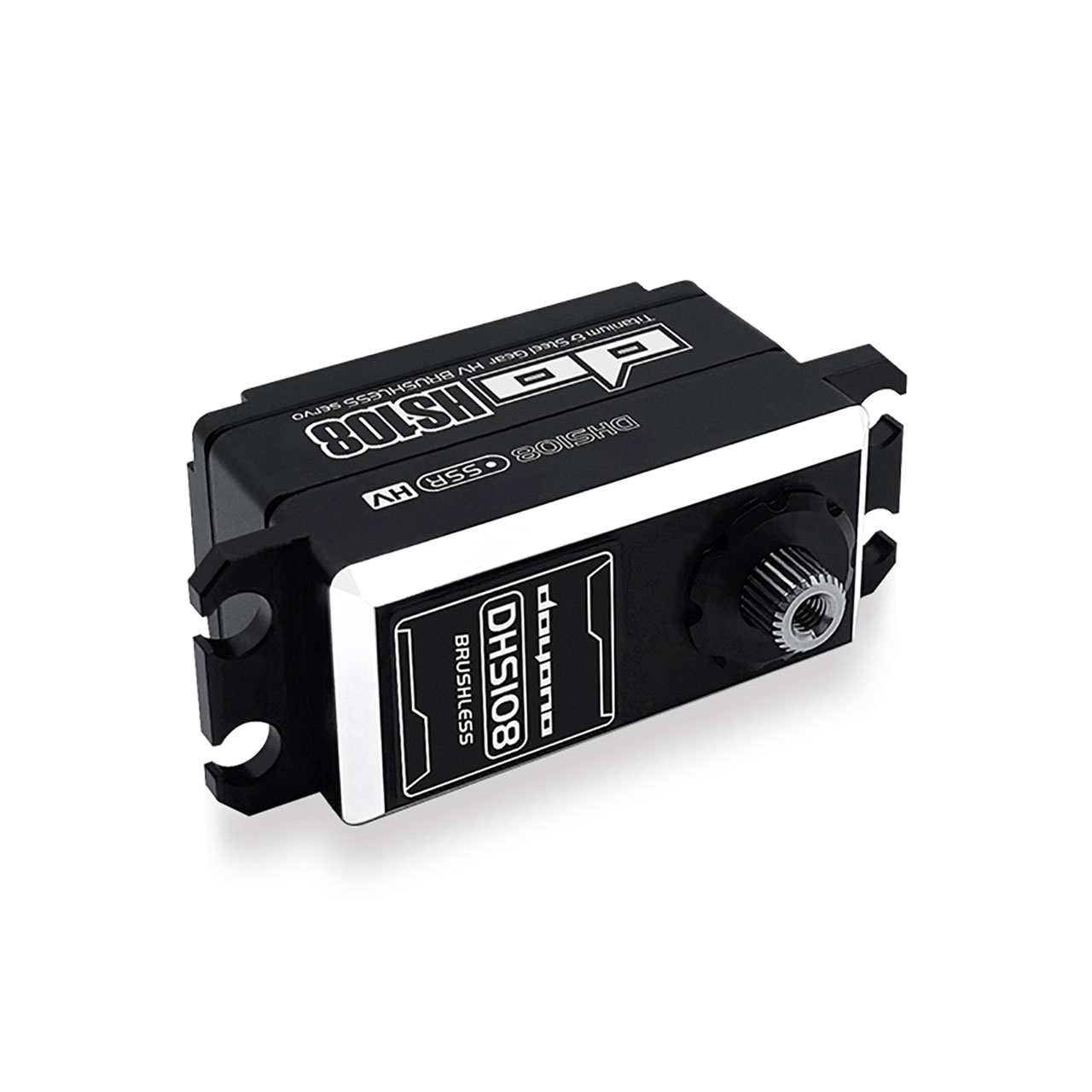

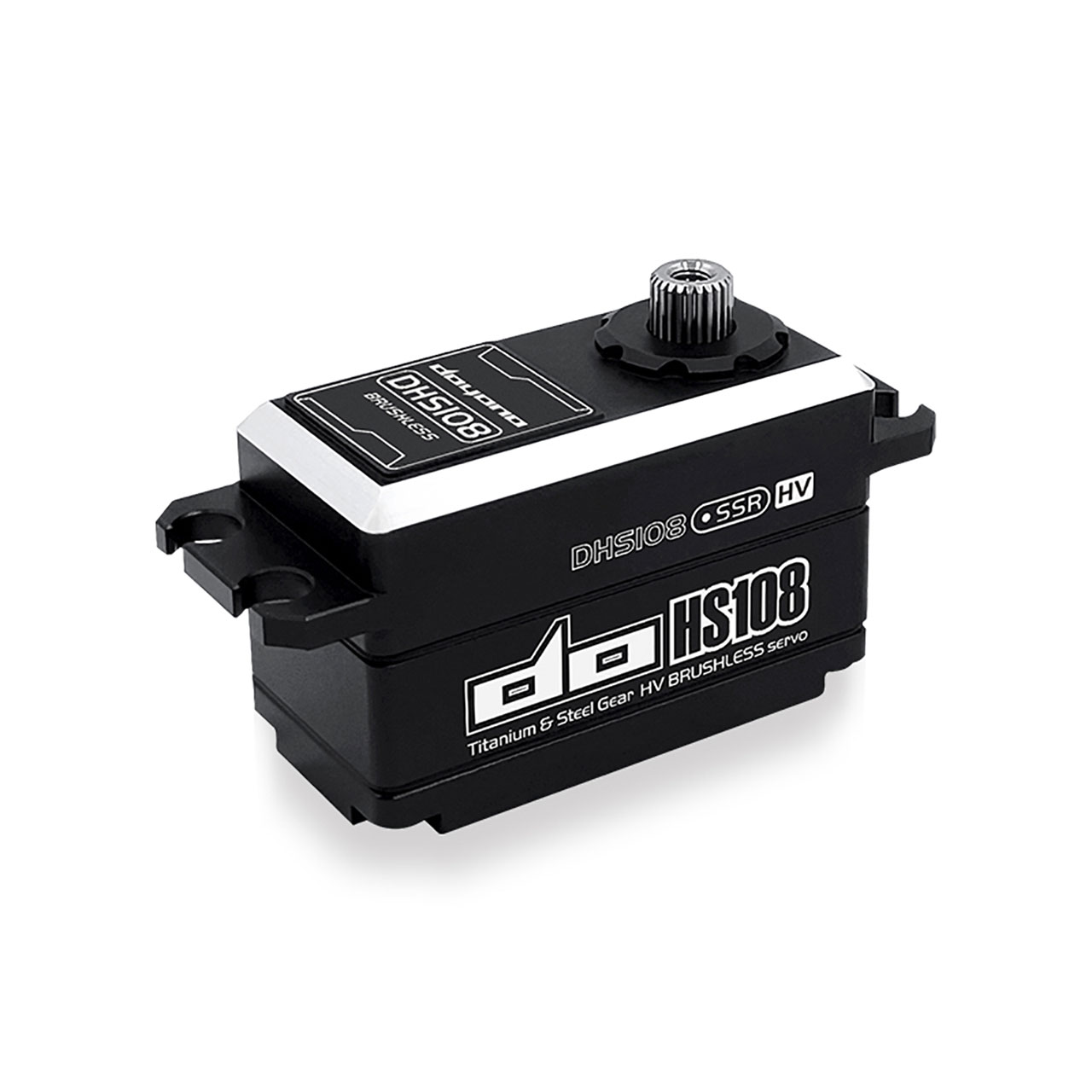

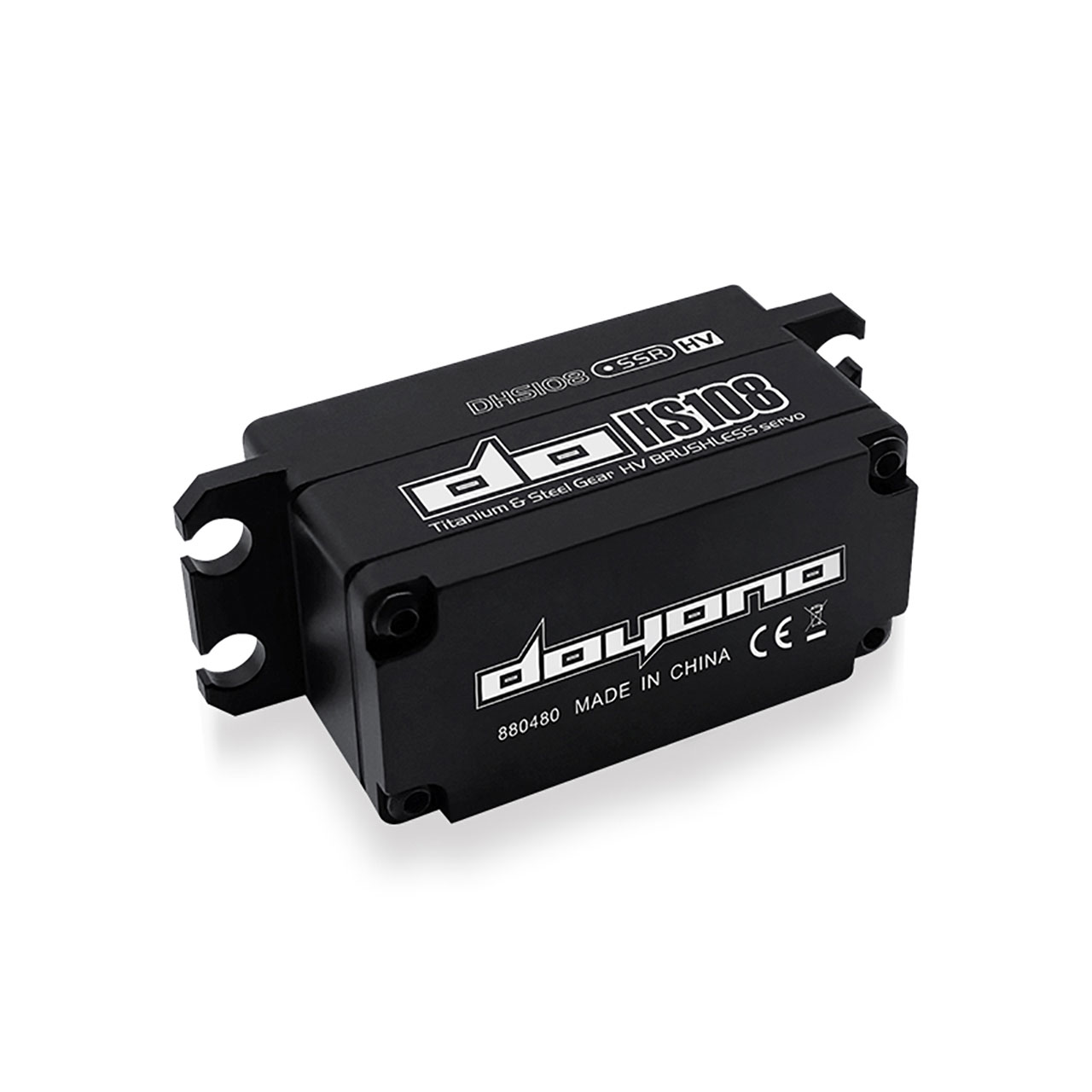

Doyono Brushless Servo HV Low Profile CNC aluminium case 20.0kg/0.055sec @8.4V
- Part No: DHS108
- Retail: €86.90
- EAN: 6959009001089
- Notice: DHS108
Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 20kgcm... more
Product information "Doyono Brushless Servo HV Low Profile CNC aluminium case 20.0kg/0.055sec @8.4V"
Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 20kgcm and brushless motor has a titanium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.
Features:
- High Voltage Servo
- Gears made of durable titanium and steel
- Lightweight aluminum housing
- Operating Voltage: 6.0-8.4V
- 2µs dead band, 1520µs neutral point
- 180mm connection wire length
Technical Specifications:
| Voltage: | 6.0V | 8.4V |
| Speed: | 0.077sec | 0.055sec |
| Torque: | 14.0kgcm | 20.0kgcm |
| Motor: | Coreless | |
| Gear: | Titanium / Steel | |
| Bearing: | yes, dual | |
| Max. Travel: | ~130° (bei 800: 2200µs) | |
| Quiescent Current: | 4mA @6.0V | |
| Rated Current: | 0.2A @6.0V | |
| Blocking Current: | 2.6A @6.0V | |
| Dimensions: | 41.0x20.0x26.3mm | |
| Weight: | 55.0g | |
| Output Gear: | 25T | |
| Application: | 1/10 On-Road and Off-Road | |
